Please note: this model can support processor including:4th/5th/6th/7th/8th generation of i3 / i5 /i7.If you want to know more details,please contact us.
Model name
GY-K81
Processor
CPU
Core I7 8550U(4 cores, 8 Threads)
Base Frequency
1.8GHz
Burst Frequency
4.0GHz
Memory
Technology
Dual Channel DDR4L 2400MHz SODIMM
Capacity
4G/8G/16G/32G

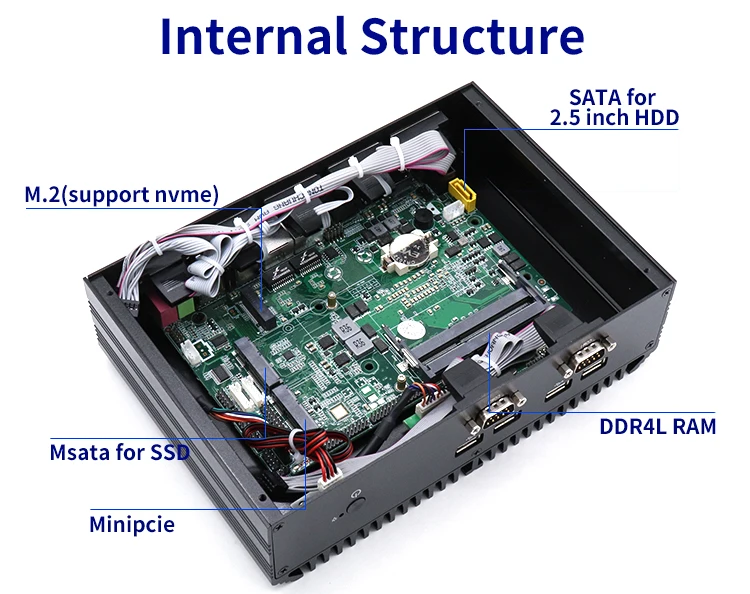

Storage
SATA
Support 1*2.5 inch SATA laptop HDD or SDD
MSATA
16G/32G/64G/128G/256G/512G/1T etc
M.2(support nvme)
16G/32G/64G/128G/256G/512G/1T etc
Graphics
Processor
® UHD Graphics 620

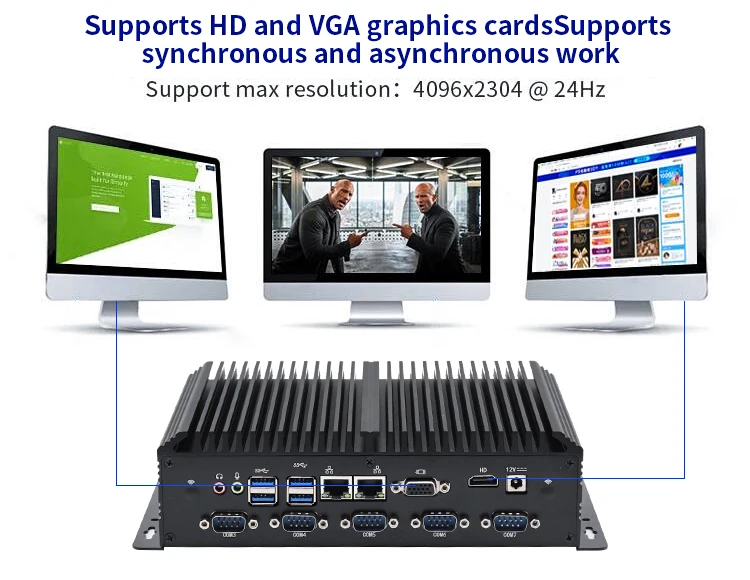

Interface
1*Hd+VGA+LVDS (optional)
Ethernet
LAN
2*RTL8111 Gigabit NIC
WAN

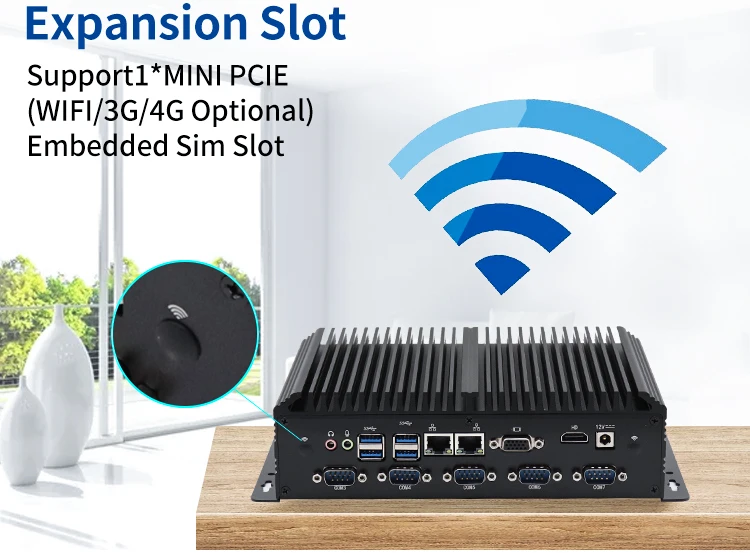

Full height Mini PCIE + 2 external antennas (Optional)
4G
Support (Optional)

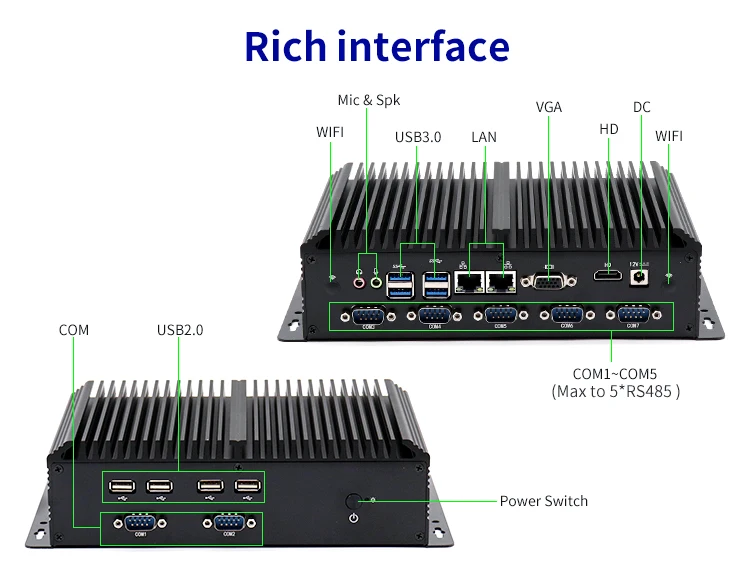

IO interface

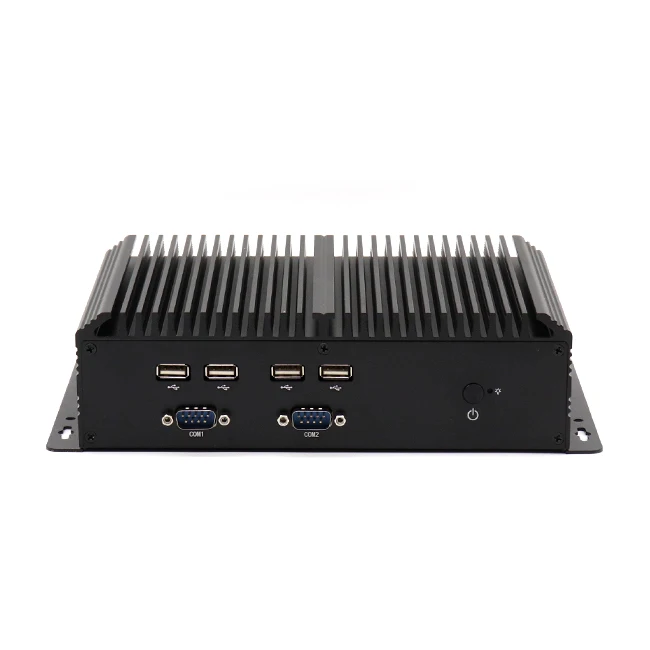

Front side
4*USB2.0,1*SIM card, 1*power

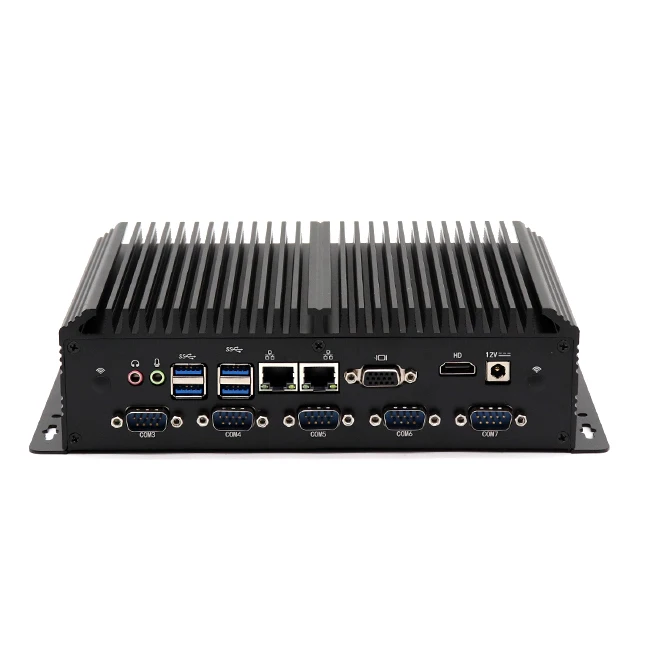

Back side
1*DCIN,2*LAN,1*VGA,2*H,4*USB3.0,1*MIC,1*SPK
Power requirement
Power type
External power adapter mode
Power adapter
12V 5A(Huntkey brand)
TDP
15W
Audio
ALC662
OS support
Win 7, 8, 10 and all kind Linux OS
Chassis
Construction
Aluminum housing
Mounting
4 wall mounting hole

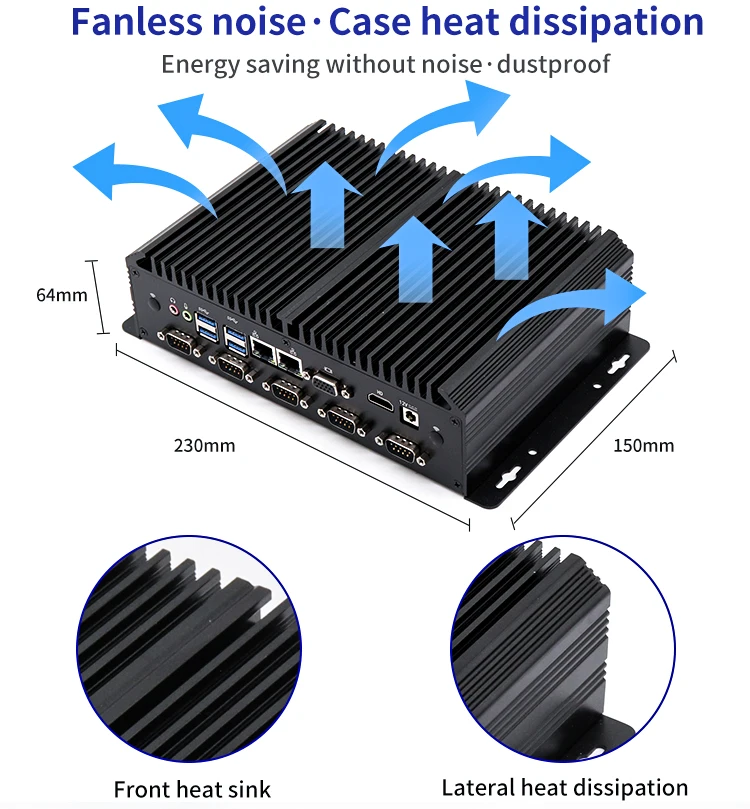

Dimensions
230*150*64mm
Weight
N.G 1.4KG
Working environment
Humidity
5%~95% Relative humidity with non-condensation
Storage temperature
-40~80℃
Working Temperature
-20~60℃
Gross Weight
2.0kg
Certifications
Packaging & Shipping
Our Services
Company Information
FAQ
Q1. Can I get a sample for testing?
Re: Yes ,you can. After paid sample and shipping cost, we will deliver it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 set.
Q3. How many goods in one carton?What is its size?
Re: Our standard carton is 5 sets/ carton, its size is 42*8.5*34.5CM .
Q4. This is my first time buying computers, could you provide some advice?
Re: Yes, it's our pleasure. Different use have different options, pls contact us to get more details
Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.
Q6. Can you print my logo on the mini computer and customize logo on boot-screen?
Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen.
Q7.What is your warranty? Re:All of our devices warranty is for 3 years.
Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q9. Do you have FCC,CE,ROSH Certificates?
Re: Yes, we have all of them.
Q10. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty)
