Fast high quality printed 94vo led PCB blank board

Product Overview

Description

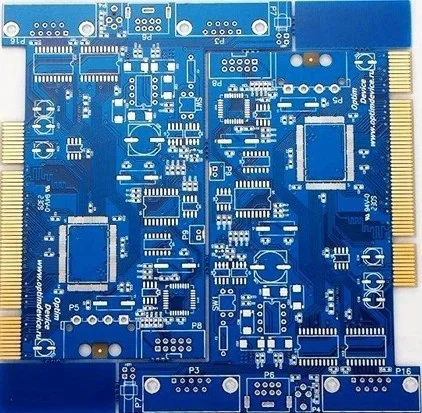

Fast high quality printed 94vo led PCB blank board







- Contract Manufacturing

- Engineering Services

- PCB Design & Assembly

- Component Procurement & Material Management

- Product Design

- Fast Track Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

- Function Testing Service



2.Detailed Specification of 94vo LED PCB Manufacturing



Product Name	OEM /ODM Circuit Board Prototype pcb fabrication factory from China Shenzhen
Materials	FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum/F4B-2
Number of Layer	1-12 layers (include Rigid-Flex PCB)
Board Thickness	Rigid 0.15mm-3.00mm
Board Thickness Tolerance	5-10%
Profile Processing	CNC Milling/V-Cut/Mold Flushes
Copper Weight Tolerance	±0.15 oz
Copper Thickness	0.5oz-5oz
Min Line Width	0.1mm
Min Space Width	0.127mm
Min Drill Hole Diameter	0.1mm
Max Processing Sheer	600mm*400mm
Silk Screen Min Line Width	0.15mm
Anti-welds resin	Thermosetting resin/Without the gloss resin/Photosensitive resin
Soldermask	green,red,blue,white,black,yellow,etc.
Flame resistance	94v0
Certification	ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640
Approval Standard	IPC-600F
Suface Finish	HASL/Nickle/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG/Rosin etc





3.Technical Requirement for pcb circuit boards Assembly



1.Professional Surface-mounting and Through-hole soldering Technology

2.Various sizes like 1206,0805,0603 components SMT technology

3.ICT(In Circuit Test),FCT(Functional Circuit Test) technology

4.PCB Assembly With UL,CE,FCC,Rohs Approval

5.Nitrogen gas reflow soldering technology for SMT

6.High Standard SMT&Solder Assembly Line

7.High density interconnected board placement technology capacity



4.Quote&Production Requirement



1.Gerber File or PCB File for Bare PCB Board Fabrication

2.Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly

3.To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.

4.Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate



5.OEM/ODM/EMS Services



1.PCBA, PCB assembly: SMT & PTH & BGA

2.PCBA and enclosure design

3.Components sourcing and purchasing

4.Quick prototyping

5.Plastic injection molding

6.Metal sheet stamping

7.Final assembly

8.Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

9.Custom clearance for material importing and product exporting

Other  PCB Assembly



6.Equipments



1.SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4

2.Reflow Oven: FolunGwin FL-RX860

3.Wave Soldering Machine: FolunGwin ADS300

4.Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service

5.Fully Automatic SMT Stencil Printer: FolunGwin Win-5
