Liuzhou Lingqiao Prestressed Concrete Post Tensioning PC Steel Wire Anchor Wedges
- Category: >>>
- Supplier: Liuzhou Lingqiao Prestressed Machinery Co. Ltd.
Share on (62443567512):
Product Overview
Description
Product Description
Liuzhou Lingqiao Prestressed Concrete Post Tensioning PC Steel Wire PT Anchor Wedges
Prestressed anchors can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.
Pre-stressing tendon can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.
Our company can design and produce anchorages of any specifications in accordance with demands of customers.
Wide applications it is adaptable for strands with diameters from Φ9.5mm to Φ21.6mm ,with standard strength of 2000Mpa or lower.With Compacted structure ,easy operation , safety and laborsaving , high anchoring efficiency and reliable anchorage.

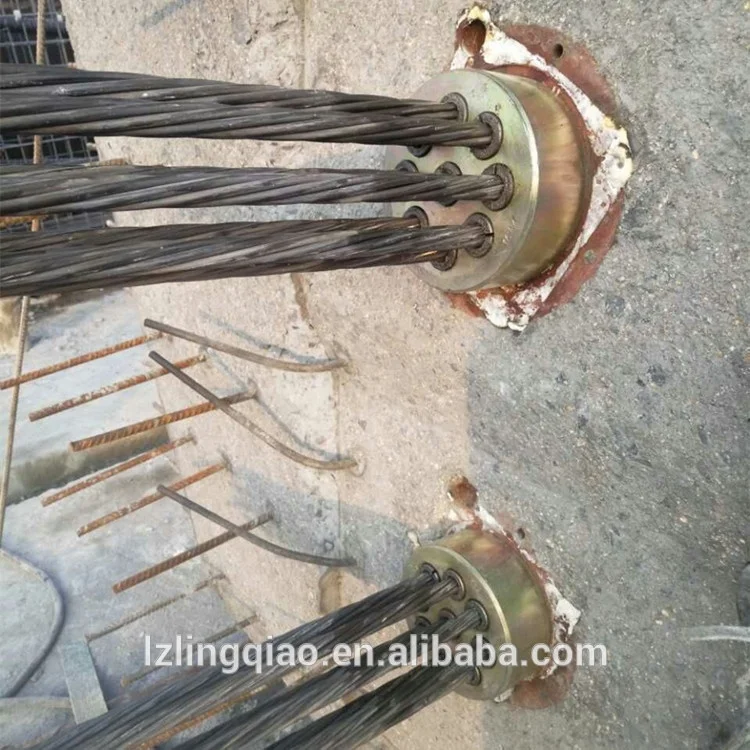

Which is widely used for different projects ,such as road and railway bridge, large scale industrial factory, high rise building,Hydroelectric dam , geotechnical engineering, etc.
M15 Tensioned Working Anchor Technical Parameters | ||||||||
Type | Anchor Head φE×L | Anchor Spacer φA×BxφC | Spiral Reinforcement φG×φH×I×N | Bellows Inner Diameter φD | ||||
M15-2 | 83×46 | 130×110x110 | 120×6.5×40×4 | 45 | ||||
M15-3 | 87×46 | 130×110x110 | 120×6.5×50×4 | 50 | ||||
M15-4 | 96×46 | 145×120x121.5 | 130×8×50×4 | 55 | ||||
M15-5 | 105×46 | 160×130x129 | 130×8×50×4 | 55 | ||||
M15-6 | 117×46 | 168×150x148 | 150×10×50×4 | 70 | ||||
M15-7 | 125×50 | 180×150x149 | 150×10×50×4 | 70 | ||||
M15-8 | 135×50 | 195×160x159 | 160×12×50×4 | 80 | ||||
M15-9 | 145×52 | 208×160x169 | 160×12×50×4 | 80 | ||||
M15-10 | 157×55 | 220×180x185 | 180×12×50×4 | 90 | ||||
M15-11 | 157×55 | 225×190x185 | 180×12×50×4 | 90 | ||||
M15-12 | 165×58 | 235×190x194 | 190×12×50×5 | 90 | ||||
M15-13 | 166×60 | 235×190x194 | 190×12×50×5 | 90 | ||||
M15-14 | 177×62 | 235×215x210 | 210×12×60×5 | 90 | ||||
M15-15 | 177×64 | 235×215x210 | 210×12×60×5 | 90 | ||||
M15-16 | 187×66 | 245×235x220 | 220×14×60×5 | 90 | ||||
M15-17 | 187×66 | 245×235x220 | 220×14×60×5 | 90 | ||||
M15-18 | 196×70 | 265×235x235 | 230×14×60×5 | 100 | ||||
M15-19 | 196×70 | 260×235x235 | 230×14×60×5 | 100 | ||||
Detailed Images

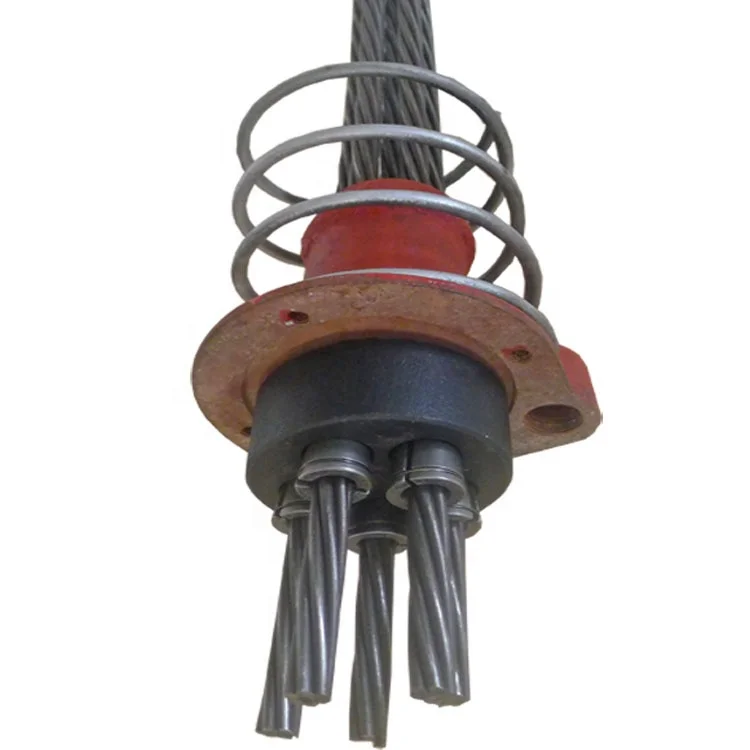

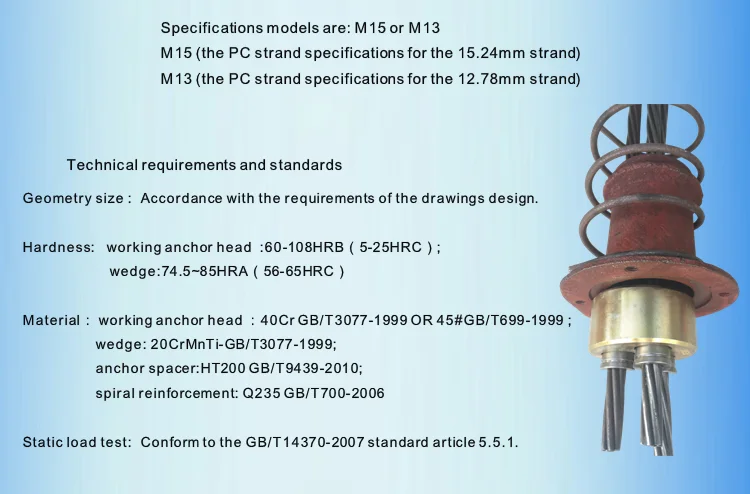

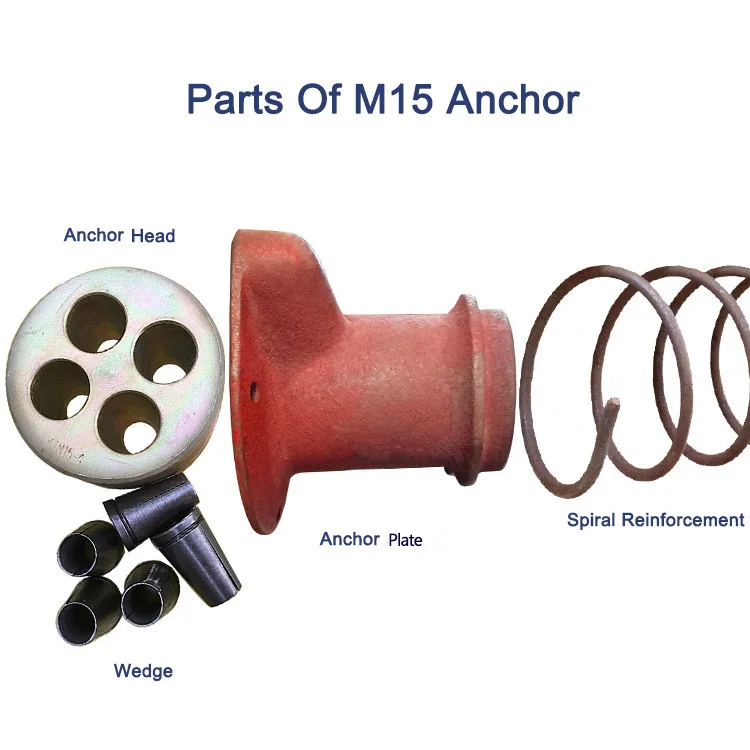

Lingqiao round anchorage are composed of wedges, tensioning anchor head, holding anchor spacer, spiral reinforcement, connectors. It can be used to lock the 12.7mm or 15.24mm pc strand .We also offer customerized service based on your detailed requests and drawing.

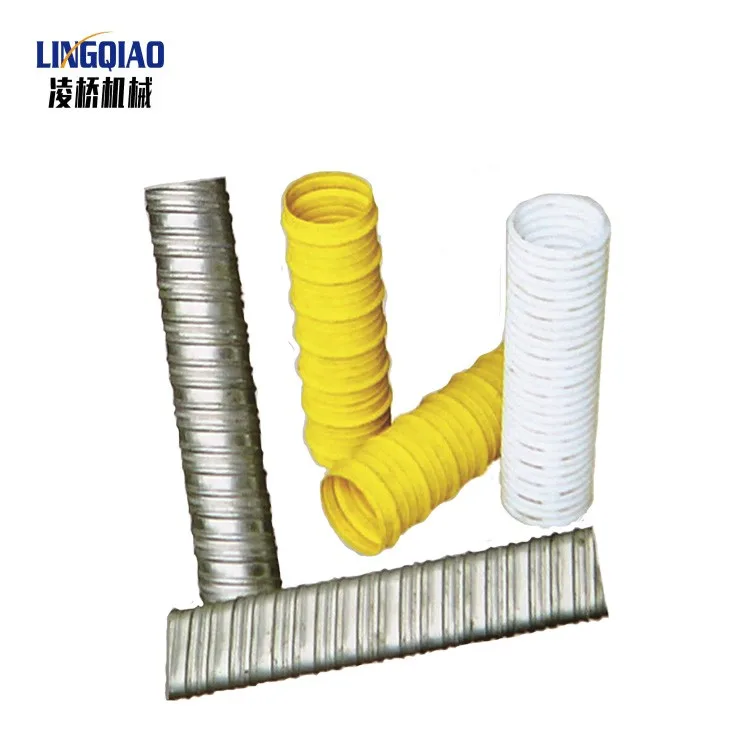

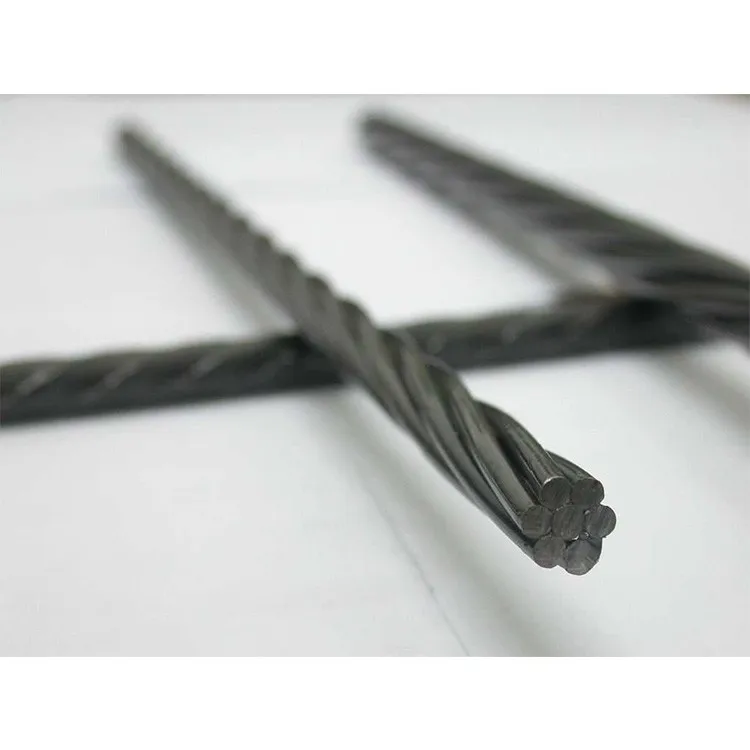

The related products are pc strand and corrugated duct(the material are metal and plastic)

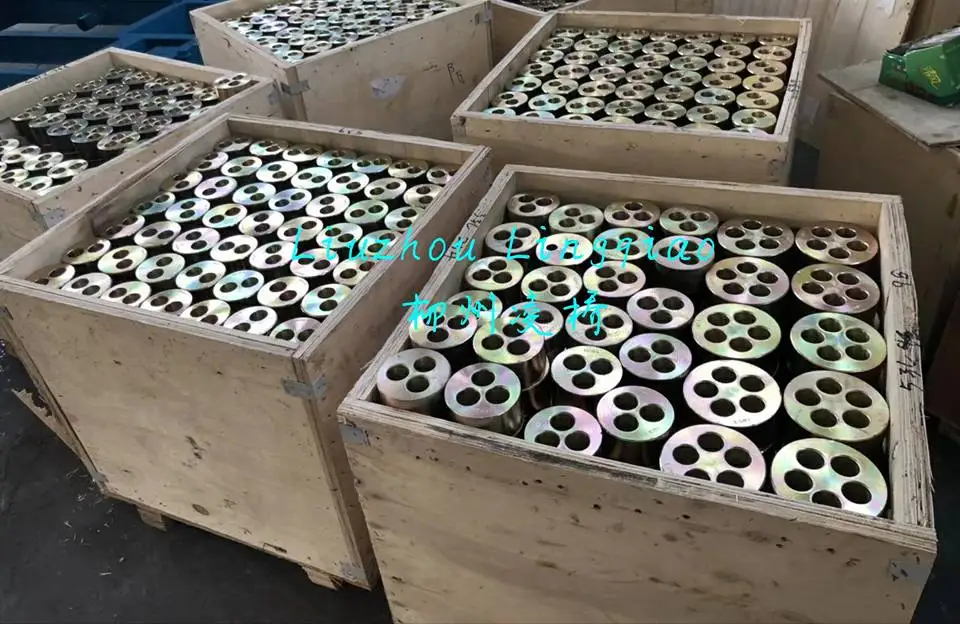

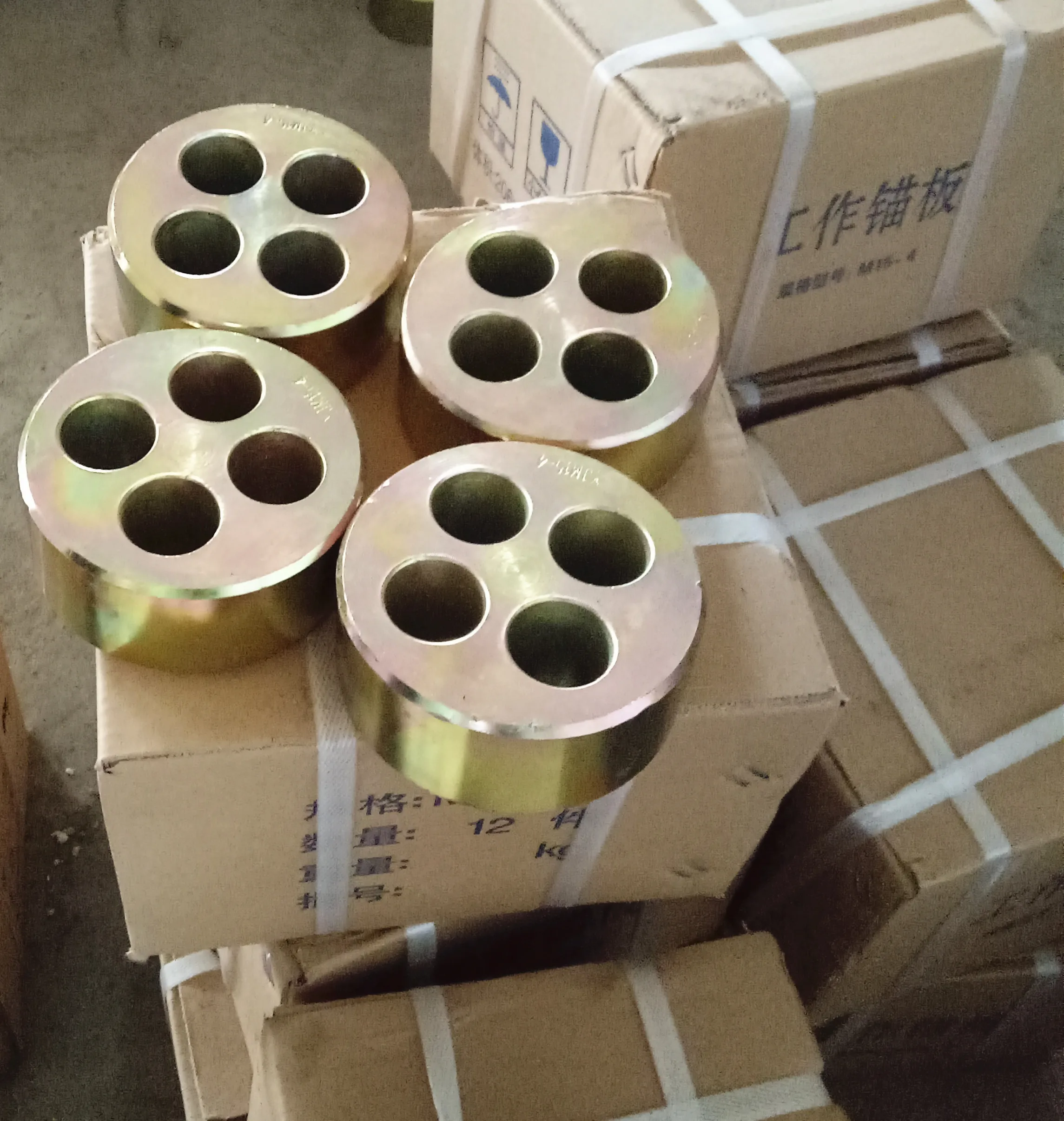

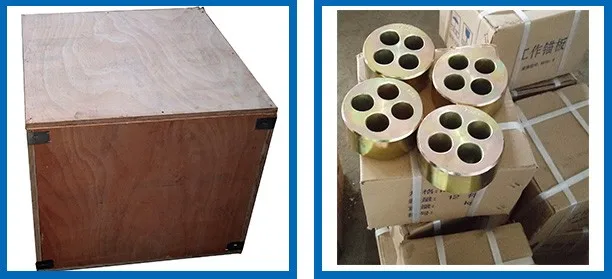

Packing & Delivery
