1,8 дюймов FSTN TFT ЖК модуль с 6 часов JHD128128 G106BSW BL
- Category: >>>
- Supplier: Shenzhen JHDLCM Electronics Co. Ltd.
Share on (62443896140):
Product Overview
Description
Product Description
128*128 mono lcd panel with best viewing angle JHD128128-G106BSW-BL
| Main Parameters | |
| Item | 128*128 mono lcd panel with best viewing angle |
| Model name | JHD128128-G106BSW-BL |
| Color | White words over blue background |
| Pixel | 16384 |
| Resolution | 128*128 |
| Brightness | White BL |
| Outline Dimension | 40.10(W)*45.10(H)*4.00(T)mm |
| Viewing Area | 35.18x35.18mm |
| Drive Power Supply Voltage | 3.0V/3.3V |
| Viewing Angle | 6.00 o'clock |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | FSTN, negative, white words over black background |
| IC | ST7571 |
| IC Packaging | COG |

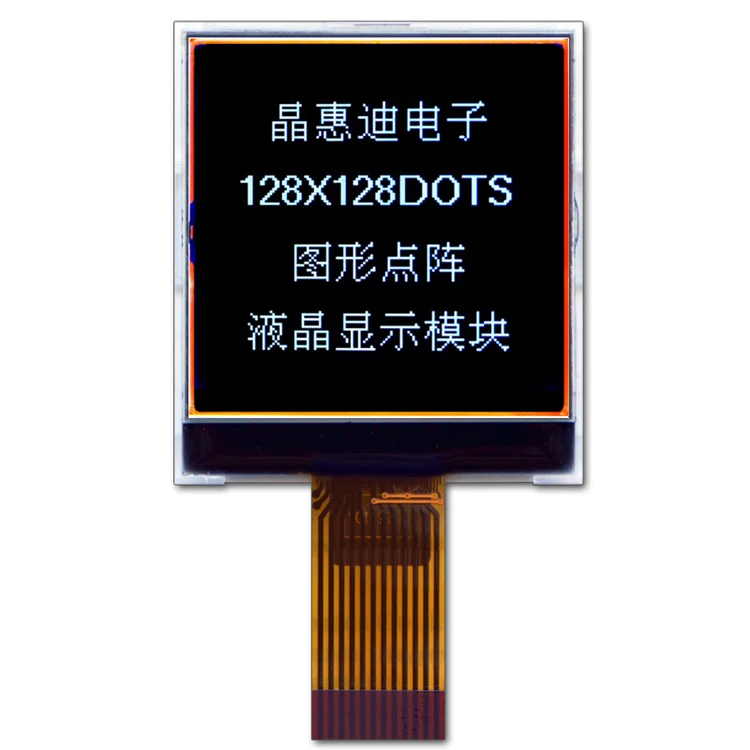

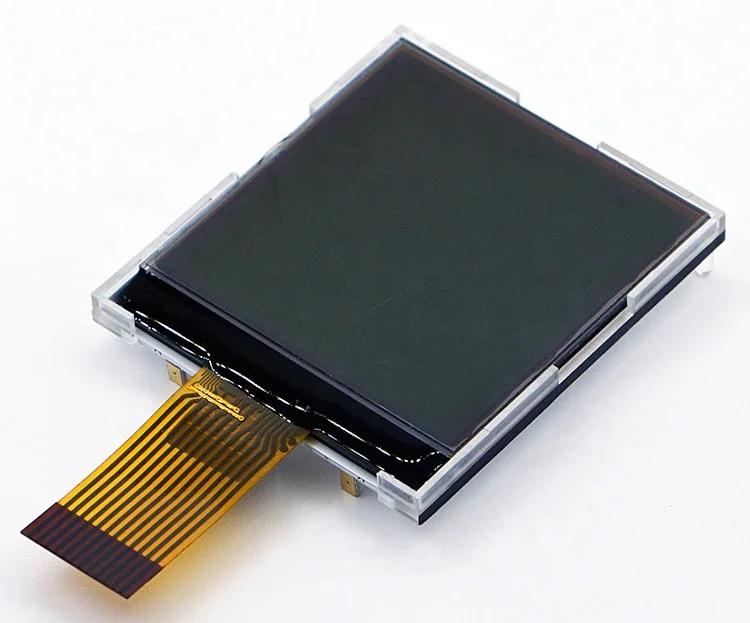

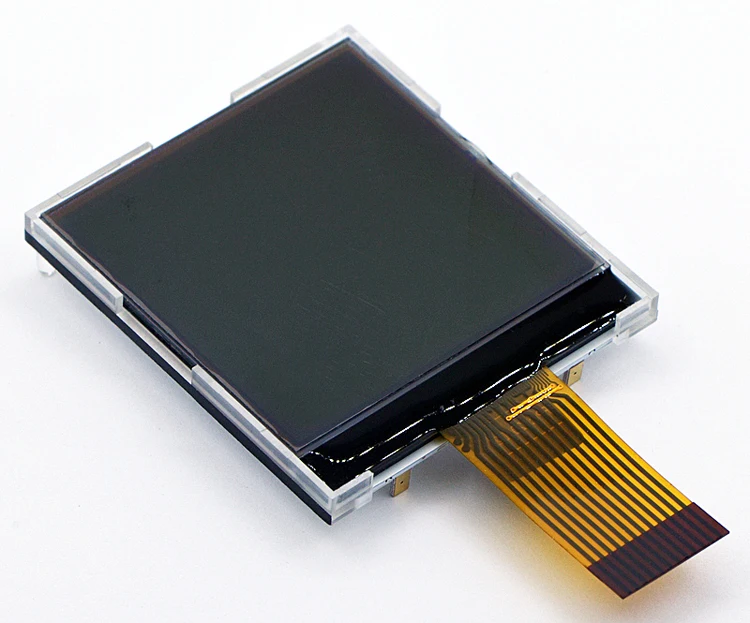

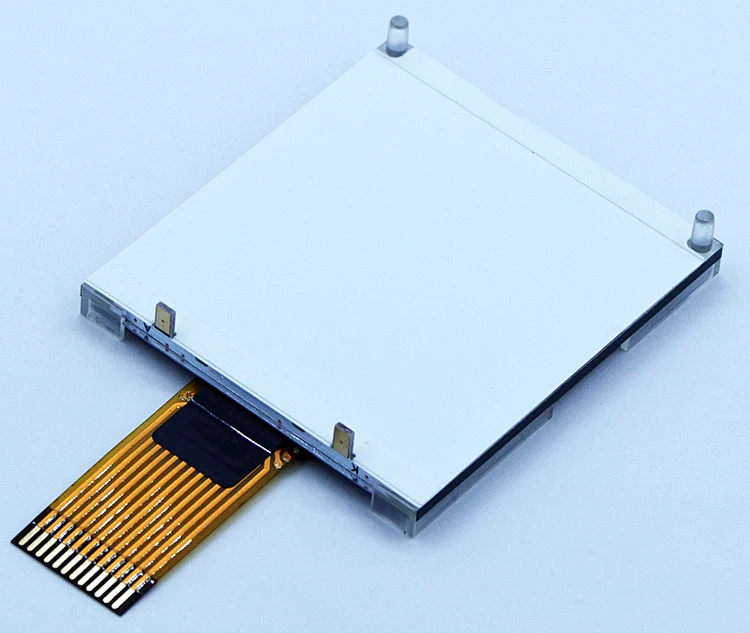

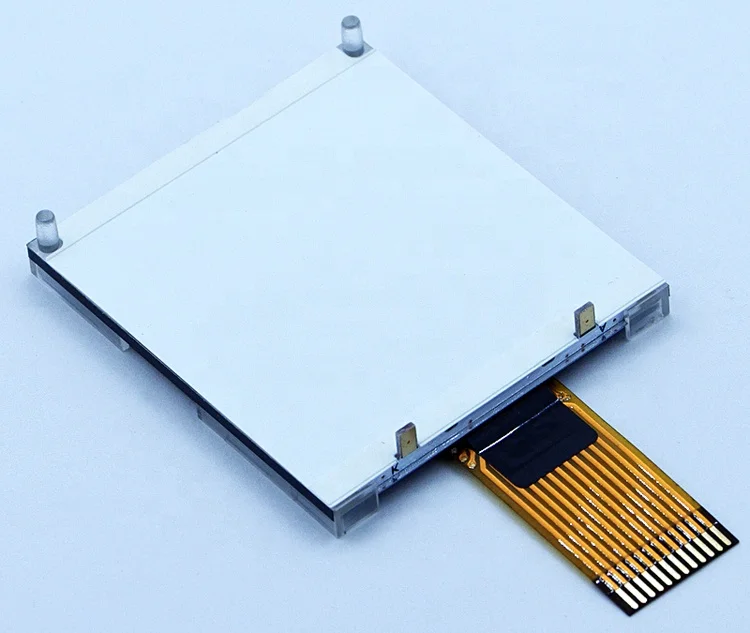

Product Showing:
Packaging & Shipping
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Our Services
128*128 Mono Lcd panel with best viewing angle JHD128128-G106BSW-BL Production Procedures in Our Plant:
Company Information
JHDLCM Electronics Co.,Ltd, established in 1999, is a world stable monochrome COG lcd module core manufacturer. With 15 years efforts, JHDLCM strives to create top brand of China stable monochrome COG lcd module and set an example of stable quality. Our products sell well in over 110 countries of world and are welcomed by about ten thousand companies.
FAQ
1.Q:Are you manufactory or trade company?
A:We are the ODM and OEM manufactory specialized in FSTN, STN and TFT more than 7 years in Shenzhen! Our factory have passed IS09001:2000,SGS Factory Audit and ISO14001:2004. Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
3.Q:How much the transportation freight of samples?
A: The freight depends on total weight and volume and your address.
4.Q: How long can I expect to get the sample?
A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
5.Q:When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately
6.Q:What is the difference between different part number?
A: We make the part number according to the different colors and different display effects of lcd. For example, this part number JHD12864-G13BSW-B, "12864" means the resolution of lcd, "BSW" describe the backlight, "B" in "BSW" means "backlight", "S" in "BSW" means "three leds in the backlight", "W" in "BSW" means the color of backlight "white; last letter"B" means the display effects of lcd, signifies "Blue", therefore, in a words, this part number means the lcd is "white words over blue background, white backlight".
7.Q:Can you design the lcd in acccordance with our demand?
A:Sure.We will give you the best tooling charge.
8.Q:How to order lcd?
A:Please send us your purchase order by Email or Fax or by Escrow, or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
