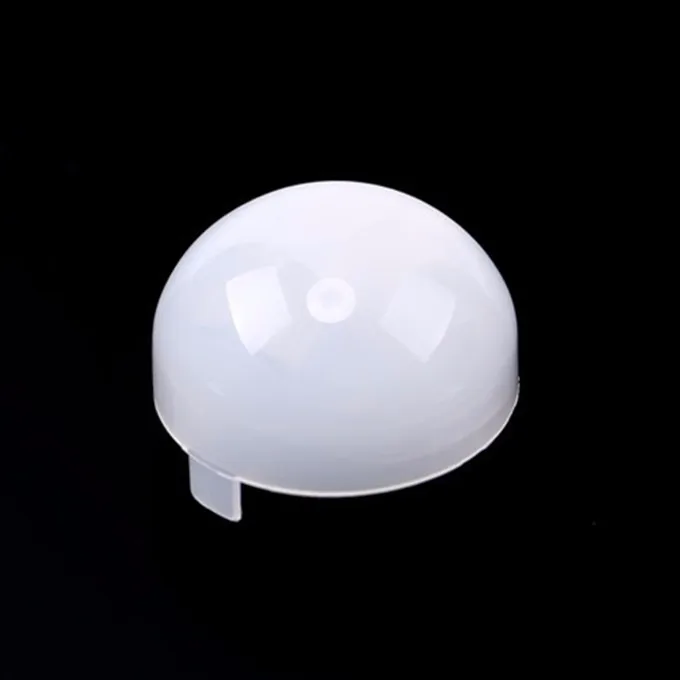

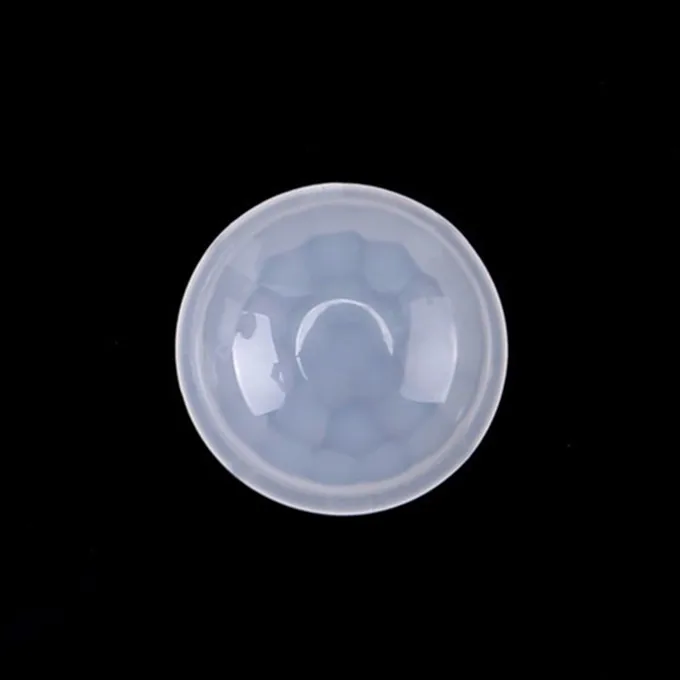

Dome Infrared Fresnel Lens Led Module Lens For PIR Motion Module Cover high quality
- Category: Lenses >>>
- Supplier: Dongguan,Btai,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
( We can give you the best price )
Company Name | Dongguan BTai Electronic Technology Co, Ltd |
Business type | Manufacturer |
Part name | PIR lens |
Main Product | Products: Fresnel lens, PIR lens, Optical plastic clear lens, Other plastic shell and component. Mold: Plastic injection mould, Optical lens mold, Electroform plate. Precise machining: PIR pattern machining, Optical polishing. |
Dimension | For PIR lens: 10-70mm |
Focal length | For PIR lens: 5-30mm |
Detection angle | For PIR lens: 30-360° |
Sensing distance | For PIR lens: 4-18 m |
Thickness | 2-5mm |
Cavity QTY | Single-cavity/Muti-cavity |
Runner | Cold/hot runner |
Gate | Submarie gate, side/edge gate |
Plastic part material | PMMA & PC material for Fresnel lens, HDPE material for PIR lens |
Products Description
15 days to get PIR lens with high quality
15 years of professional team
Preferential price
Massive resources
PIR lens catalogue specifications | ||||||||||
Model | Dimension (mm) | Focus Length (mm) | Detection angle (degree) | Sensing distance (m) | Material | |||||
12080 | ￠11.9 | 8 | 30 | 17 | HDPE | |||||
13250 | ￠13 | 25 | 30 | 16 | HDPE | |||||
1620 | ￠16.8 | 20 | 30 | 25 | HDPE | |||||
2218 | ￠22 | 18 | 45 | 30 | HDPE | |||||
008140 | ￠13.2*5.3 | 5.5 | 140 | 6 | HDPE | |||||
13120 | ￠13.5*9.4 | 6 | 120 | 4.5-5 | HDPE | |||||
13120F | ￠13.9*10.4 | 6 | 120 | 6-8 | HDPE | |||||
8006 | 11*9.3*7.1 | 4 | 120 | 4 | HDPE | |||||
8002-1 | 23.4*23.4*18.9 | 10.5 | 120 | 11 | HDPE | |||||
024120 | 23.7*23.7*19.2 | 12 | 120 | 12 | HDPE | |||||
9002-1 | ￠23.4*19.1 | 12 | 120 | 9 | HDPE | |||||
...... | ...... | ...... | ...... | ...... | HDPE | |||||
8605-3 | ￠44.5*12.1 | 15 | 100 | 12 | HDPE | |||||
8603-4 | ￠45*11 | 17.5 | 120 | 14 | HDPE | |||||
8603-3 | ￠45.4*11.4 | 17.5 | 180 | 10 | HDPE | |||||
Q10050 | ￠100*56 | 50 | 110 | 12 | HDPE | |||||
Q70 | ￠70*35 | 35 | 80 | 10-12 | HDPE | |||||
7803-1 | 39*25 | 20 | 89 | 7 | HDPE | |||||
7809-5 | 43.3*24.5 | 25 | 100 | 12 | HDPE | |||||
7708-1 | 57*44.7 | 29.7 | 120 | 10 | HDPE | |||||
614230 | 60.7*42.4 | 30.5 | 90 | 12 | HDPE | |||||
8202 | 62.7*25.1 | 16 | 120 | 12 | HDPE | |||||
7707-5A | 73.7*26.2 | 25 | 120 | 16 | HDPE | |||||
6 Product Advantages
01
Environmentally friendly and recyclable
1, 100% Raw material
2, Environmental material
3, Odorless (food grade etc)
2, Environmental material
3, Odorless (food grade etc)
02
Authoritative Certification
1, Very relax to cooperate with us
2, 15 years of factory, welcome to visit
2, 15 years of factory, welcome to visit
03
High Quality
1, Strong QC team
2, Prototype available ( 3D printing, CNC processing etc)
3, Quality is the last word
2, Prototype available ( 3D printing, CNC processing etc)
3, Quality is the last word
04
Private custom
1, OEM & ODM available.
2, Personal design fulfill your requirement
05
One-stop service
1, Design, mold, mass production, assembly, package and shipping
2, No need to spend any energy
3, 24-hour online service
06
Come true your dream
1, Strong design engineer team
2, Rich experience in product development
3, Your idea + BTai = What you want
2, Rich experience in product development
3, Your idea + BTai = What you want
1, Good at plastic injection mold manufacturing for optical parts.
2, Don't hesitate! I know my factory well. We are the best supplier for you.
3, We can provide fast delivery time, super quality and super service to you.
Submit quotation within 24 hours
15+ years in mold industry senior engineering will serve for you
The most professional mold engineer will give you the best suitable solution
Project Control Flow
Why Choose Us
15 year professional team
We have the professional engineer teams and sales teams, mostof them have more than 15 years experience in mold-makingindustry and injection industry, especially for household, electronics and automotive products.
Advanced equipment
We have the high quality CNC and EDM machines from HAAS, MOKRON, OKUMA, AGIE, MAKINO, such as: 4-axis and 5- axis CNC machines, can offer stable and accurate processing ability.
Fast delivery time
For small prototype mold: 10 days
For complex mold:20-30 days
For complex mold:20-30 days
For prototype:3-5 days
For mold design: 2-5 days
One stop service
We offer products design and 3D print service, we have more than 22 sets injection machines and 3 aseembly lines, we can provide production run, product assembly and Product packaging for direct sale service.
High quality and factory price

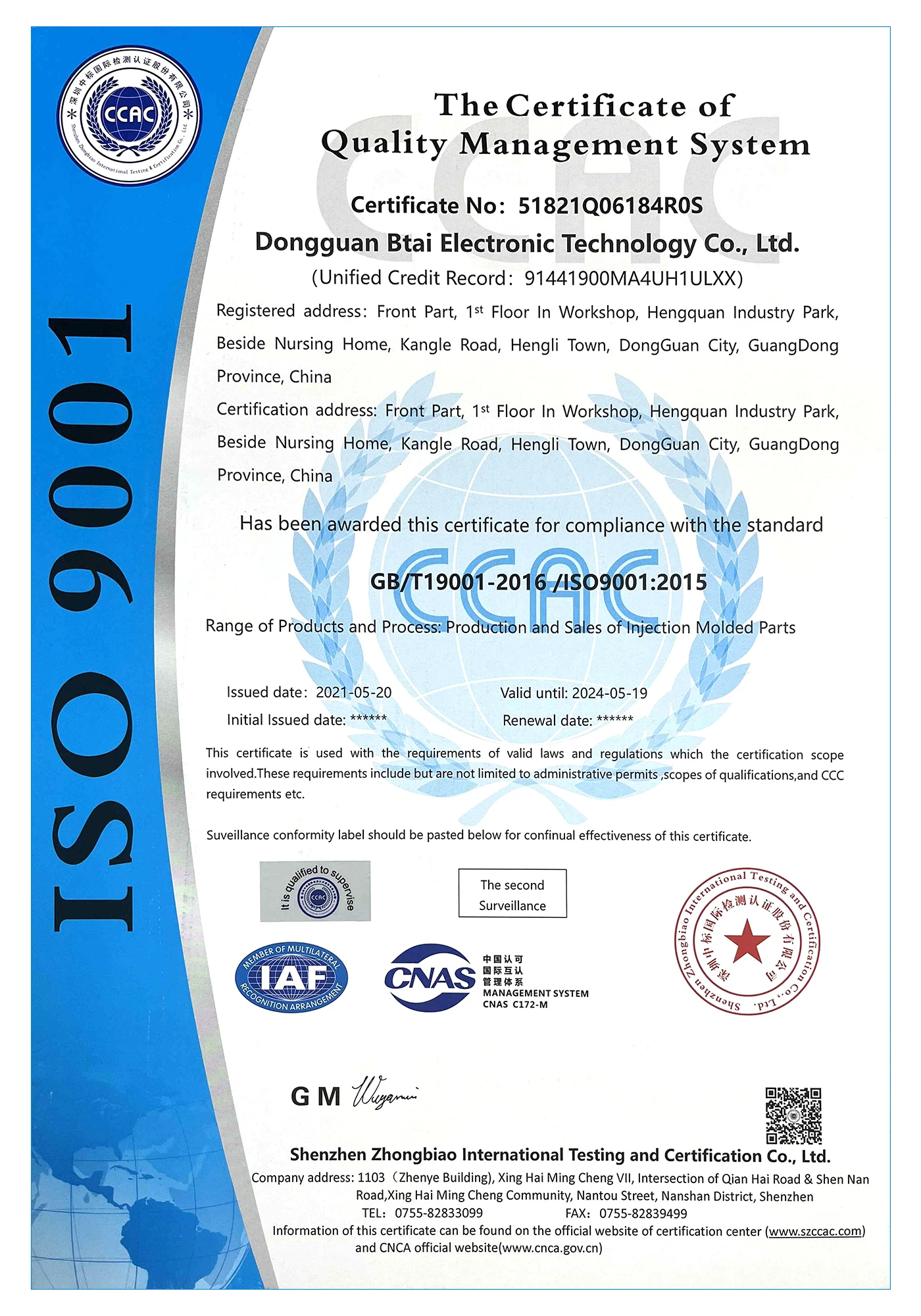

We have lSO9001 International Quality Management System, aswell as Chinese Production Cost Control Experience, So we canhelp you save about 20%~30% Manufacturing cost when youcompare with others.
High speed after-sales service
We offer good after-sale service within 5 years after customer receive the mold, Provide 16 hour online consultation, Most of our customers work with us more than 15 yearsand still trust, satisfy and do with us.
Transport
1, Fast customs clearance service, about 7-10 days.
2, Fast delivery shipment time, about 3-5 days door to door service by express, about 30-45 days door to door service by express.
3, My company give additional discount 70% on the shipping cost to customers.
4, Door to door service include all taxes, No need to pay an extra cent.
Company Profile
BTai specializes in plastic moulds/ products development and production over 15 years
Our strong design capability equipped with the advanced software of CAD/CAM/CAE/Solidworks/Pro-E/UG, serving from product conceptual design, structure design to the total one-stop solution.
We have rich experience in mould/ product design and mass production with superior management and strict quality control.
All of these assure the best quality, fastest delivery time and competitive price and professional service to customers.
BTai works closely with the customer for any details requirements, thinking as customer's position to make projects well. We are ready to become your most satisfied partner to support your growing business.
Team
FAQ
Q1: When can I get the price?
A1: Normally quotation would be submitted within 24 hours after receipt of your inquiry, If it's very urgent, please shoot us an email or give us a call, we will do it as priority.
Q2: How long is the lead time?
Q3: I have no 3D drawing, how should I start the new project?
A3: Samples or an idea or a sketch will be good too, My engineering department can design the 3D drawing on the new project.
Q4: Before shipment, how to make sure the products quality?
A4: We are specialized in high quality products, We have QC to inspect the products before each shipment. You can come to visit
our factory or ask a third party for inspection, Or we can send you videos to show the production process.
Q5: How could I pay them?
A5: T/T, Credit card or Alibaba payment are acceptable, Just let us know which is convenient for you.
Q6: Can I get discounts?
A6: Yes, we give reasonable discounts for large orders, regular customers and frequent customers.
Q7: Which shipment way is available?
A7: a, FOB Shenzhen or Ningbo.
b, CIF to the nearest port in your country.
c, DDP or DDU by sea to your door.
d, Express (Alibaba express, DHL, UPS, FEDEX, TNT, EMS)
A1: Normally quotation would be submitted within 24 hours after receipt of your inquiry, If it's very urgent, please shoot us an email or give us a call, we will do it as priority.
Q2: How long is the lead time?
A2: It depends on product, size and part structure, Our normal lead time is 25-35 days, 15 days for simple and small size of product.
Q3: I have no 3D drawing, how should I start the new project?
A3: Samples or an idea or a sketch will be good too, My engineering department can design the 3D drawing on the new project.
Q4: Before shipment, how to make sure the products quality?
A4: We are specialized in high quality products, We have QC to inspect the products before each shipment. You can come to visit
our factory or ask a third party for inspection, Or we can send you videos to show the production process.
Q5: How could I pay them?
A5: T/T, Credit card or Alibaba payment are acceptable, Just let us know which is convenient for you.
Q6: Can I get discounts?
A6: Yes, we give reasonable discounts for large orders, regular customers and frequent customers.
Q7: Which shipment way is available?
A7: a, FOB Shenzhen or Ningbo.
b, CIF to the nearest port in your country.
c, DDP or DDU by sea to your door.
d, Express (Alibaba express, DHL, UPS, FEDEX, TNT, EMS)
