Заводская цена 9m 50m водяная головка 600w 1 кВт 2 кВт 3 кВт 5 кВт 10 кВт малая водяная турбина
- Category: Other Alternative Energy Generator >>>
- Supplier: Chengdu Forster Technology Co. Ltd.
Share on (62443978003):
Product Overview
Description
Factory Price 9m - 40m water Head 600w 1kw 2kw 3kw 5kw 10kw Small Water Turbine
Our main products included:
1.Kaplan water turbine generators series.
2.Turgo water turbine generators series,e.g. vertical type horizontal type.
3.Tubular water turbine generators series ,e.g. Bulb type and shaft extension type.
4.Francis water turbine generators series.
5.Pelton water turbine generators series and double turbine generators series and so on.
6.Other auxiliary equipment for hydropower station, such as generator, control panel, governor, valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc
Product features :
1. Horizontal water turbine unit has the advantages of a simple structure,easy maintenance,reduce plant height ,reduce the excavation depth.
2. Water turbine vertical unit has a small plant size plane,one can install multiple nozzles(currently up to six nozzles can be installed)on the wheel,high specific speed,the same capacity unit size is relativety small and weigh lightly.
3.Turgo water turbine generator is suitable for water head height of 9m-50m, and the power of water turbine generator ranges from 0.6kw to 10kw.
4.Turgo water turbine generator suitable for medium and high water heads, and the price is cheaper than Pelton water turbine generator.
Product parameters:
| Micro 600w-10kw Turgo water turbine generator parameter table | ||||||
| Model | water head(m) | Flow rate(m³) | Power(kw) | Speed(r/min) | Diameter(mm) | Note |
| XJ-L-10/1*2 | 9-18 | 0.008-0.01 | 0.6 | 500-1500 | 80 | permanent magnet |
| XJ-L-12/1*2.8 | 10-25 | 0.008-0.01 | 1 | 500-1500 | 90 | permanent magnet |
| XJ-L-12/1*2.8 | 12-28 | 0.008-0.015 | 1.5 | 500-1500 | 90 | permanent magnet |
| XJ-L-12/1*2.8 | 15-30 | 0.01-0.015 | 2 | 500-1500 | 100 | permanent magnet |
| XJ-L-13/1*3 | 18-40 | 0.015-0.025 | 3 | 500-1500 | 100 | permanent magnet |
| XJ-L-13/1*5 | 20-40 | 0.015-0.025 | 5 | 500-1500 | 150 | permanent magnet |
| XJ13-W-20/1*5 | 30-50 | 0.04-0.06 | 10 | 1500 | 200 | Brushless excitation |
| For more Turgo water turbine information, please contact our sales professionals | ||||||

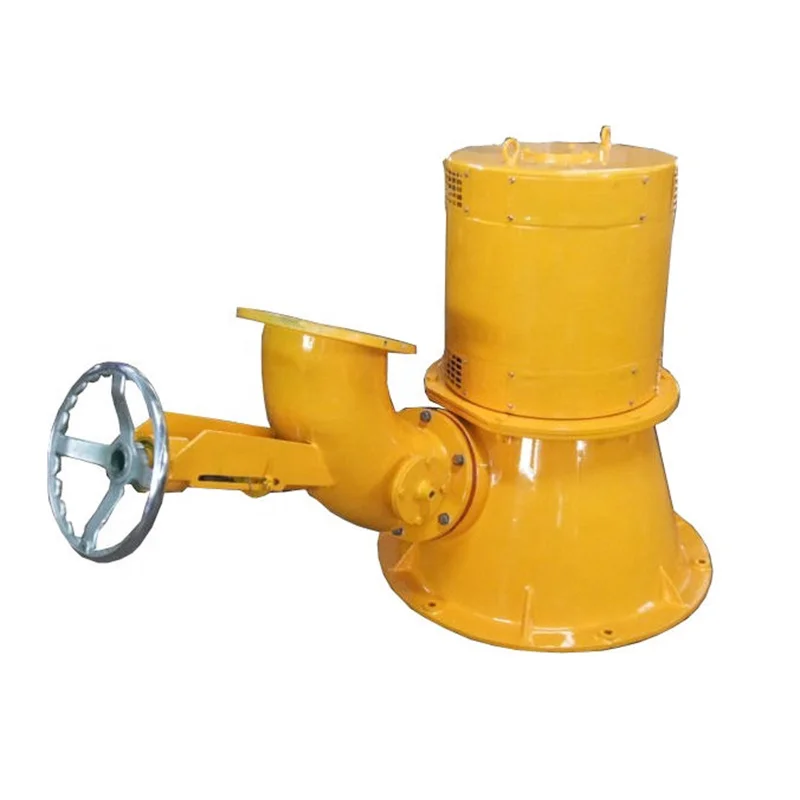

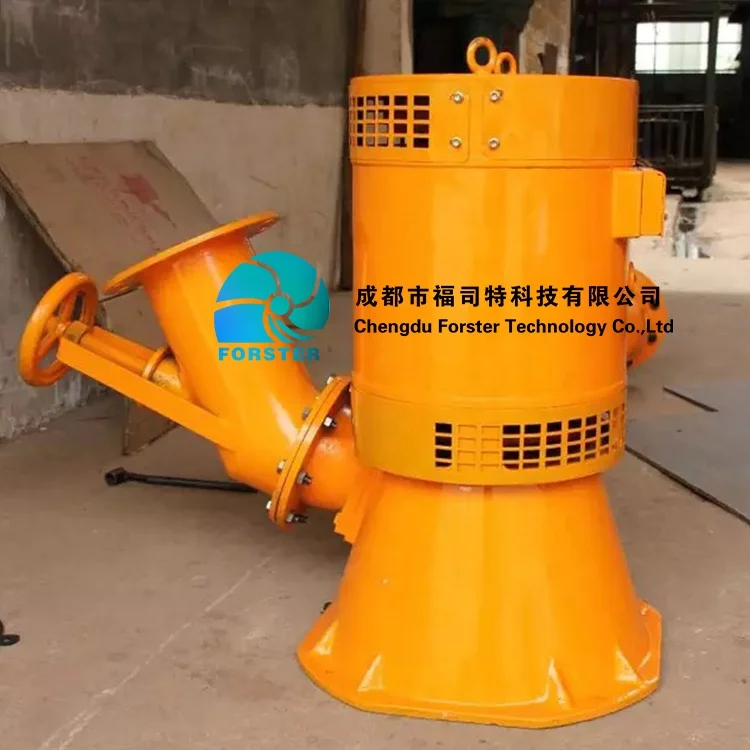

Water turbine pictuers:

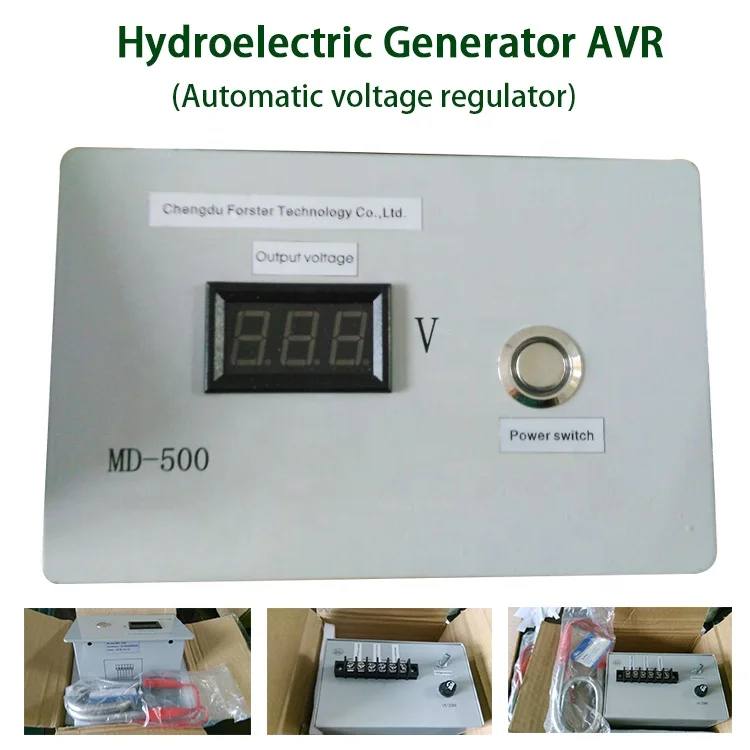

It is equipped with an automatic voltage regulator for hydroelectric generators to prevent over-voltage and burn out household appliances and ensure stable voltage output.

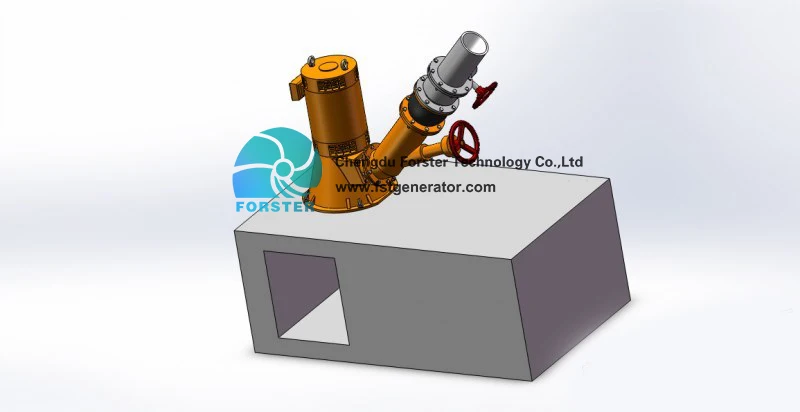

Installation Diagram
Other Product
 |  |
| 5kw-10kw Hydro Francis Water Turbine | 10kw-20kw Hydro Pelton Water Turbine |
Company Information
Our Workshop:
Advantages
Our hydroelectric generators use direct or indirect connection methods to drive turbines and generators to rotate to generate electricity. There are two ways of vertical and horizontal installation. Low speed is adopted. The excitation method adopts brushless excitation and static thyristor excitation to give full play to the characteristics of the turbine and achieve high efficiency and low energy consumption. The voltage is from 110V to 35KV, the frequency is from 50Hz to 60Hz, and the output power is from 0.6Kw to 30MW. And has ISO, CE, TUV, SGS international certification, production and testing follow the international IEC standards.
Engineering Case
Packaging & Shipping
FAQ
Q1, Which water turbine should I choose?
Please tell me the water head, flow rate, frequency, Total power you need
, voltage, on grid or off grid operation, we will propose a solution.
Q2, Can your factory provide all the equipment for hydropower generation?
Yes, we can provide you with water turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.
Q3, Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
Q4,Is your company a trading company or a manufacturer?
We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.
Q5, What is an acceptable MOQ?
For this product, our acceptable MOQ is 1 set.
Q6,How long is the delivery time?
Delivery times range from 15 days to 6 months depending on the model you are purchasing.
Q7,Does your company have its own independent official website?
Of course, and we can see more information about our company and products on our official website.
For more micro water turbine generator details, please contact our business manager
Sales Manager__George Huang
