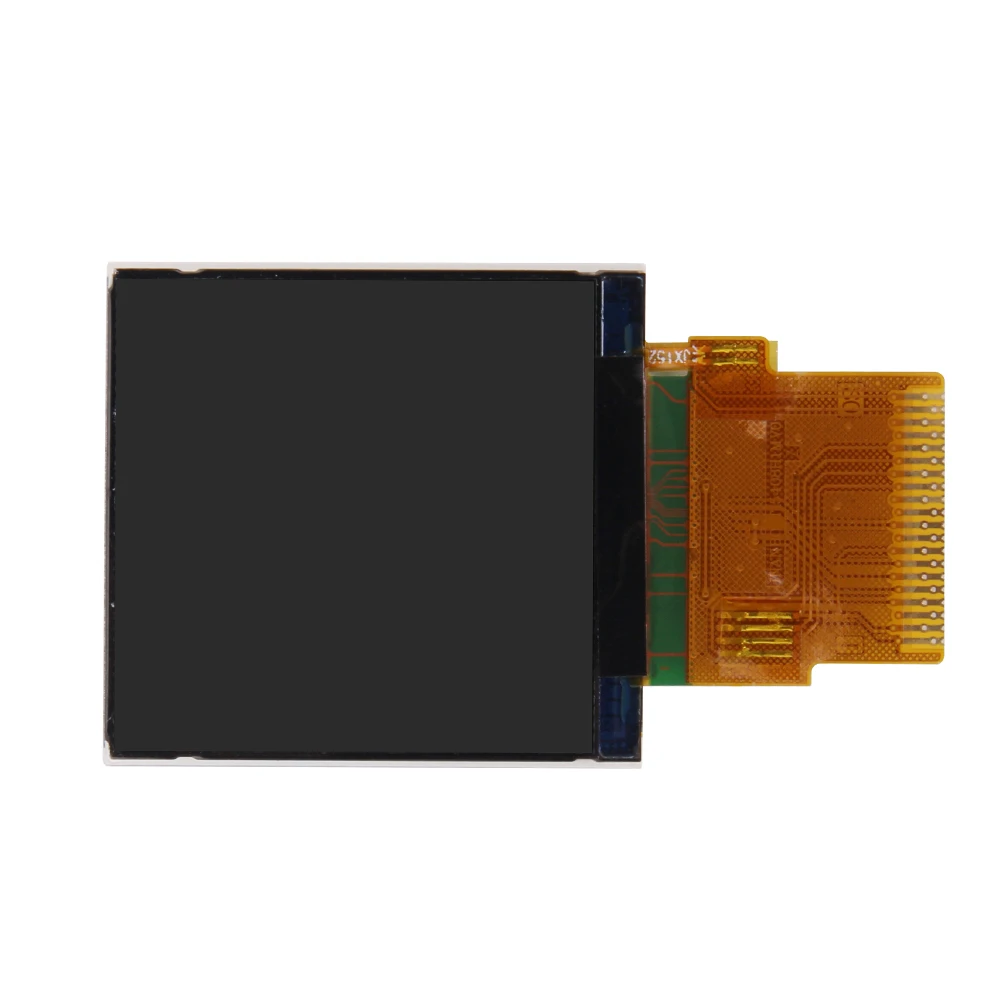

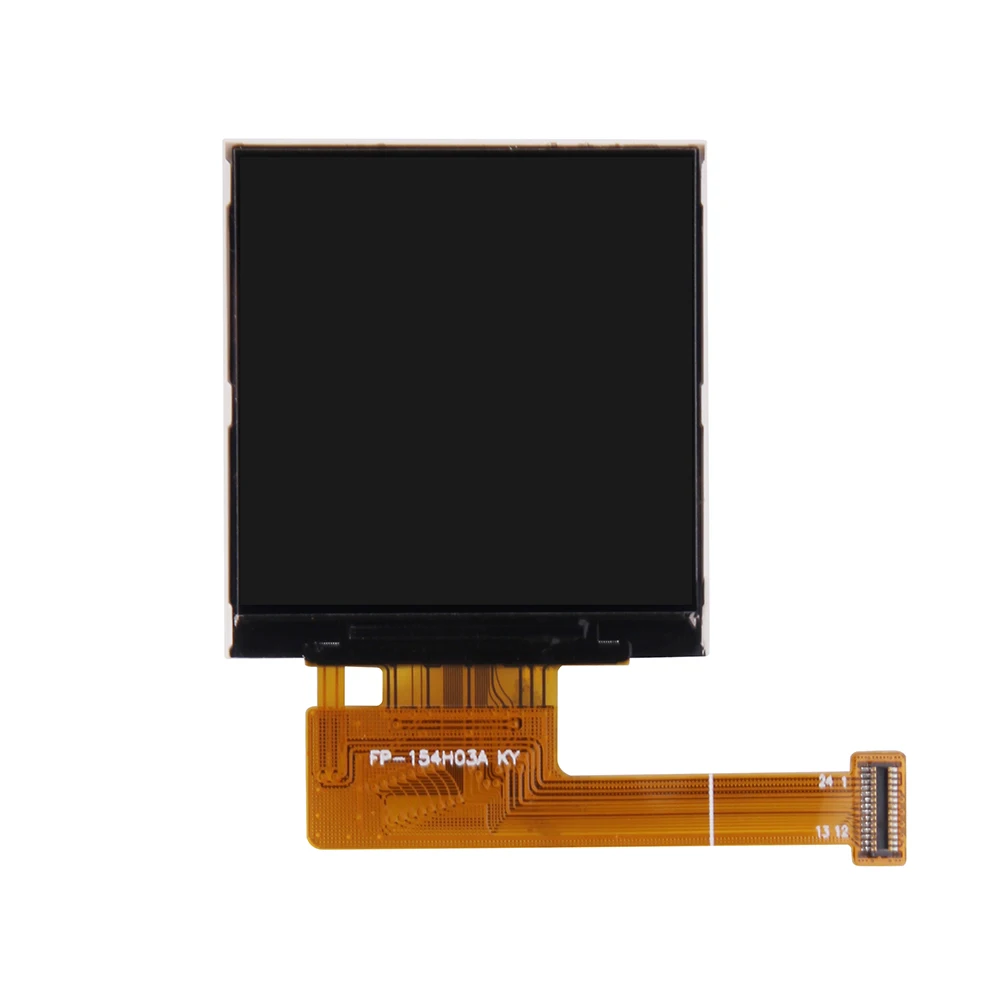

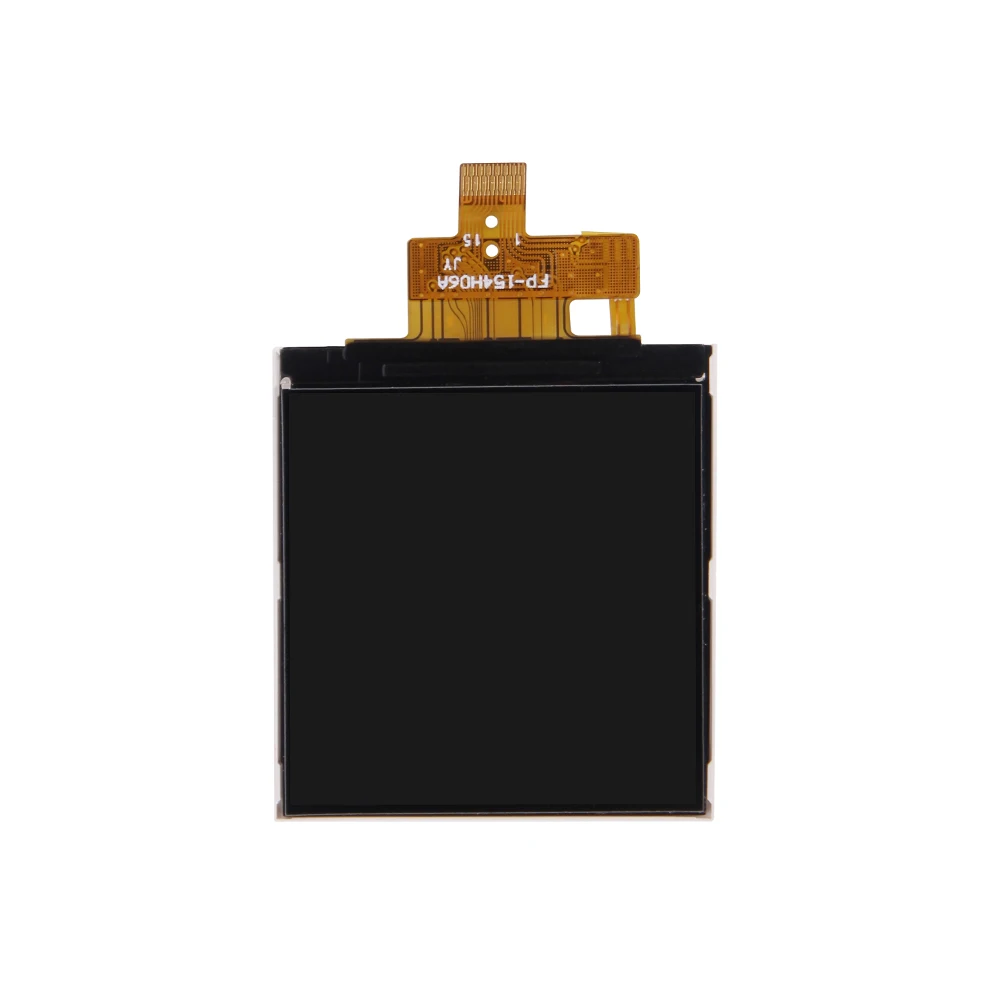

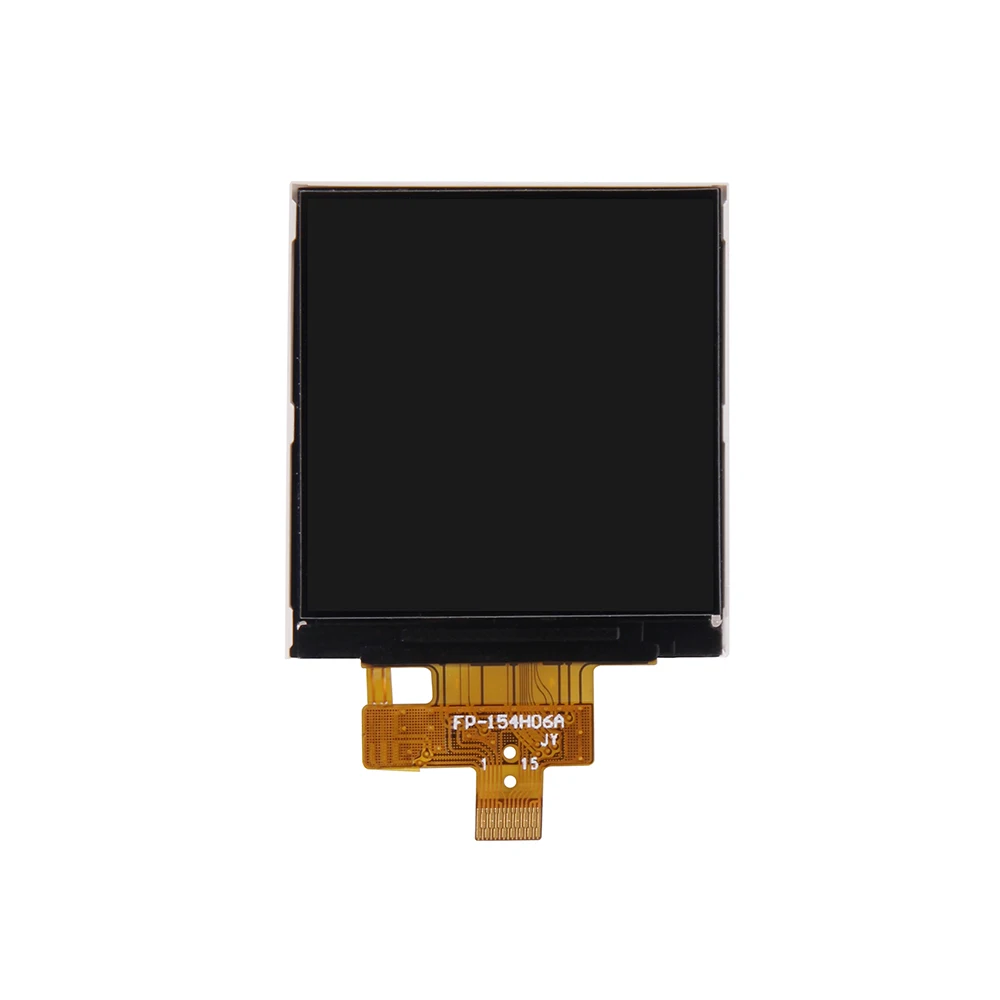

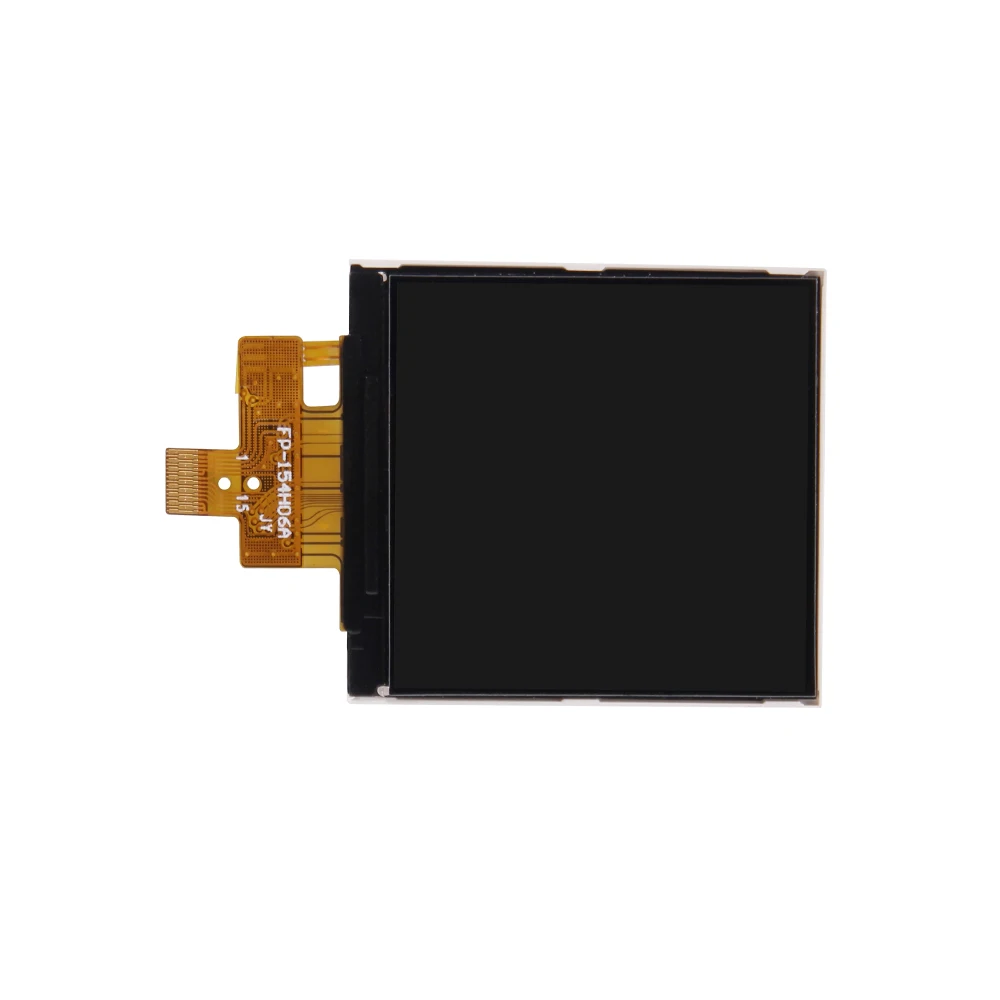

IPS tft lcd display 240x240 1.54 TFT Display for Smart watch

Product Overview

Description







TFT Display



IPS tft lcd display 240x240 1.54 TFT Display for Smart watch
Diagonal Screen Size	1.54inch
Color Arrangement	RGB Vtertical Stripe
Module Construction	COG
Number of Pixels	240(RGB)x240
Active Area	27.72x27.72mm
Pins	12
Drive IC	ST7789VW
Interface	System Serial





Temperature range
Item	Min.	Max.
Operating Temperature (°C)	-30	70
Storage Temperature (°C)	-40	80



Drawing



More Product of TFT Displays
Screen Size	Item No.	Number of Pixels	Pins	Interface	Drive IC
0.96inch TFT Display	LH096T-IG11	80(RGB)x160	13 pin	4 Wire SPI	ST7735S
0.96inch TFT Display	LH096T-IF09	80(RGB)x160	8 pin	4 Wire SPI	ST7735S
1.14inch TFT Display	LH114T-IG01	135(RGB)x240	13 pin	4 Wire SPI	ST7789V
1.28inch TFT Display	LH128R-IF04	240(RGB)x240	15 pin	4 Wire SPI	GC9A01
1.3inch TFT Display	LH133T-IG01	240(RGB)x240	12 pin	4 Wire SPI	ST7789VW
1.44inch TFT Display	TFT14406A	128(RGB)x128	39 pin	4 Wire SPI	ST7735S
1.54inch TFT Display	LH154T-PC03	240(RGB)x240	24 pin	8 Bit MUC	ST7789V
