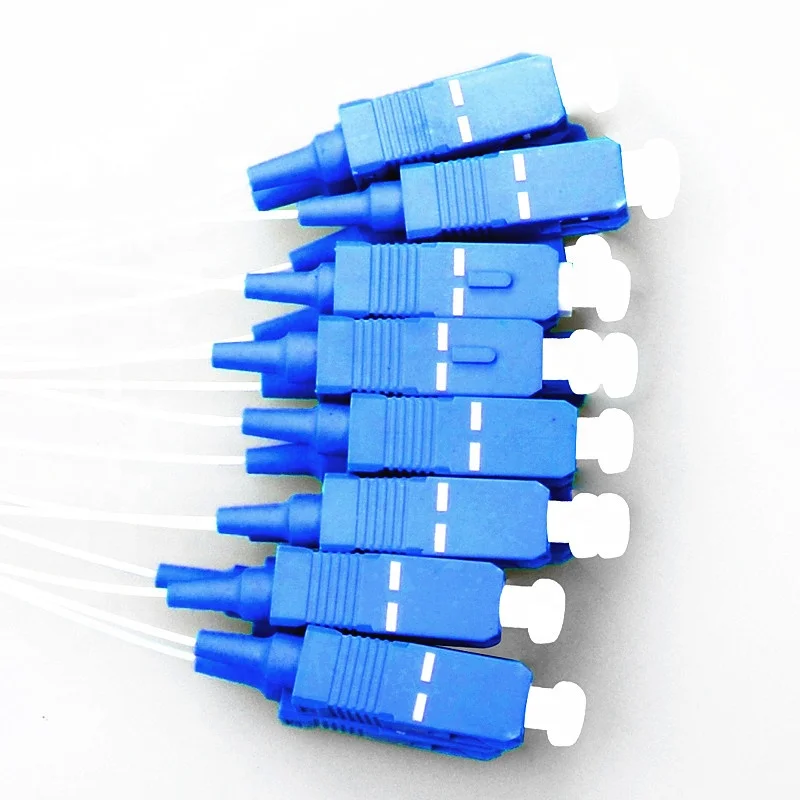

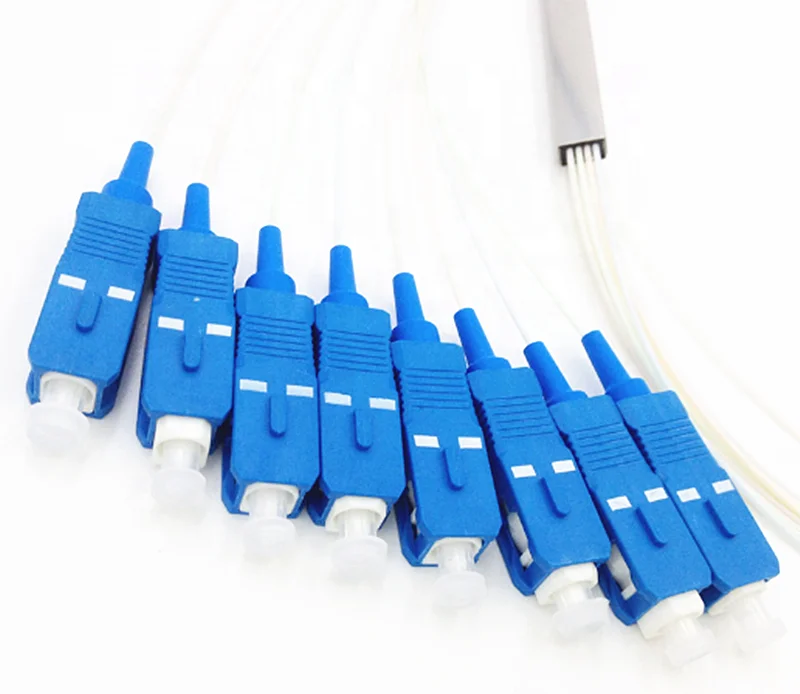

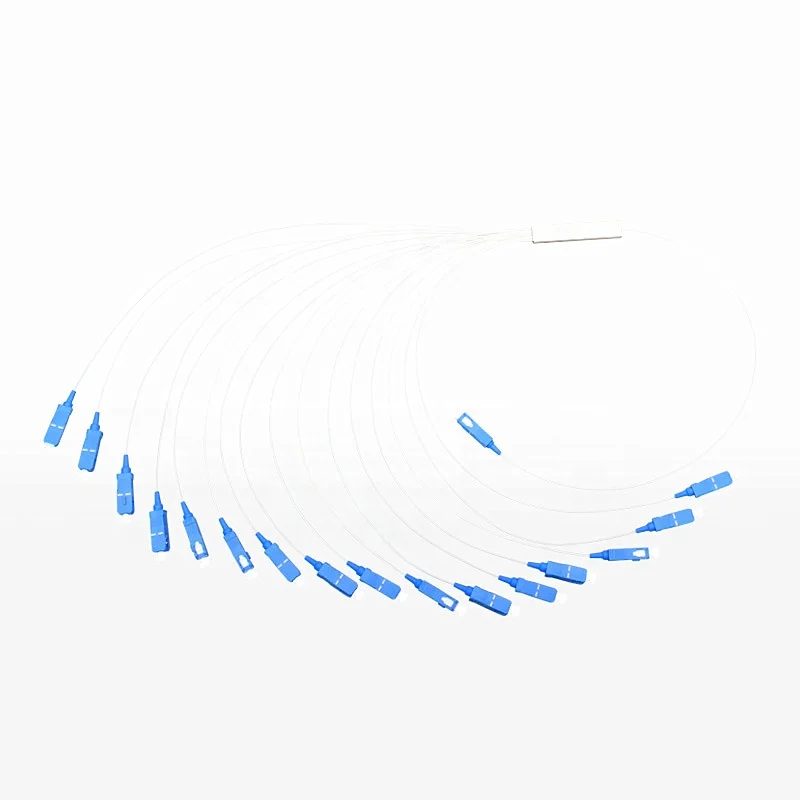

1*16 mini tube type PLC fiber optical splitter splice closure
- Category: >>>
- Supplier: Hunan Zhongke Optoelectronic Co. Ltd.
Share on (62444107484):
Product Overview
Description
Product Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. JINZE provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
Features
*Good uniformity and low insertion loss
*Low polarization dependent loss
*Excellent environmental stability
*Excellent mechanical construction
*Compact design, suitable for installation in optical equipment
*Wide operating temperature:-40~85 ℃
*High reliability and stab
Product Applications
Optical Signal Distribution
Data Communications
Lan and CATV System
FTTX Deployment
Passive Optical Networks (PON)
Measuring System and Laser System
Product Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Operating Wavelength (nm) | 1260~1650 | 1260~1650 | |||||||||
| Fiber Type | G657 or customized | G657 or customized | |||||||||
| Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤4.2 | ≤7.6 | ≤11 | ≤14.5 | ≤17.5 |
| Loss Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤0.8 | ≤1.5 | ≤1.5 | ≤2 | ≤2.5 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Temperature Stability (-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | -40~85 | |||||||||
| Storage Temperature (℃) | -40~85 | -40~85 | |||||||||
| Note: | |||||||||||
| 1. The insertion loss is at least 0.2dB less without connector. | |||||||||||
| 2. The insertion loss for 2×N PLC would increase less than 0.3dB. | |||||||||||
| 3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB | |||||||||||

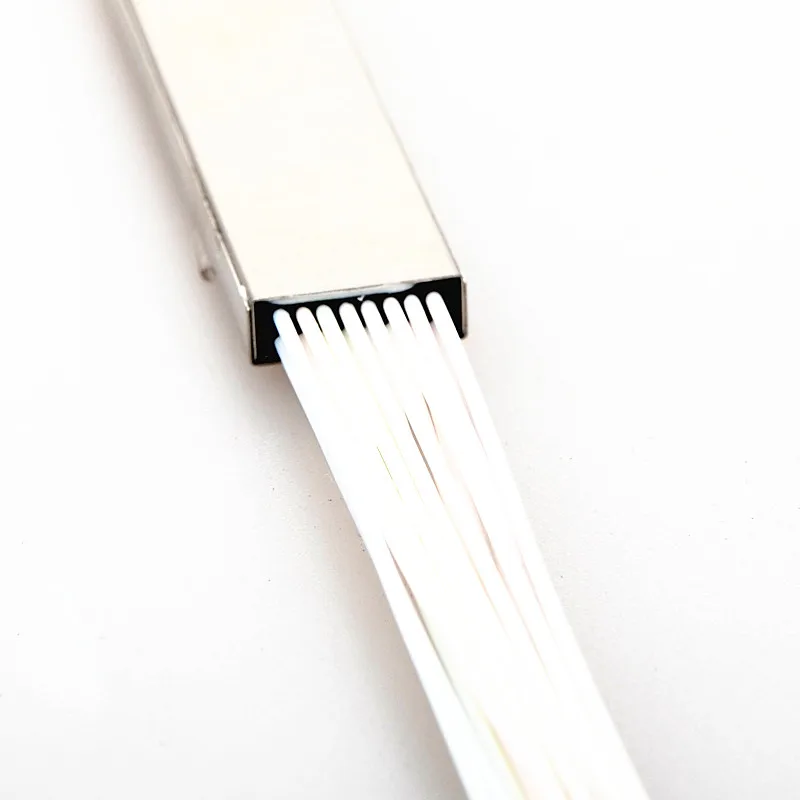

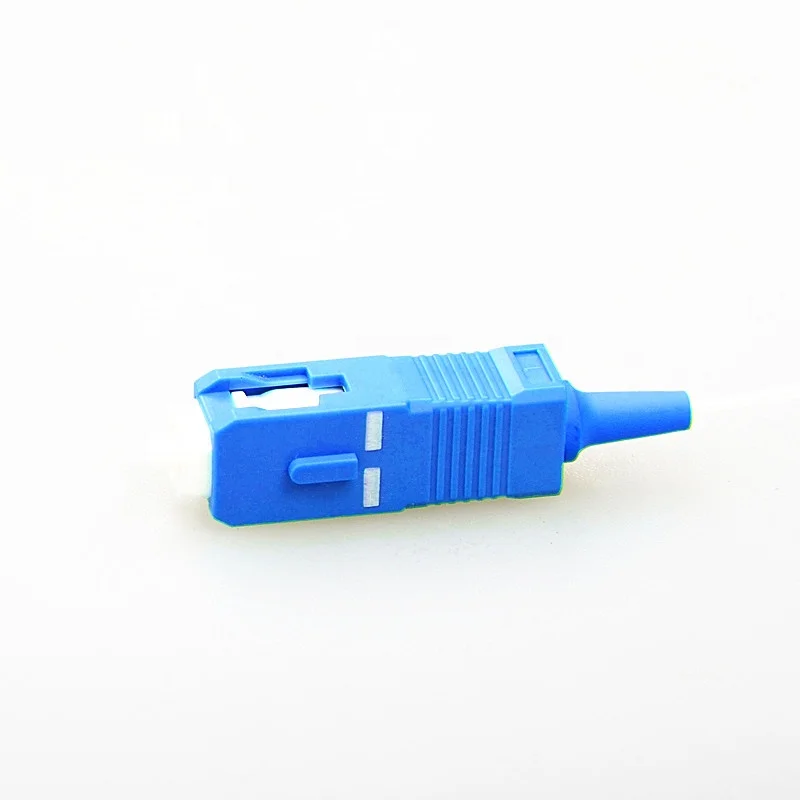

Detailed Images
Work shop
Company Information
Exhibition service
Packaging & Shipping
Our Services
1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions
FAQ
Q:What is the payment way for the order?
A: L/C,T/T,Western Union,MoneyGram payments for offline orders.
Q:How about your after service?
A: We will send you the component for free to replace the demaged one during the warranty time.
Q:Can i have my own customized products?
A: Yes,OEM and ODM order are very welcomed.
Q:How about the warranty?
A:3 years
Q:Why choose us?
A:We are professional manufacturers with more than 10 years experience,we have our own production factory and raw material supplier of many years cooperation.So our products have very stable quality and competitive price.
