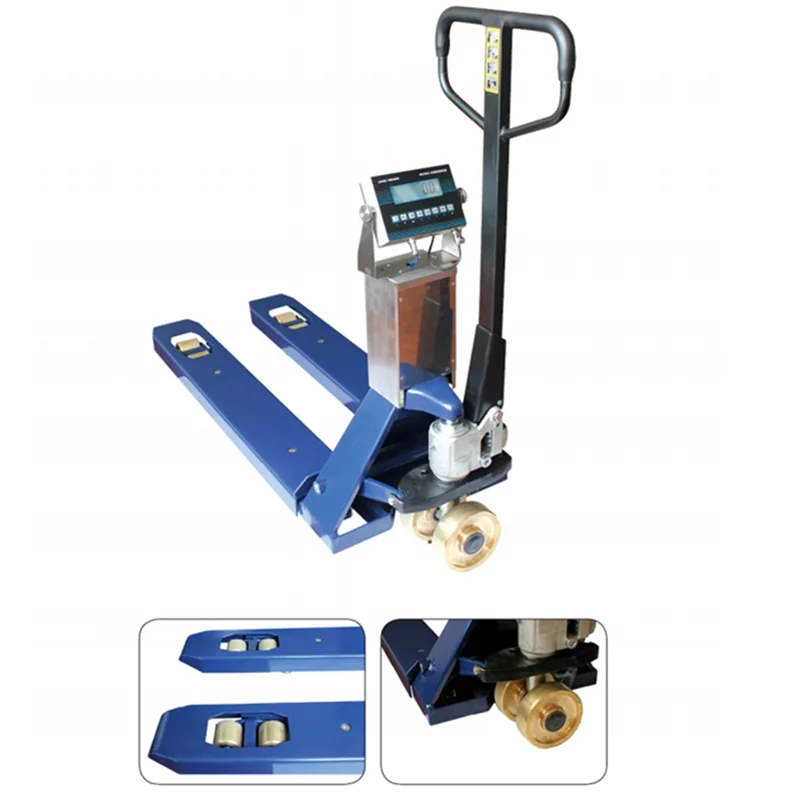

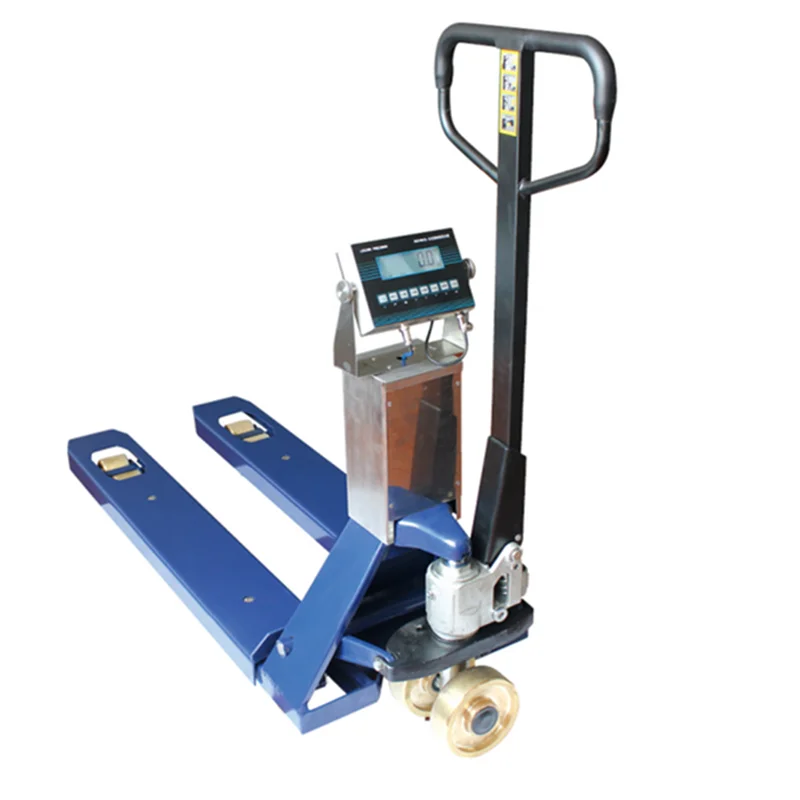

2T Heavy duty High Precision Digital Hand Pallet Truck scale

Product Overview

Description



2T Heavy duty High Precision Digital Explosion Proof Hand Pallet Truck scale

Explosion-proof forklift scales are widely used in chemical and other industries with explosive gas environment.

The weighing system consists of pallet body, explosion-proof load cell, explosion-proof junction box and explosion-proof weighing instrument;

it has movable, easy to operate, fast weighing, Stable and reliable

Technical Parameters:
accuracy level	III
Display:	6-digit 20mm LED digital tube or 25mm LCD with backlight display
resolution	display 30,000, internal 2,000,000
system explosion-proof mark	Exib IC T3 Gb
DC	DE001 intrinsically safe battery pack DC7.2V/4.0Ah
working temperature:	-10 ° C ~ +40 ℃
No condensation humidity:	≤85% R.H
Structural features:
pallet truck structure, suitable for pallet weighing
special copper roller mechanism and hydraulic lifting mechanism for easy movement and lifting
carbon steel weighing platform surface shot blasting, strong corrosion resistance
four shear beam type explosion-proof alloy steel sensor
A stainless steel explosion-proof junction box product
features:
zero, peel, accumulate, print
weighing, counting, check weighing, holding, sorting
Application place:Material movement weighing in explosive atmospheres such as petrochemicals, paints, paints, pharmaceuticals, chlorine, and military
large screen display interface:	serial RS232 output (optional)
communication interface:	RS232/RS485 (Modbus-RTU) (optional)
analog output	0-20mA/4-20mA (optional)
