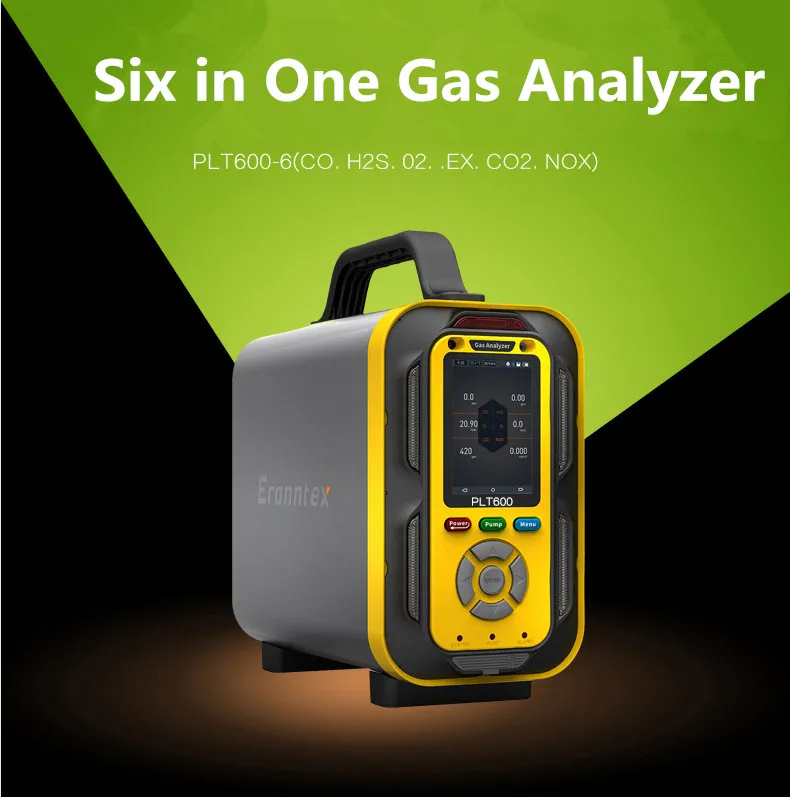

Introduction of PLT600 6 in 1 gas analyzer

   PLT600 6 in 1 is a gas analyzer used in portable requires precise detection analysis of a variety of gas concentration, temperature and humidity measurement occasions, PLT600 liuhe a gas analyzer using a 3.6 -inch high-definition color screen real-time display concentration, using the current industry best brands of electrochemical or infrared, catalytic combustion, thermal conductivity, PID principle of ion gas sensor, Swiss precision capacitive digital temperature and humidity sensor.
   PLT600 advanced circuit design, mature kernel algorithm processing, obtained a number of software patents and appearance patents.The PLT600 can be used to detect and analyze the gas concentration in the pipeline or confined space, the gas concentration in the atmospheric environment can also be used to detect the gas leakage, more than 500 kinds of gas can be detected, and the purity of a single gas with high concentration can also be detected and analyzed when the various background gases are nitrogen or oxygen.


PLT600  gas parameters table


Gas composition
Test range
Resolution
Inspection principle
Note
Carbon monoxide(CO)
0-1000PPM
0.1PPM
Electrochemical

All gas detection ranges can be customized, and the gas detected by the composite gas detector can be combined at will.(for gas not listed on the table, please contact customer service for consultation)
Hydrogen sulphide(H2S)
0-100PPM
0.01PPM
Electrochemical
Oxygen(O2)
0-30%VOL
0.01%VOL
Electrochemical
Combustible gas(Ex)
0-100%LEL
0.1%LEL
Catalytic combustion
Carbon dioxide(CO2)
0-5000PPM
1PPM
Infrared principle
Nitrogen oxides(NOX)
0-1000PPM
0.1PPM
Electrochemical

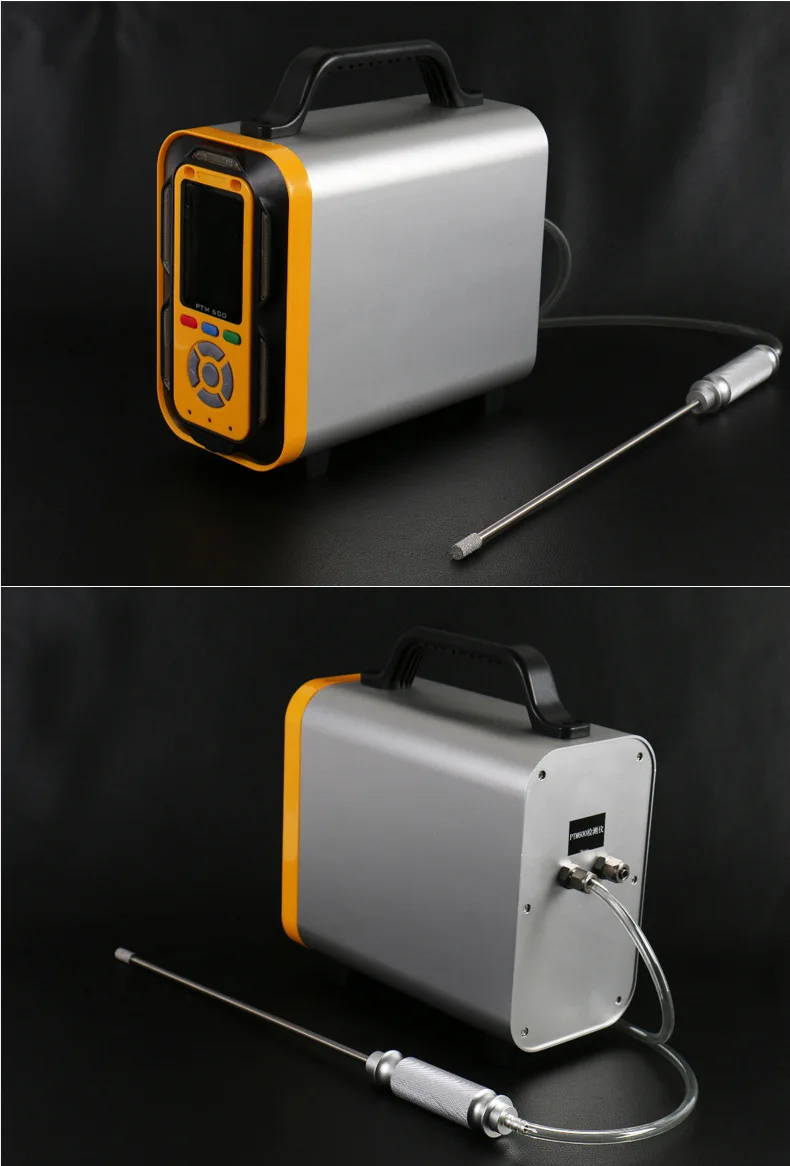

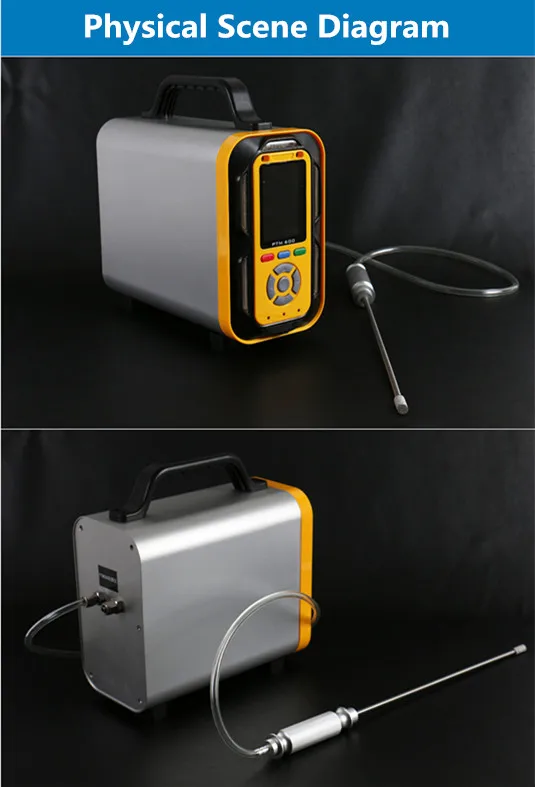

Details Images






Product Paramenters


Technical parameter list

Detection of gas
Composite gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, carbon dioxide CO2, nitrogen oxide NOX),
optional: can detect any 1-6 gas concentration and temperature and humidity, up to 24 or more can be expanded.
Detection range
CO(0-1000PPM),H2S(0-100PPM),O2(0-30%VOL),Ex(0-100%LEL),CO2(0-5000PPM),NOX(0-1000PPM),Other ranges can be customized.
Resolution
CO(0.1PPM),H2S(0.01PPM),O2(0.01%VOL),Ex(0.1%LEL),CO2(1PPM),NOX(0.1PPM),Higher resolution customizable.

Inspection principle
Electrochemical, catalytic combustion, infrared, thermal conductivity, PID light ions, depending on gas, range, field environment and user needs.
Detection method
Built-in pump suction type, flow rate 800 ml per minute
Display mode
3.5-inch hd color screen with 320*240 resolution.
Detection accuracy
≤±1%(F.S)
Linearity
≤±1%
Repeatability
≤±1%
Uncertainty
≤±1%
Alarm mode
Sound-light alarm, visual alarm, sound-light + visual alarm, off alarm
Response time
T90≤20S
Recovery time
≤30S
Operating power supply
DC3.6V
Sensor life
More than 3 years
Use the environment
Temperature: -40 ℃ ~+70 ℃, relative humidity ≤0-99%RH

Sample temperature
-40 ℃ ~+70 ℃,High temperature sampling and cooling filter handle or high temperature and high humidity pretreatment system are optional, which
can detect the concentration of flue gas at 1300 degrees Celsius
Temperature measurement
-40 ℃ ~+120 ℃(optional),precision0.5℃
Humidity measurement
0-100%RH(optional),precision3%RH
Battery capacity
3.6 VDC,10000 mA Large capacity rechargeable polymer battery with overcharge, overdischarge, overpressure, overheat, short circuit protection


Data storage
Standard capacity of 100,000 pieces of data, optional SD card, usb flash drive storage, unlimited capacity, support the local view, delete or data export, free upper computer communication software, storage function is turned off by default, can be set to open state, storage interval arbitrary Settings
Communication interface
Infrared, USB,RS232 automatic identification
printer
Optional, built-in micro printer or external micro wireless infrared printer
Explosion-proof type
Intrinsically safe type
Explosion proof mark
EXia II CT6
Protection level
IP66,Rain and water splash, dustproof
External dimensions
230*210*120mm(L*H*W)
weight
2.5kg

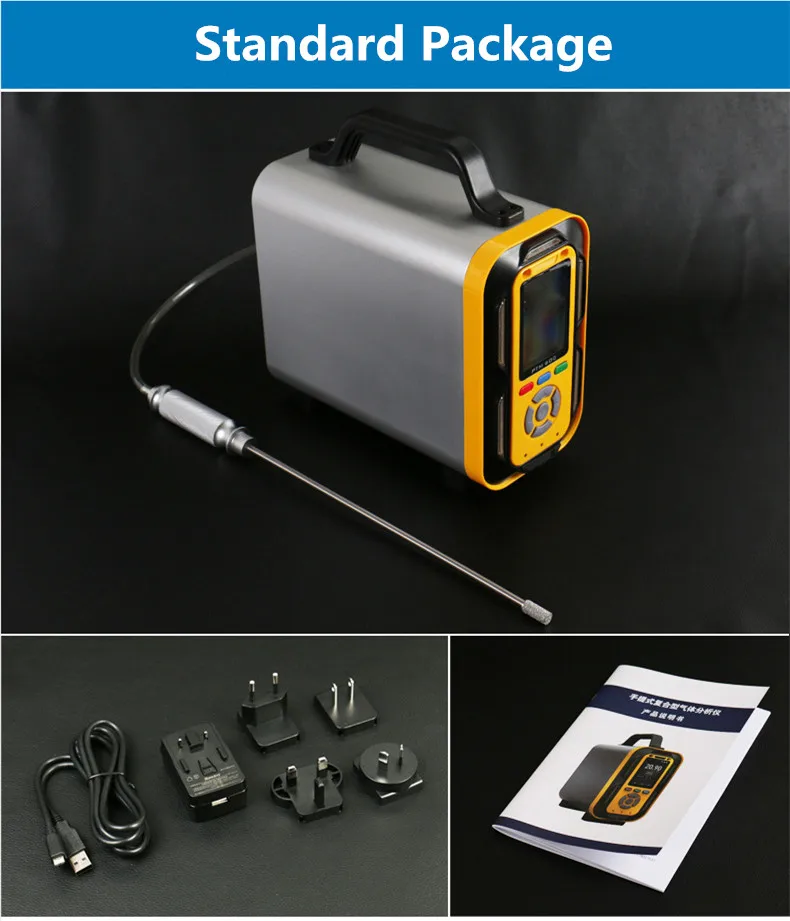

Standard attachments
Specification, qualification certificate, warranty card, USB charger (including data cable), high-grade aluminum alloy instrument case, optical disk (communication software for upper computer), 40cm stainless steel sampling handle (1m hose)
Optional accessories
Built-in miniature printer, external mini wireless infrared printer, temperature and humidity measurement function, U disk storage, wireless data communication function, high temperature cool sampling filter handle, high temperature and high humidity pretreatment system, external remote sampling pump, humidity, dust filter, multiple 1.2 M telescopic handle sampling (1 M hose)
applications
Petroleum, chemical industry, medicine, environmental protection, flue gas analysis, air treatment, all need to detect and analyze the gas concentration of the occasion


Product Processing




About Puliton




Certifications




Transport




FAQ


1.Q:Can I have a sample order to test quality?
    A: Yes, we re commend and welcome sample order to test and check before order.

2. Q: What is the lead time?
    A: Sample needs 1-3 days, mass production time needs 7-15 days for order<=5000pcs.

3. Q: Do you have any MOQ limit?
     A: We don't have a MOQ limit, 1 pc are also welcome.

4. Q: Do you offer guarantee for the products?
     A: Yes, we offer 1 or 2 years guarantee for the products.

5. Q: If I order big quantity, Can I have a cheaper price?
     A: We will reduce the price according to the specific quantity and your requirements for the product.


6.Q: How does your I factory do regarding the quality control?
     A: Quality is priority, Our factory has passed ISO 9001 with annual audit.Established a procedure to check products at all stages of the manufacturing process-raw materials, in process materials.validated or tested materials, finished goods.etc.
