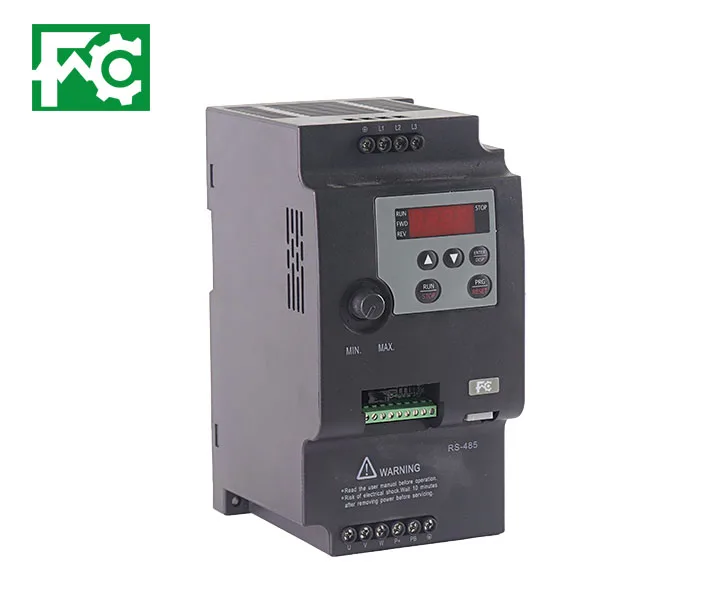

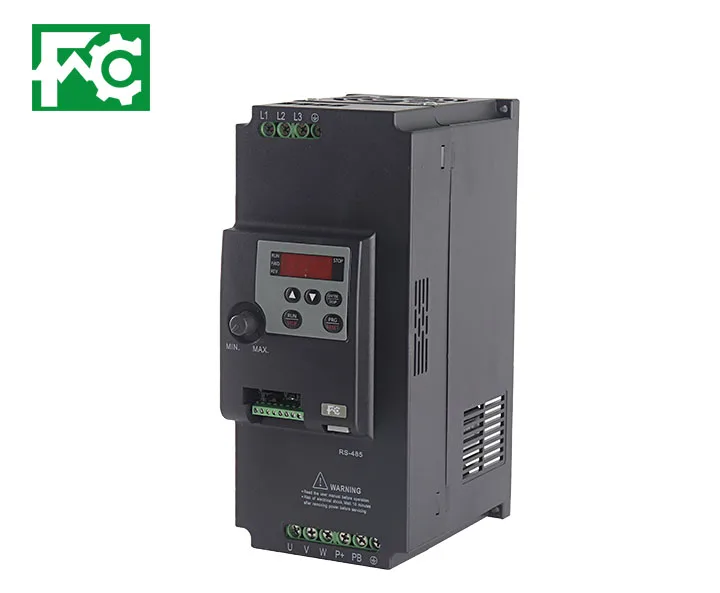

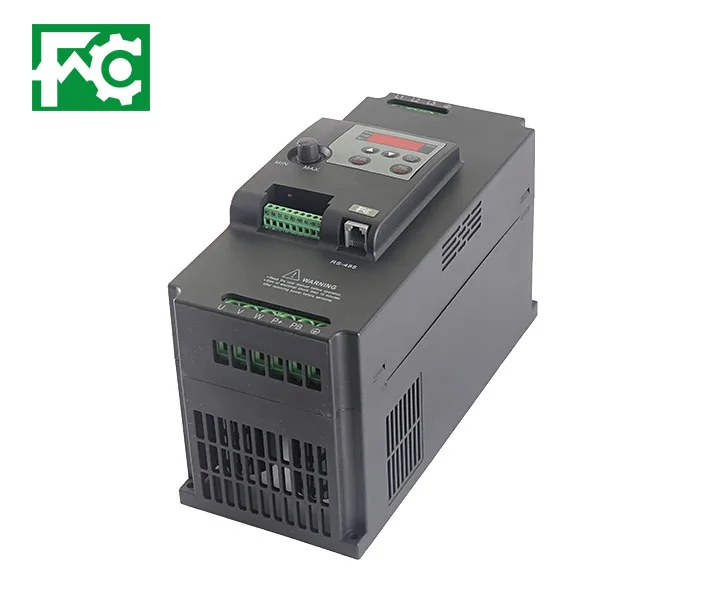

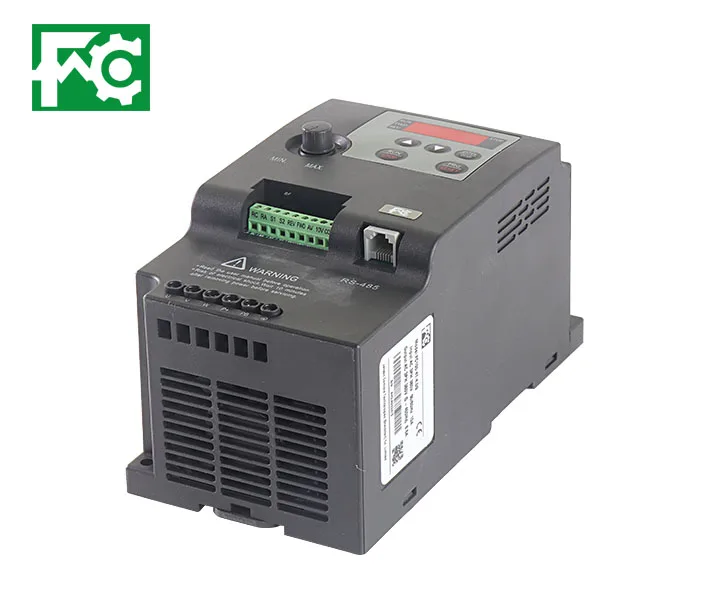

220v 3phase input 3phase output 4.0kw 5hp Frequency Inverter / Frequency Converter 50hz To 60hz
- Category: >>>
- Supplier: Janson Controls Technologies (shenzhen) Co. Limited
Share on (62444313699):
Product Overview
Description
Janson Controls
Janson Controls
FC100 Series Model List | ||||||||
AC Drive Model | Power Capacity(KVA) | Rated Input Current(A) | Rated Output Current(A) | Adaptable Motor(kw) | ||||
FC100 2S: Input Voltage: single phase 220V Voltage Range: -15%-20% | ||||||||
FC100-2S-0.4G | 1.0 | 5.8 | 2.5 | 0.4 | ||||
FC100-2S-0.75G | 2.0 | 10.2 | 5 | 0.75 | ||||
FC100-2S-1.5G | 2.8 | 14.0 | 7 | 1.5 | ||||
FC100-2S-2.2G | 4.4 | 25.0 | 11 | 2.2 | ||||
FC100-2S-4.0G | 6.6 | 39.0 | 16.5 | 4.0 | ||||
FC100-2S-5.5G | 8.0 | 48.0 | 20 | 5.5 | ||||
FC100-2S-7.5G | 21 | 35 | 33 | 7.5 | ||||
FC100-2S-11G | 30 | 46.5 | 47 | 11 | ||||
FC100 4T: Input Voltage: Three phase 380V Voltage Range: -15%-20% | ||||||||
FC100-4T-0.75G | 1.8 | 4.4 | 2.7 | 0.75 | ||||
FC100-4T-1.5G | 2.8 | 5.3 | 4 | 1.5 | ||||
FC100-4T-2.2G | 3.4 | 5.8 | 5 | 2.2 | ||||
FC100-4T-4.0G | 5.9 | 10.0 | 8.6 | 4.0 | ||||
FC100-4T-5.5G | 8.6 | 14.6 | 12.5 | 5.5 | ||||
FC100-4T-7.5G | 12.0 | 20.5 | 17.5 | 7.5 | ||||
FC100-4T-11G | 16.6 | 26 | 24 | 11 | ||||
FC100-4T-15G | 21.0 | 35.0 | 33 | 15 | ||||
FC100-4T-18.5G | 24.0 | 38.5 | 40 | 18.5 | ||||
FC100-4T-22G | 30.0 | 46.5 | 47 | 22 | ||||
