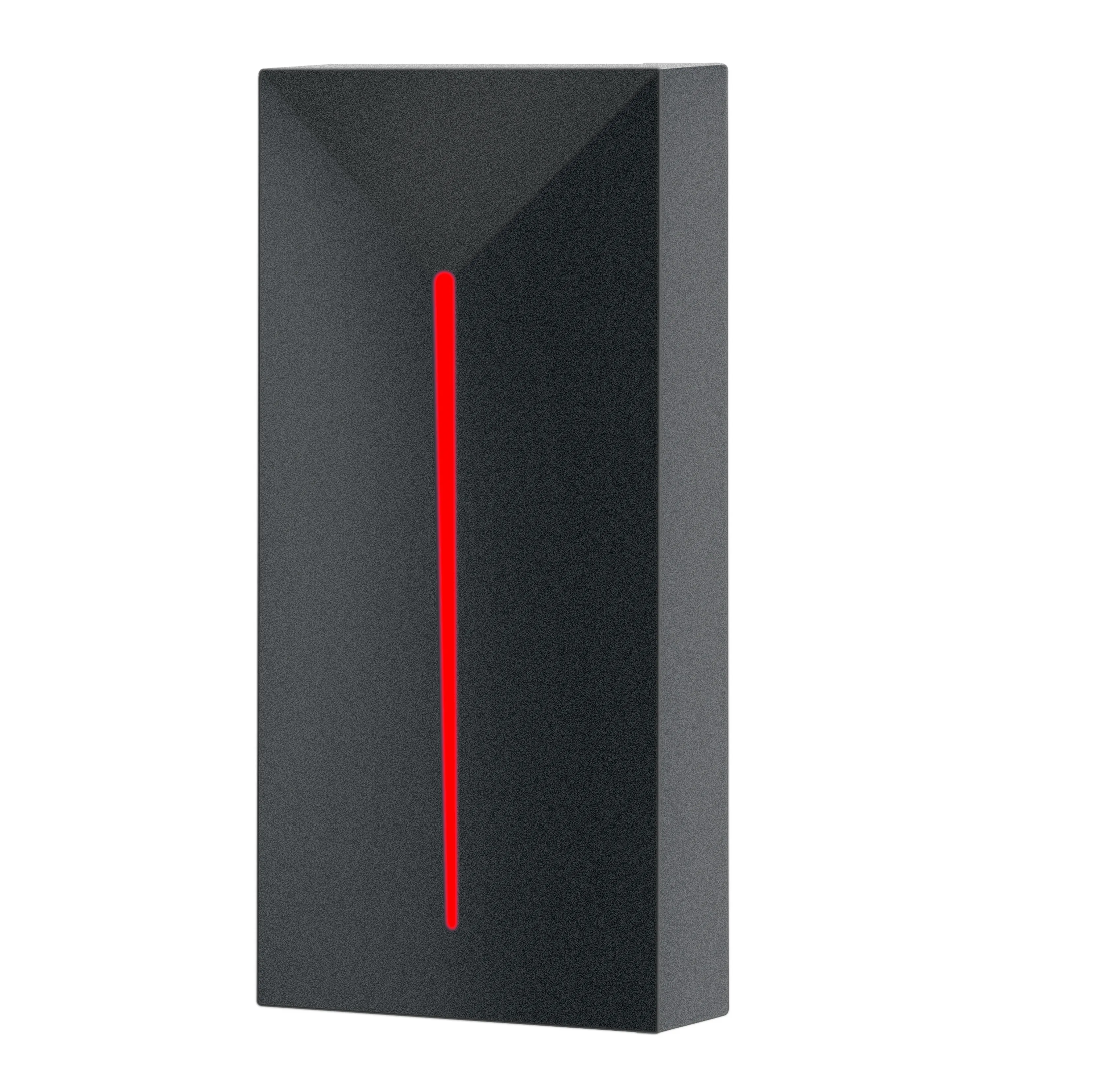

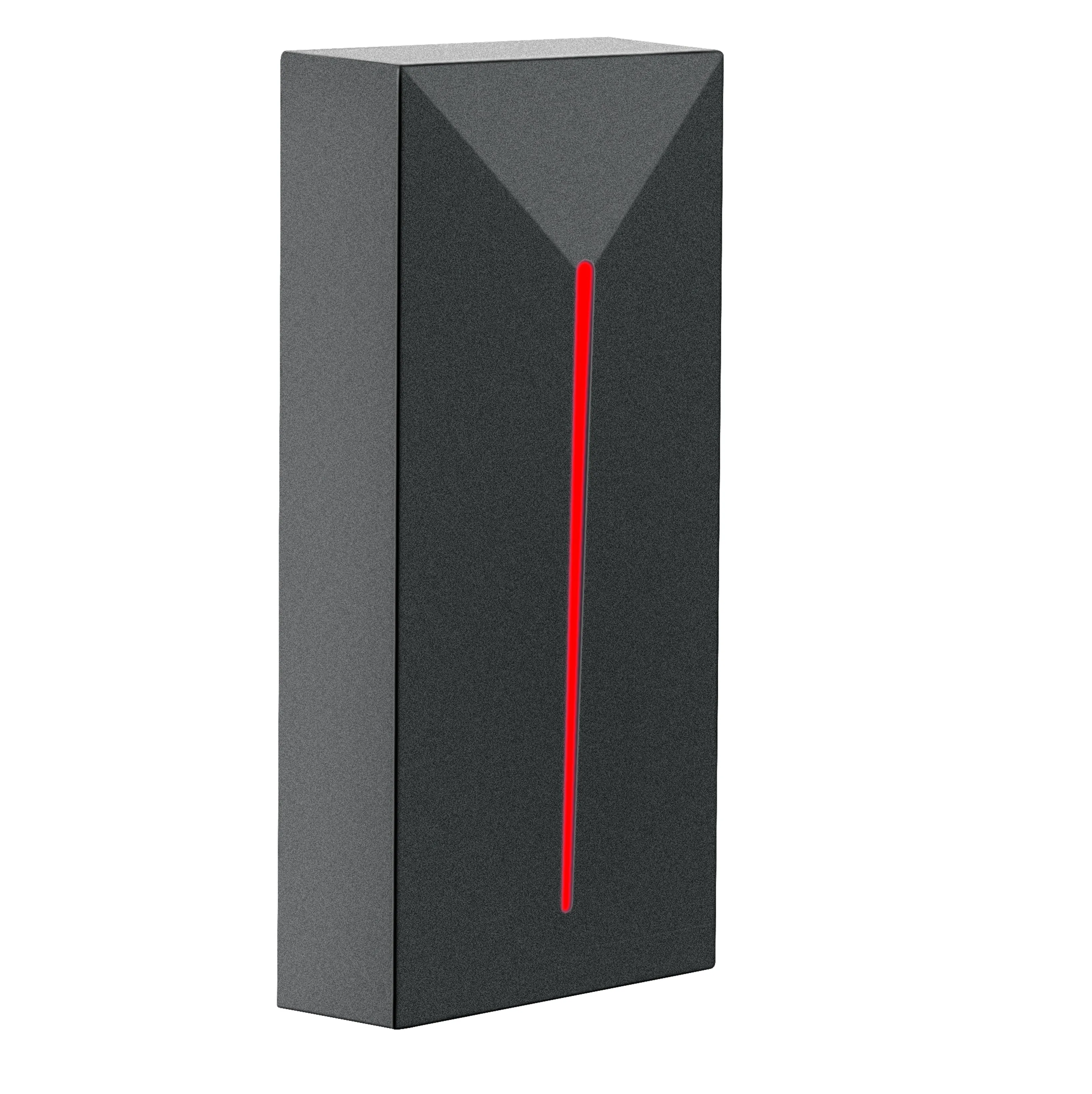

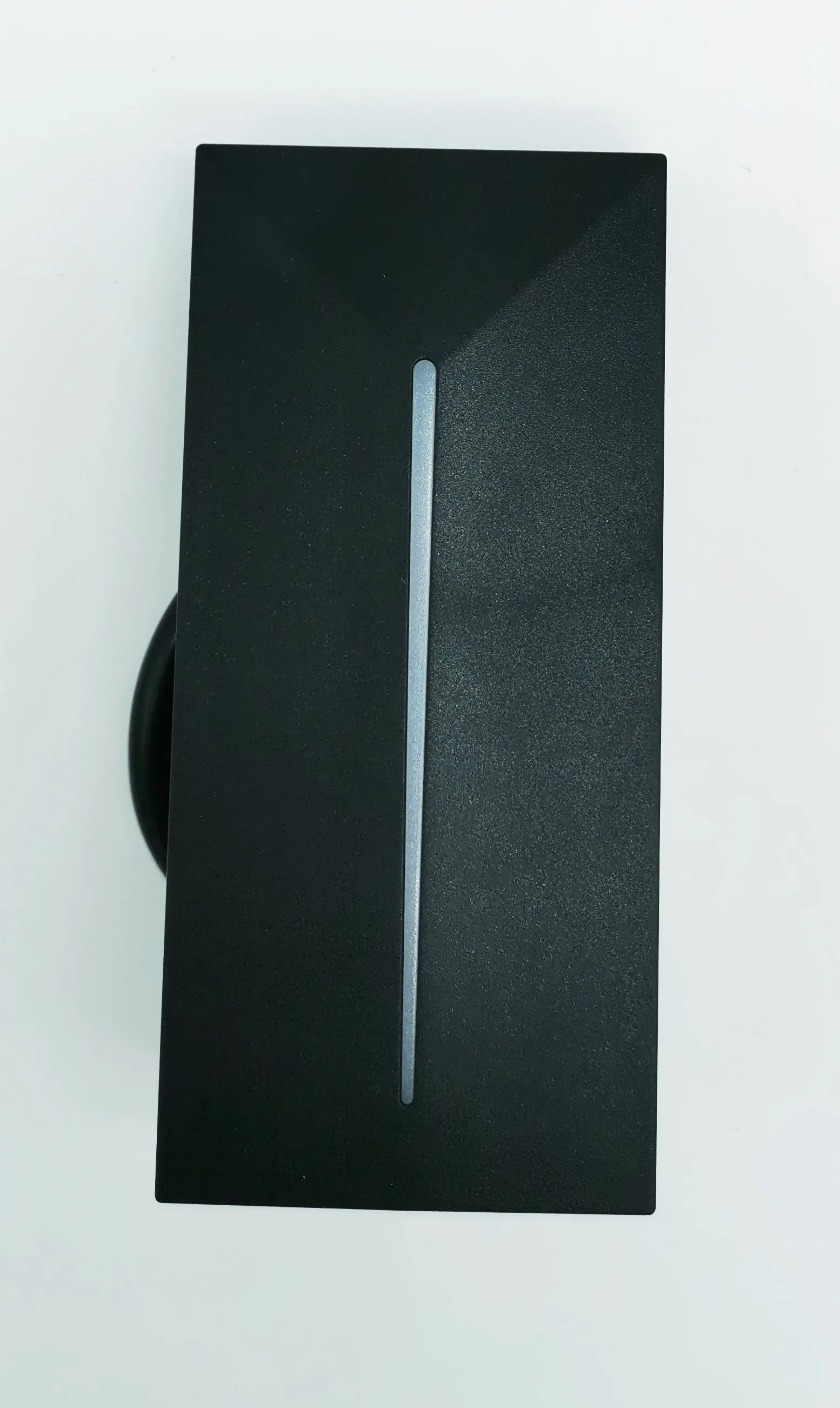

High quality Wiegand 26/34 Output Rfid Access Control System Card Readers
- Category: >>>
- Supplier: Shenzhen Rich Security Technology Co. Ltd.
Share on (62444344869):
Product Overview
Description
High quality Wiegand 26/34 Output Rfid Access Control System Card Readers
1.RFID Card reader Features
l Plastic case
l Very low power consumption,standby current less than 30mA
l WG 26 output
l Fast Search speed : time between reading card and opening the door is less than 0.1S
2.RFID Card reader Specifications
Operating Voltage | 9-12V DC |
Card type | EM/Mifare |
Reading Distance | 3-6 cm |
≤30mA | |
Operating Temperature | -45℃~60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Dimension | 110*52*22 MM |

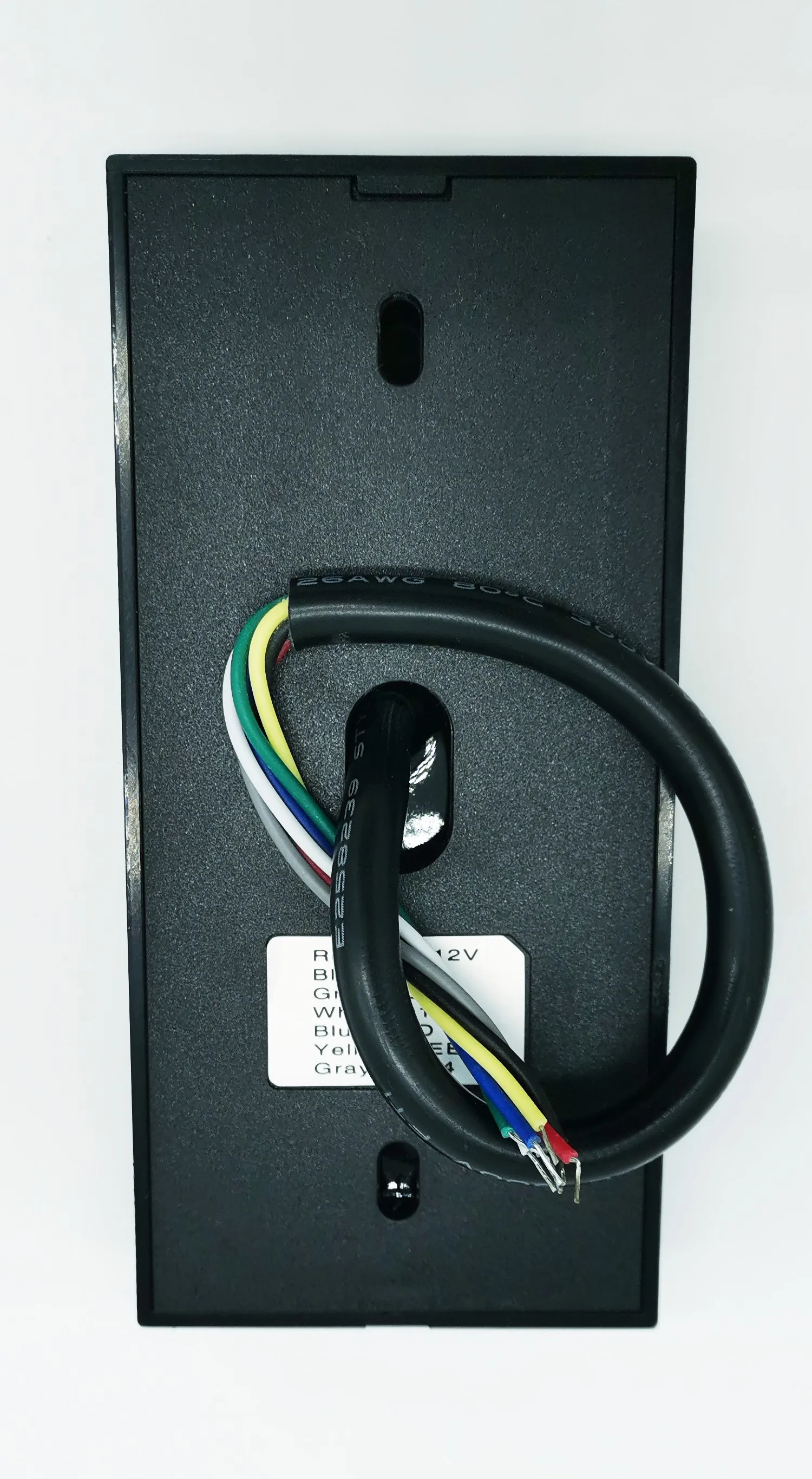

3.RFID Card reader Wiring
Wire No. | Function | Color | Description |
1 | LED | Blue | Connect controller LED |
2 | Beeper | Yellow | Connect controller beeper |
3 | D0 | Green | WG output line D0 |
4 | D1 | White | WG output line D1 |
5 | +12V | Red | Power supply +12V |
6 | GND | Black | Power supply -12V |

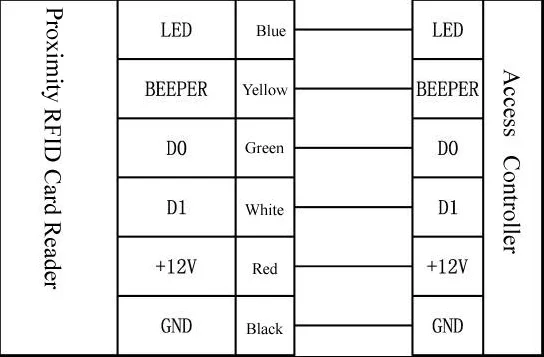

4.RFID Card reader Wiring Diagram
5.RFID Card reader Packing List
Name | Model | Quantity | Remarks |
RFID Reader | NP-R001 | 1 |
|
User manual | NP-R001 | 1 |
|
Rubber plug |
| 2 | Φ6mm×30 mm, used for fixing |
Self tapping screws |
| 2 | Φ4mm×28 mm, used for fixing |
