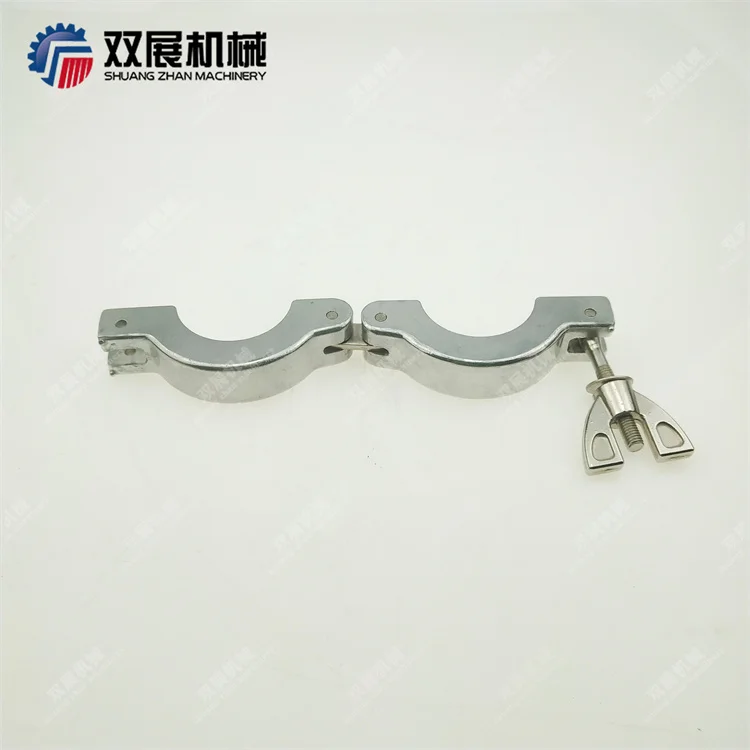

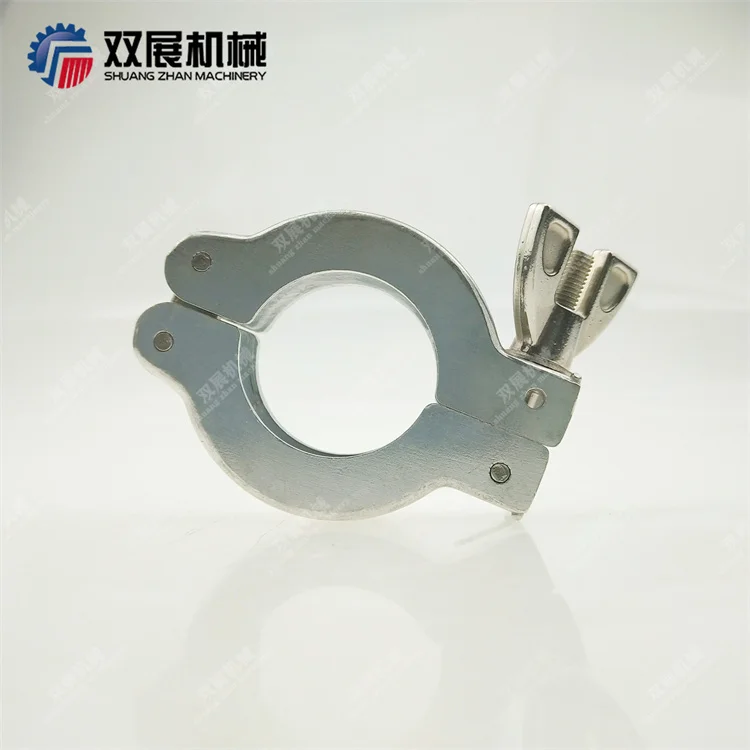

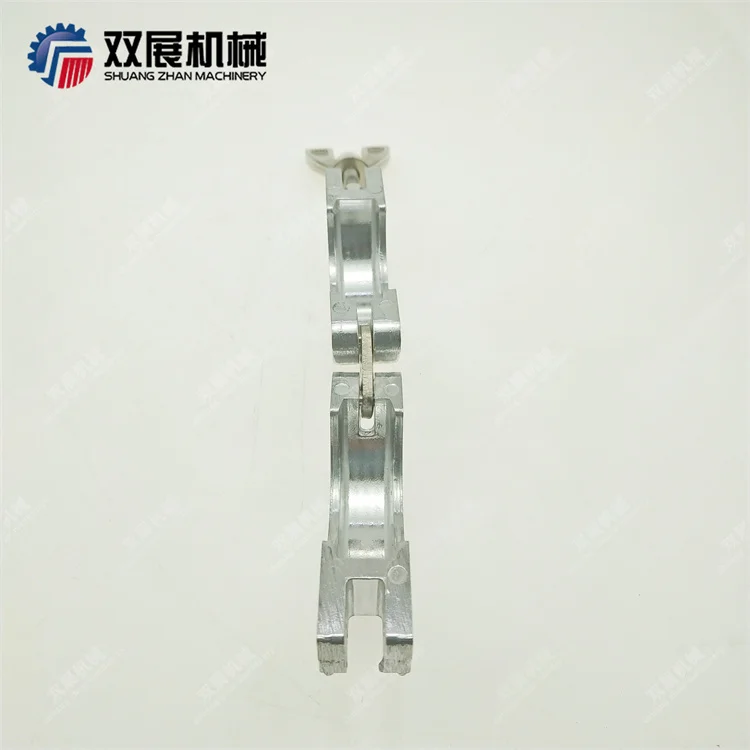

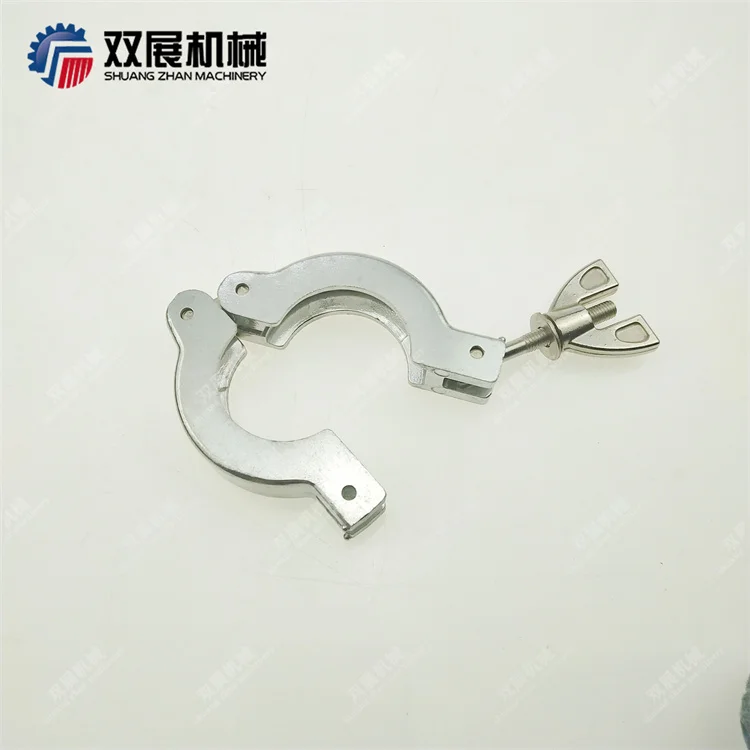

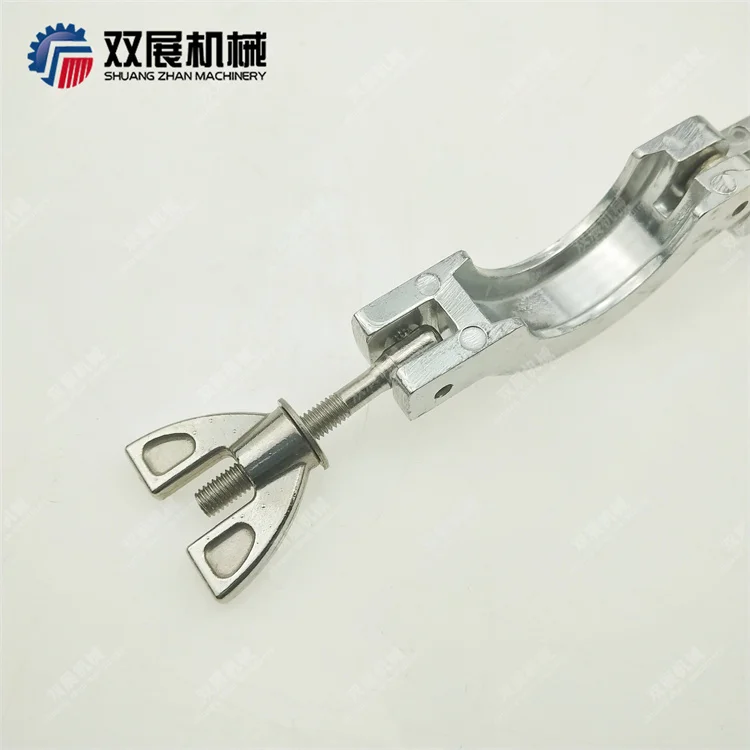

ISO KF Aluminum Hinged Clamp and FKM Centering Rings Seal Assemblies KF16 to KF50
- Category: >>>
- Supplier: Wenzhou Shuangzhan Machinery Co. Ltd.
Share on (62444403050):
Product Overview
Description
Product Description
The price includes one clamp and one center o ring.
ISO-KF Vacuum Flange Clamps
ISO-KF vacuum flange clamps provide the sealing force to fully compress the O-ring for a vacuum seal, and mechanical force to hold the two flange faces together.
Shuangzhan machinery offers stainless steel and aluminum vacuum pipe fittings of KF, CF and ISO LF standard, including clamp, centering, bracket, vacuum ferrule, end cap, reducer, elbow, tee, cross, bellow, hose barb, female and male adapters. Variable sizes are optional. please view our website for more vacuum fitting size details. https://www.brewingtanks.com/How-to-Detemine-Vacuum-Flange-Types-and-Sizes-id3099774.html1. Material: aluminum constructed, FKM or FPM seal
2. Size: KF-10 to KF-50 (NW10 to NW50)
These are vacuum fittings. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50.
How to use?

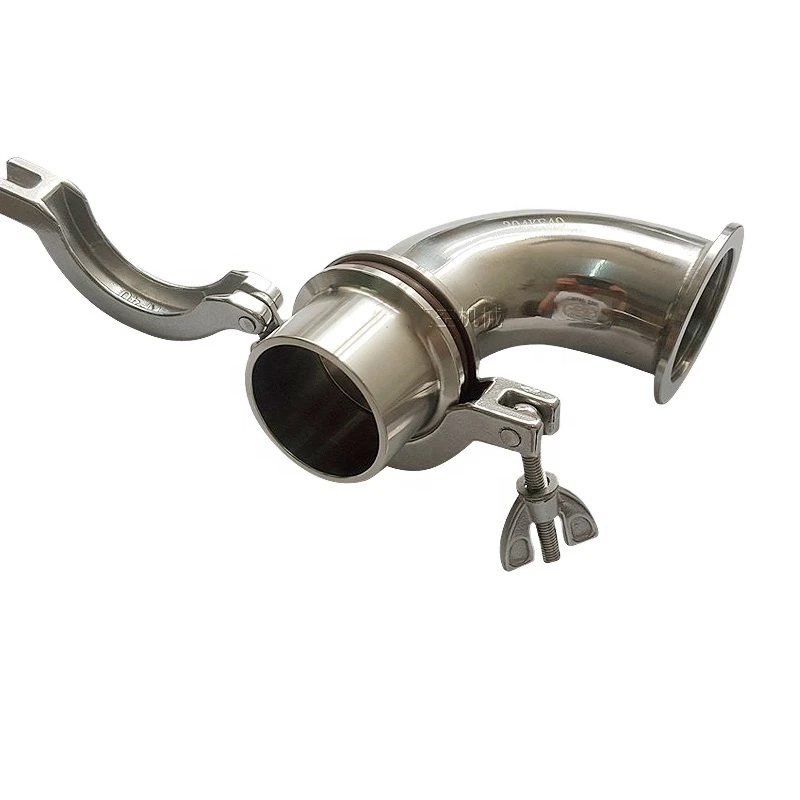

put a center ring between two ferrule, then use a clamp to get them together.
but elbow and ferrule of this link are not included.
stainless steel 304 or 316 | NW10 to NW50 | food grade finish | food grade finish inside and outside | ISO-KF standard | |
