Product Overview
Description
Brief introduction of our computer pvc sheet cutting machine
The machine suitable for cutting all kinds of non-woven fabrics, PET protective film, PVC film, PE film, plastic film,heatshrinkable film, hot melt film, Mylar film, EVA foam, all kinds of insulation paper, release paper, quit Tape, all kinds of copper foil, aluminum foil, copper tape, aluminum tape, nickel tape, tin foil and other metal sheet.
Feature of our pvc sheet cutting machihe
1. Simple operation panel.
Simple panel, simple operation, Chinese and English switching, LCD screen.
2. High-strength high-performance steel knife.
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven
surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate.
3. Multi-function button.
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting.
4. Rugged guide strip, High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the
efficiency and save labor.
Simple panel, simple operation, Chinese and English switching, LCD screen.
2. High-strength high-performance steel knife.
The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven
surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate.
3. Multi-function button.
Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting.
4. Rugged guide strip, High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the
efficiency and save labor.

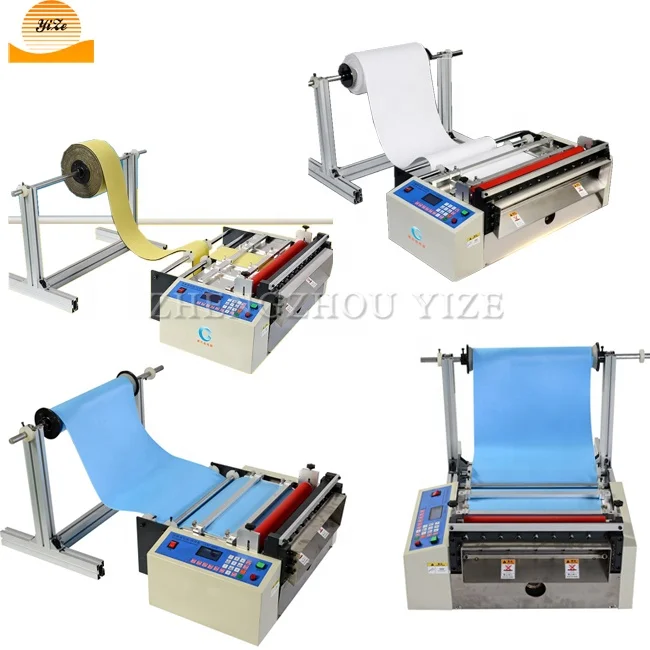

We mainly have two types computer pvc sheet cutting machine: Table type and All-in-one machine type ( automatic feed + photoelectric sensor + frame)
100 Table type
600 table type
All in one machine type
1. Table type of our pvc sheet cutting machine (without work table, one set of traction wheels, The maximum load of the rack is 40kg)
Cutting face mask
Cutting earloop
Cutting nose bridge
Model | YZCQ-100G updated version | YZCQ-100W High speed version | YZCQ-600 Table type | |||
Working width | 100mm | 100mm | 600mm | |||
Display | English interface LCD display | English interface LCD display | English interface LCD display | |||
Power | 500w | 850w | 900w | |||
Voltage | 220V 50HZ single phase | 220V 50HZ single phase | 220V 50HZ single phase | |||
Cutting length | 0.1-99999.9m | 0.1-99999.9m | 0.1-99999.9m | |||
Cutting speed | 80 times/min | 300 times/min | 120-240pcs/min | |||
Dimension | 360*450*360mm | 360*450*360mm | 950*780*520mm | |||
weight | 30kg | 35kg | 98kg | |||
In addition to 100mm,600 mm,There are also a lot of models: 200mm,300mm,400mm,500mm,800mm,1000mm,1200mm....... | ||||||

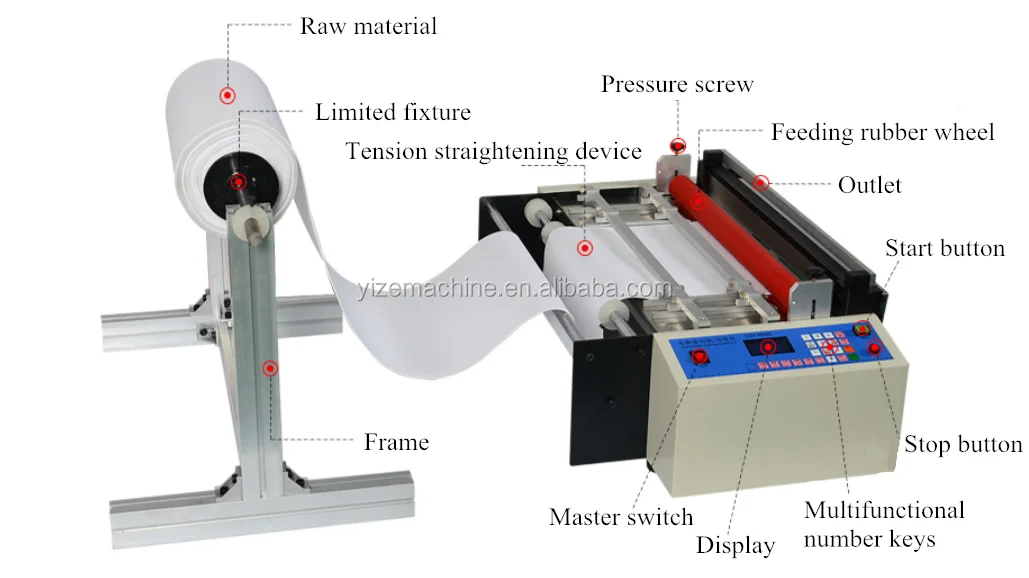

Details Show of our table stand pvc sheet cutting machine
Chinese and English operating system: LCD multi-function large screen display, one-key switch between Chinese and English. Simple panel and easy operation
High-precision motor: Computer program control accuracy up to 0.1mm, fast feeding, strong power, high safety, longer service life
Vacuum heat-treated steel knife: High-quality SKD11 high-speed steel knife with special mechanical structure, sharp edge, durable
Feeding rubber wheel: It is made of special superior rubber, wear-resistant, pressure-resistant and high-temperature resistant. It
is equipped with pressure-regulating screws at both ends to prevent material slippage.
is equipped with pressure-regulating screws at both ends to prevent material slippage.
Tension straightening device: Make sure that the materials are on the same line, avoiding the material deviation and causing the section to be irregular. It can cut multiple materials at the same time and improve production efficiency.
Vertical bearing frame: Floor-standing design, solid and sturdy, with bearing cone, labor-saving and durable, can be placed in various rolls
High-power cooling fan: Multiple sets of super-powered fans for heat dissipation and exhaust, reducing machine heat and ensuring long-term operation of the machine

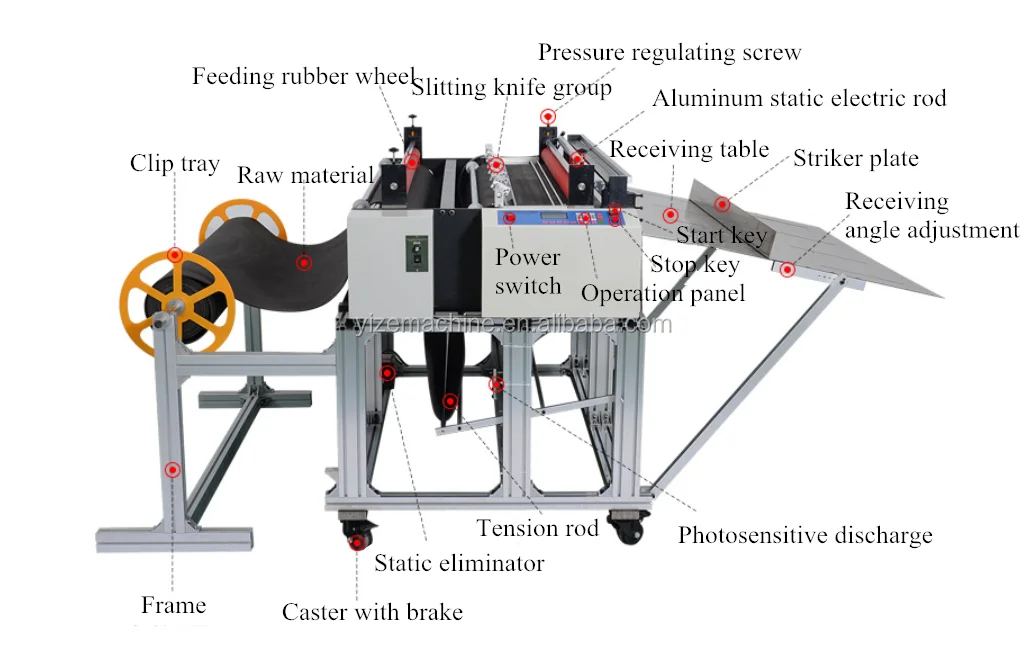

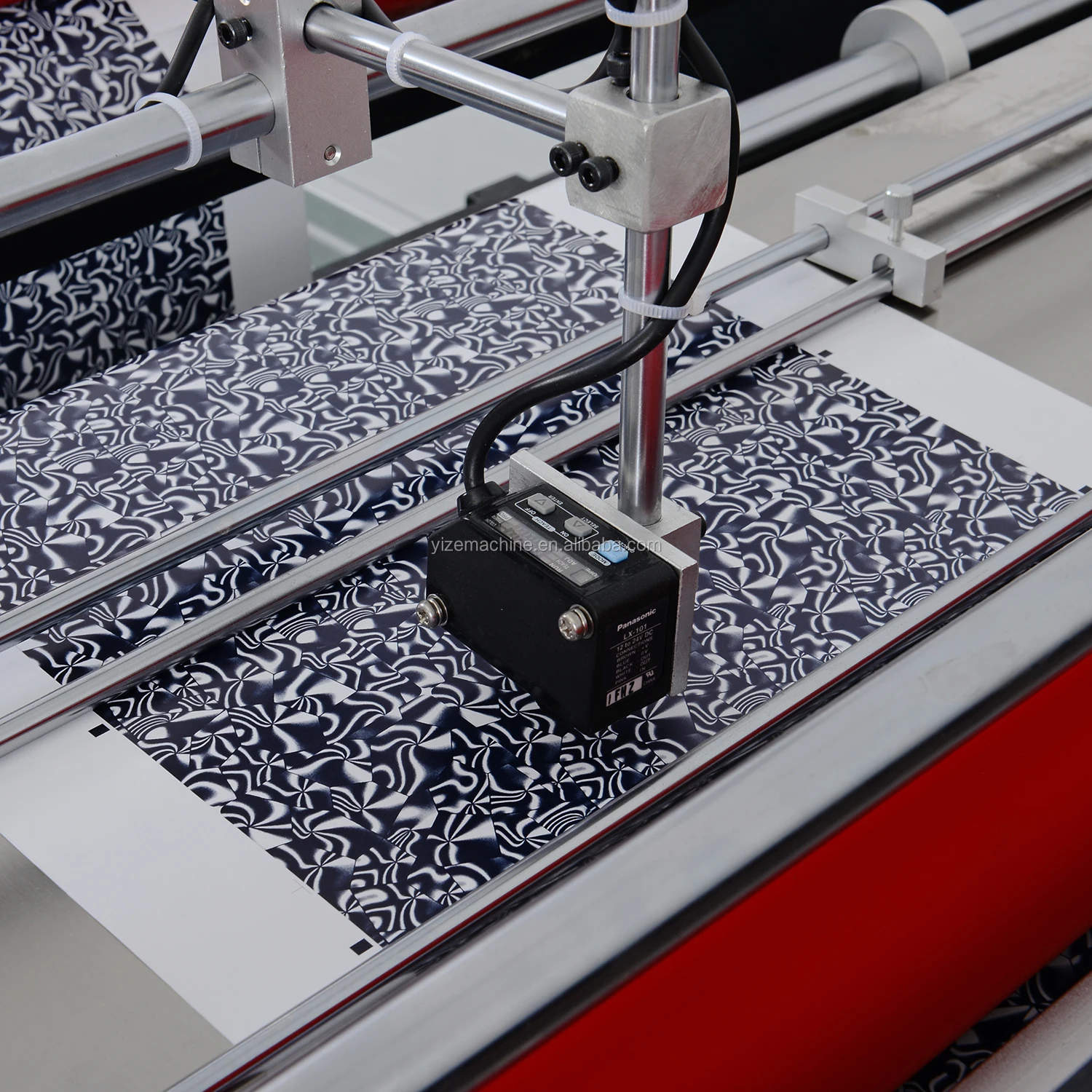

2. All-in-one machine ( automatic feed + photoelectric sensor + frame) :
Multiple safety protection: Grounding three plugs and built-in fuses, will not leak the main board, ensuring the safety of operators and machines
Model | YZCQ-600 all function in one model | |
display model | Chinese and English interface LCD display | |
Power | 1.2kw | |

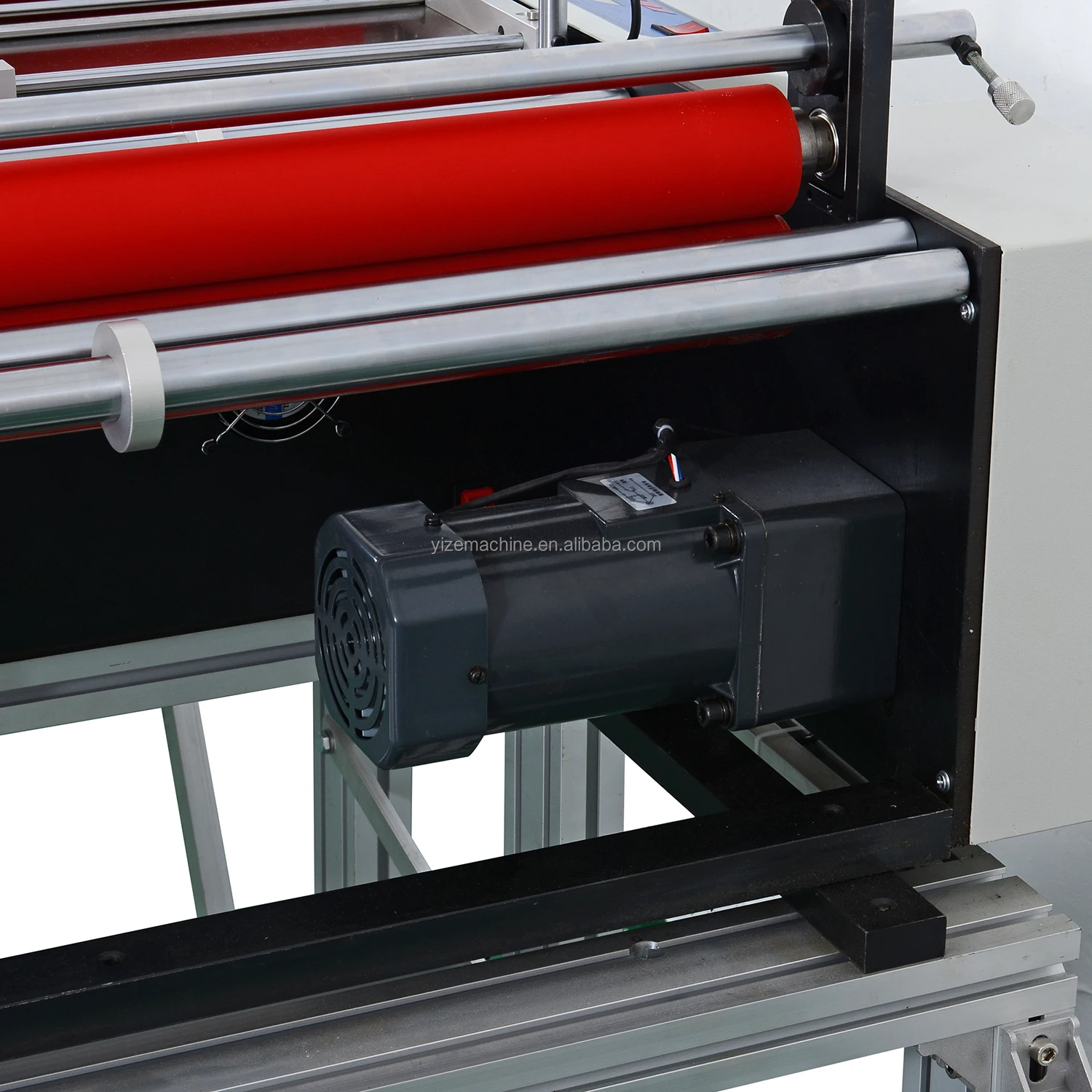

motor | High power speed reduction motor | |
blade material | High speed wear resistant steel | |
Feeding accuracy | 0.01mm | |
feeding motor | High precision closed-loop motor | |
weight | 280kg | |
In addition to 600 mm,There are also a lot of models: 100mm,200mm,300mm,400mm,500mm,800mm,1000mm,1200mm,1500mm....... | ||
Regarding our All-in-one machine type pvc sheet cutting machine, customer can choose add the following slitting device according to your need

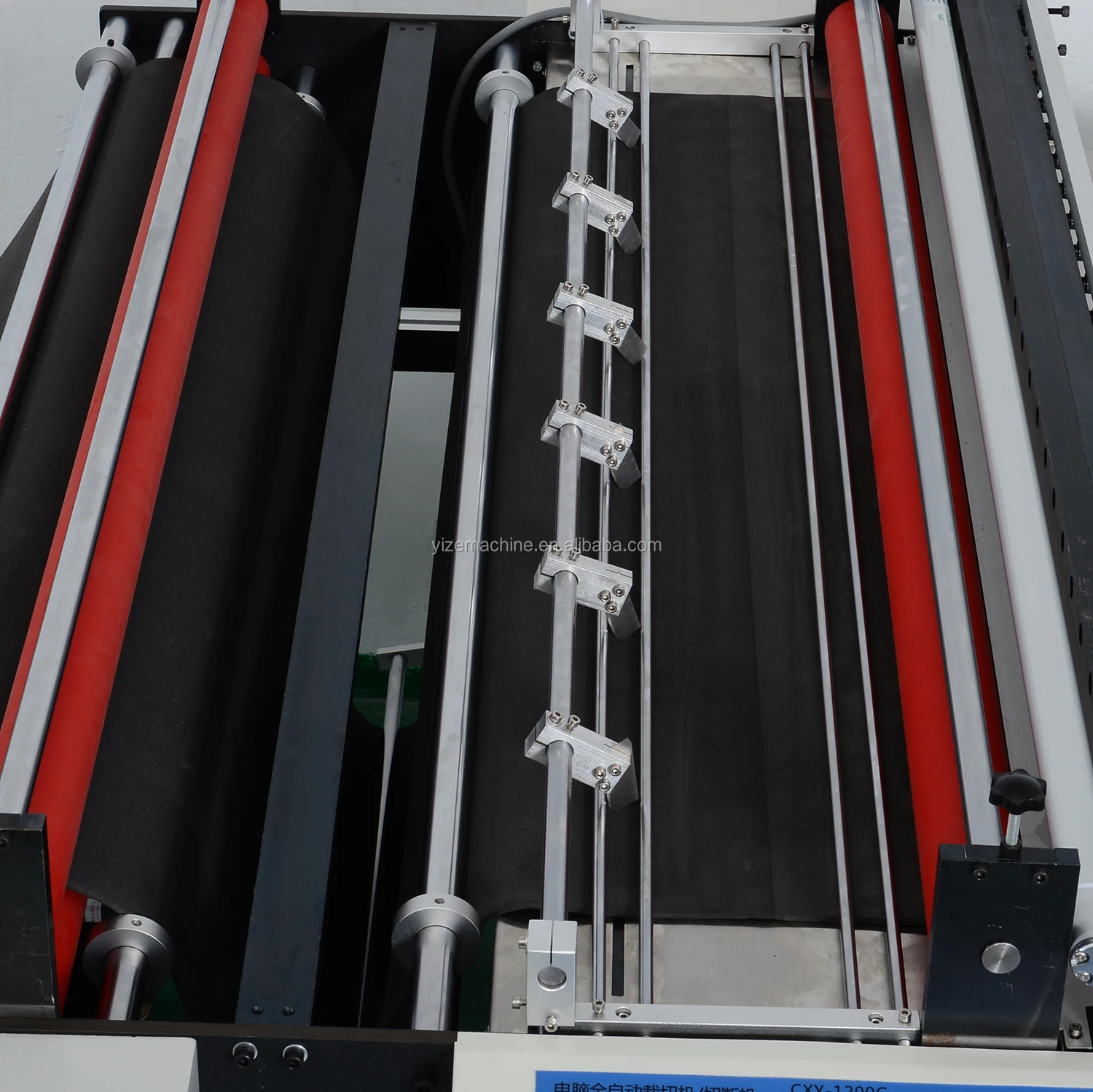

Flat blade slitting device:
suitable for thin material
Round blade slitting device:
suitable for thick material
Spring device:
Prevent adhesion of ultrathin materials
Widely application of our pvc sheet cutting machine are shows as below

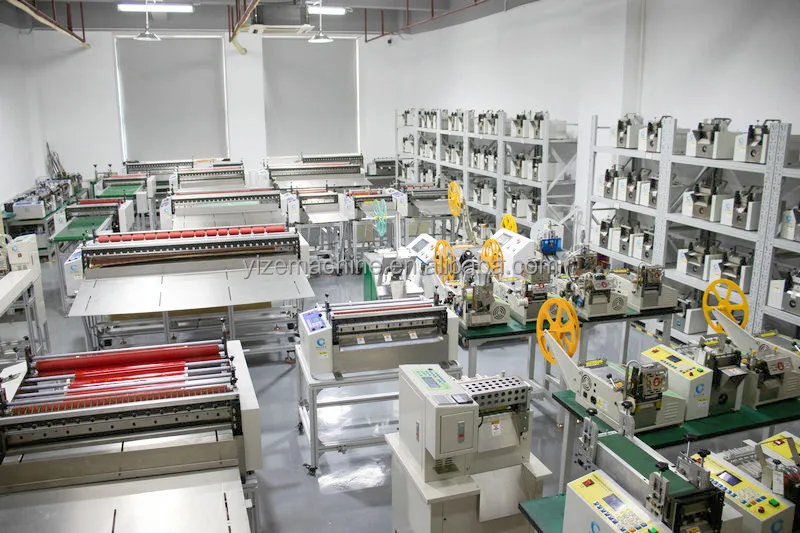

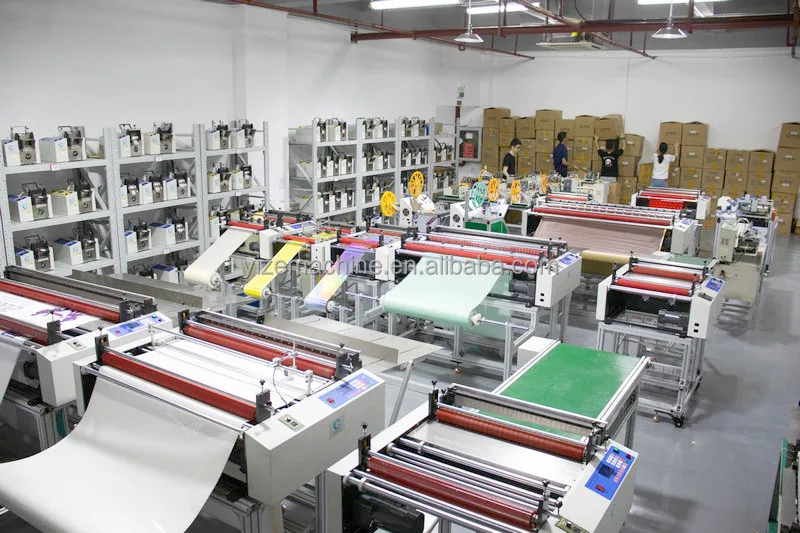

Machine in the warehouse display :
Our pvc sheet cutting machine will be packed with standard wooden box to keep machine safe
