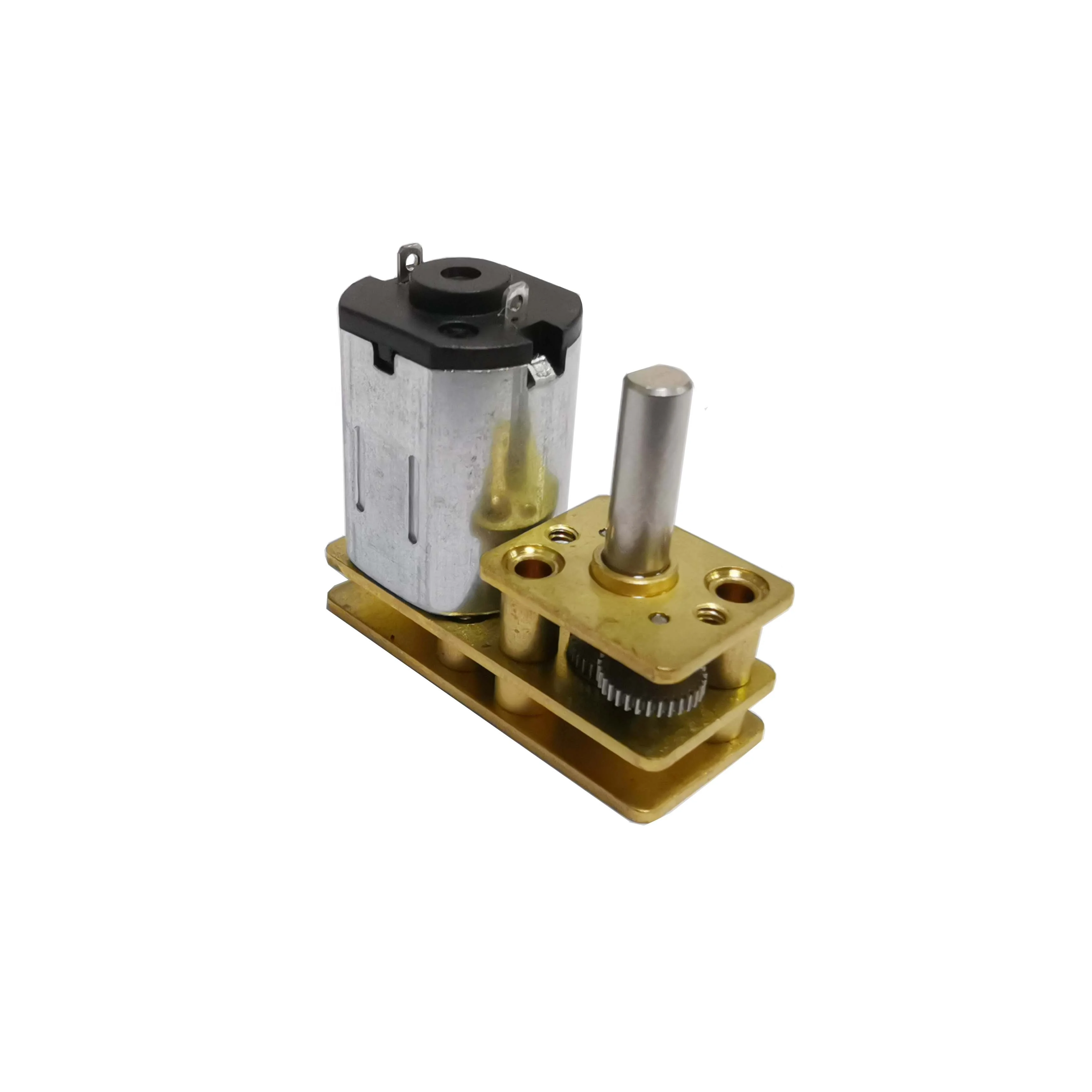

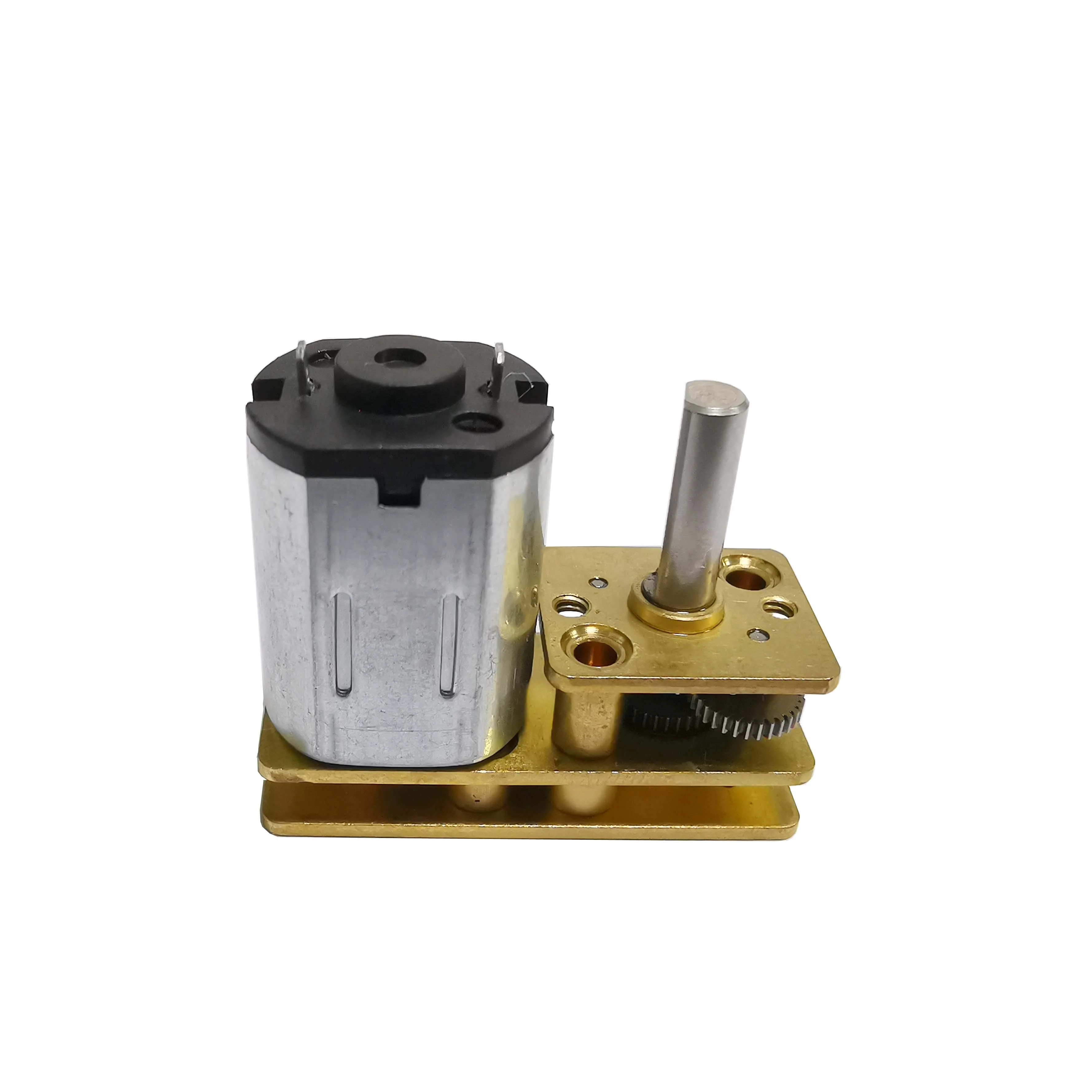

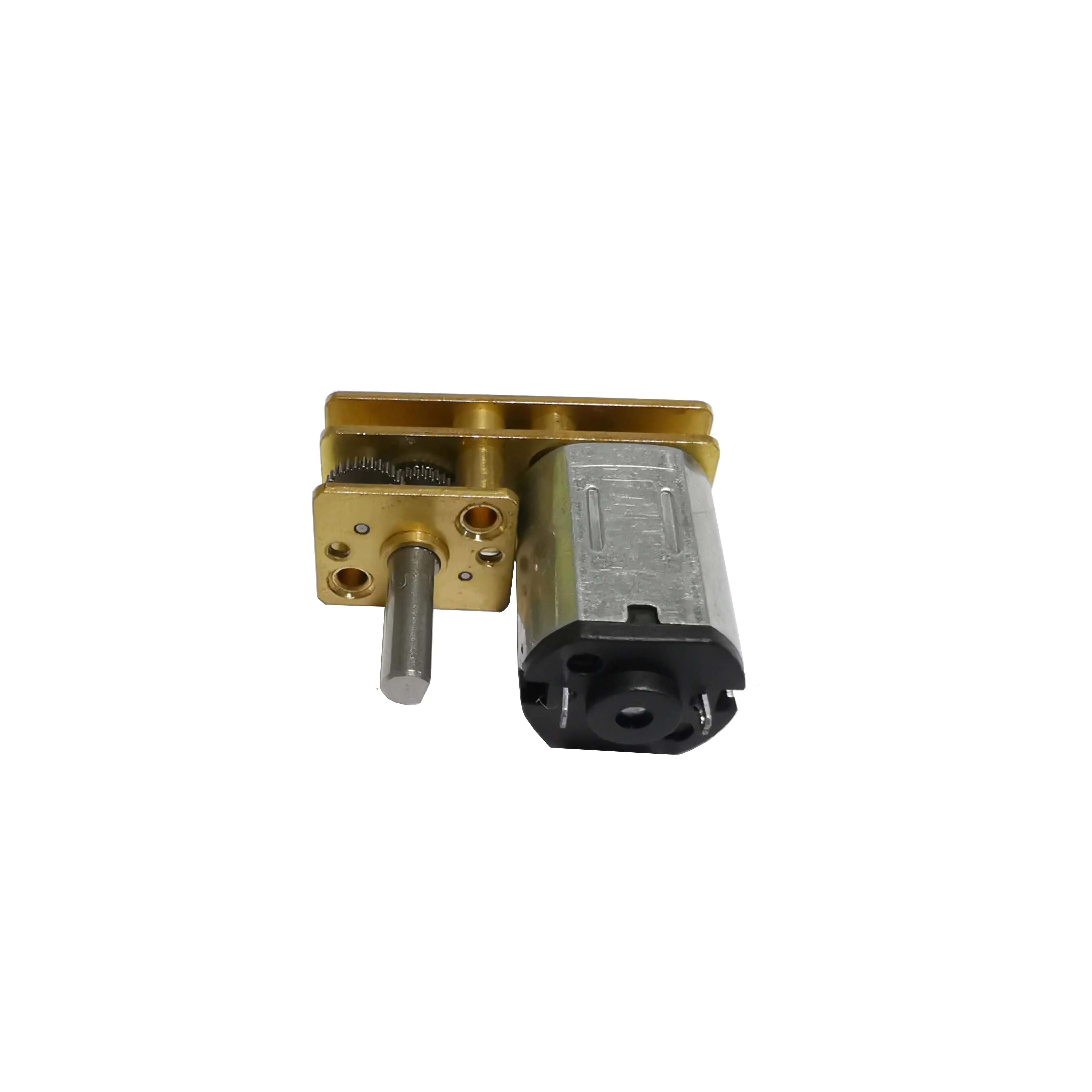

N20 12V DC 200 RPM high torque 10x24mm reversed gearbox mini electric reduction geared motor with 10mm output shaft
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62444534693):
Product Overview
Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | ON LOAD | STALL | ||||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| v | r/min | mA | r/min | mA | mN.m | g.cm | W | mN.m | g.cm | A | ||
| 24GA110-N20VA-10190 | 2.0-4.0 | 3.0 | 12100 | 45 | 9400 | 154 | 0.205 | 2.09 | 0.2 | 0.93 | 9.5 | 0.54 |
| 24GA110-N20VA-08260 | 4.0-6.0 | 5.0 | 14600 | 40 | 11200 | 134 | 0.248 | 2.53 | 0.292 | 1.08 | 11.0 | 0.45 |
| 24GA110-N20VA-05450 | 10.0-13.0 | 12.0 | 15200 | 15 | 12000 | 58 | 0.286 | 2.92 | 0.36 | 1.29 | 13.9 | 0.22 |

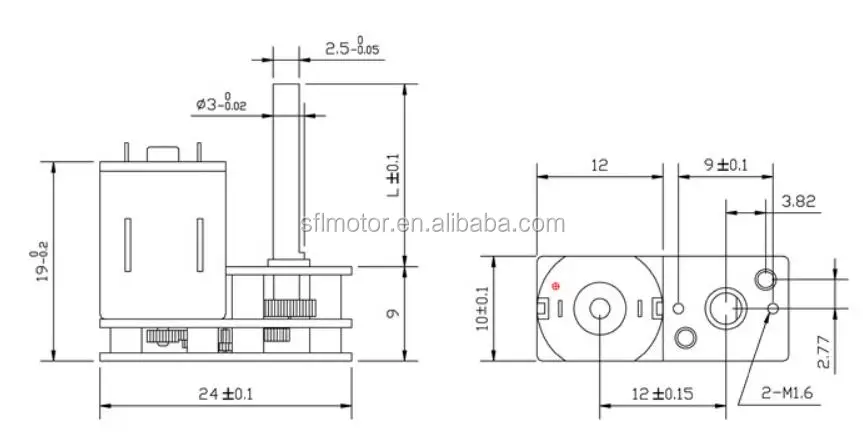

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
