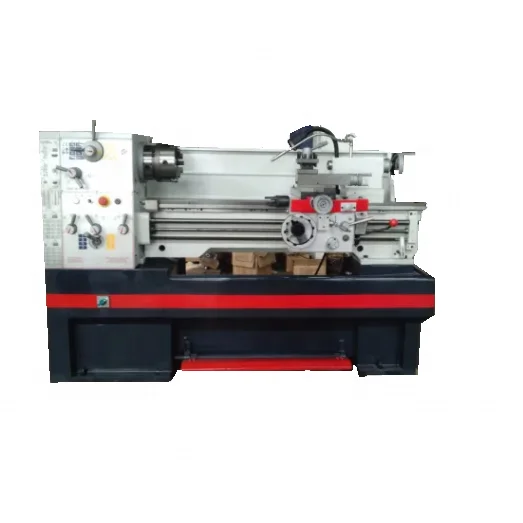

Engine Lathe Machine Model CM6241 Popular Size
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (62444544705):
Product Overview
Description
Product Description
Features
1)No. change any gears,you can turn all the metric and inch thread indicating in chart.
2)Three points support for spindle
3)Clutch in apron for safety and for chaning apron feed direction without changing spindle running direction
2)Three points support for spindle
3)Clutch in apron for safety and for chaning apron feed direction without changing spindle running direction
Model | CM6241 | ||
CAPACITY | Max.swing over bed | 410mm | |
Max.swing over cross slide | 225mm | ||
Max.swing over gap | 580mm | ||
Effective length of gap | 190mm | ||
Center Distance | 1000mm/1500mm | ||
Bed Width | 250mm | ||
HEADSTOCK | Spindle hole | 52mm | |
Spindle nose | ISO-D6 | ||
Spindle taper | MT6 | ||
Spindle speed(Number) | (16steps)45-1800rpm | ||
FEEDS | Longitudinal metric feeds | 17kinds 0.05-1.7mm/rev | |
Longitudinal inch feeds | 17kinds0.002-0.067inc/rev | ||
Cross metric feeds | 17kinds 0.025-0.85mm/rev | ||
Cross inch feeds | 17kinds0.001-0.0335inc/rev | ||
Metric threads range | 39kinds 0.2-14mm | ||
Inch threads range | 45kinds 2-72T.P.I | ||
Moudle threads range | 18kinds0.3-3.5M.P | ||
Diametral threads range | 21kinds 8-442D.P | ||
CARRIAGE | Max.travel of top slide | 140mm | |
Max.travel of cross slide | 210mm | ||
Max.size of toolshank | 20-20m2 | ||
TAILSTOCK | Dia.of tailstock sleeve | 50mm | |
Taper of tailstock sleeve | MT4 | ||
Max.travel of tailstock | 120mm | ||
MOTOR | Main drive motor | 3 or 4KW | |
Coolant pump motor | 90W | ||
PACKING | Center Distance(1000mm/1500mm) | 205/2560*90*170cm | |
WEIGHT | Center Distance(1000mm/1500mm) | 1150/1350kg,1750/1800KG | |

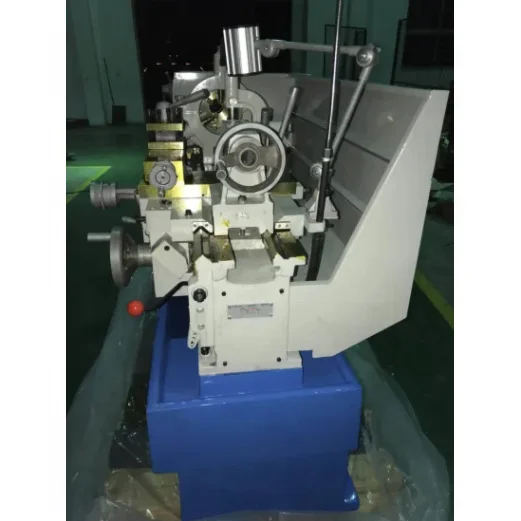

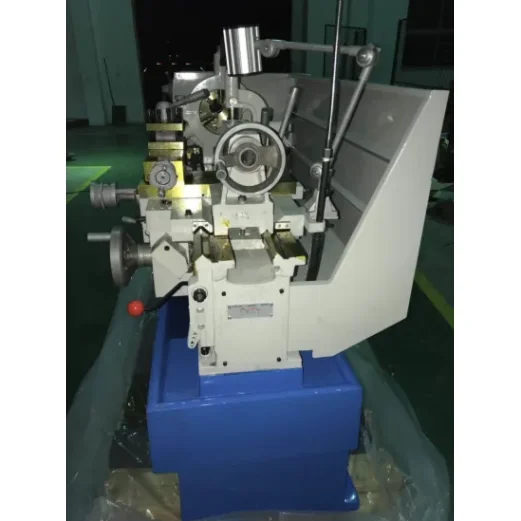

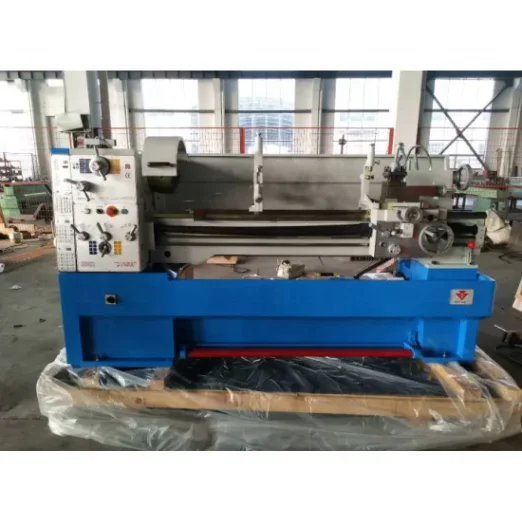

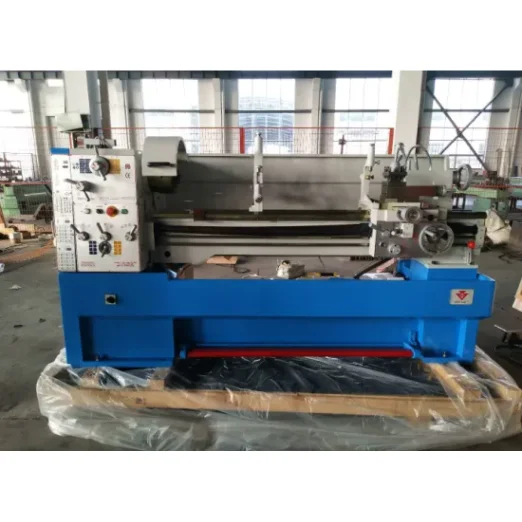

Detailed Images
Standard accessories
3-jaw& 4-jaw,Steady rest & follow rest,Face plate,Longitudinal touch stop,Work lamp,Coolant system,
Full-length splash guard,Foot brake,Paddings,Dead center,Oil gun,One set tools&tool box
Full-length splash guard,Foot brake,Paddings,Dead center,Oil gun,One set tools&tool box
Optional accessories
1.Chuck guard and Toolpost guard (CE Standard )
2.Leadscrew cover
3.Live centre(MT4)

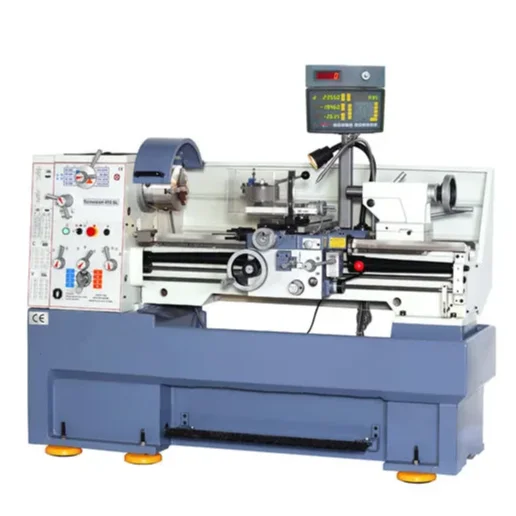

4.Digital readouts(2 axis)
5.Digital readouts(3 axis)
6.Magnetoelectrical brake
7.Taper cutting function
8.Quick change tool post(USD type
9.Drill chuck set
2.Leadscrew cover
3.Live centre(MT4)
4.Digital readouts(2 axis)
5.Digital readouts(3 axis)
6.Magnetoelectrical brake
7.Taper cutting function
8.Quick change tool post(USD type
9.Drill chuck set

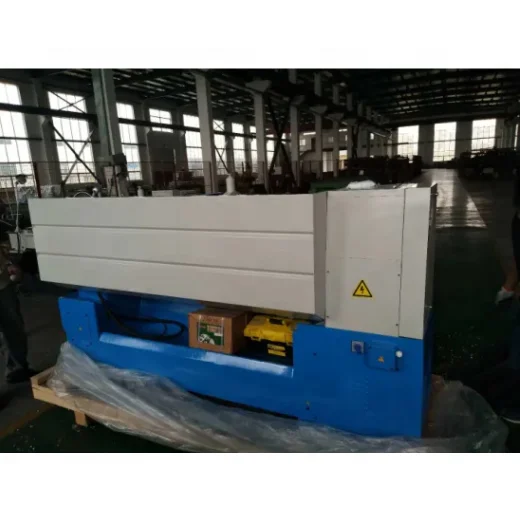

Packing & Delivery
Packaging | ||
Size | 2560×900×71640MM | |
Weight | N.W./G.W. 1600/1800KGS | |
Packaging Details | The normal package is plywooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Certifications
Our Work Shop
We In Fairs
Our Service
OEM APPROVED
* LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
Our team Service
* Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
