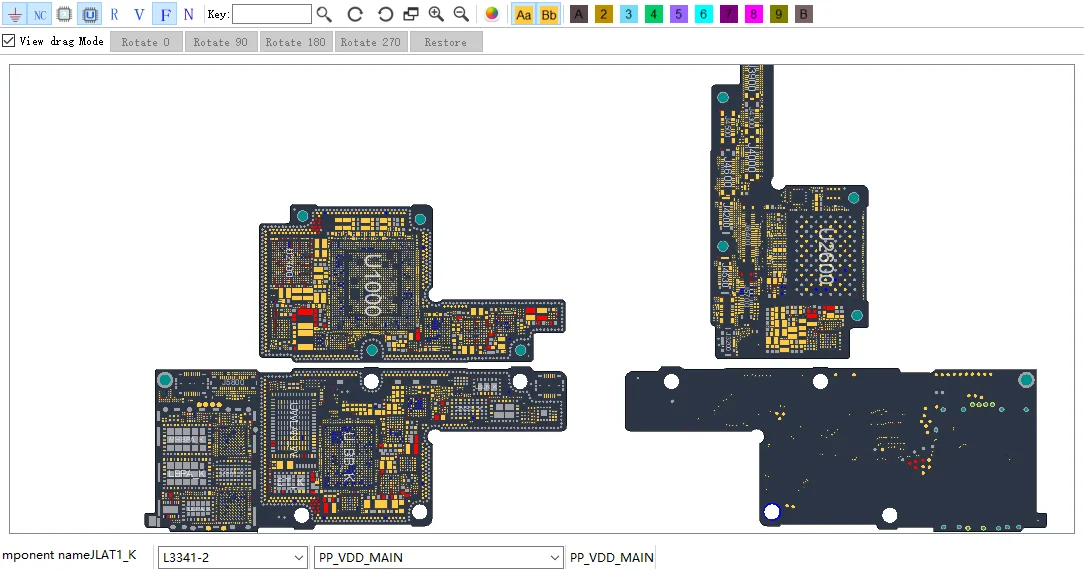

1, Single layer bit map: 1)You can check all pins and all lines where they go
2)It is very easy for you to find out lines broken

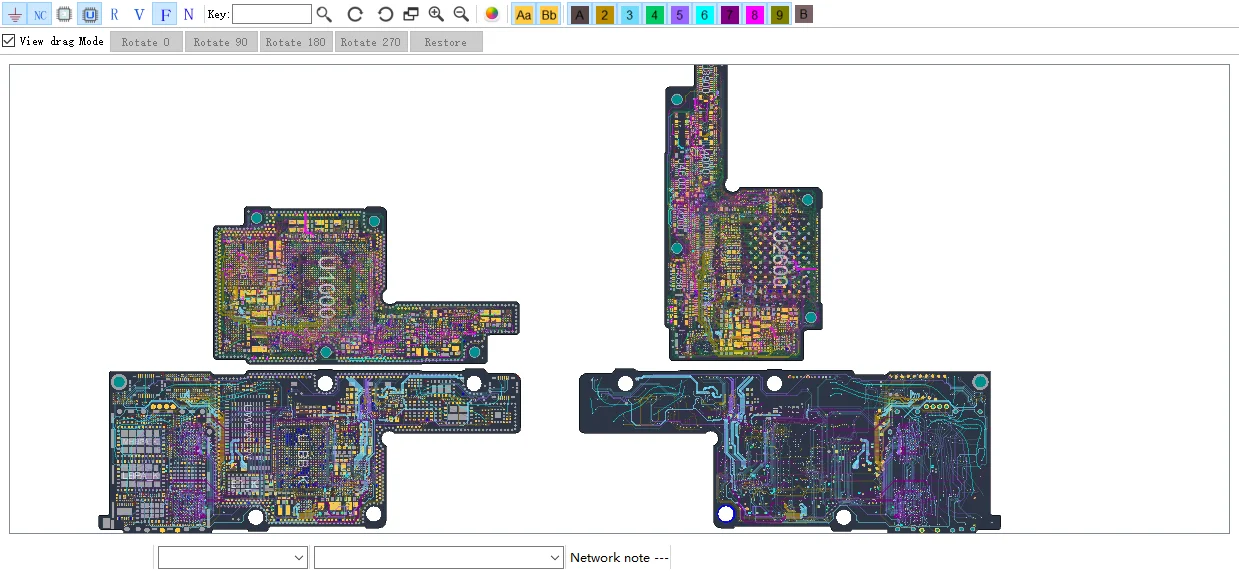

2, 10 layers of bit map:
1)Altogether 10 layers 2)Each layer with different color

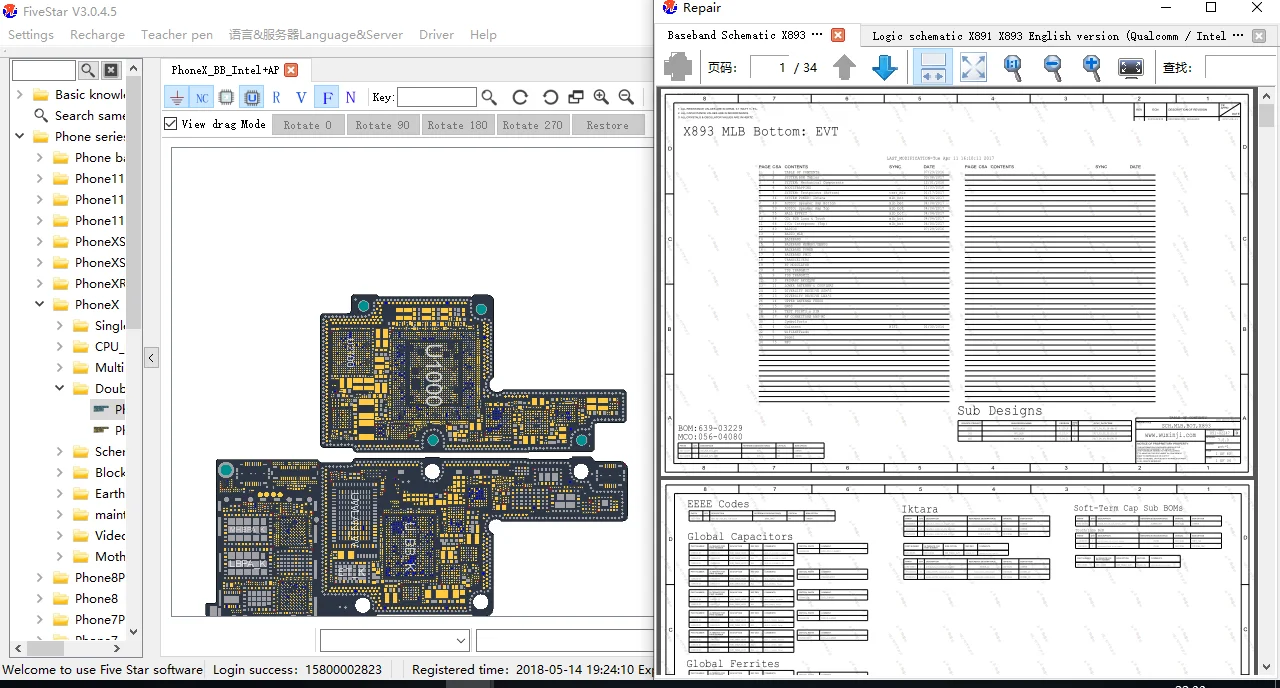

3,Double pdf:Wuxinji double pdf is the best in this area.
1)Whe you click the components or pins on the bitmap,it will show one schematics
2)It is very good for you to analyze faults
4,Cpu point map:unique funtion of Wuxinji,unavailble in other software
1)When Cpu pins missing,you can check wether the pins are useful or not.
2)It will show cpu each pin where it goes and the function

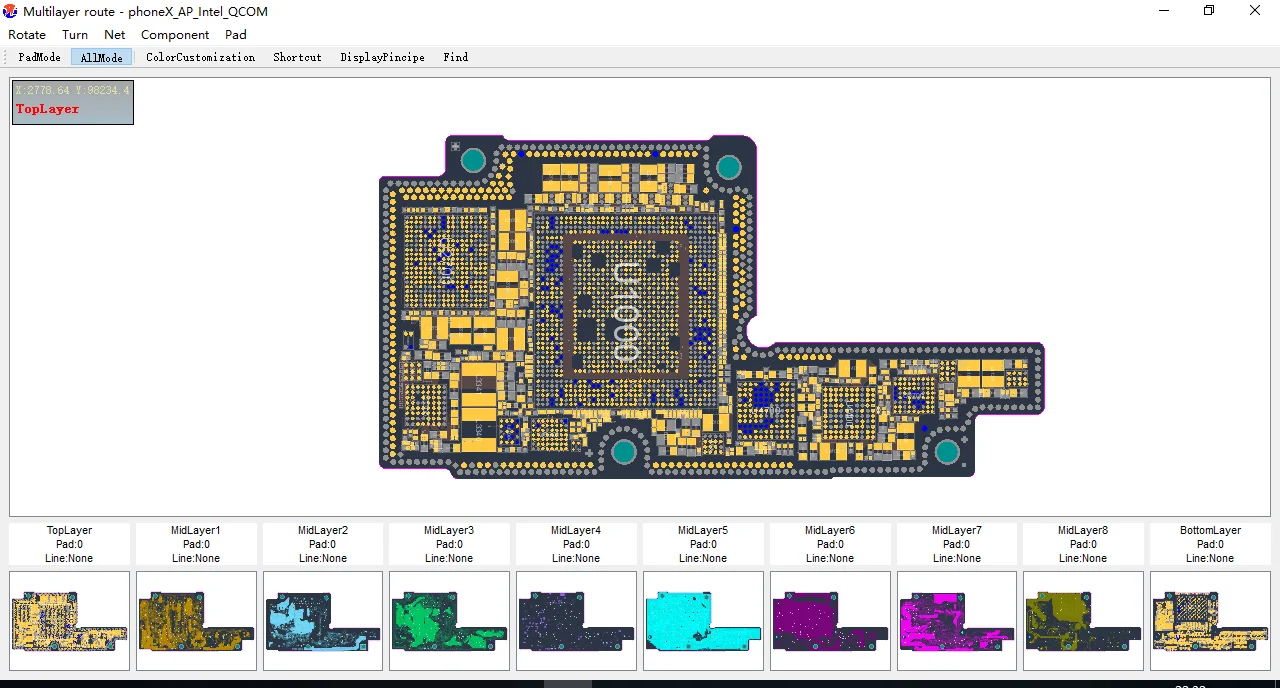

5,Multilayer bit map:unique funtion of Wuxinji,unavailble in other software
1,It shows all pins and lines where they go ,all 10 layers
2,It shows all tracks on top layer and bottom layer
3,It is extremly good for jumping wire,you can scratch the lines on top layer or bottom layer to jump,so do not jump from pins to pins,it is much easiler and looks much more beatiful.

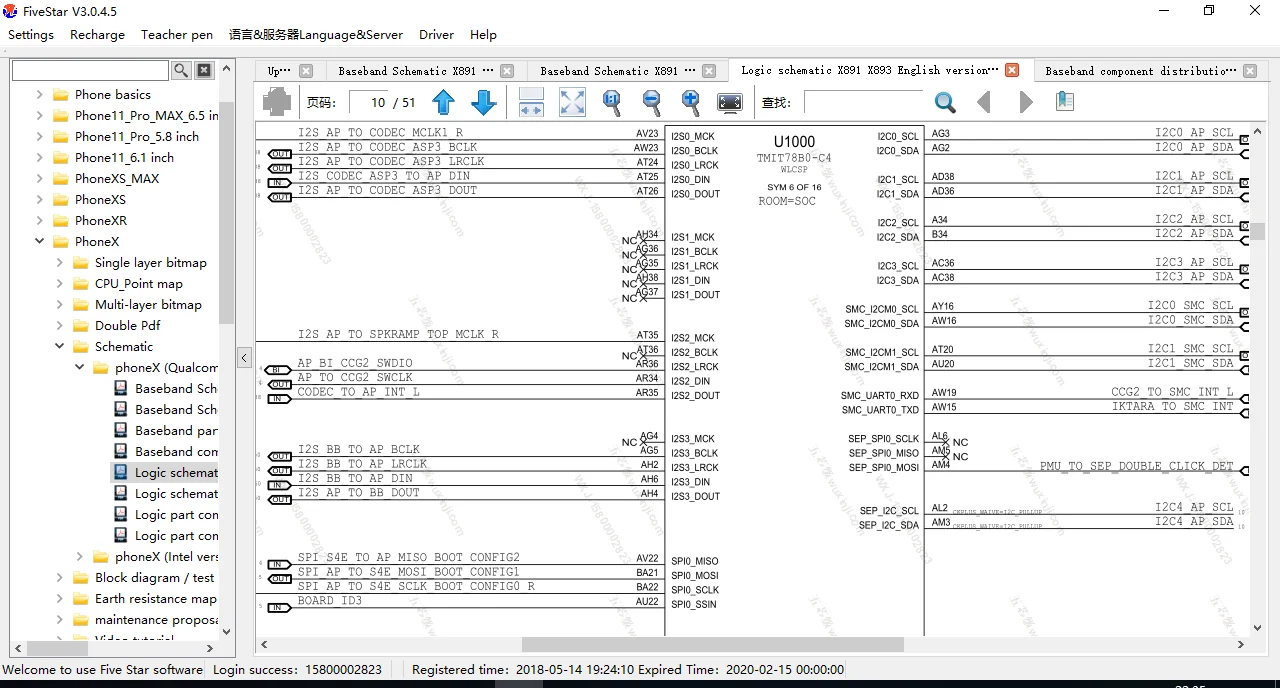

6,Schematics
1,Different cellphone brands
2,All kinds of circuits
7, Testpoints:unique funtion of Wuxinji,unavailble in other software
1)When you troubleshoot,you need testpoints to check the value correct or not
2)Wuxinji give all the testpoint,value of Voltage and ground resistance.
3)It helps you a lot in troubleshooting

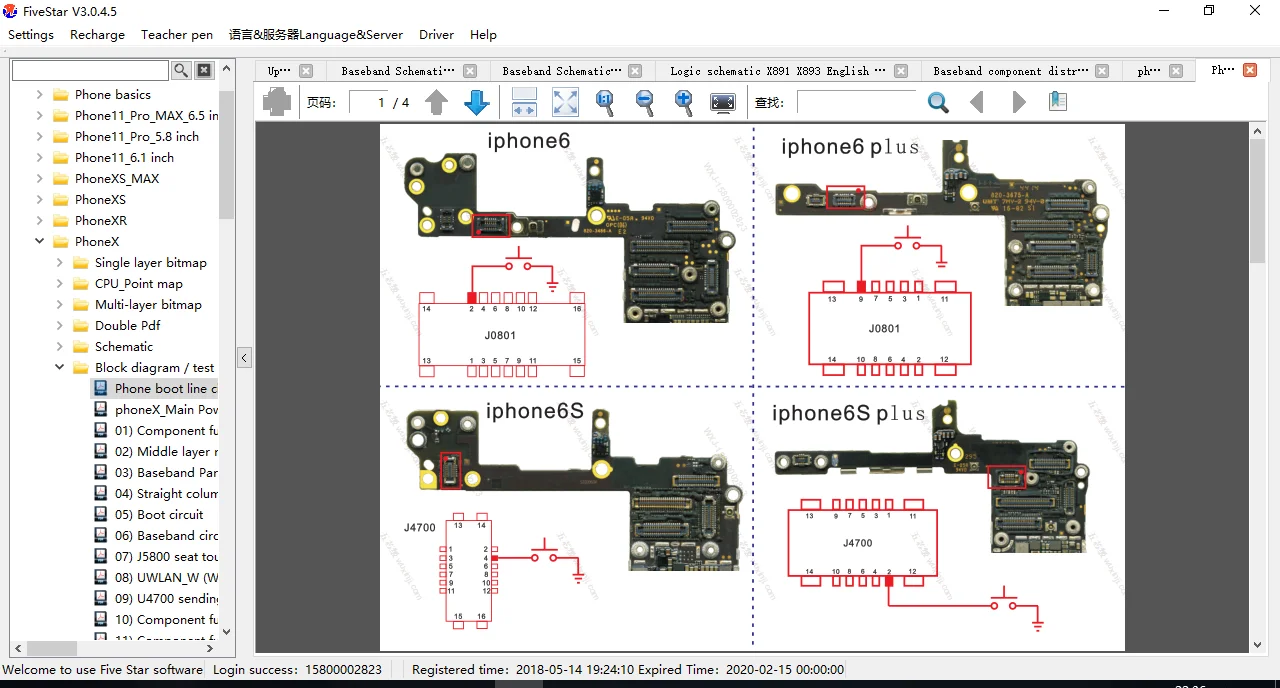

8,Poweron/booting points:unique funtion of Wuxinji,unavailble in other software
1)Whe you check voltage or some other parameters,you need to power on (boot) the motherboard.
2)But different cellphone different poweron pins
3)Wuxinji provide poweron pins of different models

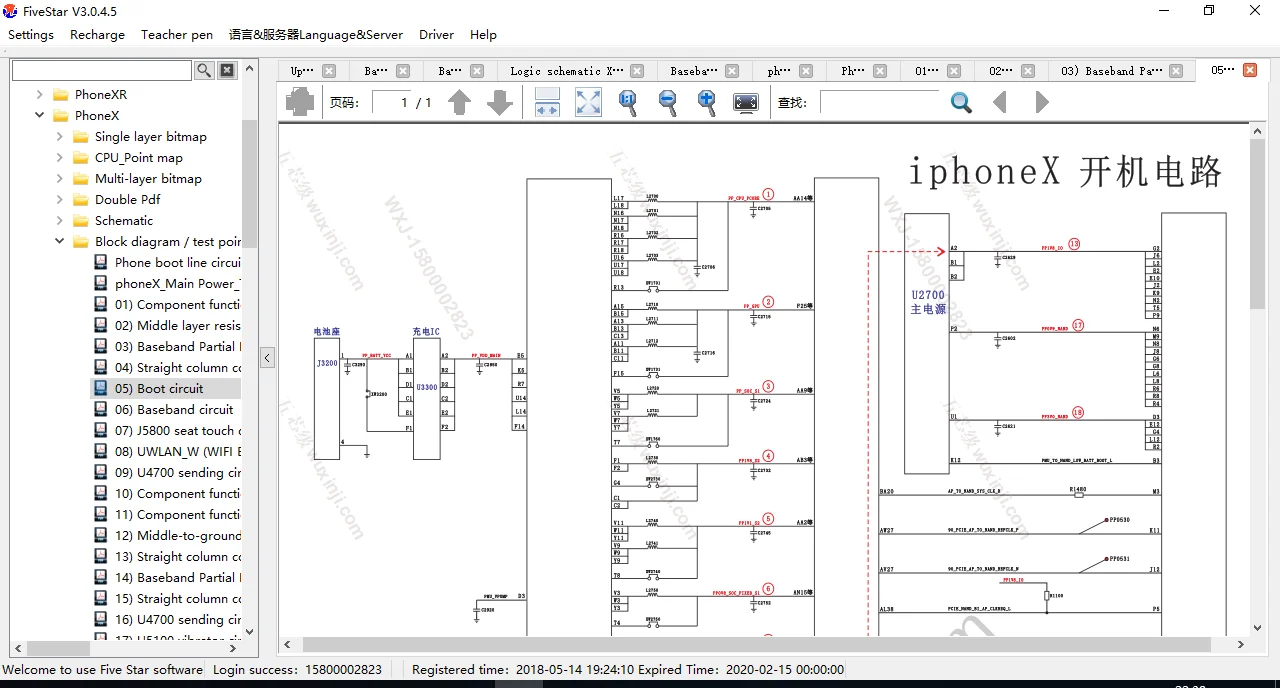

9,Block diagram:unique funtion of Wuxinji,unavailble in other software
1,For technicians,schematics is good for tacking lines,but not good for analyzing,bock is very good for analyzing.
2,For teachers,block diagram is very good for training,students much easier to understand

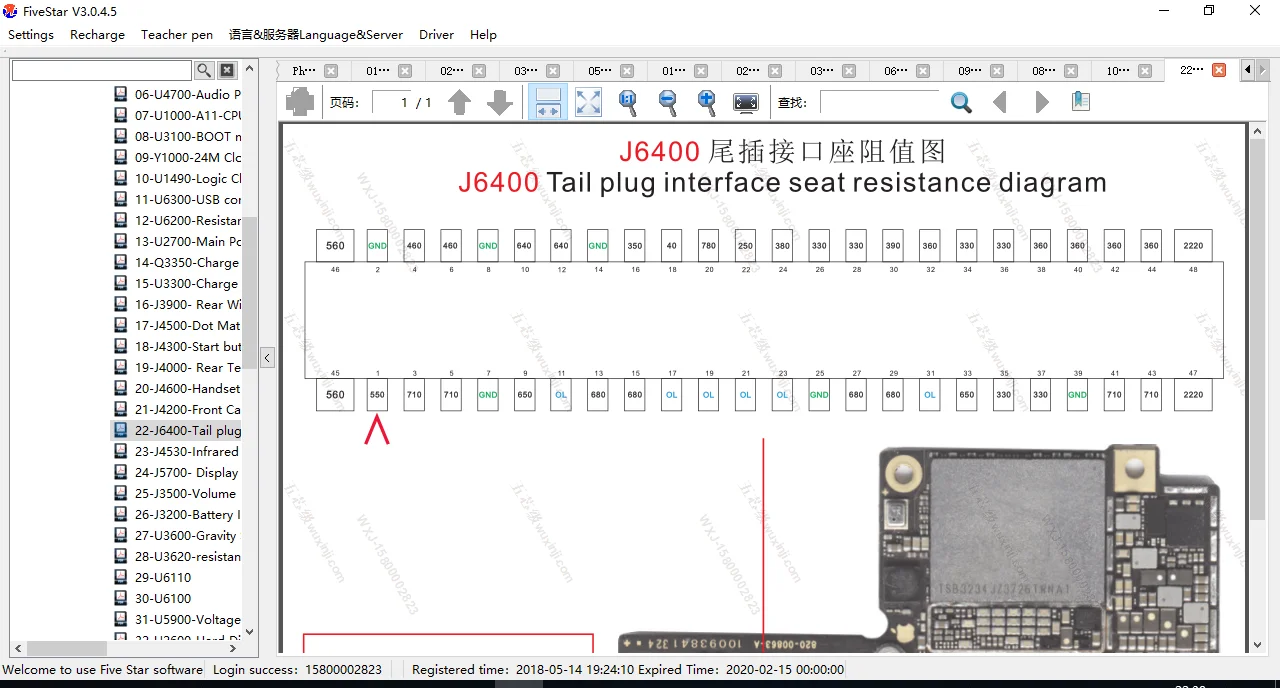

10,Earth resistance map:unique funtion of Wuxinji,unavailble in other software
1)It shows earth resistance of all kinds of connectors and components
2)It is very good for technicians to troubleshoot

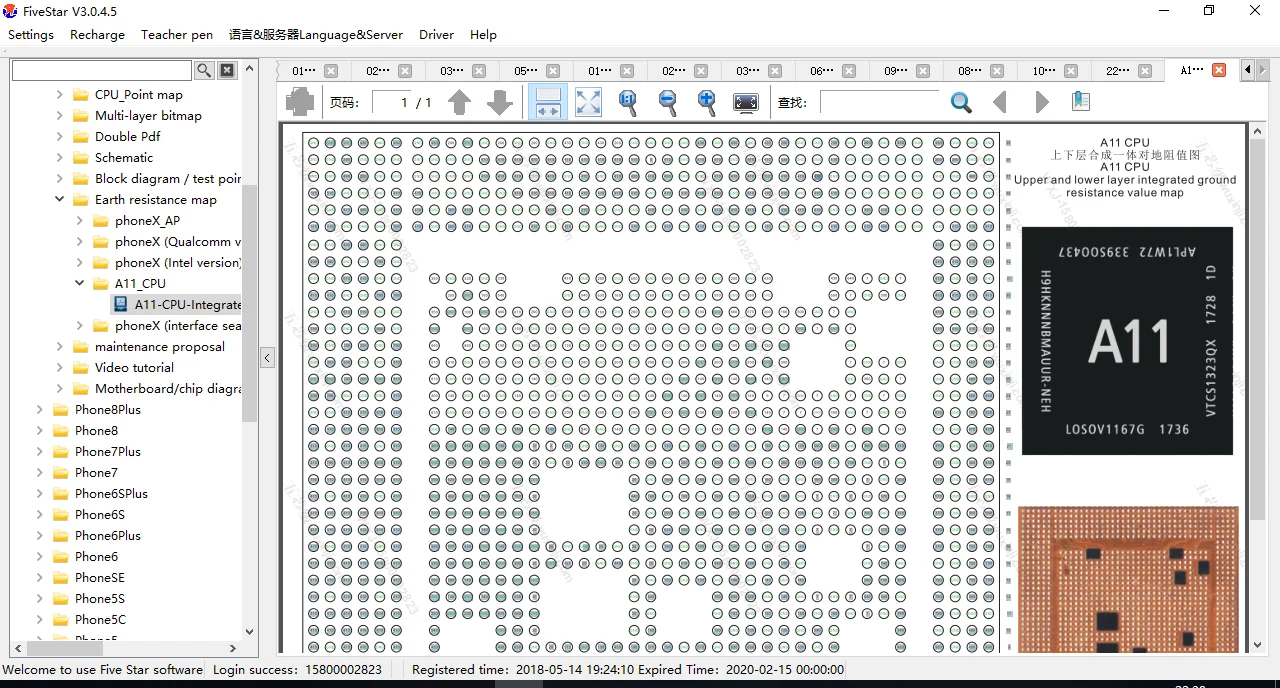

11,Earth resistance of cpu:unique funtion of Wuxinji,unavailble in other software
It very good for technicians to check cpu.

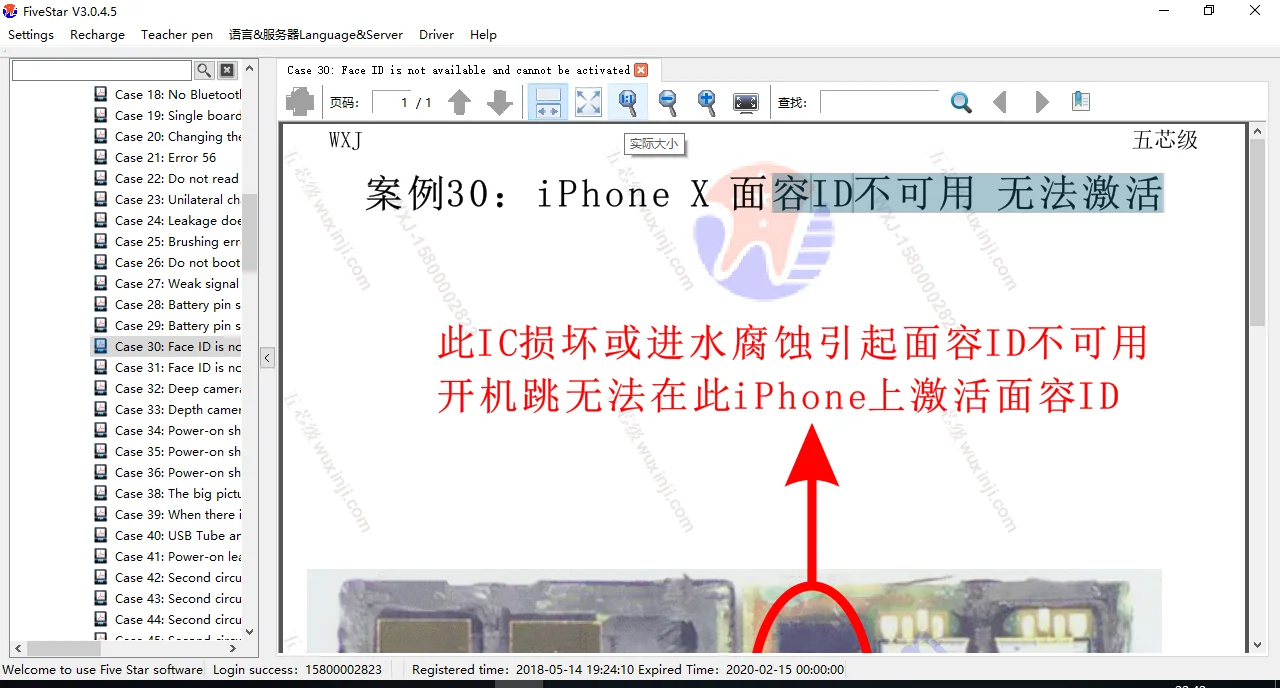

12,Fault and solution cases
1) All kinds of faults
2)Different modes

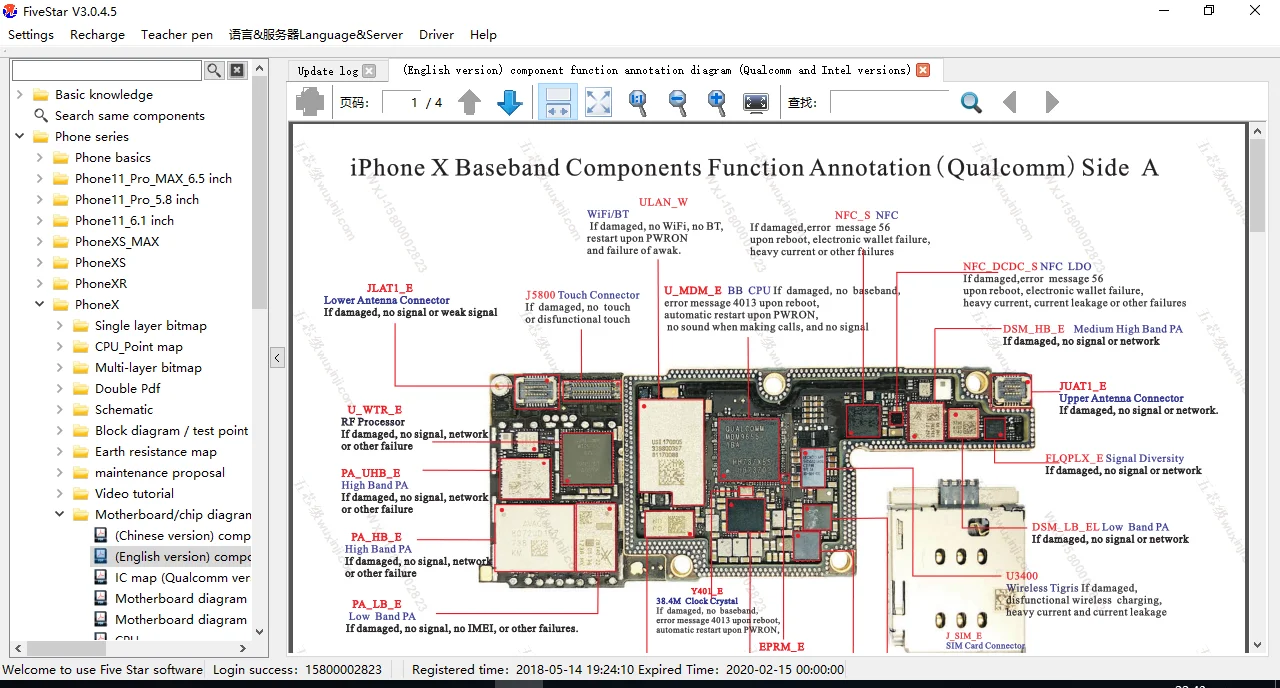

13,Components functions:unique funtion of Wuxinji,unavailble in other software
1)It shows the functions of all components on motherboard
2)Escpecially for the new models

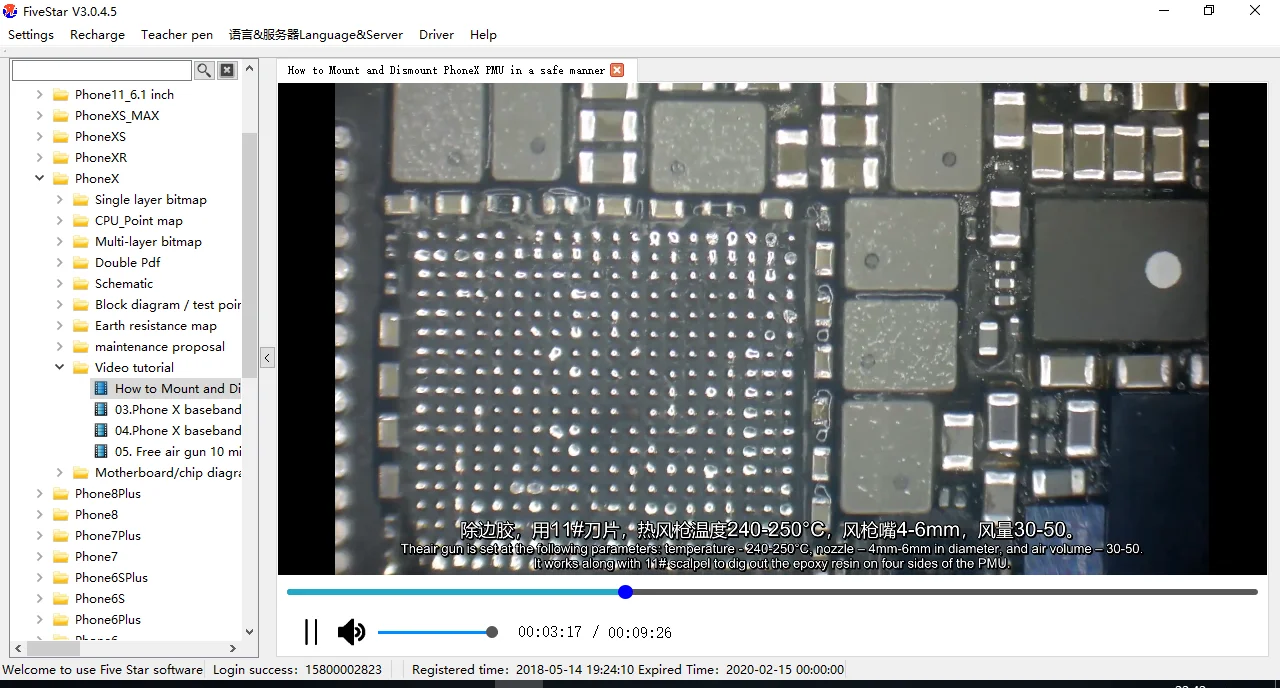

14,Video tutorial:unique funtion of Wuxinji,unavailble in other software
1)Video of microsoldering
2)Video of troubleshooting cases

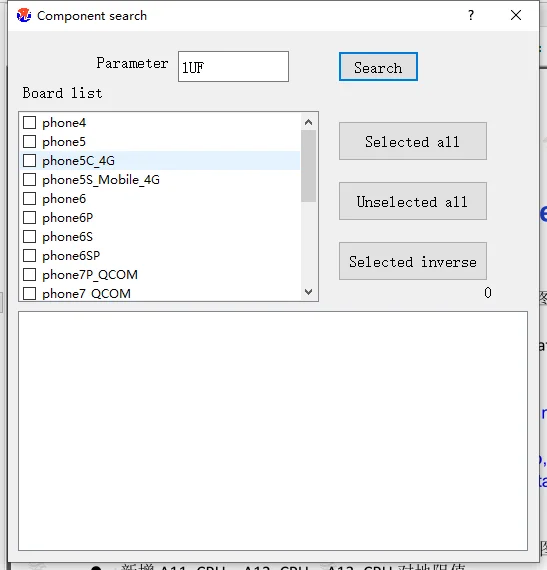

15,Search same components
1) Some times some small components missing from your motherboard
2)But you do not have same motherboard to take same components from
3)You have some other motherboards
4)This function help you to find out same components on other motherboard very fastly
5)This is very very powerful function for all technicians
