Product Overview

Description









We Gained Plenty of Experience For Customized OEM ODM Orders



4 Channel Wireless Remote Control Electronic Module RF Transmitter And Receiver




Specifications

4 Momentary Outputs
150m Transmission Range
Rock-solid oscillator provides reliable operation
Valid transmission LED status through VT connection
High noise immunity
Standard header connection (breadboard compatible)
Selection of custom address codes allows to operate more than one unit in the same area or controlling the same receiver with multiple remotes

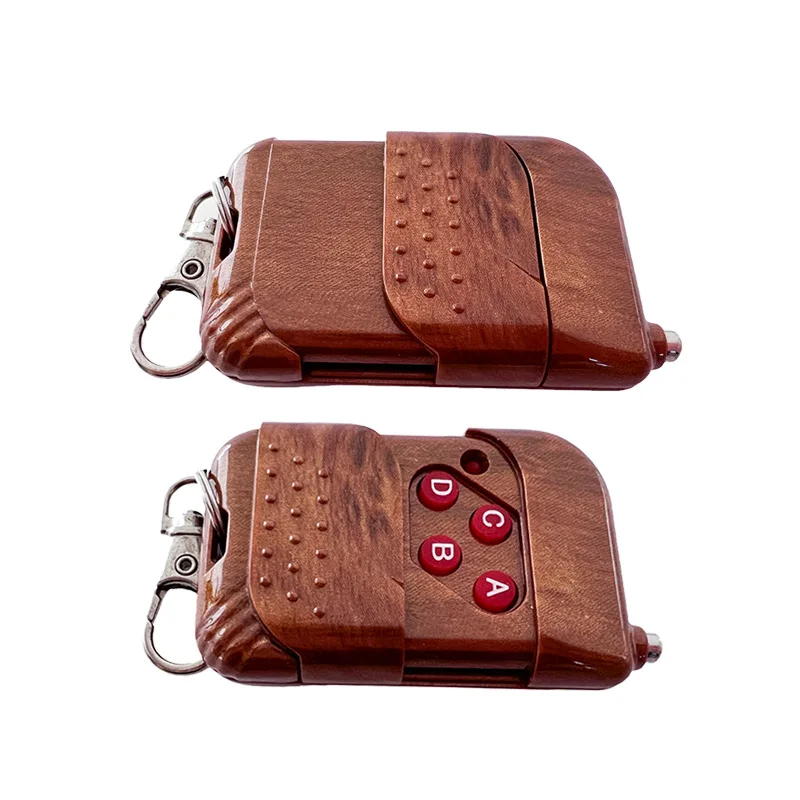

RF Transmitter Specifications
Voltage Supply: 12V (Included 27A Alkaline Battery)
Transmission Frequency: 433MHz
Transmission Range: 150m
Dimensions: 62 mm x 38 mm x 14 mm

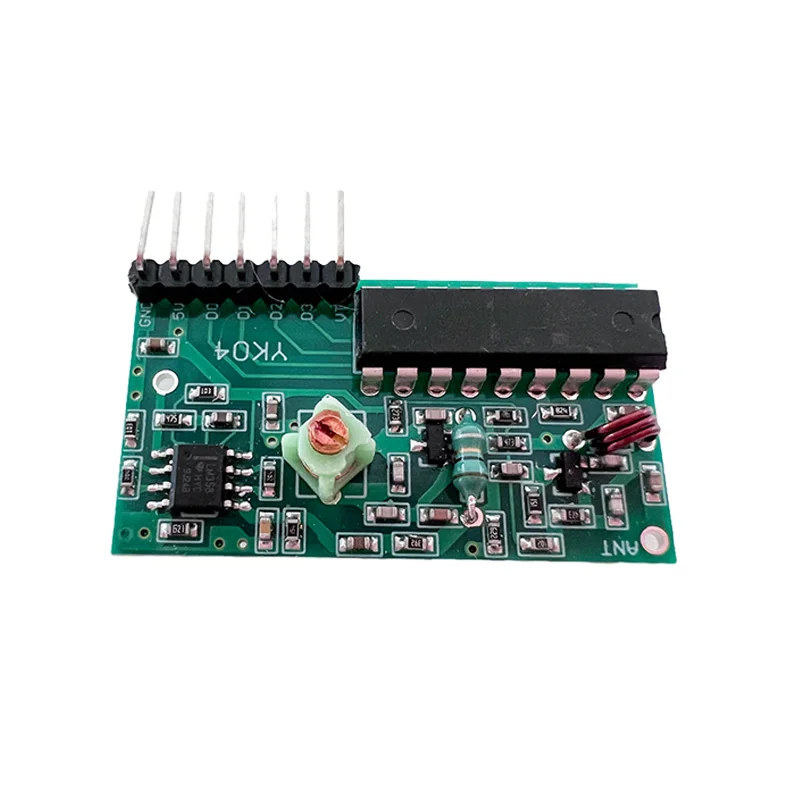

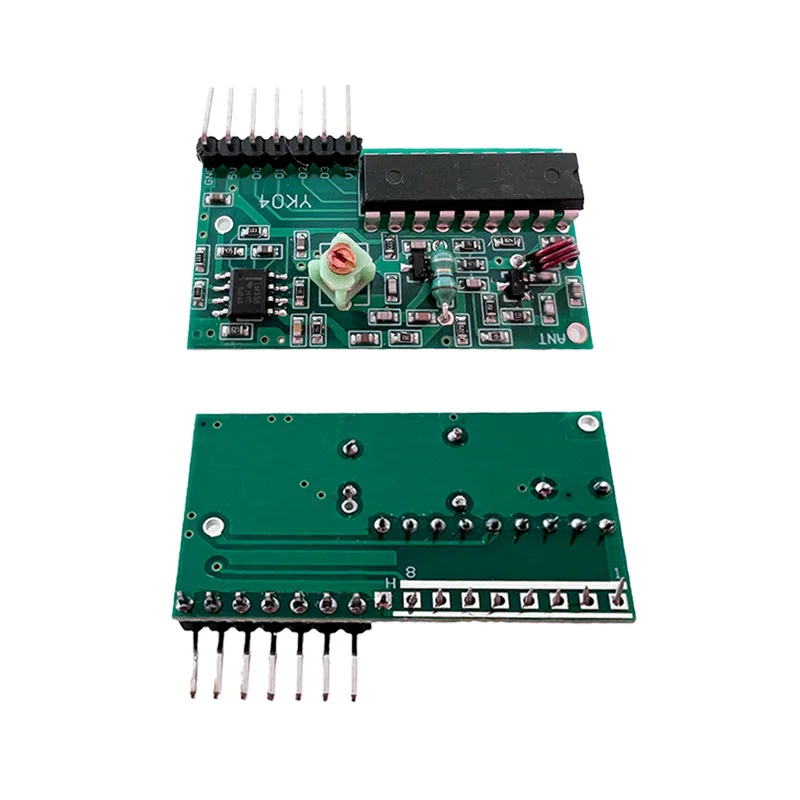

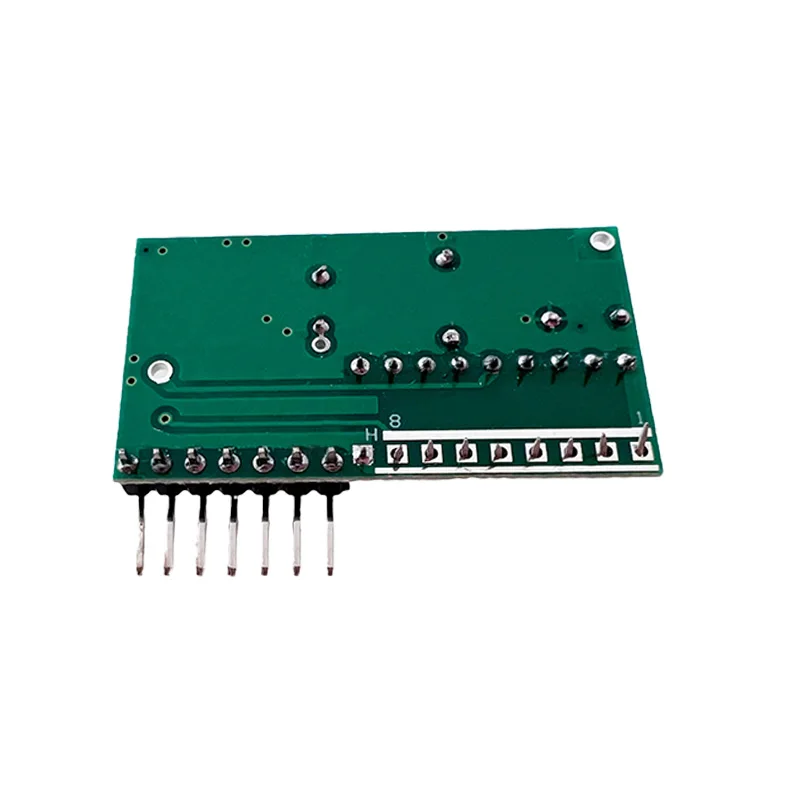

RF Receiver Specifications
Voltage Supply: 5V
Transmission Frequency: 433MHz
Output Mode: Momentary
Power Consumption: 5 mA
Receiving Sensitivity: -101 dbm
Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
Dimensions: 41 mm x 22 mm x 6 mm

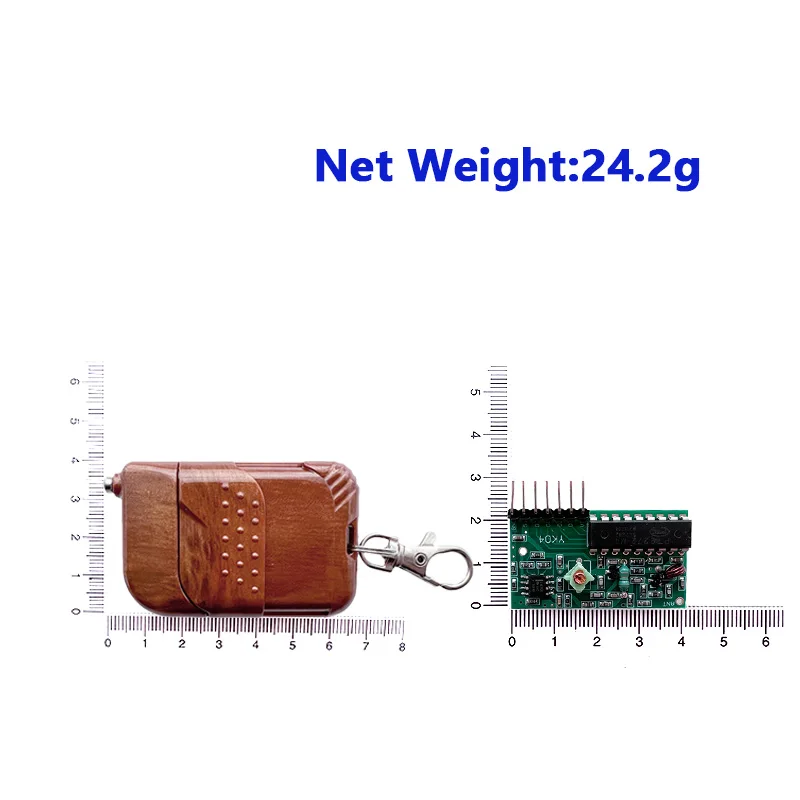

Net weight: 24.2g



4 Channel RF Remote Transmitter and Receiver allows to remotely control four appliances. RF Remote Control provides 4 momentary outputs that can be wired to relays and control home appliances, lights, motors, light dimmers, robotic devices, RC cars, computer, etc. RF transmitter provides up to 150m range. Selection of custom address codes allows to operate more than one remote control system in the same area or to control one receiver with multiple transmitters. If required momentary outputs can be converted to toggle with low cost digital 4013 IC. 12V (27A) alkaline battery is included.
