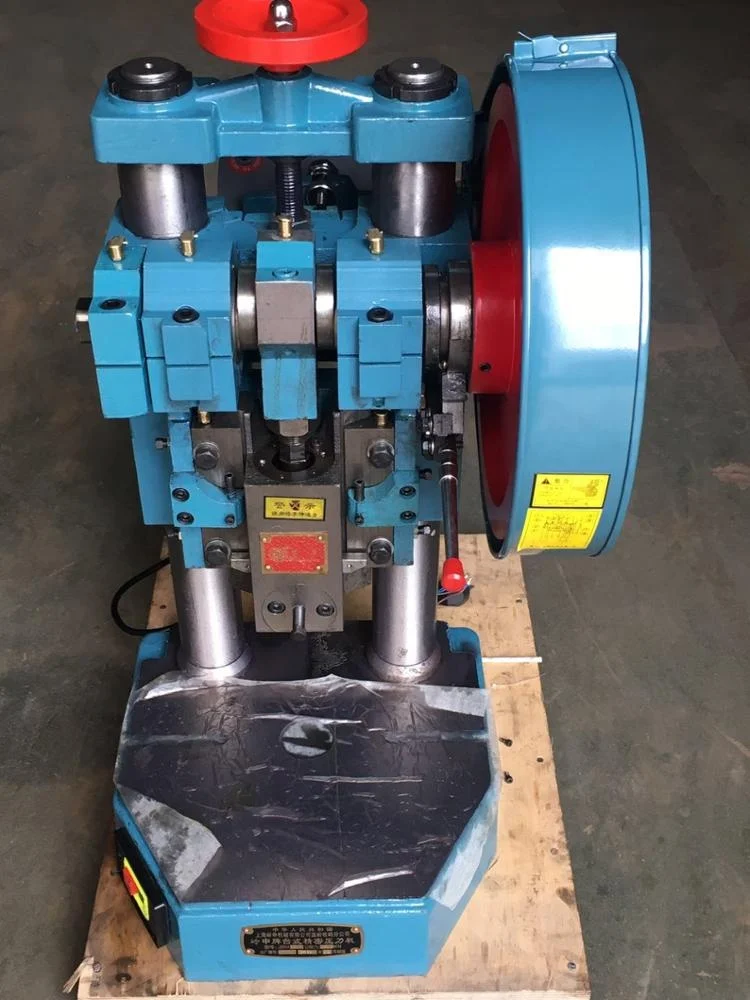

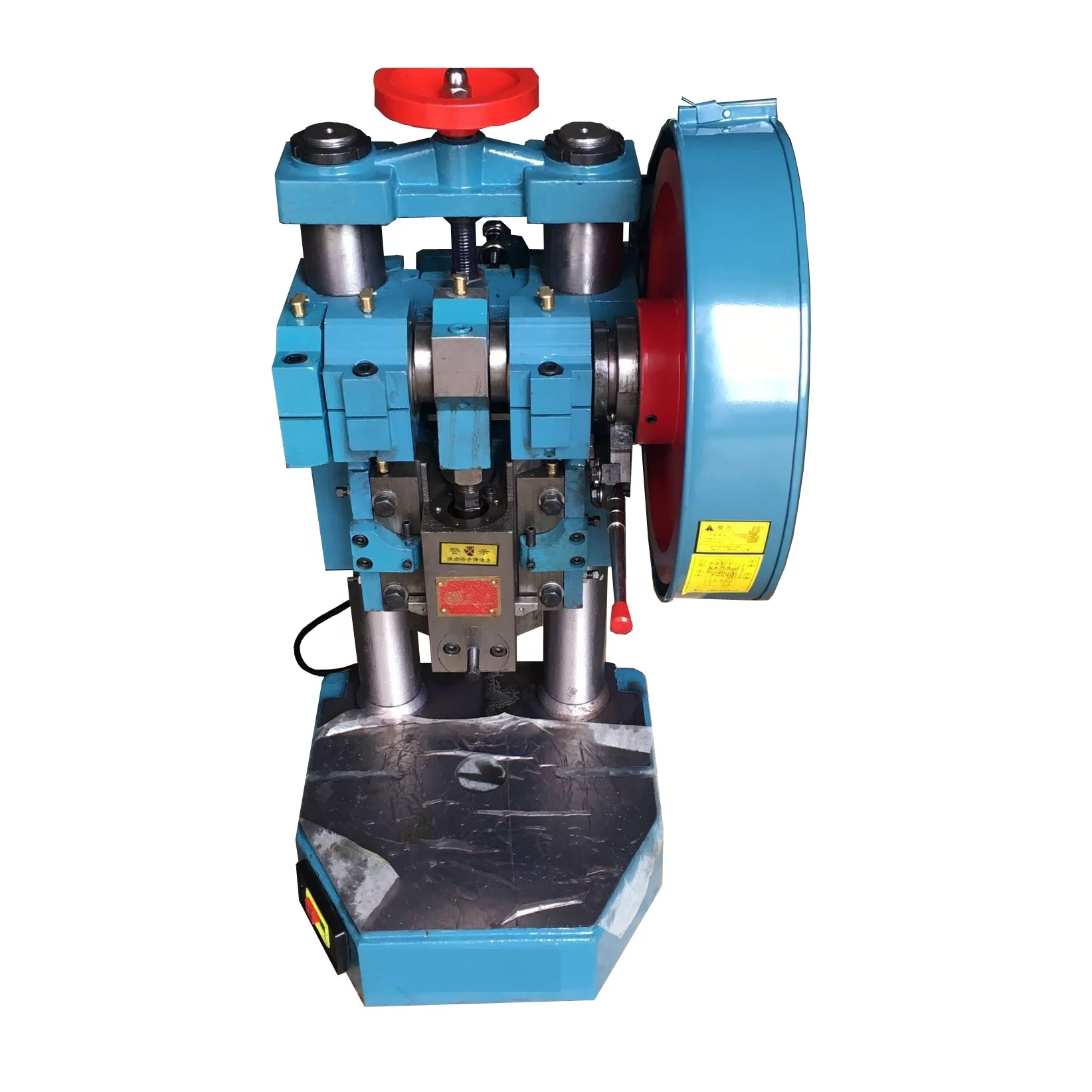

Table Mini Manual Press Machine price
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (62445201817):
Product Overview
Description
Product Description
Model | Unit | JB04-1 | JB04-2 | JB04-3 | JB04-5 |
Nominal Pressure | Kn | 10 | 20 | 30 | 50 |
Stork of slide | mm | 40 | 40 | 48 | 48 |
Stork per minute | mm | 250 | 257 | 257 | 245 |
Max.shut height | mm | 160 | 210 | 200 | 230 |
Diameter of stembole | mm | φ20 | φ25 | φ28 | φ30 |
Bed dimension | mm | 270*270 | 320*326 | 360*280 | 380*380 |
Motor power | kw | 0.37 | 0.55 | 0.55 | 0.75 |
Overall dimension | mm | 480*320*540 | 532*320*540 | 640*530*830 | 640*530*830 |
Weight | kg | 89 | 148 | 200 | 238 |
Main Features
1. Control by foot or hand Pedal
2. Punching Power:1 Ton to 5 Tons
3. Compact and safely structure
Packing & Delivery
Packaging | ||
Size | 532*320*540mm | |
Weight | N.W./G.W 148/152KGS | |
Packaging Details | Plywood case | |
Certifications
Our Work Shop
We In Fairs
Our Service
OEM APPROVED
* LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
Our team Service
* Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
