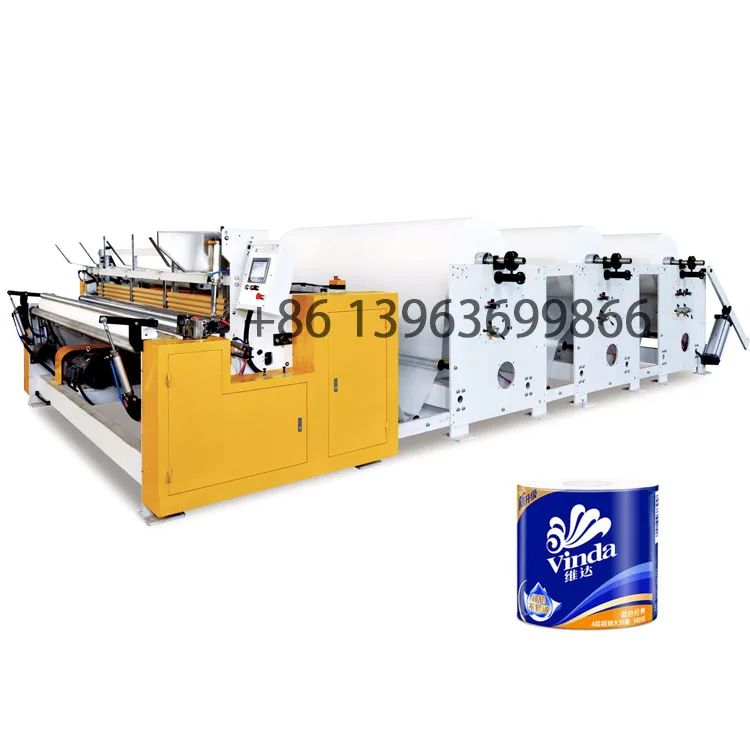

automatic toilet roll tissue paper embossing rewinding perforating machine equipment for production of make toilet tissue paper
- Category: >>>
- Supplier: Weifang Wehicredit Supply Chain Co. Ltd.
Share on (62445240455):
Product Overview
Description
Product description
TECHNIQUE PARAMETERS
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 |
| Raw Material Width (mm) | 1330 | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 | 3000 |
| Product Diameter(mm) | Φ60~130 mm ( Tightness adjustable) | |||||||
| Product Core Diameter(mm) | Φ 32~50mm | |||||||
| Raw Material Diameter(mm) | Φ 1100 mm (Other sizes are available ) | |||||||
| Raw Material Core Diameter | 3”(76.2 mm) (Other sizes are available ) | |||||||
| Perforation Pitch(to be appoint) | 3 perforating blade 90~180mm; | |||||||
| Speed | 180-300 m/min | |||||||
| Parameter Setting | LCD Screen operation panel | |||||||
| Programmable controller | PLC Programmable Controller | |||||||
| Unwinding Unit | 1-3 ply,15~30gsm | |||||||
| Embossing unit | Steel to felt embossing roller , pheumatic seperate. | |||||||
| Glue lamination unit | Steel to steel nest embossing;Embossing glue applying System | |||||||
| Pneumatic System | 3 HP air compressor, Mini pressure5kg/cm2 Pa(by client) | |||||||
| Power | Frequency conversion speed regulator, 5.5-15 kw | |||||||
| 380V,50hz | ||||||||

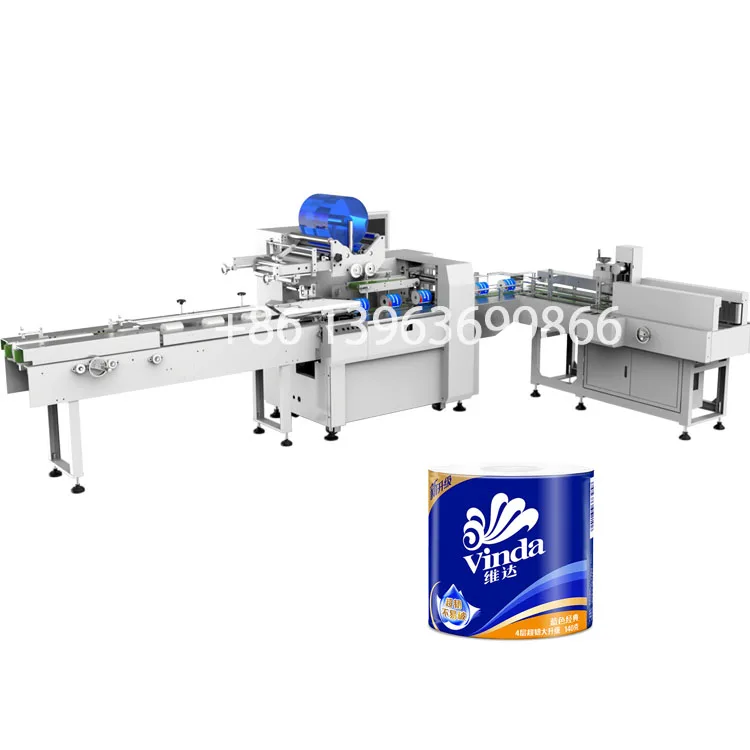

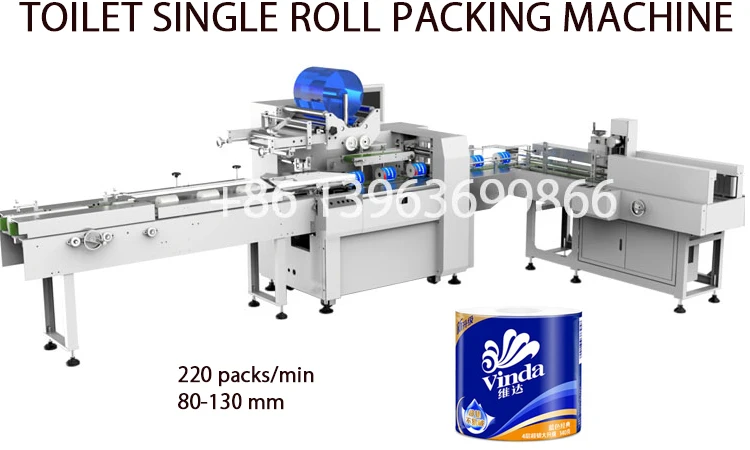

| Packaging style | 3D(Three dimensional) |
| Design speed | 220 packs/min |
| Production speed | 200 packs/min |
| Tissue diameter | 80-130 mm |
| Tissue length | 90-150mm or 90-220mm |
| Packaging material | SPP,BOPP |
| Film thickness | 0.018-0.03mm |
| Compressed air | 0.6mpa |
| Total power cunsumption | 16KW |
| Power supply | 380V,50HZ(can be customized) |
| Optional device | Ink printer |
| Machine dimension | 5500X3300X1600mm |
