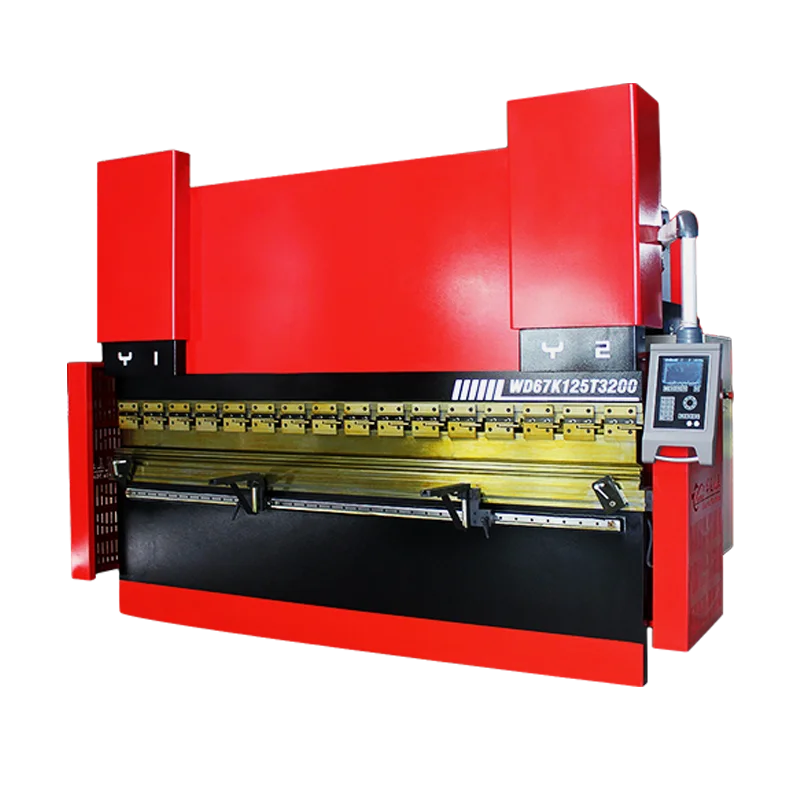

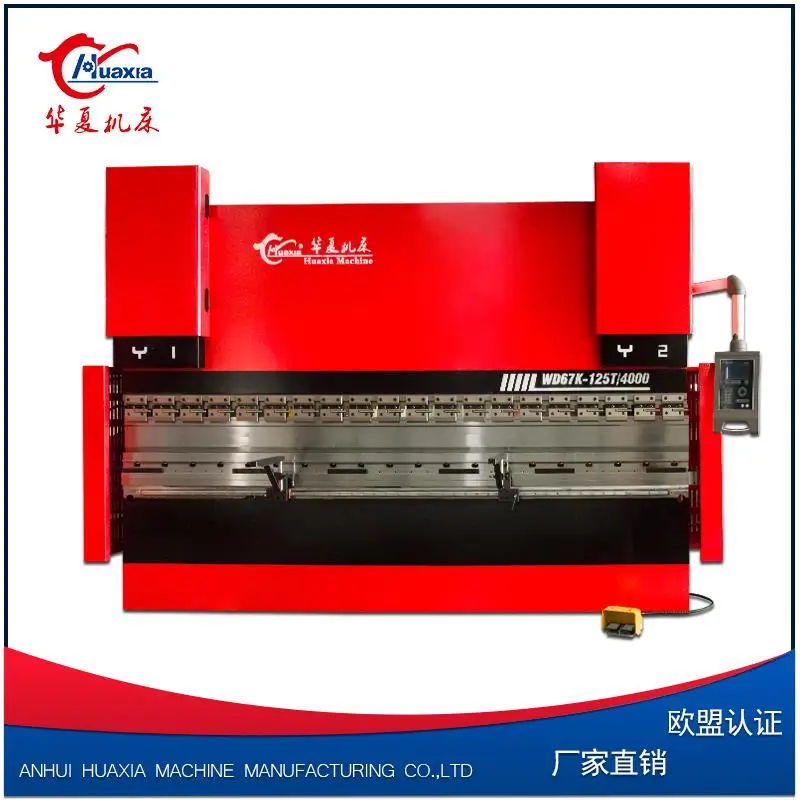

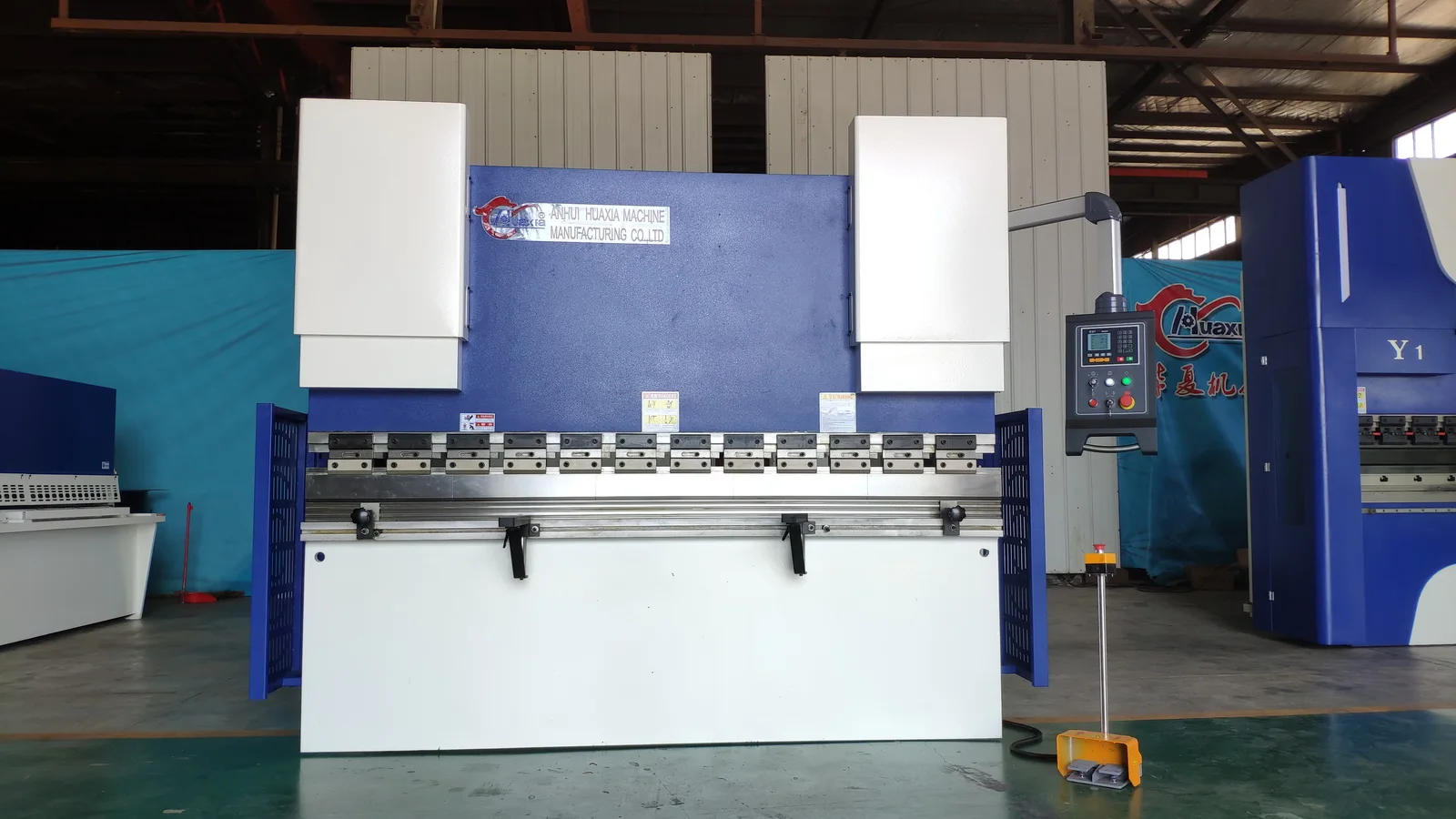

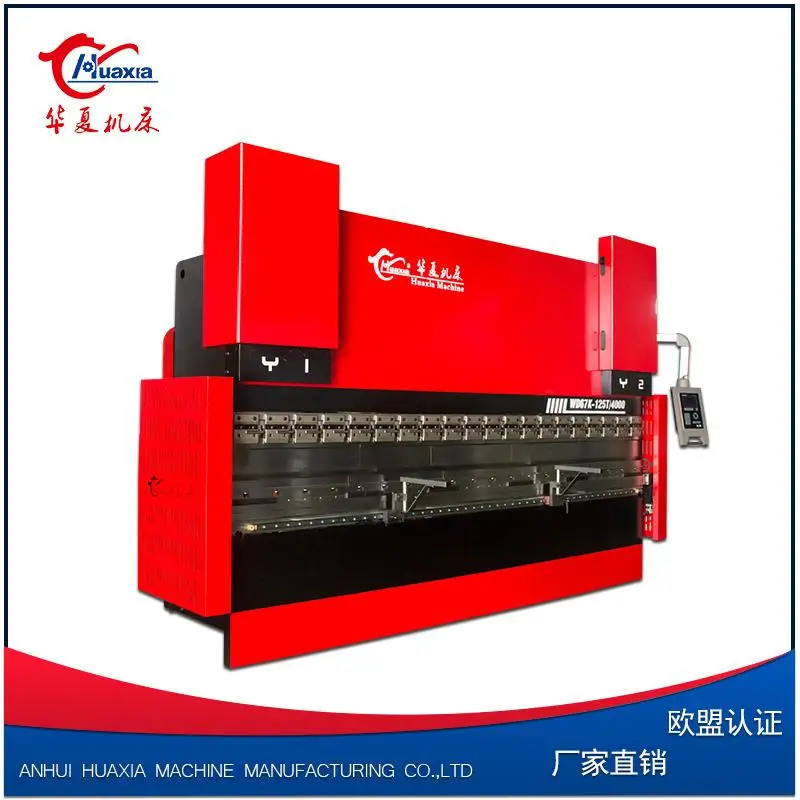

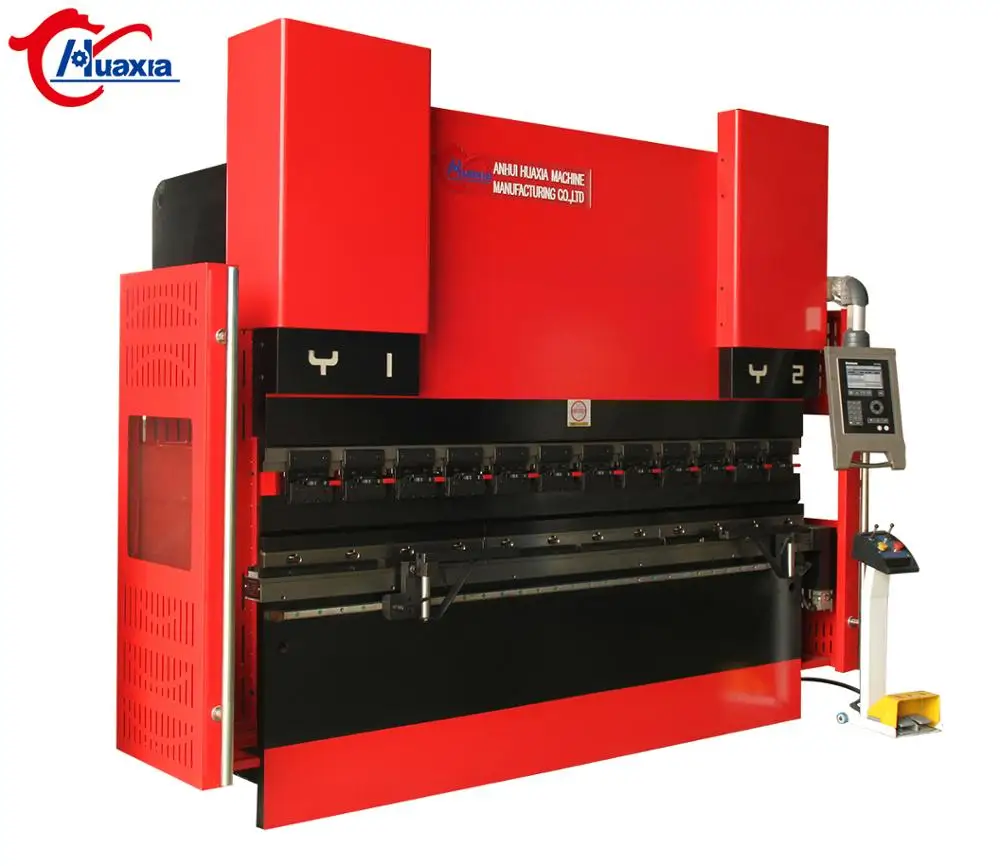

WF67K 250T/4000 NC Hydraulic Press Brake
- Category: >>>
- Supplier: Anhui HuaXia Machine Manufacturing Co. Ltd.
Share on (62445310085):
Product Overview
Description
Product Description
hydraulic NC press brake machine | ||||||
FEATURES: |
◆ WF67K Series Press Brakes are perfect for forming small parts with low operating costs and with Torsion bar syncro NC 2 axis control capability they perform just like our bigger Press Brakes |
◆ Provides a combination of performance, cost effectiveness and easy to use features. |
◆ 2-axis NC Control: ●Y precision inverter drive ram positioning ●X-axis precision inverter drive back gauge ●Manually adjustable R ,Z1, Z2-axis ●Manual villa table crowning System (Optional) |
◆ Efficient, low noise and accurate hydraulic system BOSCH REXROTH。 |
◆ Silent and reliable internal gear pump from USA SUNNY |
◆ Hardened, grinded tools and clamps for quick tools adjustment |
◆Manual movable back gauge fingers along of bending length |
◆ Protection covers (side and rear safety fence) |
◆ Usage of high-tech boring machines for extreme precision parts: HUAXIA chooses the best products to guarantee long-lasting and high-tech machines. HUAXIA selects the best components. |
◆ In built safety systems (light guards & Laser beam safety photocells as standard, CE certified.). |
Technical analysis

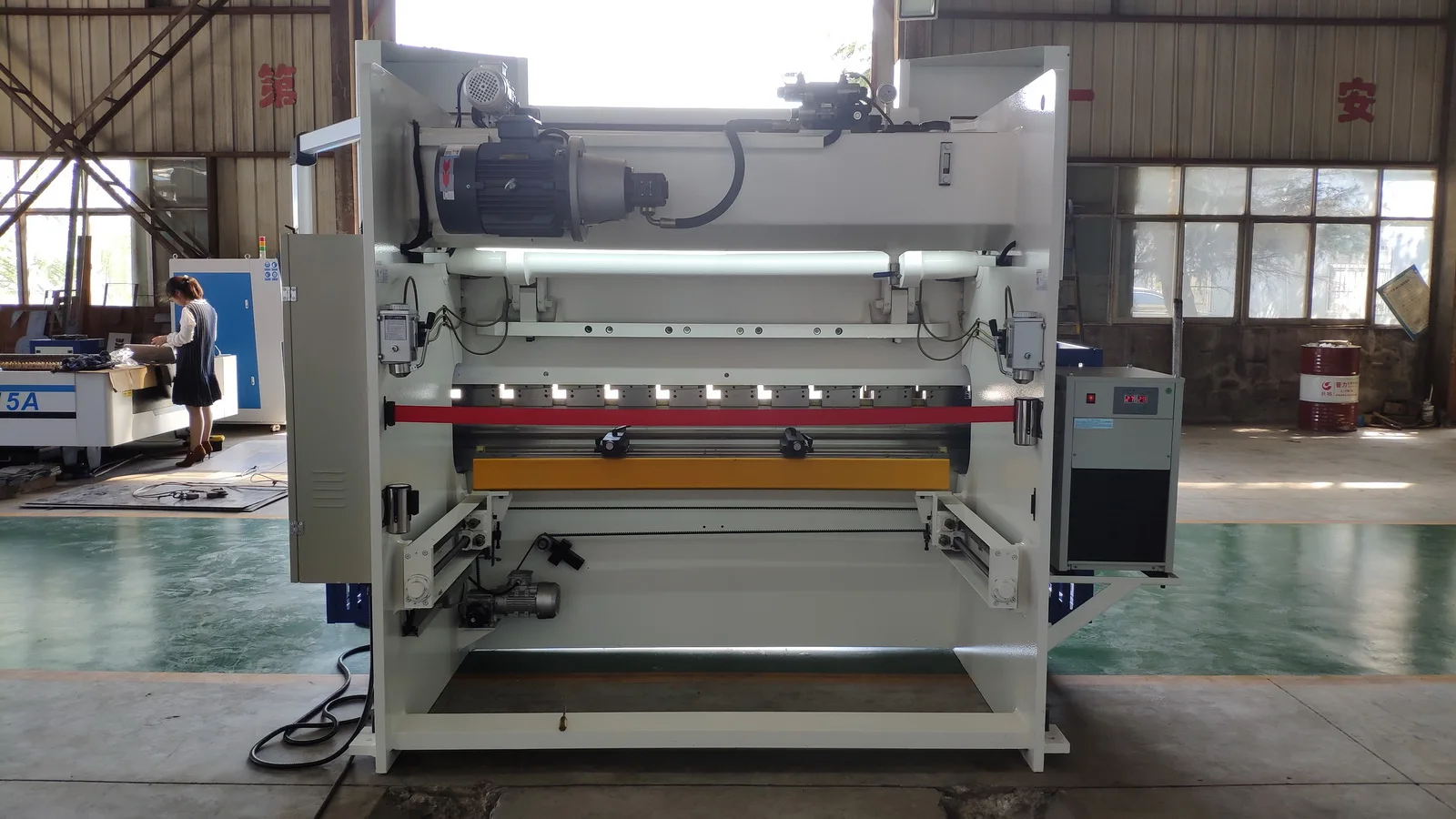

RIGID FRAME CONSTRUCTION & DUAL HYDRAULIC CYLINDERS

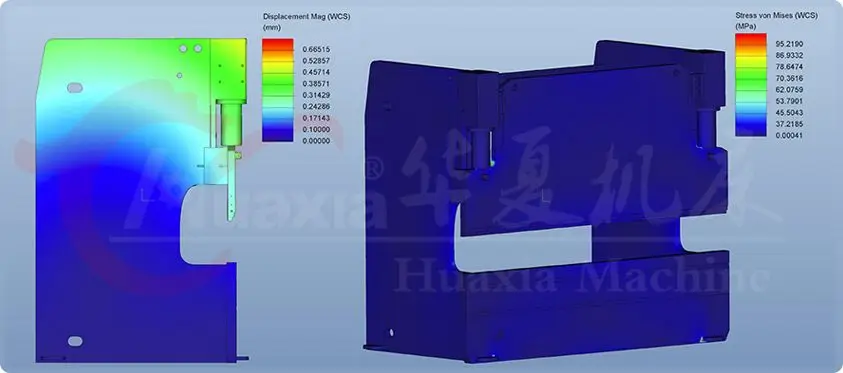

The machine body is in an overall welded and overall processed structure, and ANSYS finlte element analysis software is appplied to main parts of the machine body for analysis, which has ensured the reliability of machine and the precision of entire machine.
Technical Parameters
ITEM | UNIT | WF67K-250T/4000 |
system | NC | E21 |
nominal pressure | kN | 2500 |
workbench length | mm | 4000 |
workbench width | mm | 240 |
poles distance | mm | 3030 |
throat depth | mm | 350 |
slider stroke | mm | 250 |
max opening height | mm | 520 |
slider stroke adjust length | mm | 200 |
main motor | kW | 18.5 |
dimension(length*width*height) | mm | 4000*2200*3300 |

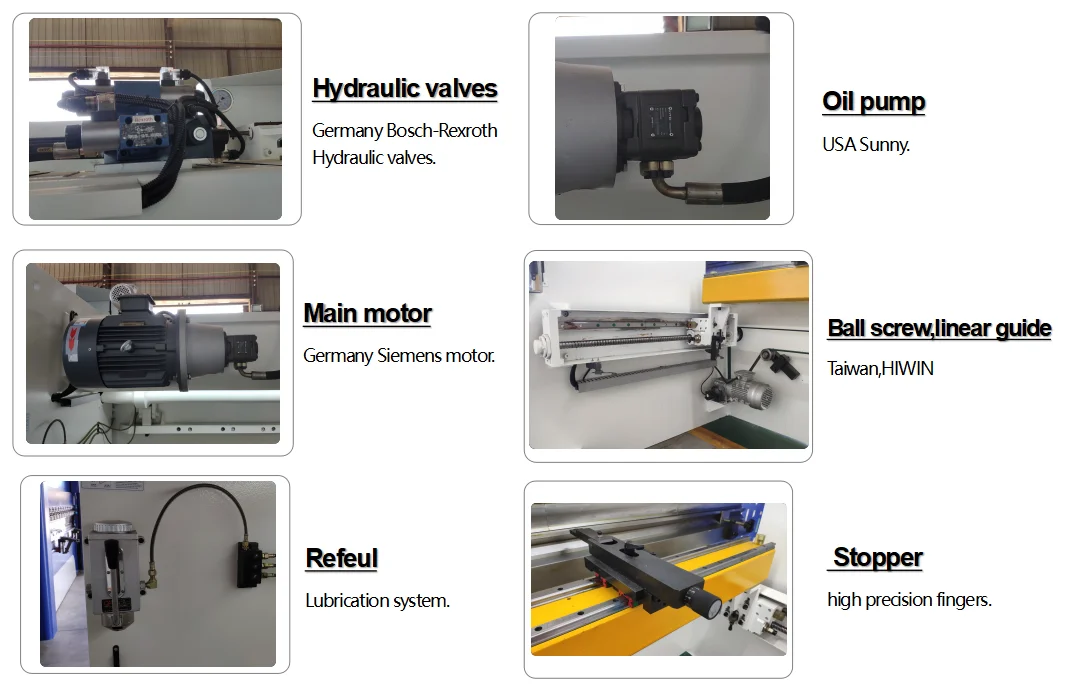

Detailed Images

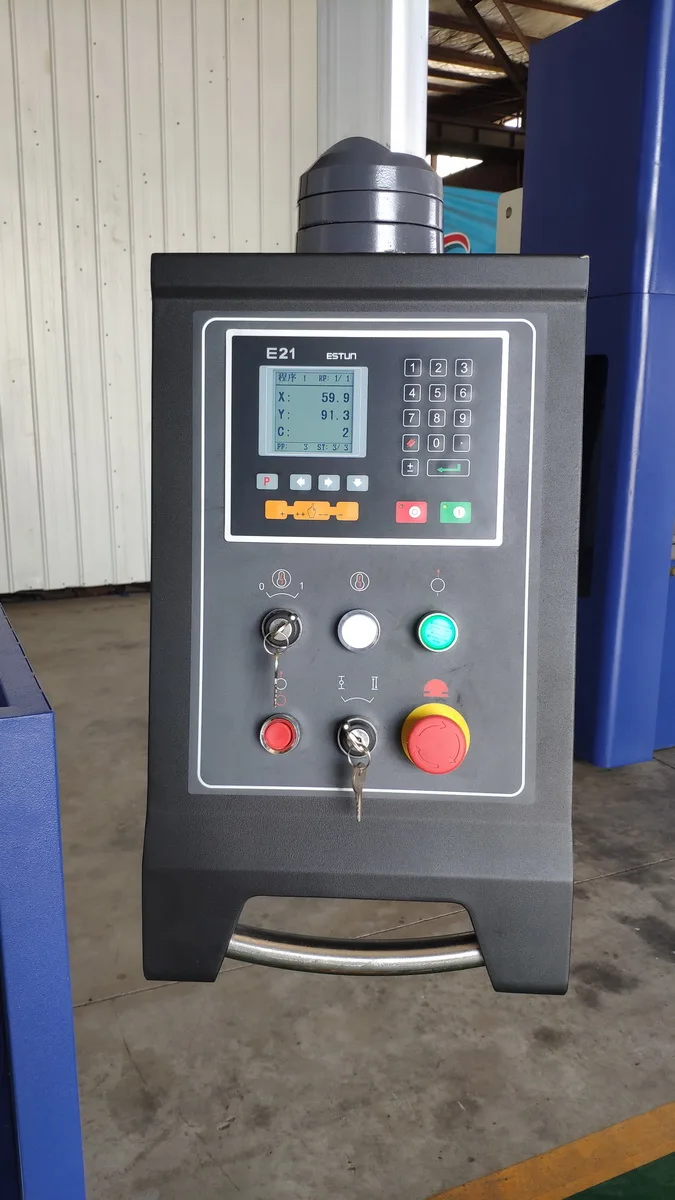

Features of NC system:
E21
●Monochrome LCD Box Panel display
●Automatic positioning control
●Ram stop control
●Ram stop control
●Back gauge control
●Retract function
●Up to 40 programs storage
●Up to 25 work steps
●Up to 25 work steps
●Panel based housing
●AC Inverter controlled control
●High-quality foil cover with integrated membrane switches
●High-quality foil cover with integrated membrane switches
MACHINE AXIS |
2-axis NC Control: ●Y axis precision inverter drive ram positioning ●X axis precision inverter drive back gauge ●Manually adjustable R ,Z1, Z2-axis |

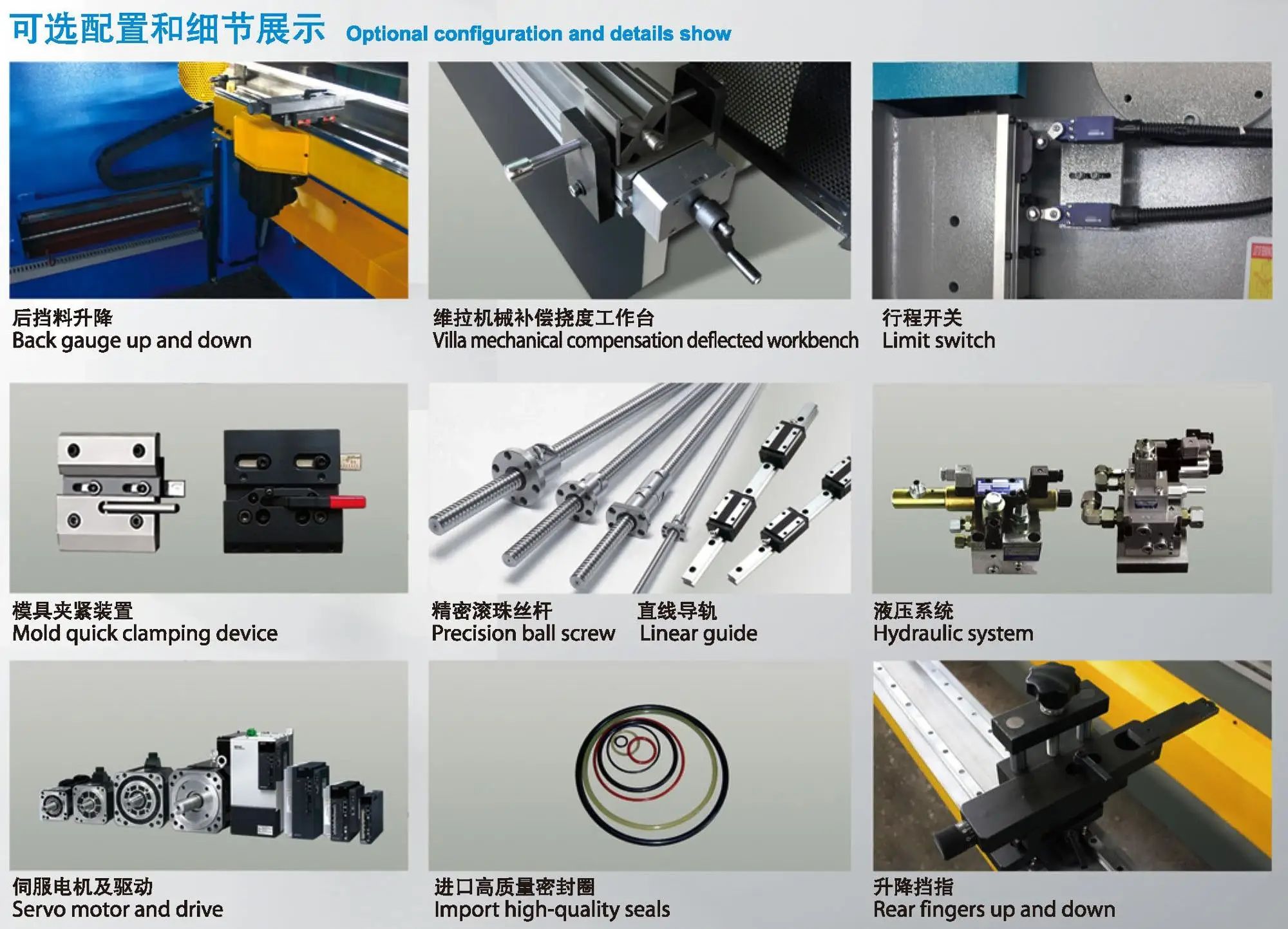

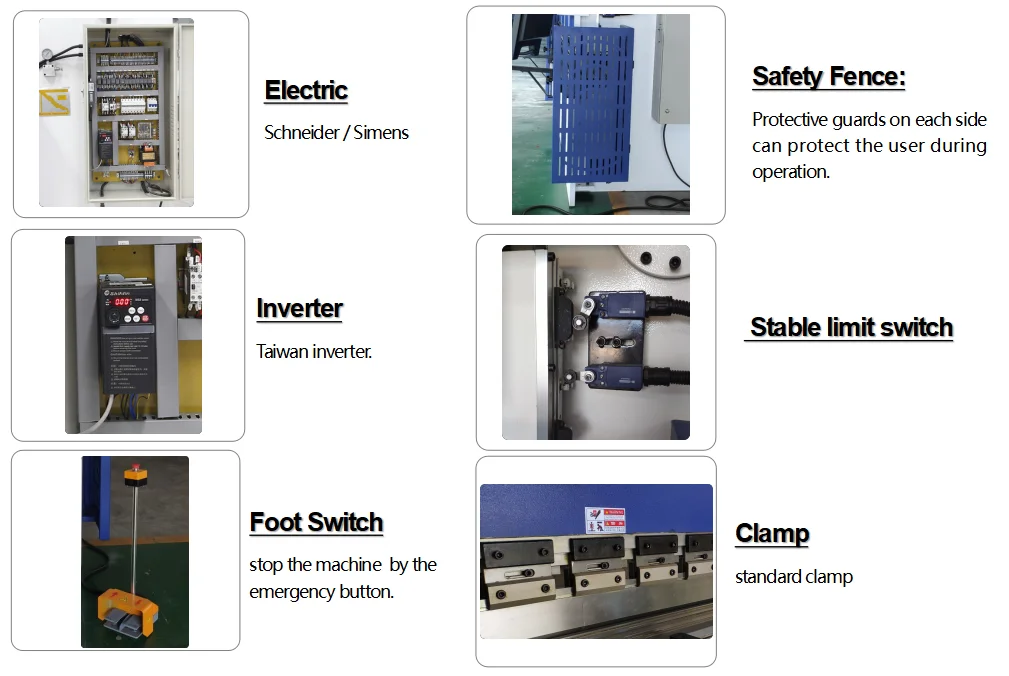

Configuration: |

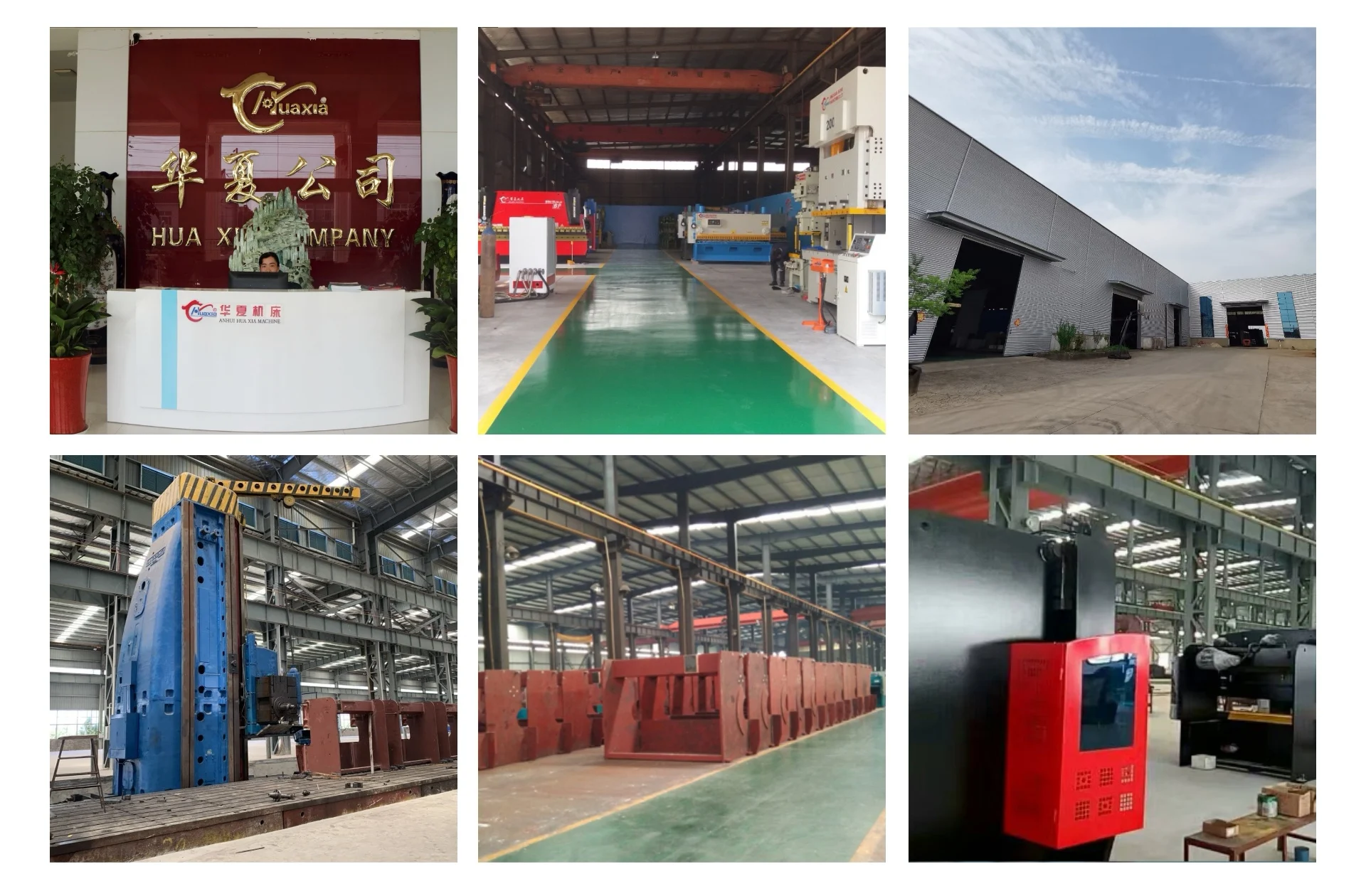

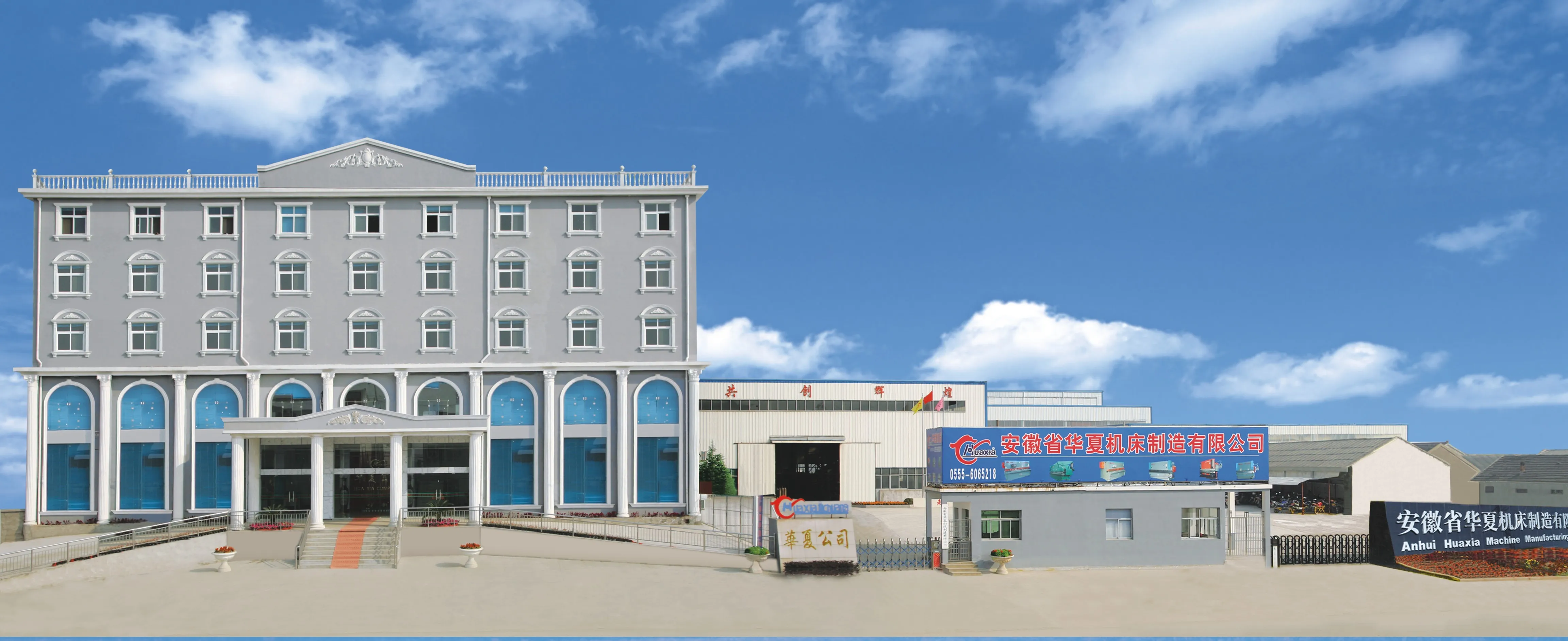

Our factory
With series of bender, shearing machine, rolling machine, punching machine and forming dies as its main products, Anhui Hua Xia Machine Manufacturing Co. Ltd. provides special machinery and complete sets of equipment for a wide range of industries including aviation, light industry, metallurgic industry, metalworking, architecture, automobile, power industry, decoration engineering and so on. Its clients are found all over China and other countries and regions in Europe, America, Southeast Asia and Middle East.
We have built offices in different parts of China, which forms a huge sales network and offers guarantee for convenient after-sales services. Besides, we have Wuhan Huayin electromechanical equipment subsidiary company in Hubei province, which deals in various kinds of famous brand electromechanical equipment. The company adopts modern management concept and emphasizes its quality control. It wins trust and applause from the clients with its outstanding quality, novel design, reasonable price and perfect after-sales service. It has been awarded many titles such as ‘Faithful Taxpayer’, ‘Credit Enterprise’, ‘National Exemplary Enterprise On quality & After-sales’, ‘China Quality-guaranteed Brand’ , “Anhui Famous Brand” and so on.
The company owns two machine production bases, which covers area of 18,000 square meters and 112,000 square meters respectively, and both of them possess standardized machine manufacturing ability. The whole staff of the company is striving for the most desirable quality of products with up-to-date technology and modernized management. The company has passed the ISO9001:2000 quality management system certification and its products sell well and enjoy a good reputation both at home and abroad. Especially in recent years, its export share has been expanded increasingly.
After obtaining CE Certificate in 2007, the company exported products to Germany and other EU countries successfully, which laid a good foundation for entering other developed countries. In pursuit of excellence, HuaXia people will keep pioneering and progressing. We sincerely wish to join hands with friends from various circles to achieve common improvement and prosperity.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

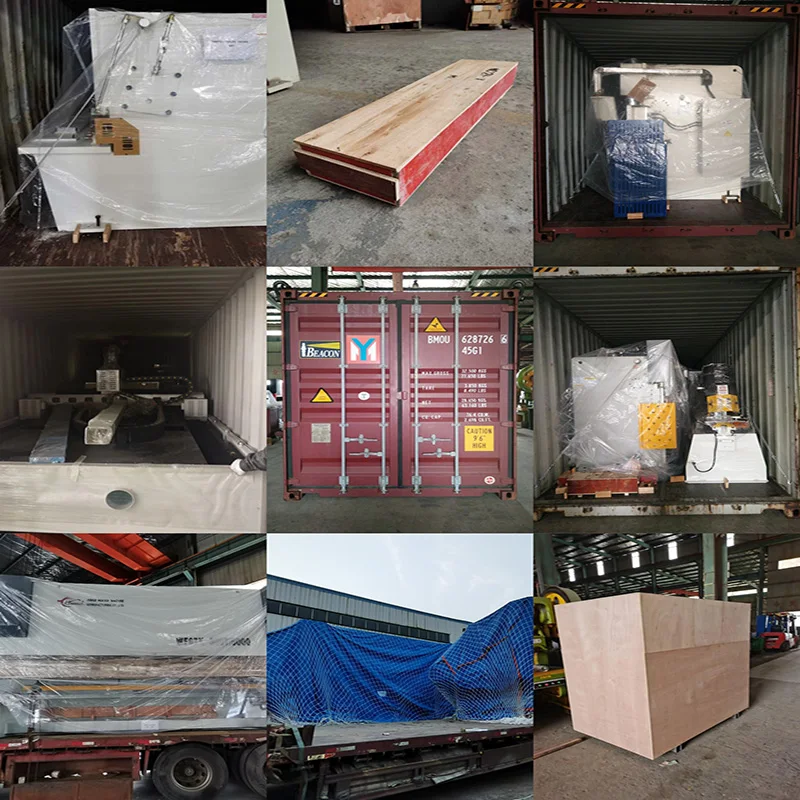

Packing & Delivery
FAQ
Q: Guarantee period
A: Our product quality guarantee period is 24 months from B/L date. During guarantee period, we will provide
spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation。
spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation。
Q:After-sales services
A: Our engineer can go to your factory for installation and show operation details on condition
of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our
factory for learning the installation, operation and maintenance for free.
of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our
factory for learning the installation, operation and maintenance for free.
Q: Why choose us
A:1. We will the machine for few days, and use your materials to do the test. Only guarantee the machine to show the best performance, and then we will ship it out.
2.our elite teams can provide you professional, customized and all-round services around the dock. If you need any help, please contact us by Whatsapp, Skype, Email or telephone.
Q: How can we provide you efficient services (metal processing solution)
A:There are Three Steps as following:
1. Gather your requirements based on your real working station.
2. Analyze your information and provide our feedback
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products we can offer professional designing.
