Product Overview

Description

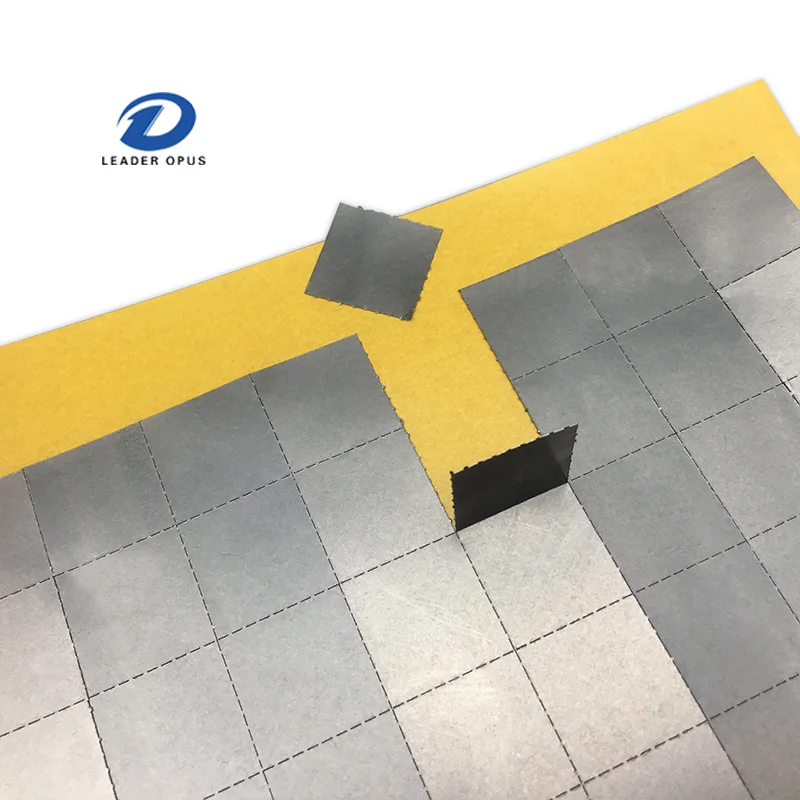

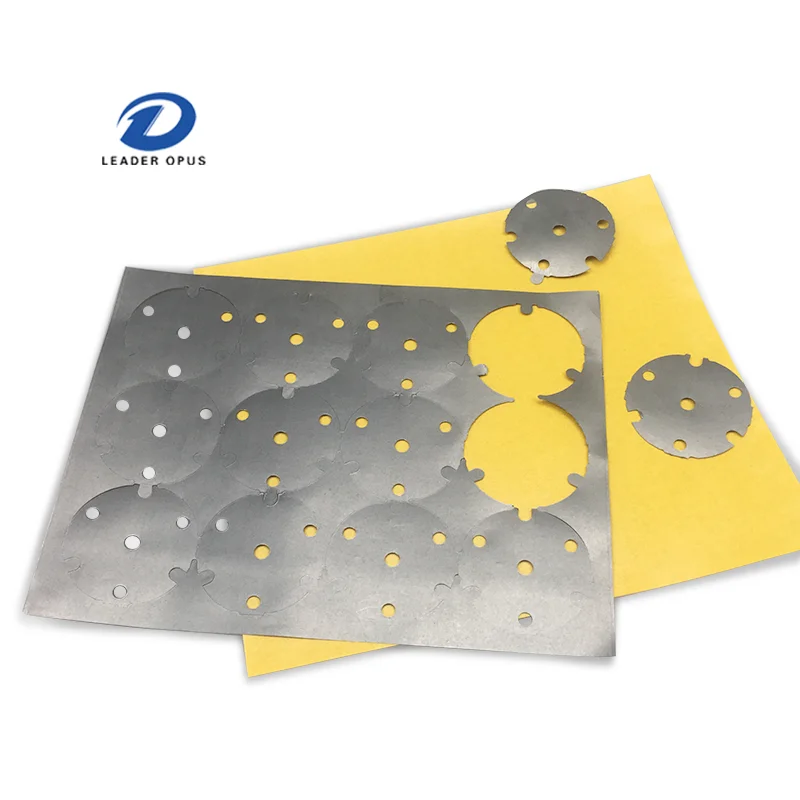

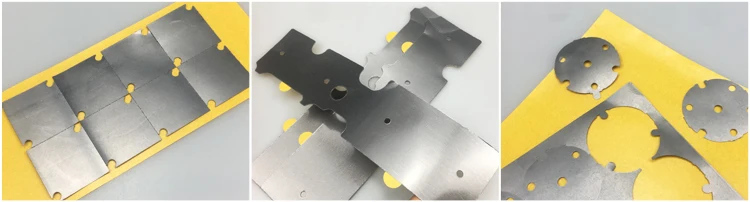

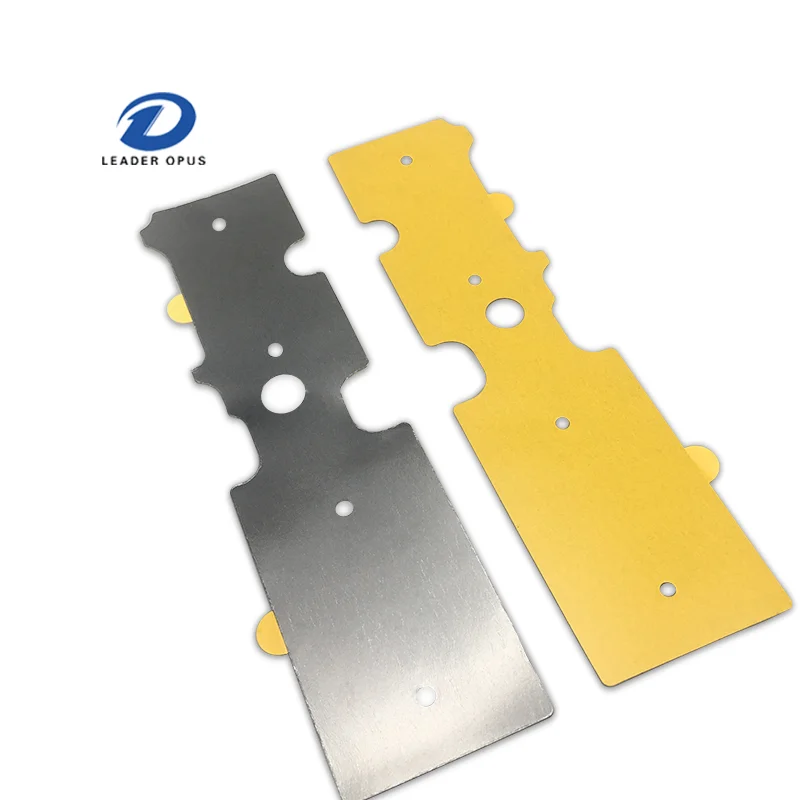

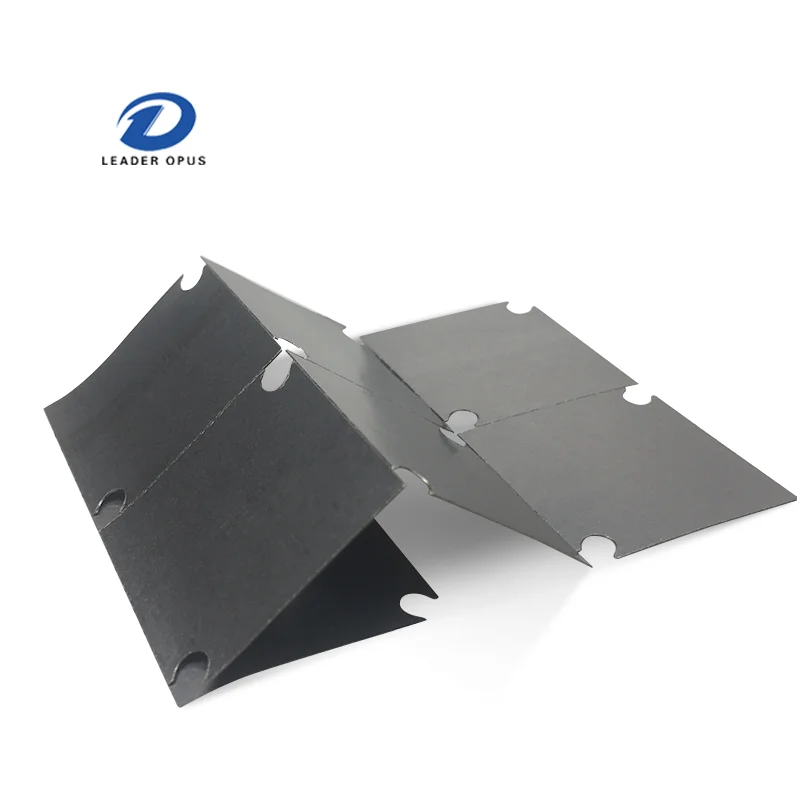

Glossy surface die-cutting thermal conductive graphite sheet for heat dissipation

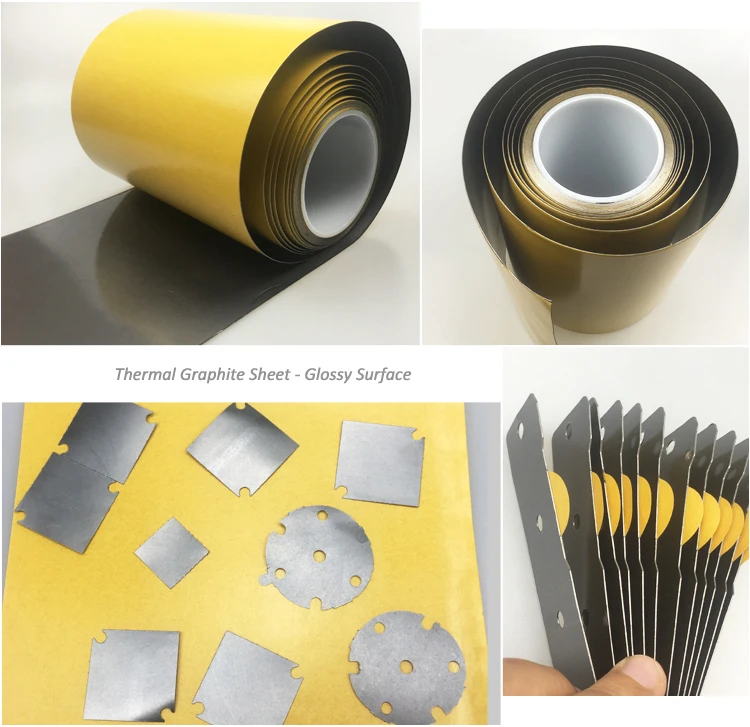

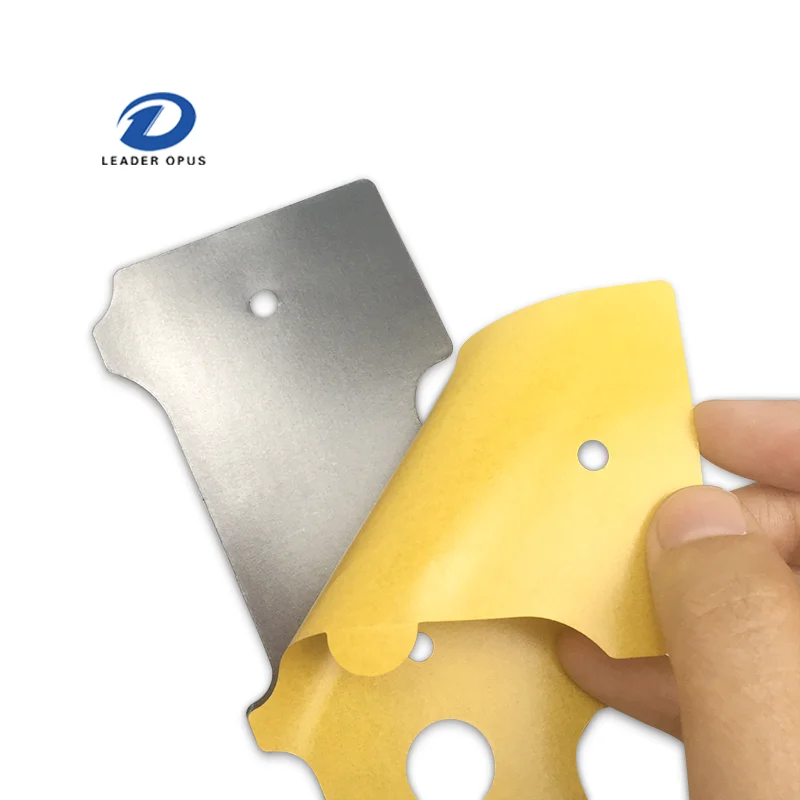

Glossy surface thermal conductive graphite sheet

Graphite sheet is a new type thermal material that has unique grain orientation. It provides uniform thermal conductivity along two directions. The laminar structure of thermal condcutive graphite sheet can well adapt to any surface, shielding heat source and components while improving the performance of electronics.

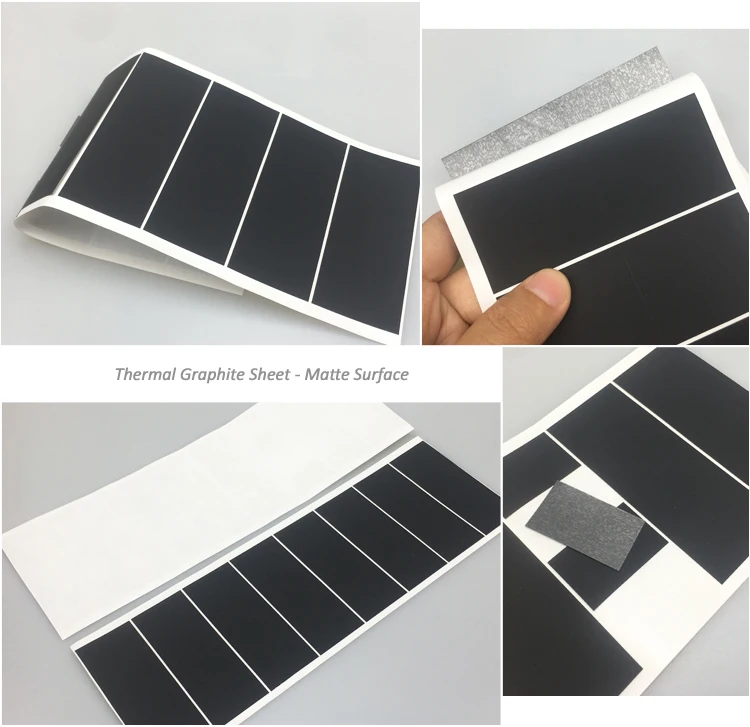

Matte surface thermal graphite sheet

Configuration of graphite sheet

Technical Data of thermal conductive graphite sheet

Property	Unit	Metric Value	Test Method
Material		Graphite
Thickness	mm	0.03-0.8	ASTM D374
Hardness	Shore A	80	ASTM D2240
Specific Gravity	g/cc	1.5-1.9	ASTM D792
Electrically
Flame Rating		V-0	UL 94
Thermal
Thermal Conductivity (Vertical Direction)	w/m-k	5-10	ASTM D5470
Thermal Conductivity   (Horizontal Direction)	w/m-k	>500	ASTM D5470

Remark: Data for design engineer spec. reference only. Engineers are reminded to test the material in application.



Flexible graphite sheet features

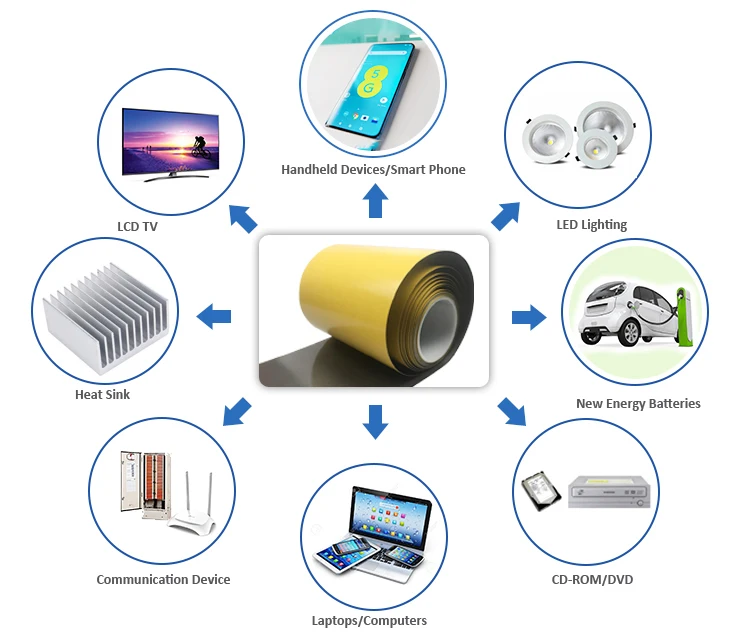

Application of graphite shee



Test Equipment of graphite sheet



Manufacturer of thermal graphite sheet



Certifications of high thermal conductive graphite sheet



Leader OPUS global partners
