Polyethylene expandable epe foam sheet/pipe/rod profile extruder

Product Overview

Description

Polyethylene expandable epe foam sheet/pipe/rod profile extruder













Product  Application:

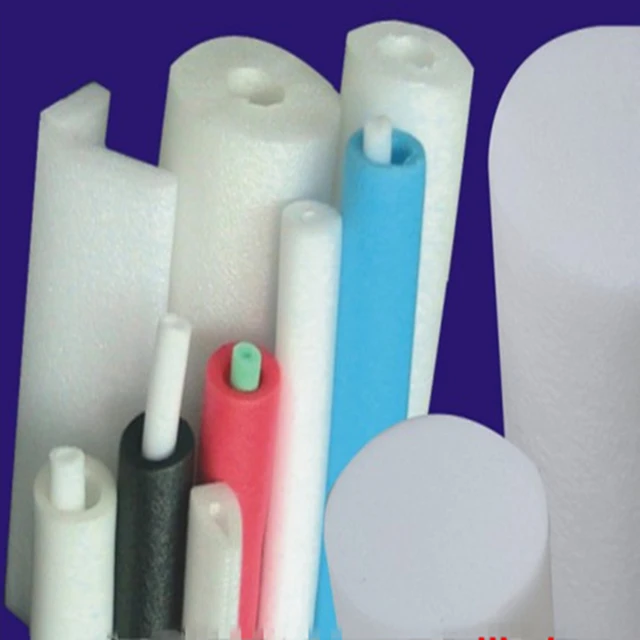

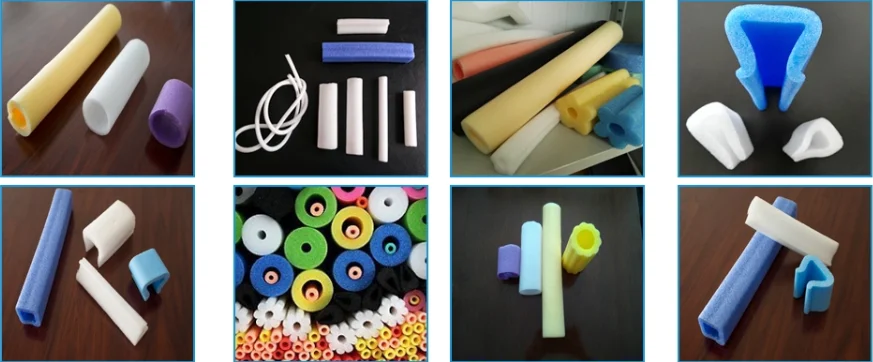

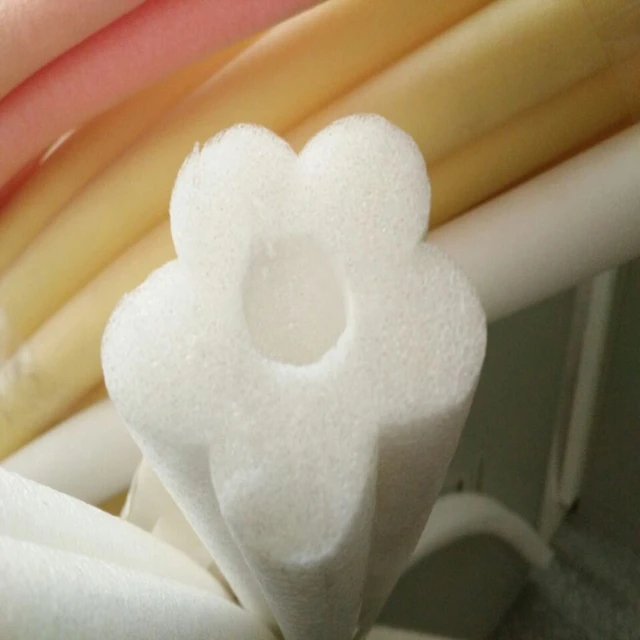

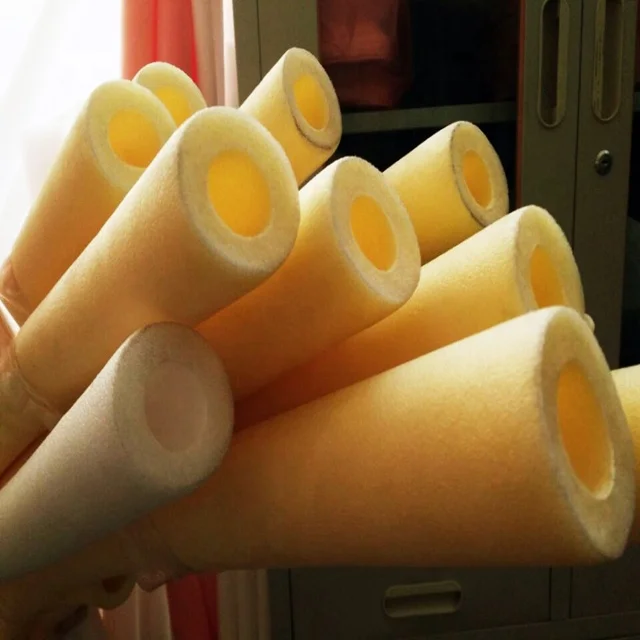

EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline, heat insulation, toy guardrail, recreation place etc. Due to its high foam ration, good elasticity and heat preservation. As a kind of new type foam filling and ornament material. EPE foam rod is widely used in spring mattress, soft stem and edge, automobile seat, sofa backrest and top-grade clothing. It is also widely used in the filling of contracting joint in building due to its good rebound elasticity.



Main Features:

1.Extruder: high output, low melting temperature,according to the different material, to replace extruder.
2.Screw: specially design for PE pipe, to ensure high efficiency, high yield.
3. Reducer: high speed, low noise, hard tooth-surface.
4. Die head: low melting temperature design; special mould design to reduce changing time of the mould.
5. Cooling system: stainless steel sink,high power pump, head and high efficiency cooling.

6. If changing auxiliary engine,it can produce rods and pipes.

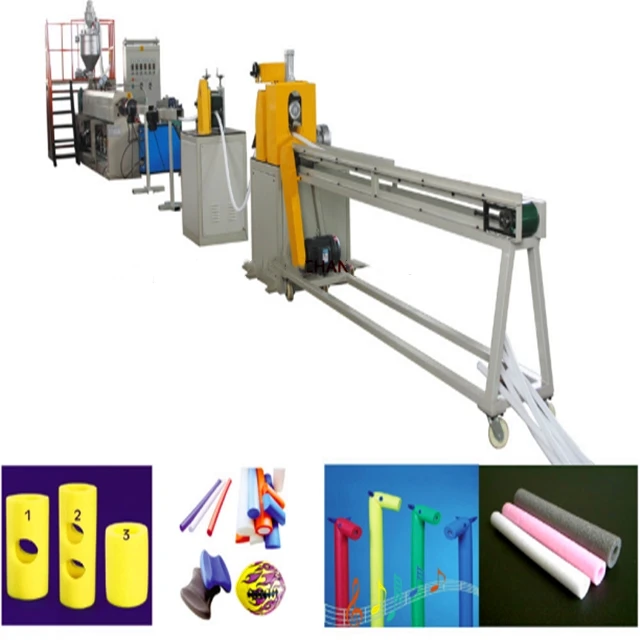

 Hot sale pe foam pipe in air conditioning extrusion machine

Technical Parameters  :

Model	Unit	SJEPEG-70	SJEPEG-75	SJEPEG-90	SJEPEG-105	SJEPEG-120
L/D		∅70/55:1	∅75/55:1	∅90/55:1	∅105/55:1	∅120/55:1
Screw speed	r/min	5-60	5-60	5-60	5-60	5-60
Foam rate		20-48	20-48	20-48	20-48	20-48
Pipe specification		∅20-40	∅20-50	∅30-80	∅40-100	∅50-120
Rod specification		∅6-30	∅8-35	∅15-50	∅18-70	∅20-80
Cooling method		Water cooling
Total power	kw	36	40	90	100	120
Overall size	m	15*1.3*1.7	16*1.3*1.7	18*1.6*2	20*1.8*2	22*2*2
Total weight	T	3.2	4.2	6.6	7.2	8.6



 Hot sale pe foam pipe in air conditioning extrusion machine

 Hot sale pe foam pipe in air conditioning extrusion machine

Inner package: stretch film
