Driveway geogrid composite non woven geotextile machinery 119gsm
Product introduction

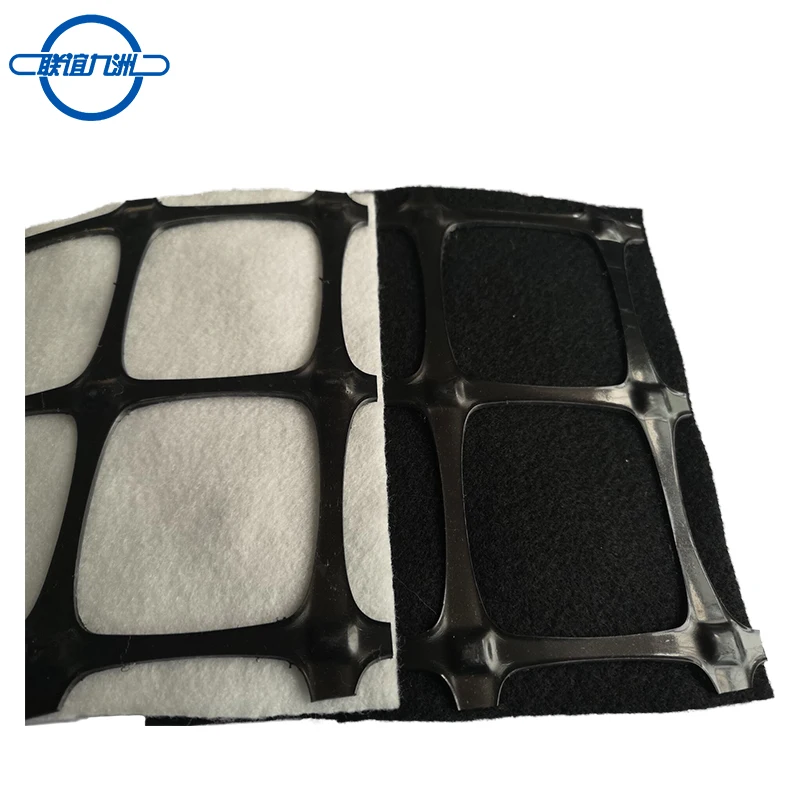

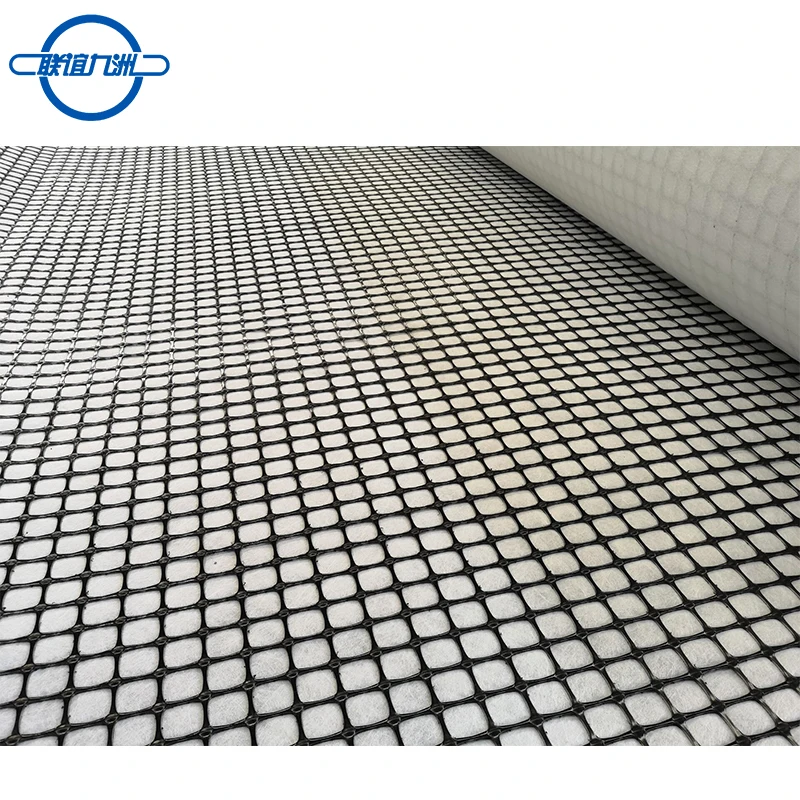

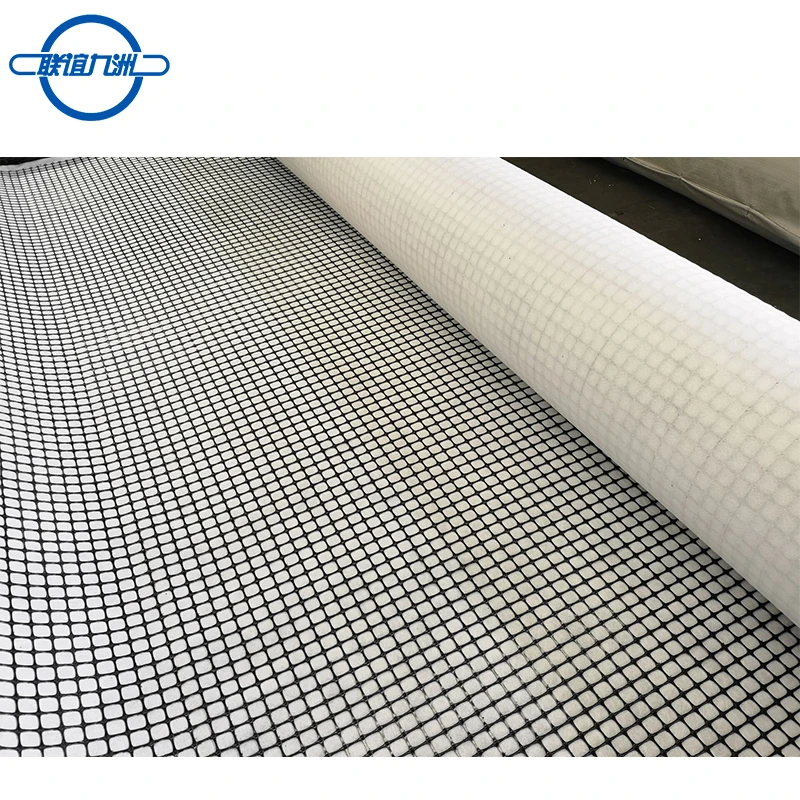

BIAXIAL GEOGRID COMPOSITER is a composite made of bi-axial polypropylene (PP) geogrid, heat bonded to a long fiber non-woven polyester geotextile that acts as a filter and soil separator. This geogrid is manufactured using a punching and drawing process whereby the polypropylene sheet is stretched in two directions, machine (longitudinal) and cross-machine (transverse). The result is a monolithic and isotropic geogrid with thick and wide ribs, thick integral nodes, and uniform square apertures. Engineered to be mechanically and chemically stable in aggressive soil environments, THIS-GEOCOMPOSITE allows sub-base drainage to help maintain structural stability, and is very effective in keeping expensive imported material from being contaminated by migration of fines from the saturated base soils.
| TESTED PROPERTY | TEST METHOD | UNIT ENGLISH(METRIC) | VALUE ENGLISH(METRIC) | |
| BI-AXIAL GEOGRID | MD | XD | ||
| Carbon Black Content | ASTM D 4218 | % | 2.0 | |
| Ultimate Tensile Strength{1} | ASTM D 6637 | lbs/ft(kN/m) | 1645(24.0) | 1645(24.0) |
| Tensile Strength at 2% strain{1} | ASTM D 6637 | lbs/ft(kN/m) | 720(10.5) | 720(10.5) |
| Tensile Strength at 5% strain{1} | ASTM D 6637 | lbs/ft(kN/m) | 1343(19.6) | 1343(19.6) |
| Junction Efficiency{2}{3} | GRI-GC2 | % | >95 | >95 |
| Flexural Rigidity{1} | ASTM D 7748 | mg-cm | 1000000 | |
| Aperture Stability{2}{4} | US.COE | m-N/deg | 0.65 | |
| Minimum Rib Thickness | Callipered | inch(mm) | 0.07(1.7) | 0.05(1.3) |
| Aperture Size{2}{5} | Nominal | inch(mm) | 1.33(34.0) | 1.22(31.0) |
| GEOTEXTILE | ||||
| Raw Material | Polyester, Continuous filament, needle punched | |||
| Ultimate Tensile Strength{1} | ASTM D 4595 | lbs/ft(kN/m) | 781(11.4) | 781(11.4) |
| Grab Strength{1} | ASTM D 4632 | lbs(kN) | 128(0.57) | |
| Trapezoidal Tear{1} | ASTM D 4533 | lbs(kN) | 56(0.25) | |
| Elongation at Ultimate{2} | ASTM D 4595 | % | 60 | 60 |
| CBR Burst Strength{1} | ASTM D 6241 | lbs(kN) | 540(2.4) | |
| Permeability | ASTM D 4491 | cm/sec | 0.41 | |
| Apparent Opening Size O9S | ASTM D 4751 | mm | 0.12 | |
| Mass Per Unit Area{2} | ASTM D 5261 |
oz/yd2(g/m2) |
6.0(200) | |

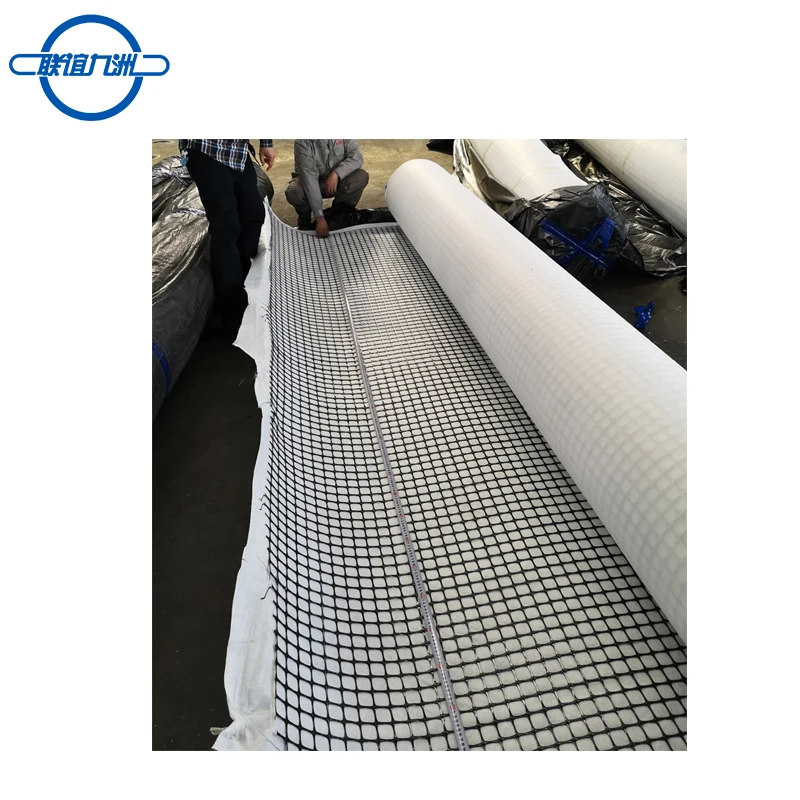

| TYPICAL ROLL DIMENSIONS | ||||
| Roll Width |
ft(m) |
12.79(3.9) | ||
| Roll Length{6} | ft(m) | 164.04(50.0) | ||
NOTES:
{1}Minimum Average Roll Values(MaRV-calculated as (mean minus 2X standard deviation)
{2}Average
{3}Junction efficiency is defined as junction strength divided by multi-rib strength
{4}Resistance to in plane rotational movement measured at an applied momen = 2m-N{20kg-cm} in accordance with US Army Corps of Engineers methodology for the measurement of Torsional rigidity
{5}Aperture tolerance: within+/-10% coefficient of variance
{6}Custom length orders can be accommodated.

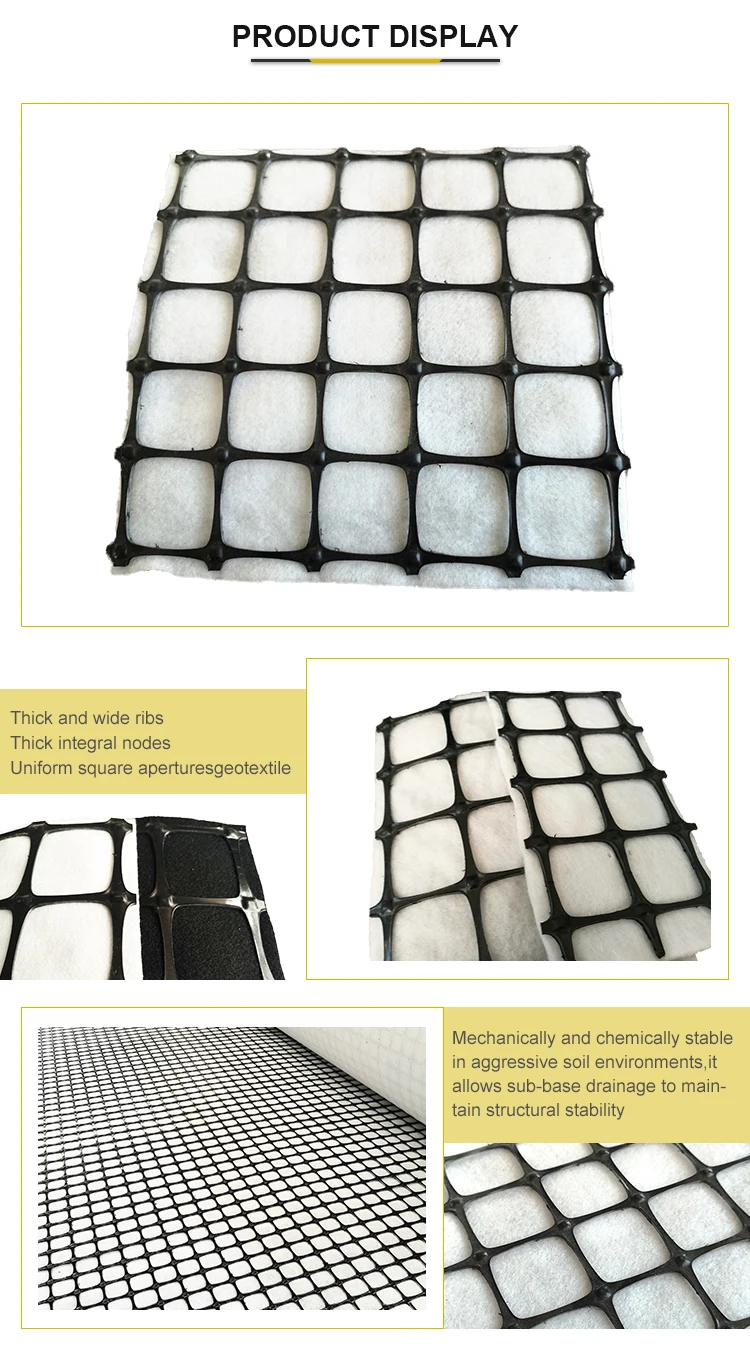

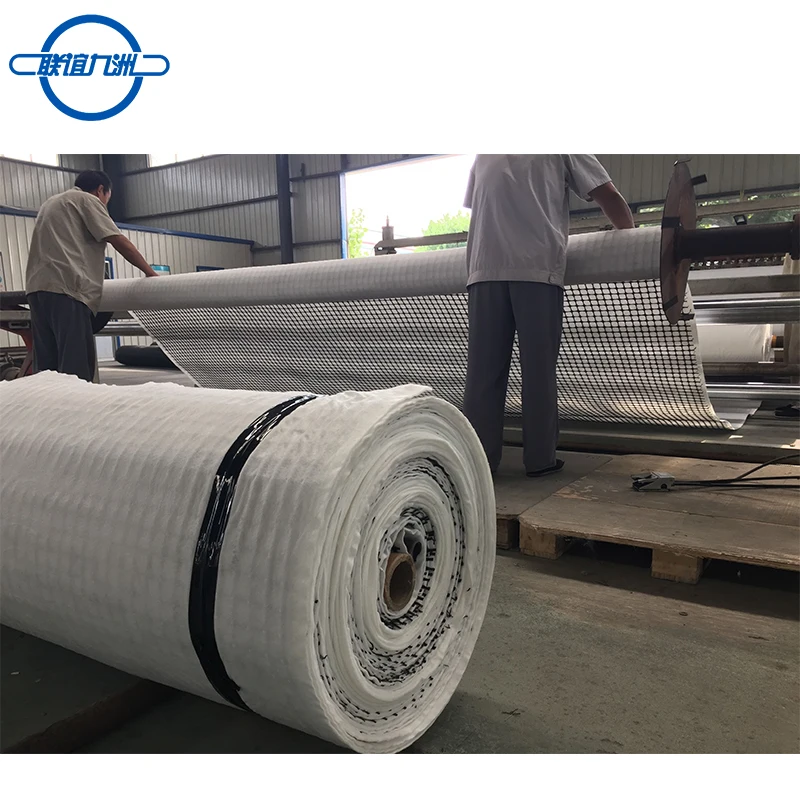

PRODUCT DISPLAY
