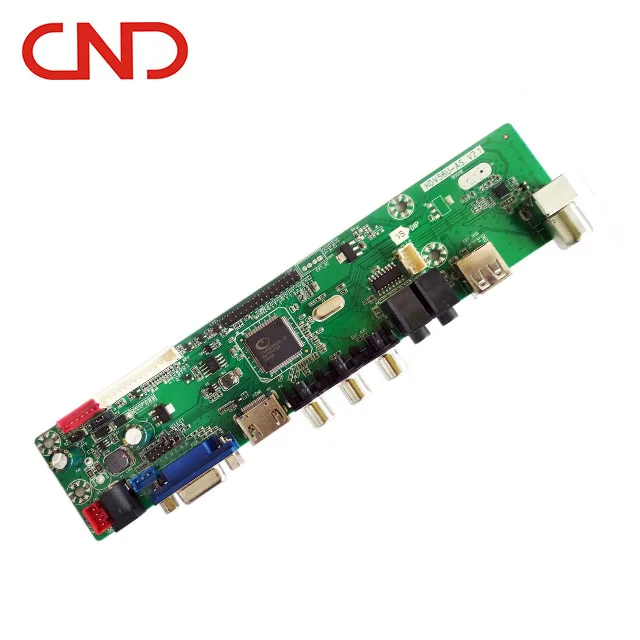

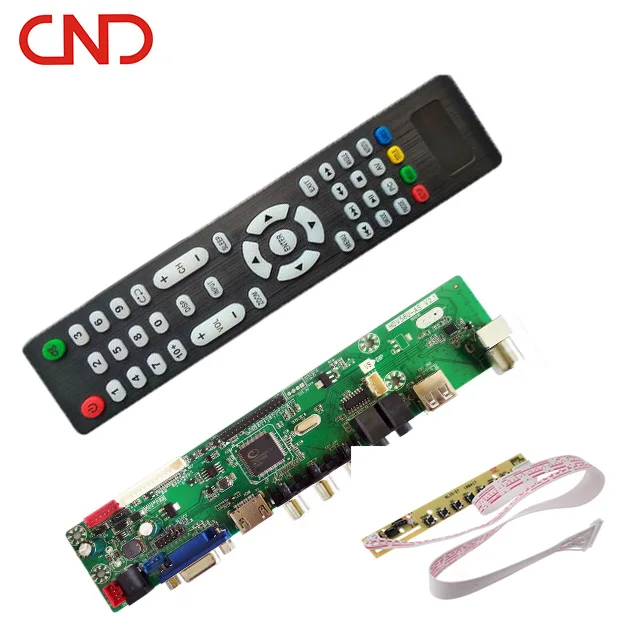

CND V56 HDV56U AS V2.1 Universal LCD LED TV Card Mother Board

Product Overview

Description







Specifications:



Product name	CND V56 HDV56U-AS V2.1 Universal LCD LED TV Card Mother Board
Match Screen	Interface		Single Dual LVDS
	Resolution		Max 1920x1080@60Hz
Video Input	TV		Received frequency range	49MHz – 863MHz
			Input impedance	75ohm
			Color system	PAL, SECAM/NTSC
			Sound system	BG, DK, I, L/M,N
	PC Input		Format	Max 1920x1080@60Hz
	HDMI		480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	Component		480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	USB		USB document support format
	Video		Color system	PAL/SECAM/NTSC
			Video range	1.0 Vp-p ±5%
Audio input	PC		Earphone input	0.2 – 1.5 Vrms
	Video		L/R RCA Input	0.2 – 1.5 Vrms
	componet		L/R RCA Input	0.2 – 1.5 Vrms
Audio output	Frequency Response		100Hz - 15000Hz  @±3dB (1KHz 0dB Benchmark signal)
	Loudspeaker output		2x10W(8ohm)  THD+N<10%
Power	Input requirement		12V, 5V, 5VSB
	Screen power supply		5V, 12V
	Power management		Low power consumption mode, standby <1W(Depending on the power supplly)
Key Interface	Menu,CH +,CH-,VOL+,VOL-,Source, standby
Port	Input	TV			1 IEC Connector 75ohm
		HDMI			3 HDMI Port
		PC			1 D-SUB 15 Pin terminal
		VIDEO			1 RCA terminal(yellow)
		AUDIO			2 RCA terminal (white red)
		Chromatic aberration			1 RCA terminal (green blue red)
		USB			1USB socket
		PC-RGB Audio			1earphone socket(black)
	Output	Video			1 RCA terminal(yellow)
		Audio			1 RCA terminal(white,red)





USB Updating Firmware

• Step 1: Empty the U disk
• Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to
  U disk
• Step 3: Connect the U disk and TV Mainboard Via USB Interface
• Step 4: Connect the Keyboard and TV Mainboard
• Step 5: Connect power supply, check keyboard light. If light flashes, means firmware is being written; until light turns to Green, work is done.
  (If light is not flashing, please cut off the power supply, then reconnect the USB, then connect the power supply again)
• (Note: *During Step 5, the power supply can't be paused* The same firmware can only
  be burned once time)
• After all done, use the remote control to turn on the tv (after burning the firmware, the
  mainbaord is on standby, the remote can wake up the tv)



Factory Settings

• Menu--remote control press 8896--factory setting
• Screen Specification Adustment: Factory setting--Use the right key to choose--MAP
  data (LVDS MAP DATA has 16 items totally, it is enough for most of the screen)



BOOT LOGO SETTING

• Step 1: Put your logo into the U disk
• Step 2: connect your U disk with mainboard
• Step 3: Find your logo in Multi-media File
• Step 4: Select your logo
• Step 5: Press No."6 " on remote control to change to fullscreen play,then press "ok" on
  the remote control, on the bottom of the option items, there is a " catch", choose it.
  Done
