China clangsonic 40khz medical ultrasonic cleaning equipment ultrasonic cleaner price
Ultrasonic Cleaner R Series are integrated ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. It can be widely used in metal products, auto parts, electronics cleaning etc.
Clangsonic ultrasonic cleaner are mainly used in industry . Size and power can be customized by your request.
Advantages
1. Efficient Cleaning Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily. Under same conditions, the breakdown speed of foil is significantly improved.
2. Stable Output Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.
3. High Conversion Efficiency
The conversion efficienty of ultrasonic and electric energy is more than 95%. The energy conservation is more than others at same ultrasonic power output.
4. Simple Operation
Fill in liquid ,put into the workpiece and turn on switches. Ultrasonic cleaning can be started in only 3 steps. All the parameters will be matched automatically.

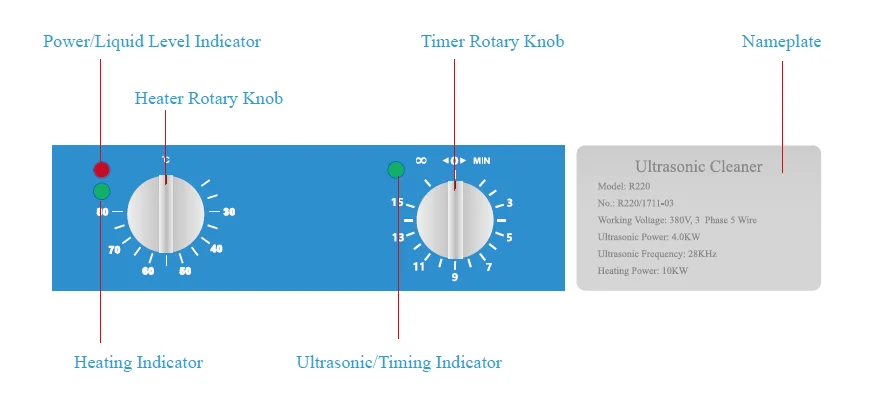

Front Panel
Feature
1. Frequency Tracking- Tracking the best frequency in the cleaning process. Automatically adjust the frequency to the optimum point according to the different liquid environment in the inner tank. 2. Load Self-adapation- System automatically adjusts the generator output to maintain constant power to the transducers according to the different working environment 3. Sweep- Using the sweep function means that a more homogenous sounding of the bath is achieved which results in improved cleaning performance through out the bath 4. Power Adjustable Linearly- 10-100% adjustable linearly 5. Timer- 0-15min. Adjustable or Normally Open 6. Heater- 0-80°C adjustable 7. Industrial Level LCD Display- Supporting parameters settings and status monitoring 8. External Control- Connectable to PLC and HMI 9. Communication- RS485 MODBUS RTU
Application
Ultrasonic Cleaning Effect

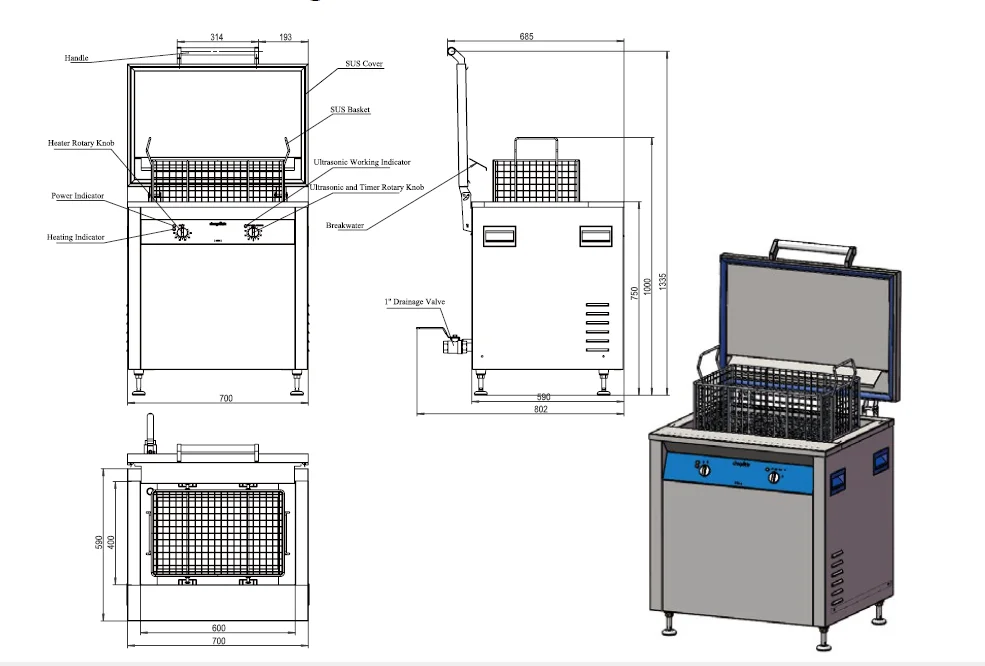

Specification
Model
R85
R120
R160
Max. Volume
85L
120L
160L
Effective Volume
60L
90L
120L
Tank Material
SUS304
SUS316L (Optional)
SUS Cover
Optional
Holder
Feet
Wheel (Optional)
Side Handle
√
√
×
Overall Size（mm）L*W*H
700x590x750
700x640x750
880x690x850
Inner Tank Size（mm）L*W*H
600x400x350
650x450x400
700x500x450
Basket Size（mm）L*W*H
510x330x180
560x380x230
610x430x280
Drainage
1"
1"
1" 1/2
Ultrasonic Frequency
28KHz or 40KHz
Ultrasonic Power
1500W
1800W
2400W
Heating Power
5000W
6000W
8000W
Working Voltage
220VAC/1φ
220VAC/2φ
220VAC/3φ
Power Supply Frequency
50/60HZ
Max. Heating Temperature
80 ℃
Timer
1-15minutes/∞
Protection Class
IP21
Cable Length
3m
The Max. Workpiece Length
500mm
550mm
600mm
Max. Loading Capacity ( kg)
20kgs
25kgs
30kgs
Working Environment Temperature
0-40 ℃
Liquid Optimum Temperature
40-60°C(Warning: When temperature is more than 70°C, it may affect the lifespan of ultrasonic transducer during long time continuous working)
Package Information
Delivery Time
Standard product will be shipped out within 7 working days after payment received!!
Payment Methods
1.T/T
2.L/C
3.D/P
4.D/A
5.West Union
6.Paypal
7.MoneyGram
8.Escrow
Warranty
100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of 1 year from the date of trial run finish under our technician's guidance.
Our Services
OEM,ODM ,Customization
Our Factory
Our Achievements
FAQ
(1) Are you manufacturer or trading company? We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are home-made by ourselves.
(2) Do you accept OEM and ODM? Yes, we also have professional R&D teams ( ultrasonic transducer team, ultrasonic generator team and mechanical design team) to respond your special needs quickly.
(3) Delivery time Standard products can be delivered within 7 working days. Customized machines depend on the design.
(4) Warranty We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we' ll provide free spare parts or repairing service.
(5) Do you provide trial cleaning service? Yes, you're welcome to send the work pieces for trial cleaning. We'll send you video and report after testing . It's free service.
(6) Can you provide ultrasonic transducer or generator if any failure? Yes, ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves. We can send the right parts quickly for replacement.
(7) Which ultrasonic frequency and ultrasonic power are suitable for our work piece? Please contact us and provide details as specific as you can. Information includes:the size, material, weight and dirt of your work piece and cleaning tank dimension etc.
