Automatic Carton Box Folder Gluer Machine With Pre fold for Pizza Box Hamburger Box
- Category: >>>
- Supplier: Ruian Wity Machinery Co. Ltd.
Share on (62446432894):
Product Overview
Description
Product Description

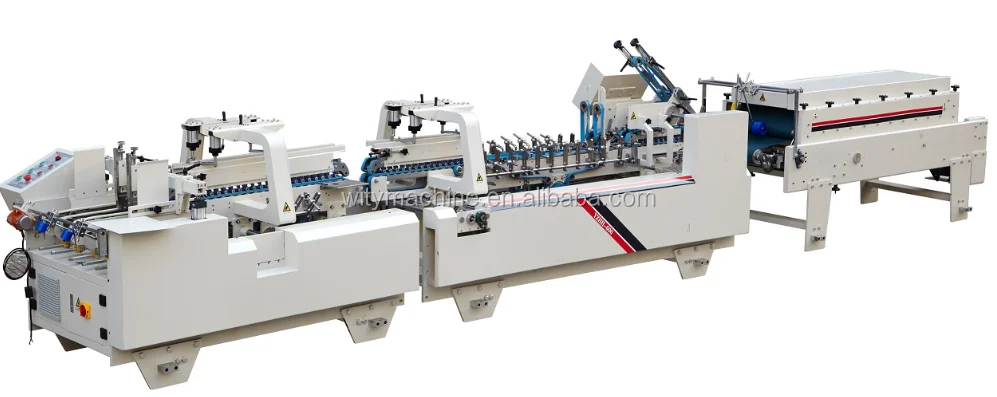

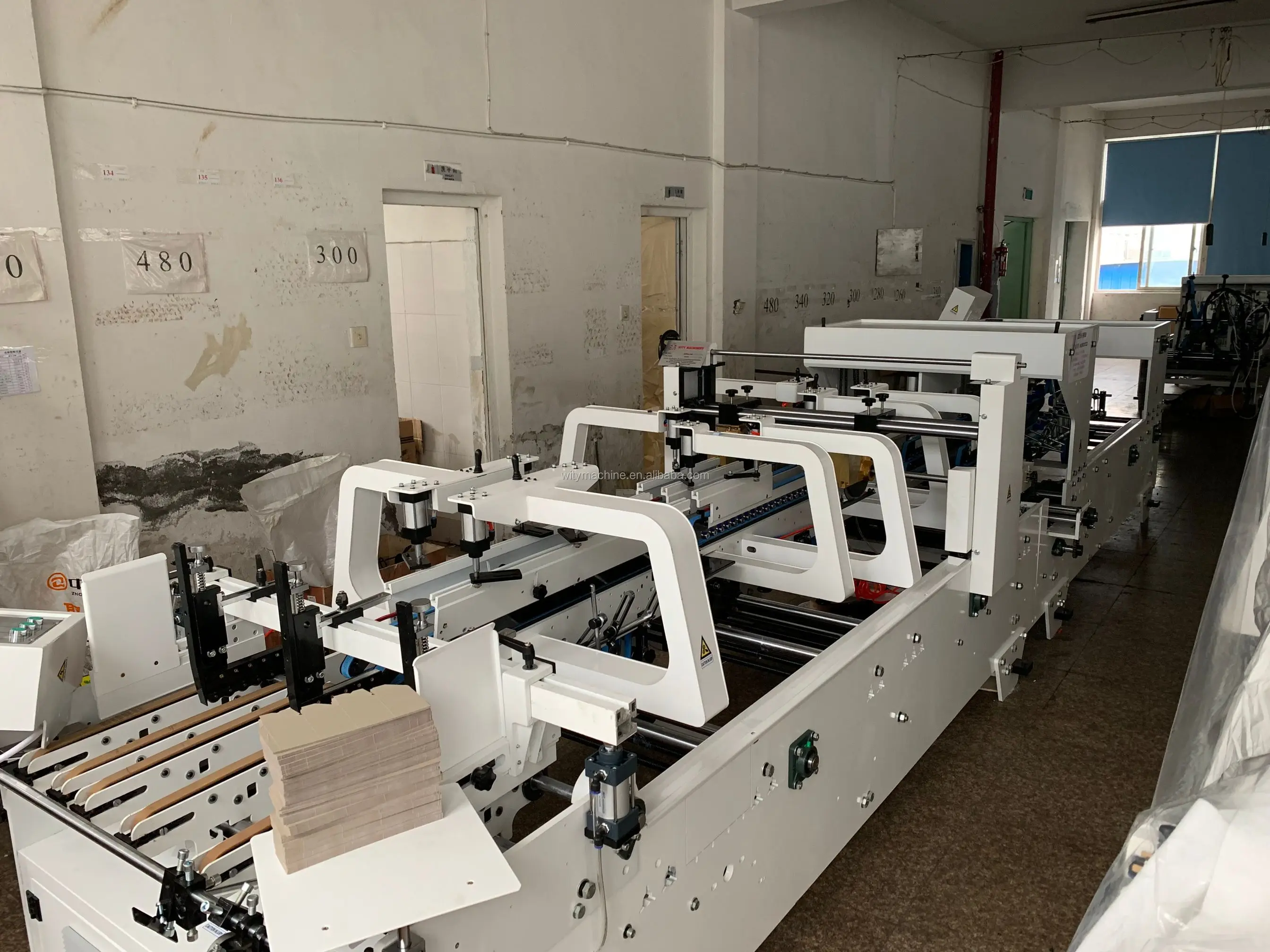

YZHH-600/800 Automatic Folder Gluer Machine With Prefolding
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally.
Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.
Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.
Specification
Linear velocity | 0～220m/min |
Suitable paper quality | 220～800g／m² cardpaper |
Paste box basic form | Both side are folded , both sides are Pre-folded, One-side edge pastes. |
Feeding way | Automatically and continuously feeding |
Adhesive | Solute type |
Needed power | AC220V 3.5 KW |
Weight | 2100KG |
Overall size | 7200×1100(1300)×1300mm |
The scope of count | 0～999999 |
Code | YZHH-600 | YZHH-800 |
A max | 700mm | 700mm |
A min | 70mm | 70mm |
B max | 600mm | 800mm |
B min | 110mm | 110mm |
C min | 8mm | 8mm |
D min | 70mm | 70mm |
F min | 51mm | 51mm |
Main Equipment

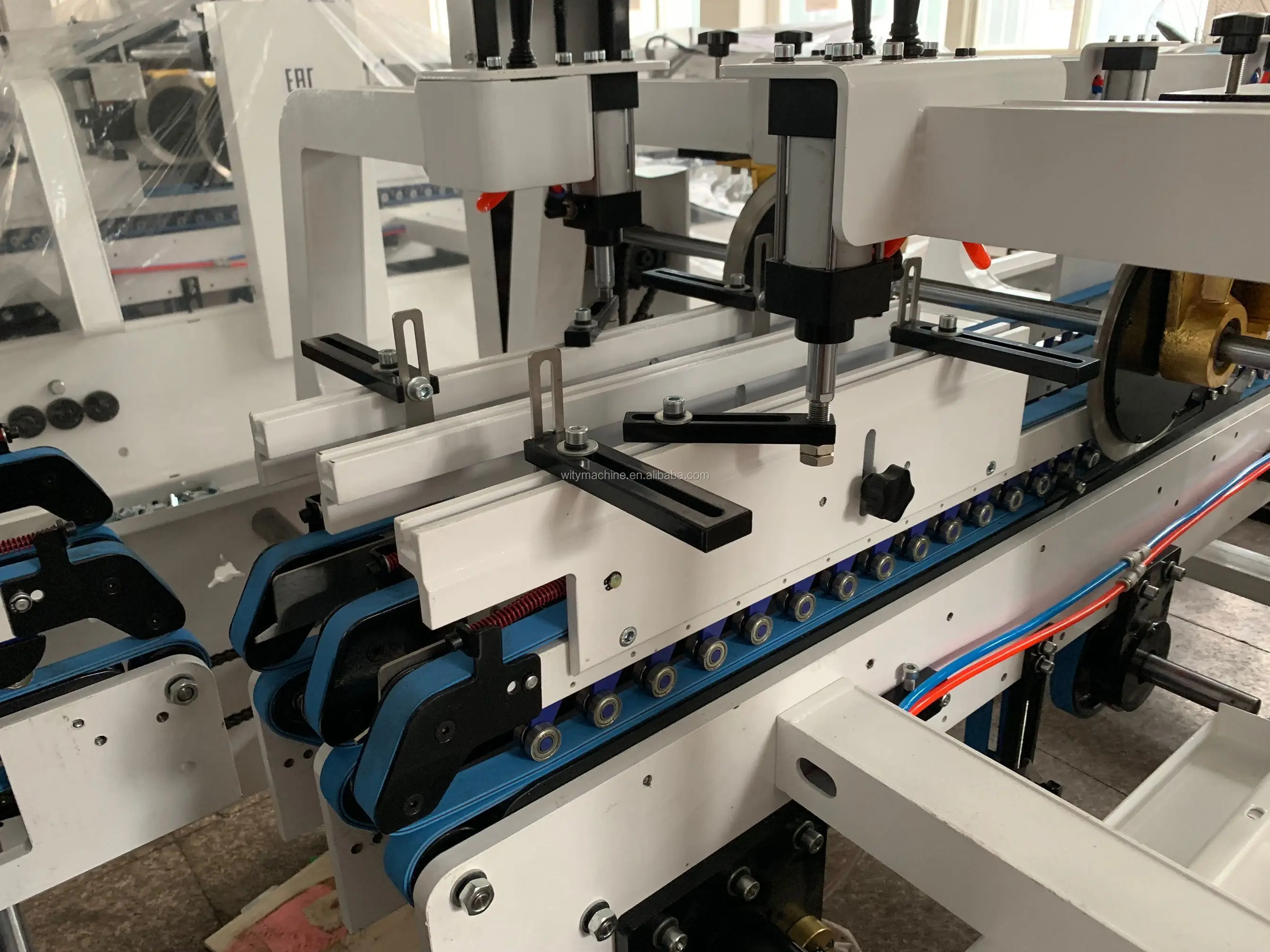

Pre-fold parts
Ensure the completion of 1st folding of 180 and 3rd folding of 135°, facilitate paper box opening when it is filled .

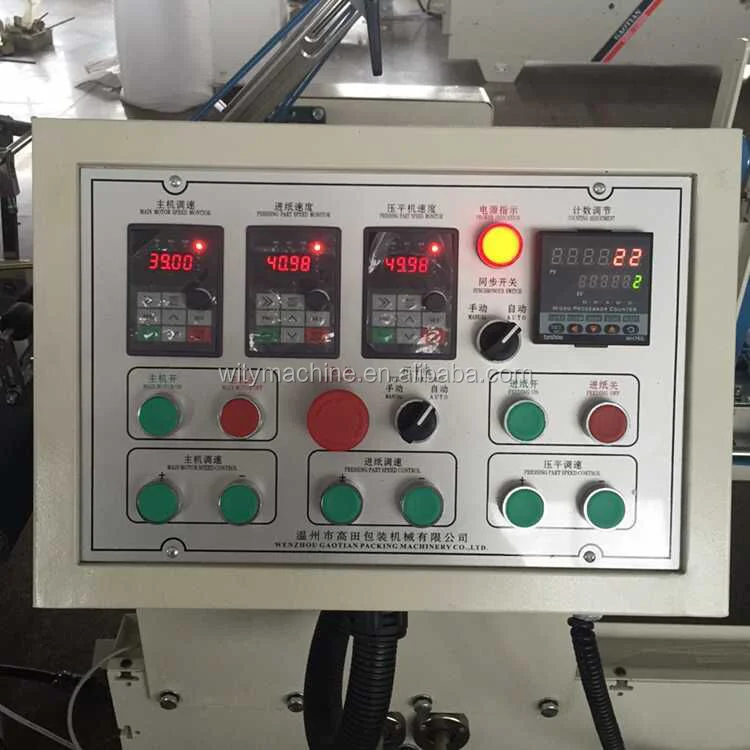

Electrical control part
Speed 1 times faster than the old series; belt linear speed has reached up to 400m/min
Electrical control part
Speed 1 times faster than the old series; belt linear speed has reached up to 400m/min
Details Images
