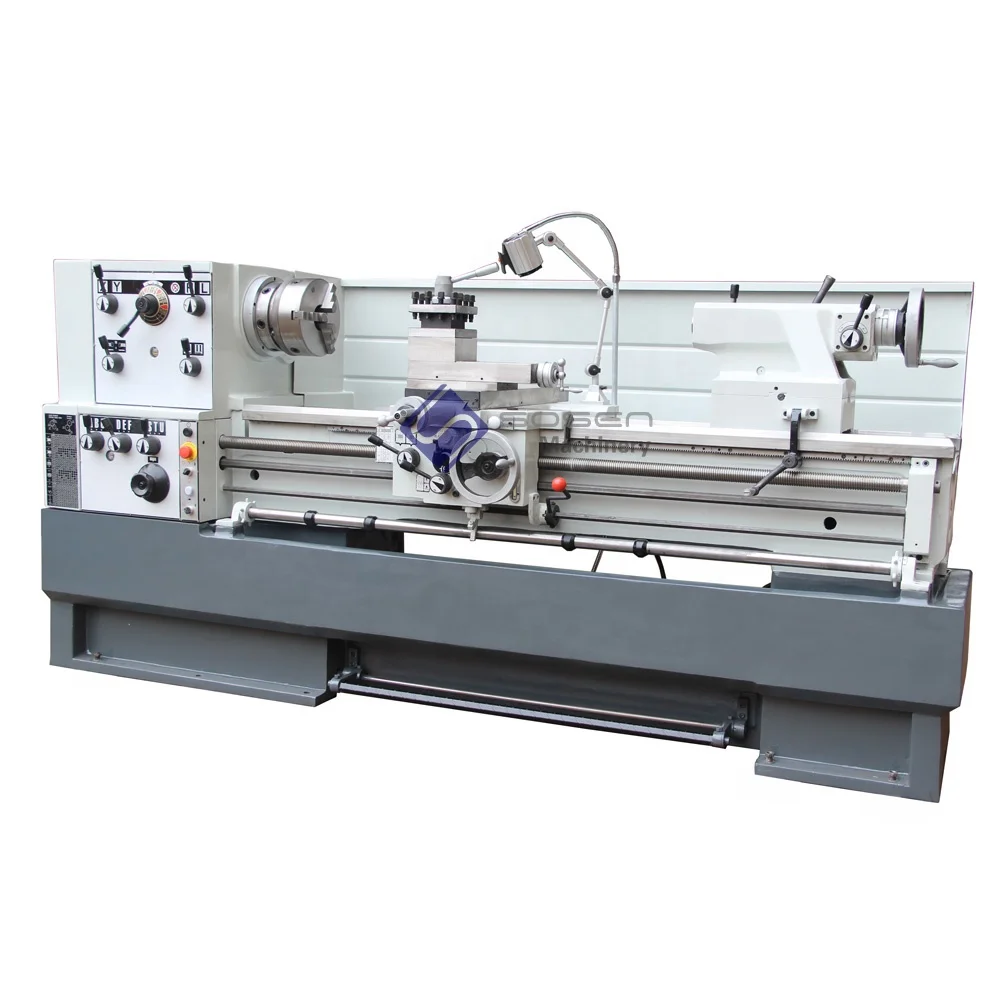

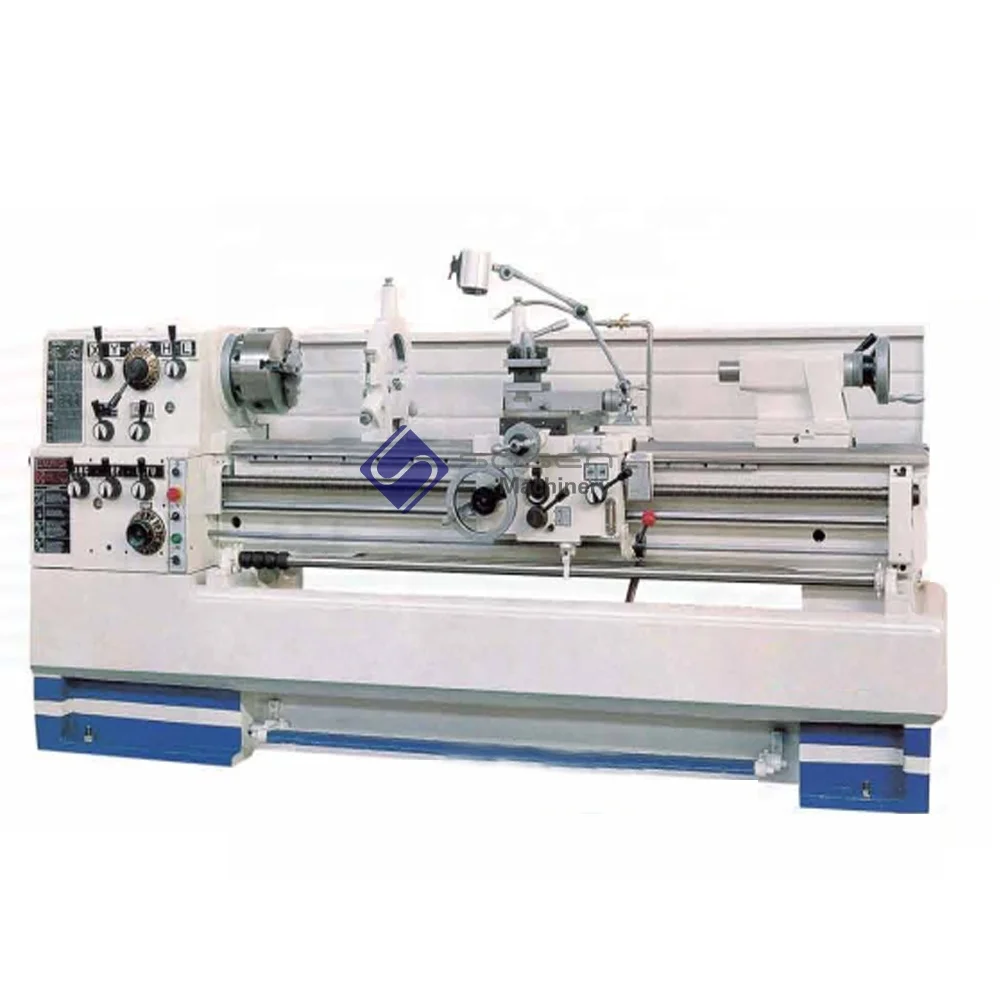

C6251 shandong machinery parallel lathe machine torno mecnico universal
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62446491125):
Product Overview
Description
Products Description
C6251 shandong machinery parallel lathe machine torno mecnico universal
Model | Unit | C6246 | C6251 | C6256 |
Max swing over bed | mm | 460 | 510 | 560 |
Max swing over cross slide | mm | 270 | 305 | 355 |
Max swing over gap | mm | 690 | 735 | 785 |
Length of gap | mm | 165 | 170 | 170 |
Max length of workpiece | mm | 1000/1500/2000 | 1500/2000/3000 | 1500/2000/3000 |
Width of bed | mm | 300 | 350 | 350 |
Spindle nose | D1-6 | D1-8 | D1-8 | |
Spindle bore | mm | 58 | 80 | 80 |
Taper of spindle bore | M.T.#6 | M.T.#7 | M.T.#7 | |
Range of spindle speed | r/min | 12changes 25-2000r/min | 12changes 25-2000r/min | 12changes 25-2000r/min |
Max travel of compound rest | mm | 128 | 130 | 130 |
Maxtravel of cross slide | mm | 285 | 316 | 316 |
Leadscrew thread | mm | 6mm or 4 T.P.I | 6mm or 4 T.P.I | 6mm or 4 T.P.I |
Maxsection of tool | mm | 25x25 | 25x25 | 25x25 |
Range of longitudinal feeds | mm/rev | 42kinds 0.031-1.7mm/rev | 35kinds 0.059-1.646mm/rev | 35kinds 0.059-1.646mm/rev |
Range of cross feeds | mm/rev | 42kinds 0.014-0.784mm/rev | 42kinds 0.020-0.573mm/rev | 42kinds 0.020-0.573mm/rev |
Metric threads range | mm | 41kinds 0.1-14mm | 47kinds 0.2-14mm | 47kinds 0.2-14mm |
Inch threads range | T.P.I | 60kinds 2-112 T.P.I. | 60kinds 2-112 T.P.I. | 60kinds 2-112 T.P.I. |
Diametrical pitches range | D.P | 50kinds 4-112D.P. | 50kinds 4-112D.P. | 50kinds 4-112D.P. |
Module piches rang | M.P | 34kinds 0.1-7 M.P. | 34kinds 0.1-7 M.P. | 34kinds 0.1-7 M.P. |
Dia. of tailstock sleeve | mm | 60 | 75 | 75 |
Travel of tailstock sleeve | mm | 130 | 180 | 180 |
Morse taper of tailstock sleeve | M.T.#4 | M.T.#5 | M.T.#5 | |
Power of main motor | kw | 5.5 | 7.5 | 7.5 |
Power of coolant pump | kw | 0.1 | 0.1 | 0.1 |
Packing size | mm | 2280/2800/3300x1120x1650 | 2900/3400/4400x1190x1740 | 2900/3400/4400x1190x1740 |
N.W. | kg | 1645/1810/1965 | 2160/2435/2805 | 2285/2560/2930 |
G.W. | kg | 1910/2115/2295 | 2550/2840/3270 | 2690/2980/3410 |
Features:
1. 2 Axis digital readout system (optional)
2. Quick change toolpost with 5 holders (optional)
3. Concertina leadscrew cover (optional)
4. Gear drive headstock for quick change of spindle speeds
5. Precision V-beds are hardened and ground, incorporating a rigid webbed casting
6. Foot operated spindle brake with safety cut out switch
7. Change gears for metric and imperial thread cutting
8. Adjustable taper roller bearings support the spindle
9. Inching button is incorporated on the control panel for convenient spindle speed selection
10. Enclosed quick action gearbox for thread cutting and auto feeding
11. Powered longitudinal and cross feeds
12. D1-8 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
13. Removable gap bed-way for larger diameter jobs
2. Quick change toolpost with 5 holders (optional)
3. Concertina leadscrew cover (optional)
4. Gear drive headstock for quick change of spindle speeds
5. Precision V-beds are hardened and ground, incorporating a rigid webbed casting
6. Foot operated spindle brake with safety cut out switch
7. Change gears for metric and imperial thread cutting
8. Adjustable taper roller bearings support the spindle
9. Inching button is incorporated on the control panel for convenient spindle speed selection
10. Enclosed quick action gearbox for thread cutting and auto feeding
11. Powered longitudinal and cross feeds
12. D1-8 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
13. Removable gap bed-way for larger diameter jobs
Details Images

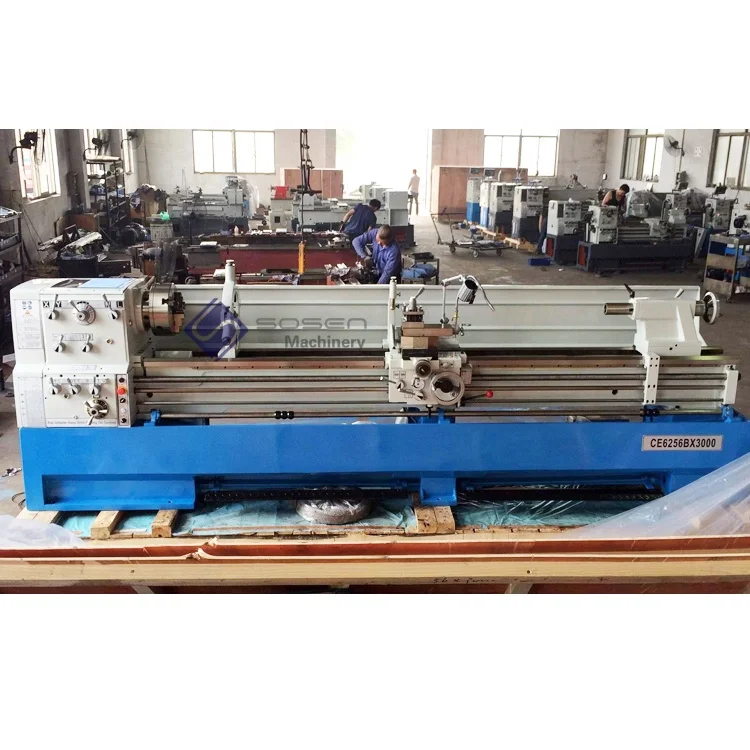

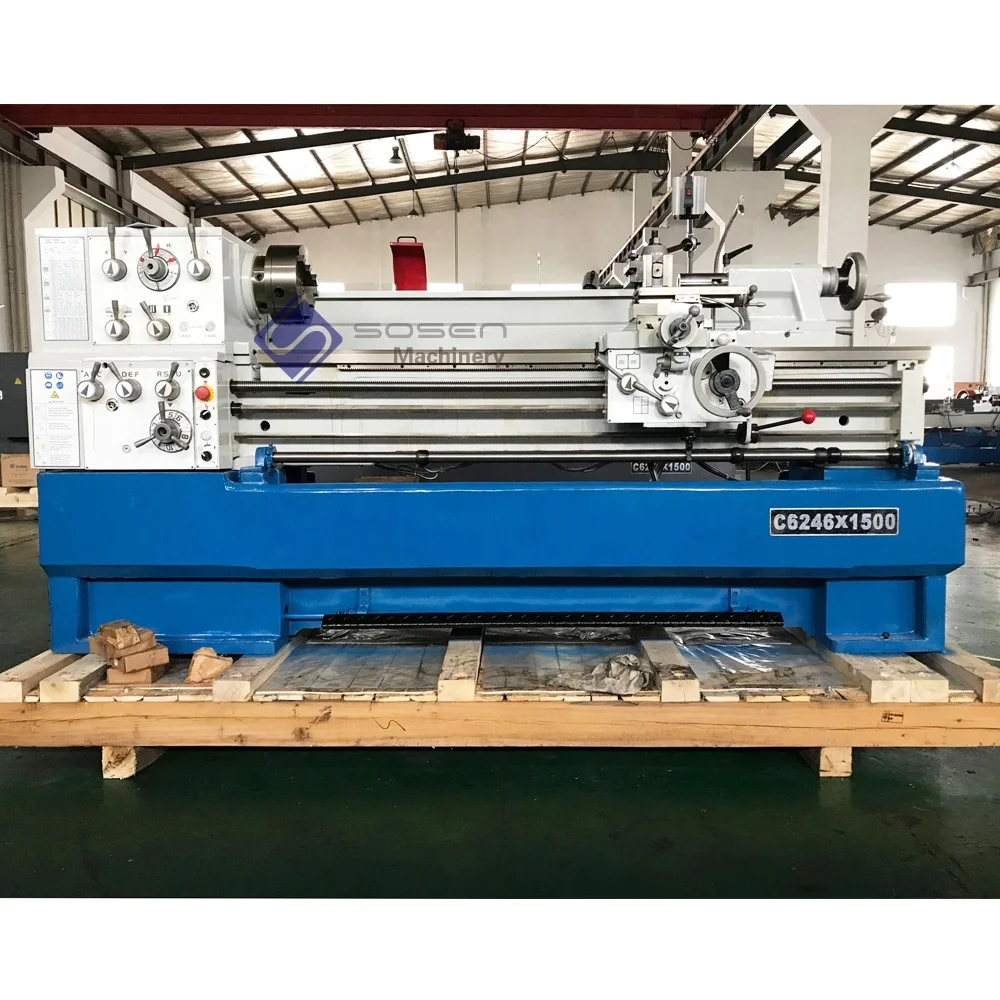

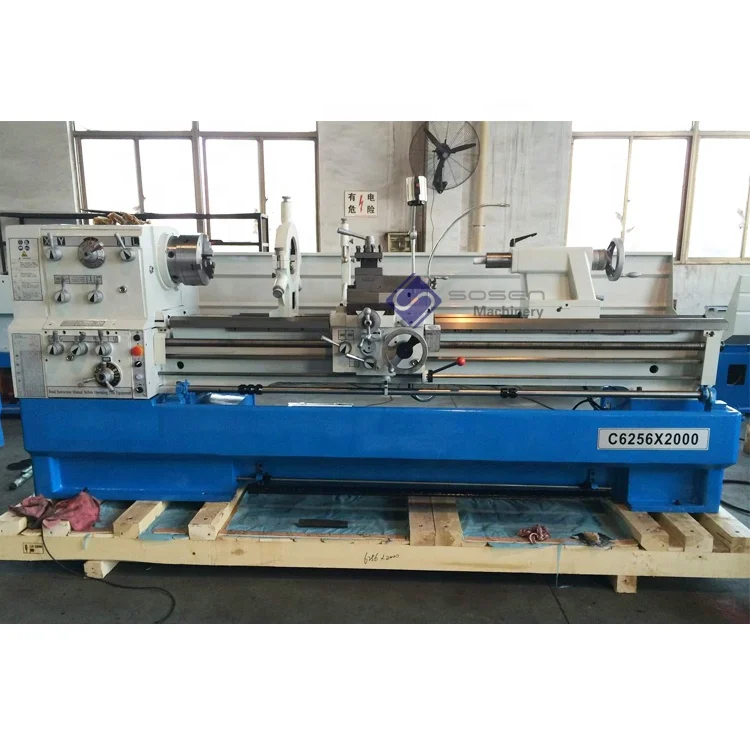

C6251 shandong machinery parallel lathe machine torno mecnico universal
included following standard accessories:
C6251 shandong machinery parallel lathe machine torno mecnico universal
Other optional accessories for your choice:
Recommend Products
Product packaging
Company Profile
TENGZHOU SOSEN CO.,LTD located in Tengzhou city, south of Shandong Province. We are specialized in the manufacture of CNC machine center, Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto, mould, construction machinery, military industry, aviation, high speed railway and energy industry.
We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.
FAQ
Q1.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q2.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q3.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q4.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q5.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact
our SOSEN sales representative for details.
Q7.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 3 days.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
