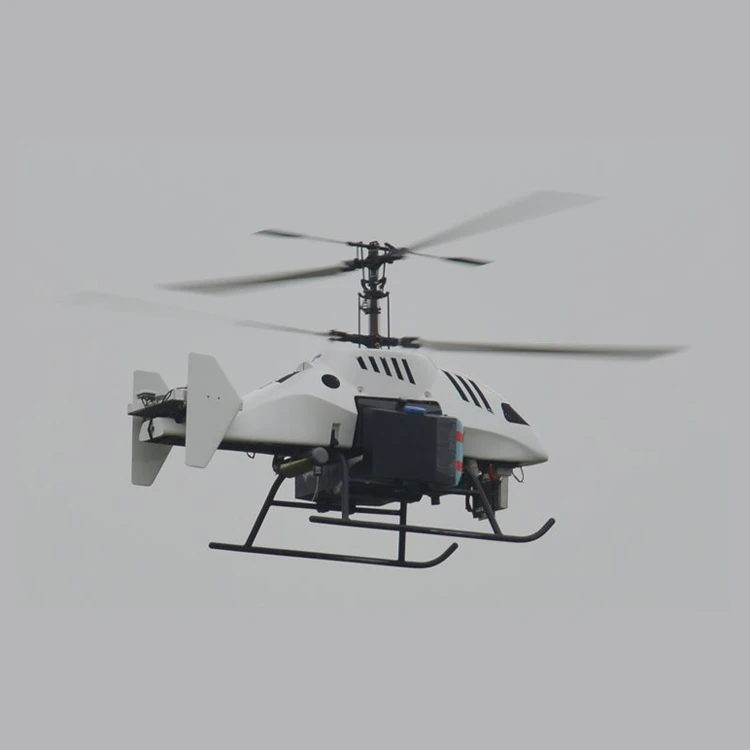

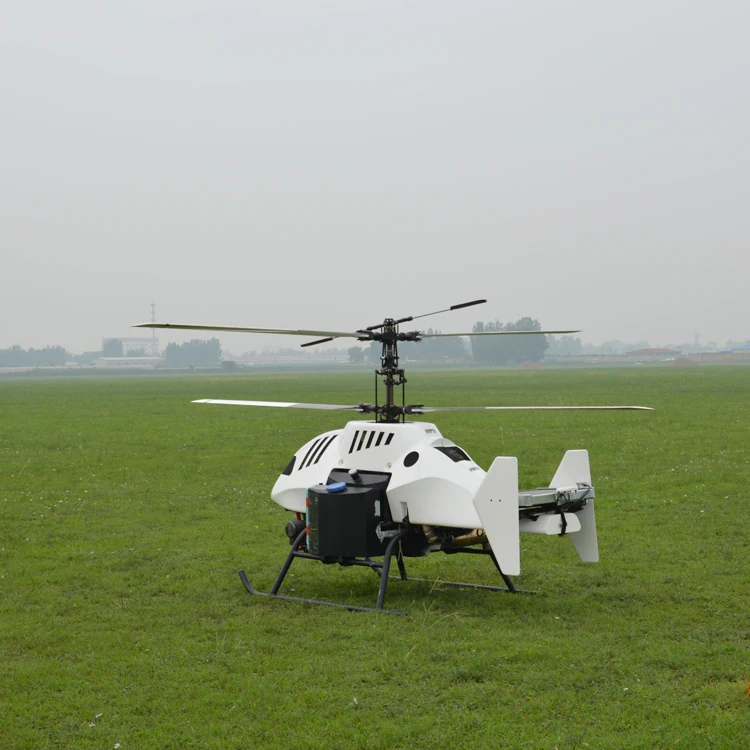

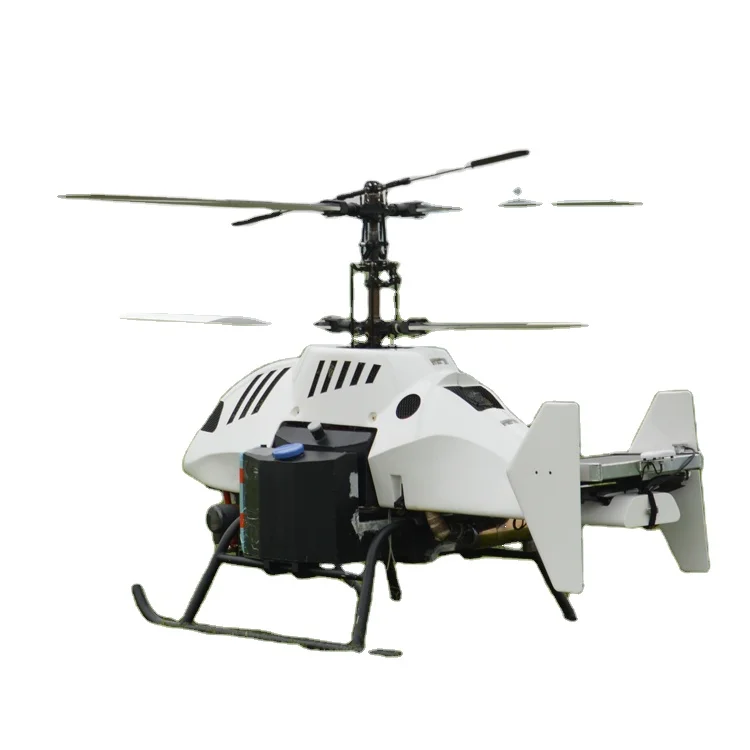

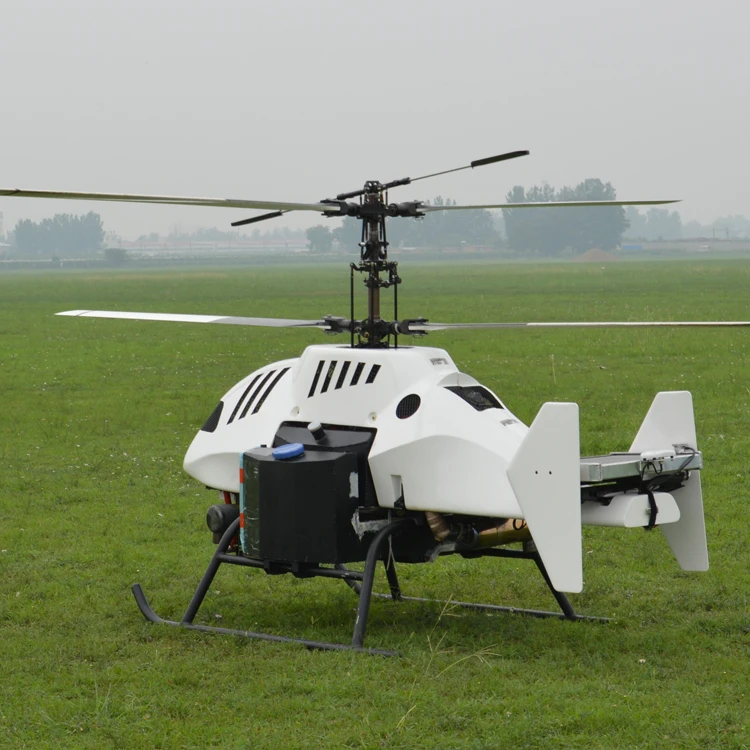

HC-280 autonomous helicopter adopts a coaxial rotor layout, model-based robust control algorithm, auto adapting gust, the changing temperature, load, center of gravity, etc. To ensure flight accuracy and reliability under complicated conditions, HC-280 can operate fully autonomous takeoff, landing and planned flight, and can carry out the control of position, speed, and altitude, for stable and reliable flight. It has a maximum payload of 70kg and can be equipped with aerial equipment such as aerial photography, aerial survey, airborne radar, and nuclear radiation detector. The ground control station can execute the data monitoring and load equipment control to the helicopter. The HC-280 unmanned helicopter has been maturely applied in the fields of aerial mapping, nuclear radiation monitoring, and military reconnaissance and surveillance.
Transmitter & Ground Station
Specifications
Category
Specification
Parameter
Flight System
Overall layout
Co-axial propeller
Co-axial Propeller
2800mm
Overall Dimensions
(Rotor deployment length)
4200*1000*1600 mm
Empty weight
(excluding fuel)
145kg
Max take-off weight (sea level)
260kg
Standard payload
70kg
Max payload
100kg
Cruising speed
72km/h
Max flight speed
80km/h
Max Altitude
3000m (Above sea level)
Endurance
4h@70kg
2h@100kg
Powerplant
Gasoline engine
Engine
Water-cooling Engine×2
Specific fuel consumption (SFC)
20L/h
Assembly way
Detachable
Powertrain
Engine exhaust volume
Engine output power
35HP×2
Average fuel consumption
20L/h
Fuel tank capacity
40L
Auxiliary tank capacity
10-20L
Fuel
92 Gasoline
Flight Control System
Aircraft layout
Co-axis Helicopter
Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚
Positioning accuracy
2.5m
Attitude control accuracy
±1˚
Direction control accuracy
±2˚
Link system
Position control accuracy
±0.2m
Altitude control accuracy
±0.5m
Operational environment
Positioning algorithm
GPS+RTK, Selective (GPS/ Glonass/ BeiDou)
Operating temperature range
-40˚C ~ 60˚C
Flight mode
Manual / Auto
Emergency measure
Out-of-control return, fault alarm
Link system
Control radius
≥10km (no obstacles)
Remote Controller
Video Output resolution
1080P@60fps
Operational environment
Wind resistance level
Level 6
Operating temperature
-20˚C ~ 60˚C
Standard battery
Rain resistance level
Light rainfall
Remote Controller
Model
FUTABA T8FG
Work frequency
2.4 GHz
Max signal effective distance (no interference, no occlusion)
2km
Payload
Company Profile
Packaging & Delivery
We will offer the industrial level packaging for all the products.
Supply Ability
Supply Ability： 10 Set per Month
Technical Training
Training Objectives
In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.
The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
Click here to get details.
FAQ
Q: How will you deliver the goods to me?
A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time.
Q: What are your terms of payment?
A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T.
Q: Can I get an invoice?
A: Alibaba will offer you a PI (Proforma Invoice).
Q. Do you test your aircrafts before delivery?
A: Yes, we have 100% test before delivery, and we will offer you a test report.
Q: What is your warranty and after-services?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.
Q: Can you provide OEM services?
A: We can negotiate for OEM services.
Q: What is the lead time? (How long will it take to prepare my order?)
A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.
Q: Do you accept the order which requires some modifications on your drones or customized design?
A: Yes, we do
Q: Can you offer some other payloads meeting my requirements?
A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.
Q: Is there any tracking number for my order?
A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
