10000 lb capacity 8 bending two stage column design free standing two post car lift
- Category: >>>
- Supplier: Shandong Qiyang Hydraulic Technology Co. Ltd.
Share on (62446720937):
Product Overview
Description
Product Description
10000 lb capacity 8 bending two stage column design free standing two post car lift
| Item No. | 304 |
| Item Description | 2 post car lift-clear floor |
| weight capacity | 4500kgs |
| Qty of cylinder | 2 |
| lock release system | two side manual lock release |
| Max lifting height | 1900mm |
| Minimum height | 100mm |
| Lifting time | ≤50S |
| Overall width | 3410mm |
| Inner width | 2786mm |
| Overall height | 3720mm |
| Arm type | 2 + 2 stages |
| Arm extension range | 776-1249mm |
| Power unit | aluminum shell Motor with plastic oil tank |
| Motor voltage | 380V / 220V, or as your request. |
| Motor Power | 2.2KW |
| Package size | 2880*465*735mm |
| Accessory | 1. two screw type adpater with rubber pad, |
| 2. adapters: 70mm height X 4pcs | |
| safety accesory | 1. anti-burst valves |
| 2. limit switch |
Product advantages:

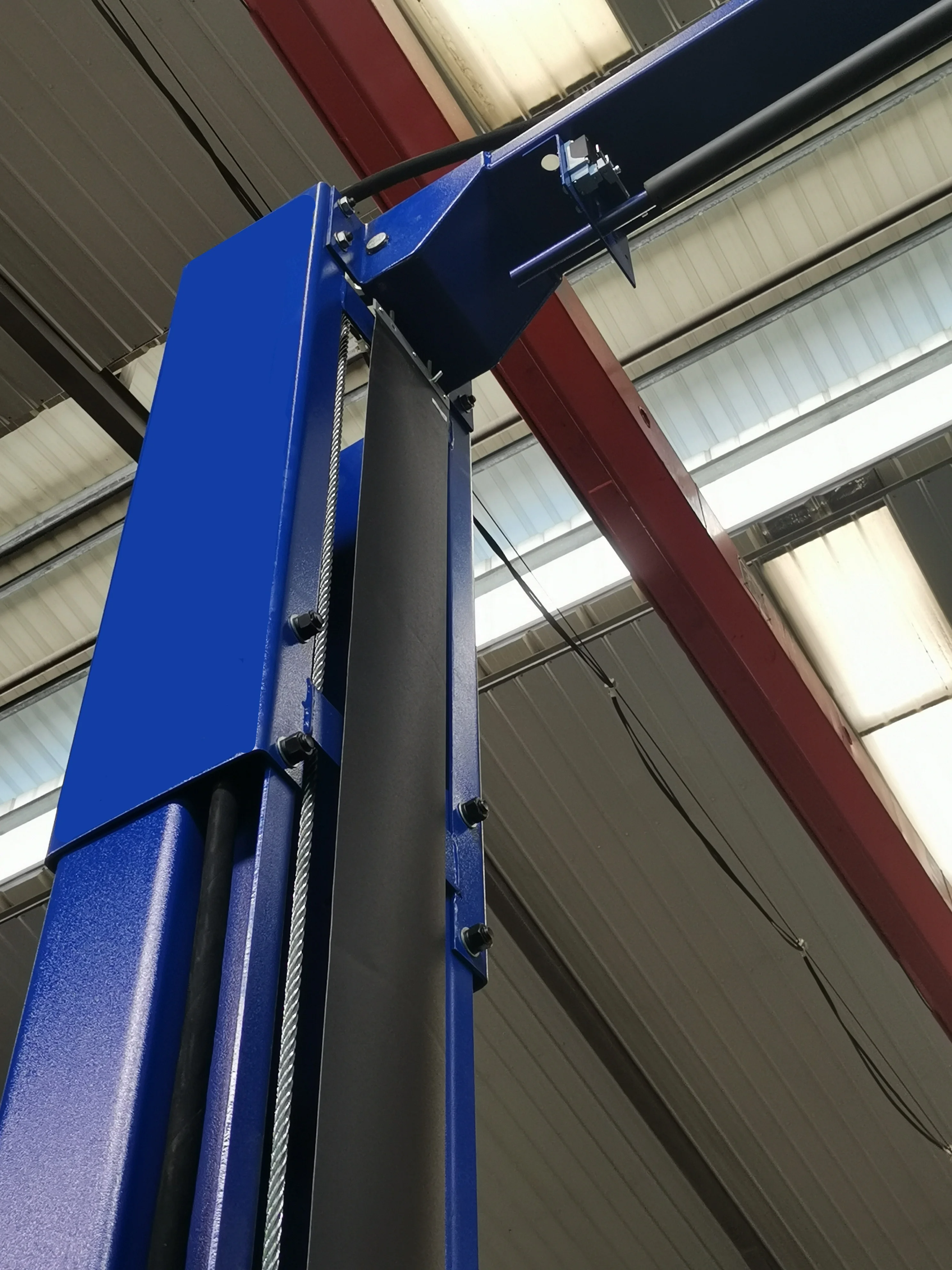

1. two stage and 8-bending design columns,

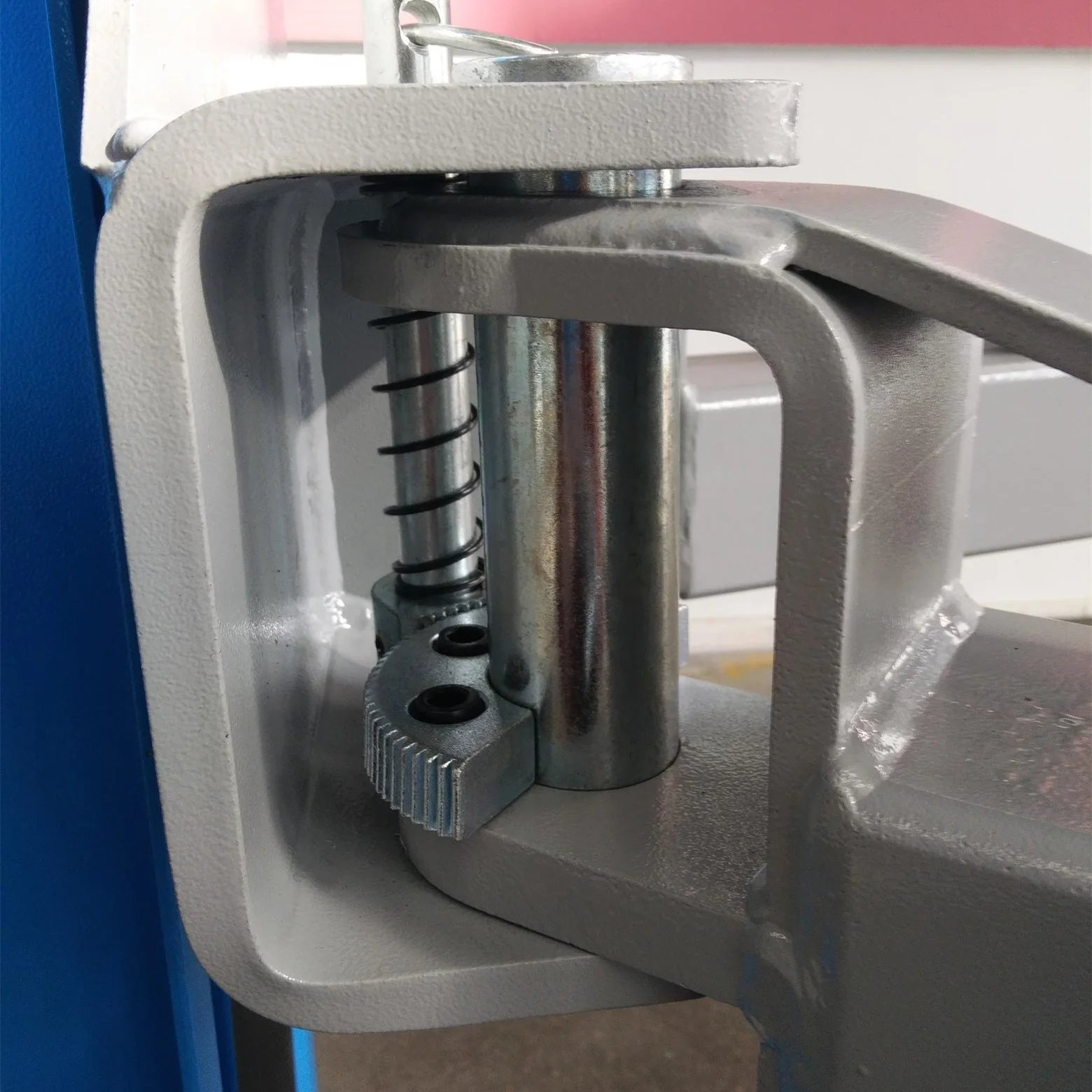

2) integral type of carriage, the carriage thickness is 16mm,
3) lock shaft and tooth lock.
lock shaft diameter is 45mm,

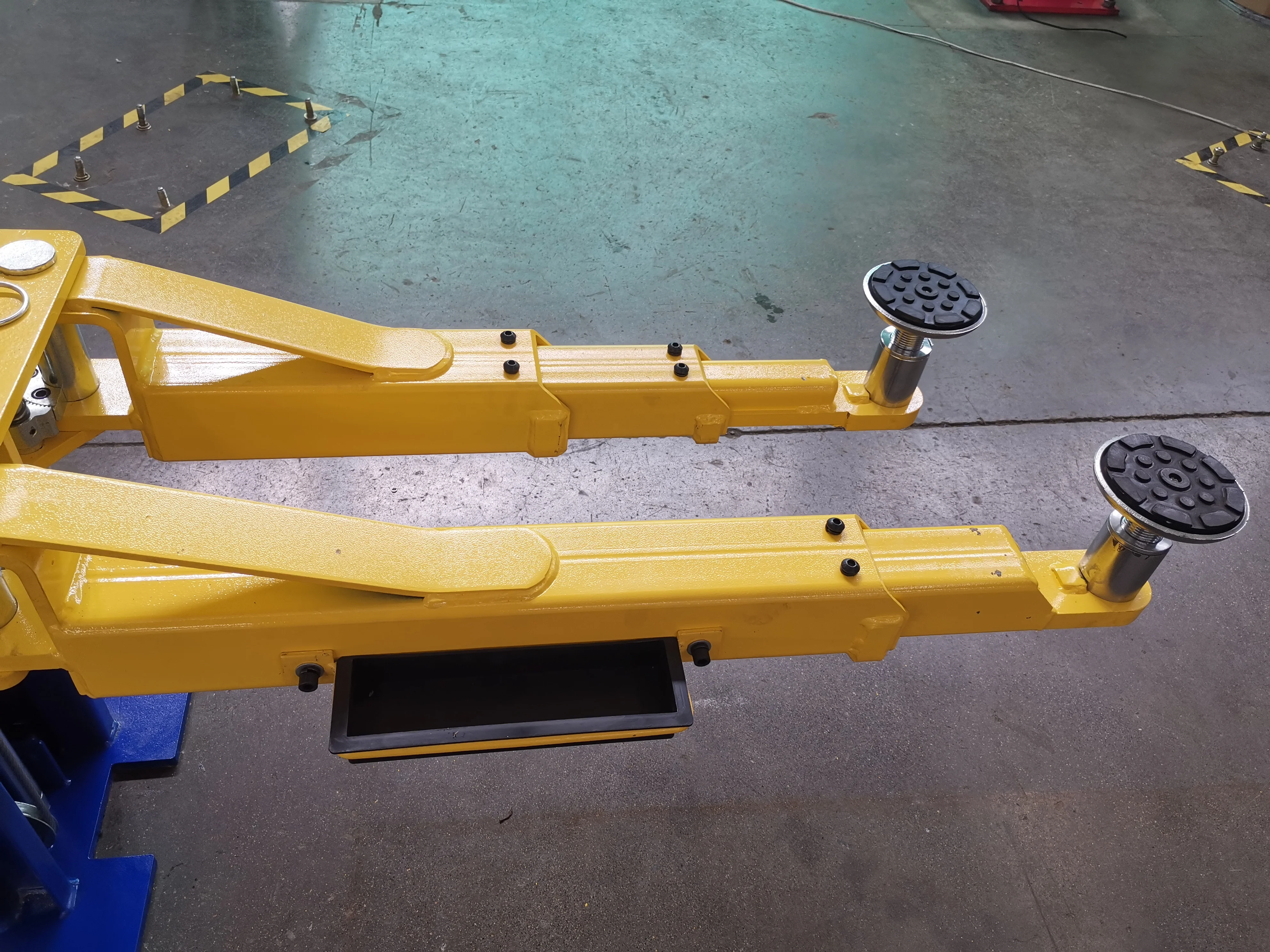

4) asymmetric or symmetric arms for your options.

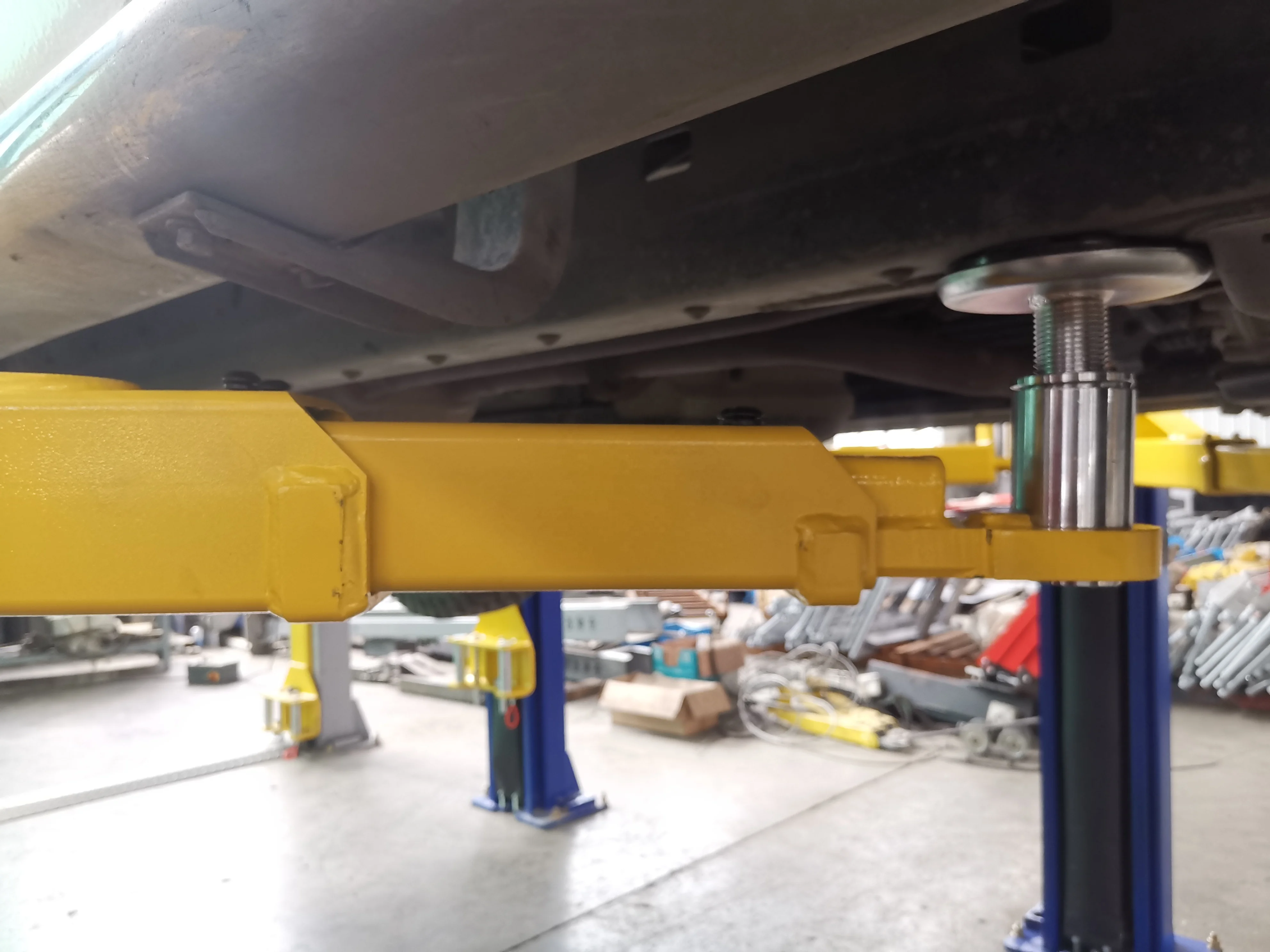

5) screw type of toe with metal cover and 70mm height adapters X 4PC.

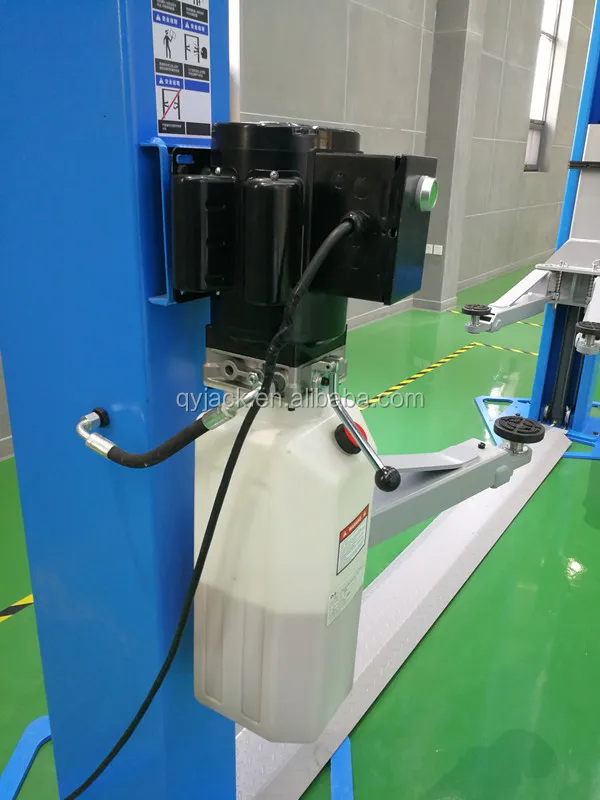

6) DELI/BUCHER brand power unit.

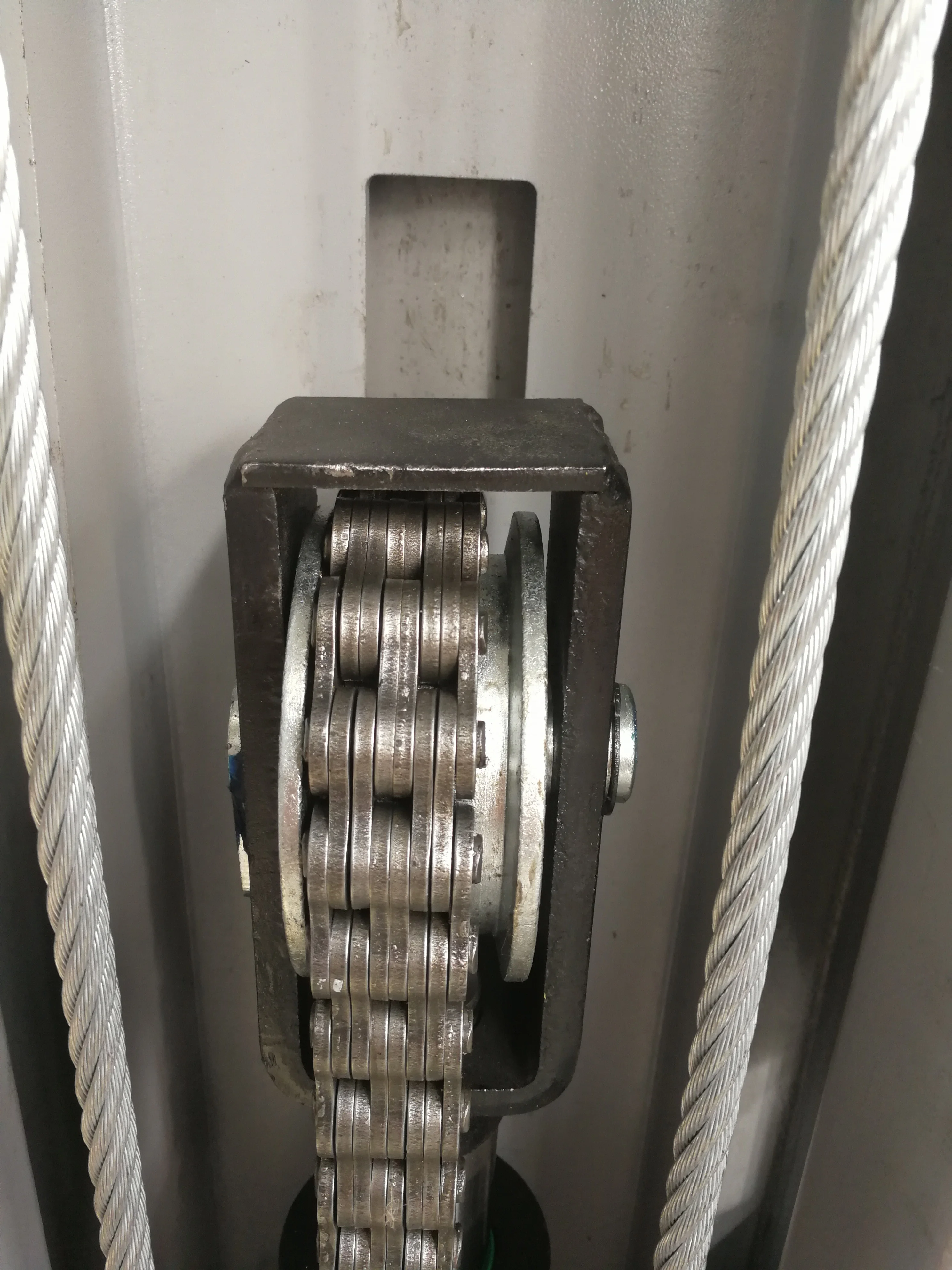

7) having protect for chain.
8) having limit swith
Packaging & Shipping

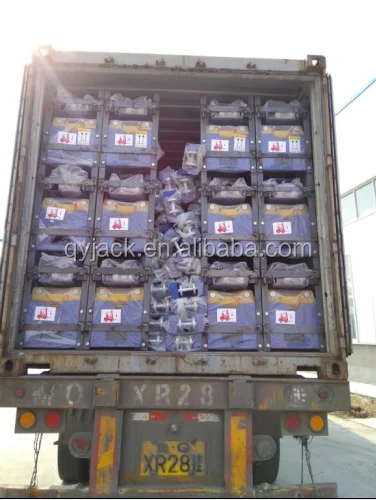

1pc/metal rack, and 3metal racks for layers in container.
Our Services
short leading time: 30-35days if order qty within 180pc.
3rd party inspection,
CE cert.,
