50hp 4 wheels tractor pull type 5ft compact box grading scraper for sale
- Category: >>>
- Supplier: Yucheng Gootine Machinery Co. Ltd.
Share on (62446903387):
Product Overview
Description
Title
Agricultural tractor pull type 5ft compact box grading scraper for sale
This Land Box grader blade machine is ideal implement for land grading, dirt work, snow removal, cleaning livestock pens and much more. It adopts tractor rear three point suspension device for connection, the blade part of the machine adopts 65Mn steel, after heat treatment has a high hardness and wear resistance. The land leveler machine has the characteristics of easy connection, adjustable Angle, strong adaptability.
The box Scraper fitted between front and back rear wheels to unknit land, can lift, slope,revolve and extend, flexible and accurate, easy to use; it is applicable for construction of roadbed and road surface, side ditch, mixing road mixtures,removing snow, transporting grain materials, maintenance of dirt road and gravel roads,etc. The grader blade has category 1 hitch pins installed. The recommended tractor HP for this grader blade is 30 to 60hp.
The box Scraper fitted between front and back rear wheels to unknit land, can lift, slope,revolve and extend, flexible and accurate, easy to use; it is applicable for construction of roadbed and road surface, side ditch, mixing road mixtures,removing snow, transporting grain materials, maintenance of dirt road and gravel roads,etc. The grader blade has category 1 hitch pins installed. The recommended tractor HP for this grader blade is 30 to 60hp.
Performance and Advantage
1. Gearbox is made of graphite casting iron, with better material performance, not easy broken.
2. With adjustable rear wheel (option), it can prevent the body tail sinking, and the spacers above it can adjust the cutting
height.
3. Blade spacers between up and down blade seat plates or connection plates can be replaced more easily after wearing, and the replacement cost will be smaller.
4. The improved model can improve cutting efficiency, and the blades are thicker and heavier, not easy to break when meeting hard objects.
5. The machine is more durable and works more stably due to its heavier weight.
6. The blades are thicker, and the plates around has been strengthened. Two blades and three blades can be chosen according to different needs.
1. Gearbox is made of graphite casting iron, with better material performance, not easy broken.
2. With adjustable rear wheel (option), it can prevent the body tail sinking, and the spacers above it can adjust the cutting
height.
3. Blade spacers between up and down blade seat plates or connection plates can be replaced more easily after wearing, and the replacement cost will be smaller.
4. The improved model can improve cutting efficiency, and the blades are thicker and heavier, not easy to break when meeting hard objects.
5. The machine is more durable and works more stably due to its heavier weight.
6. The blades are thicker, and the plates around has been strengthened. Two blades and three blades can be chosen according to different needs.

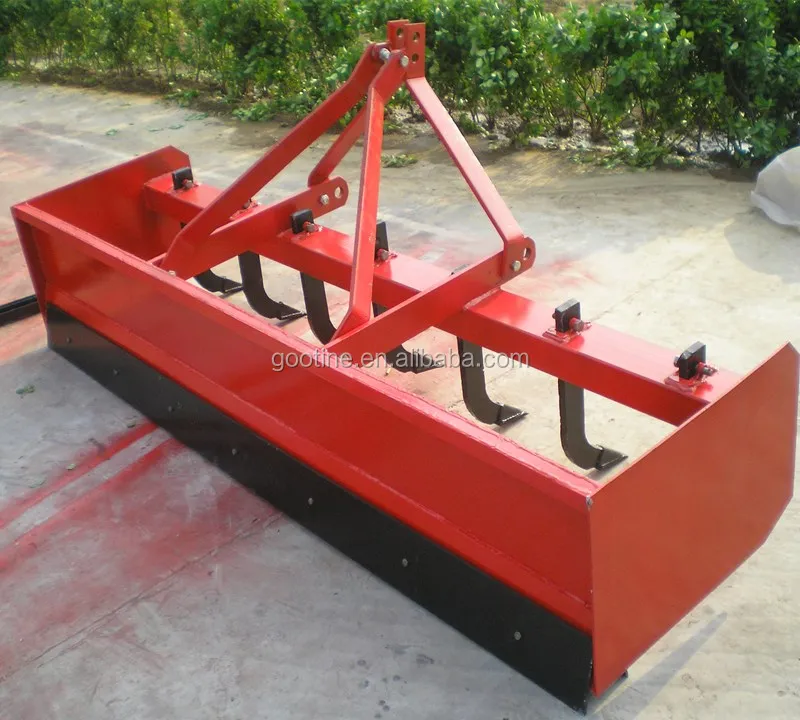

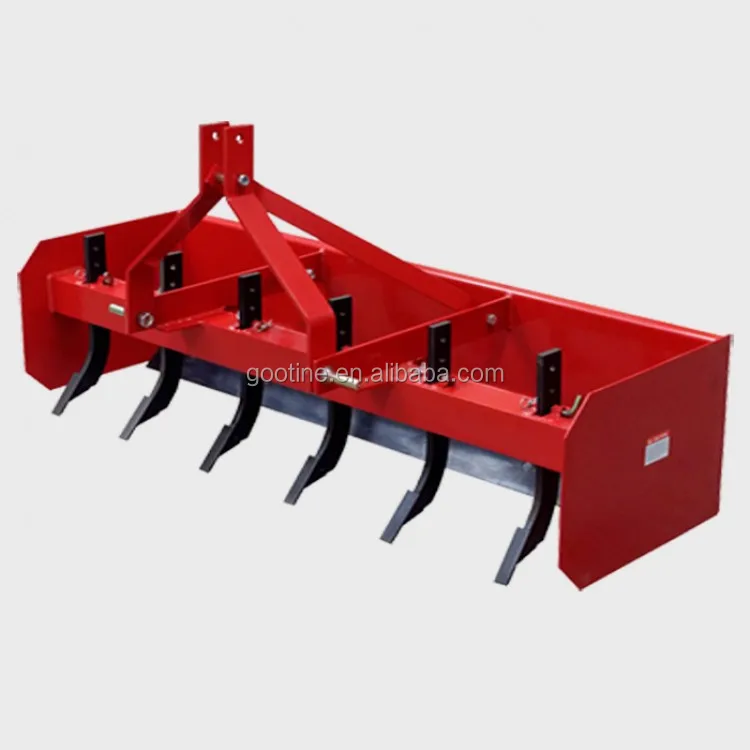

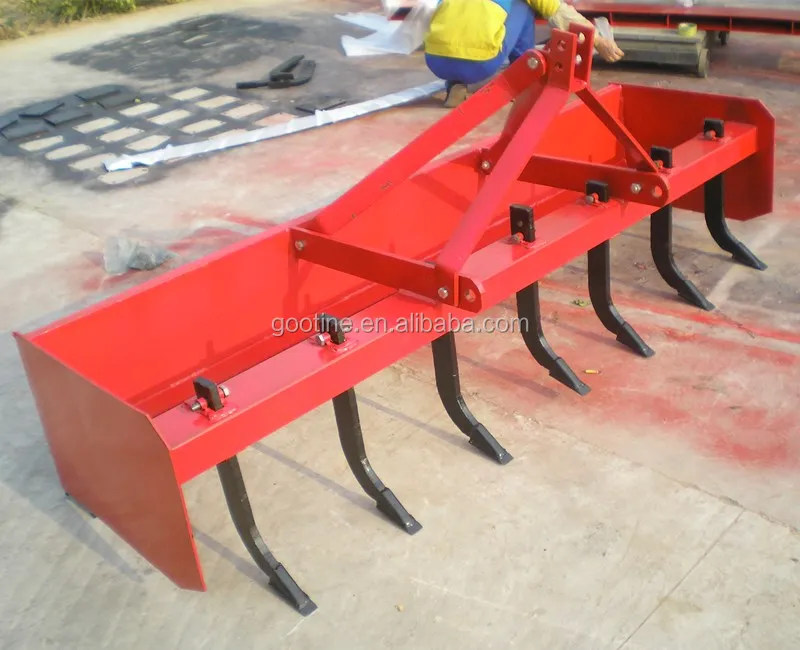

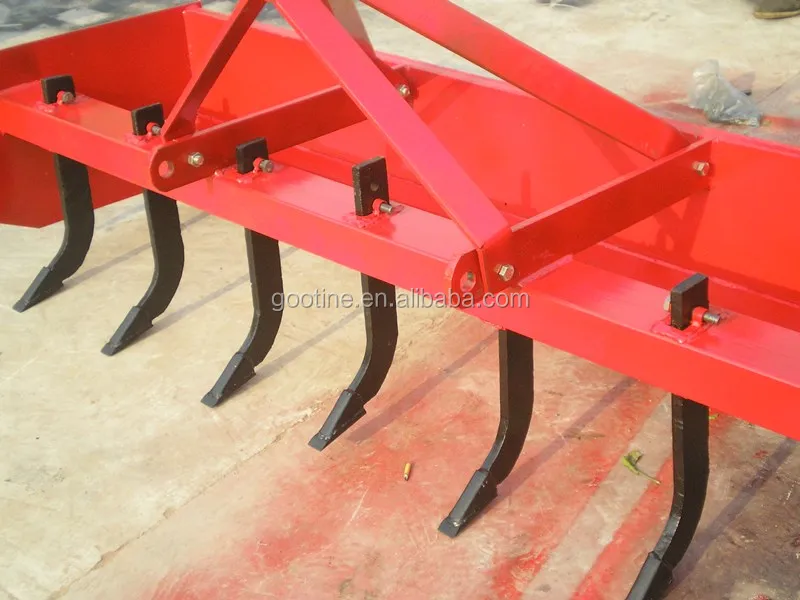

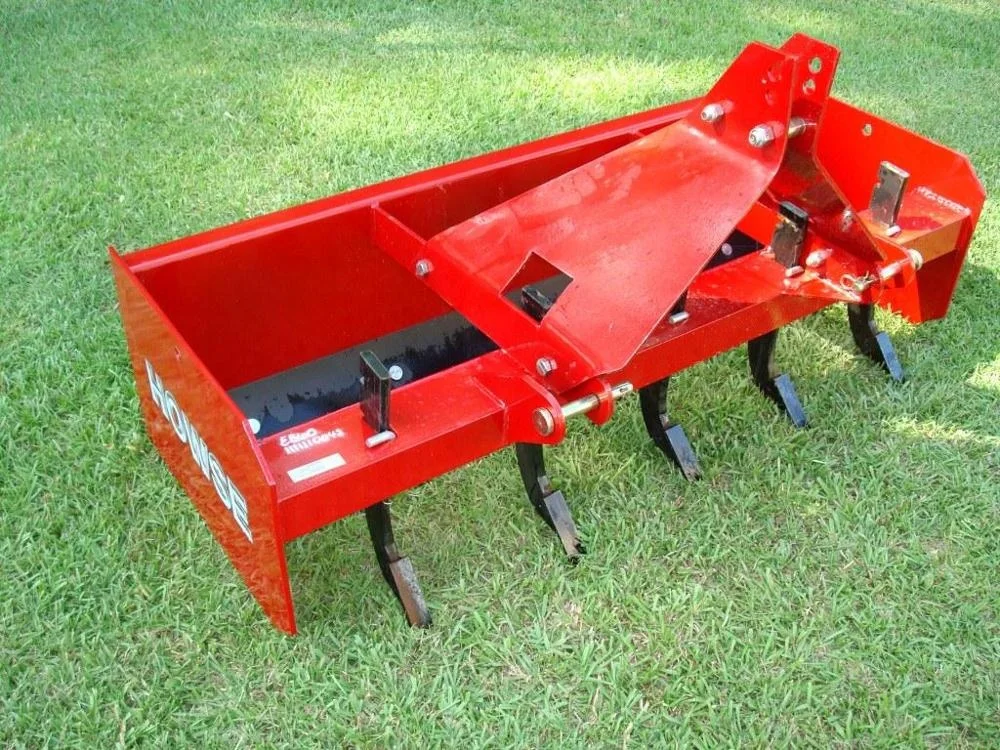

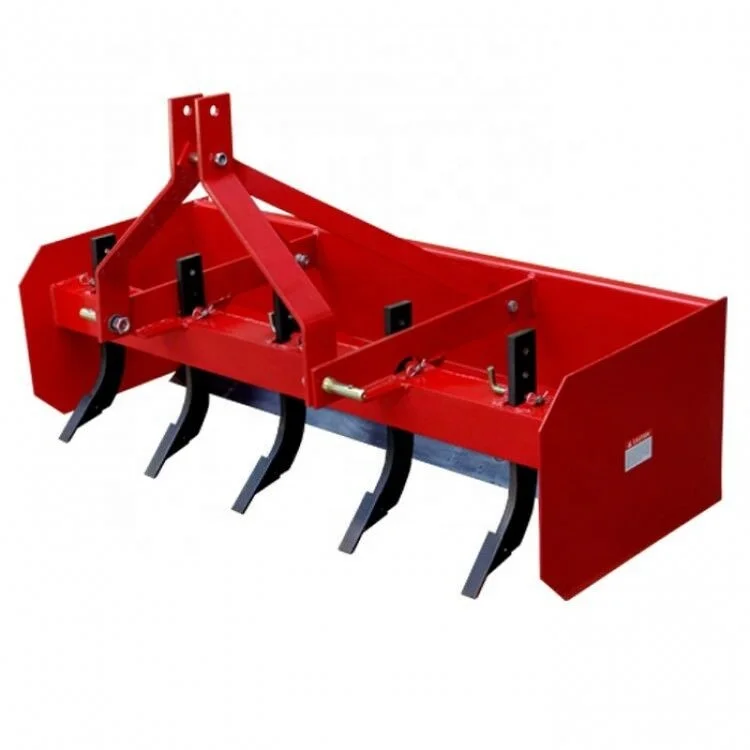

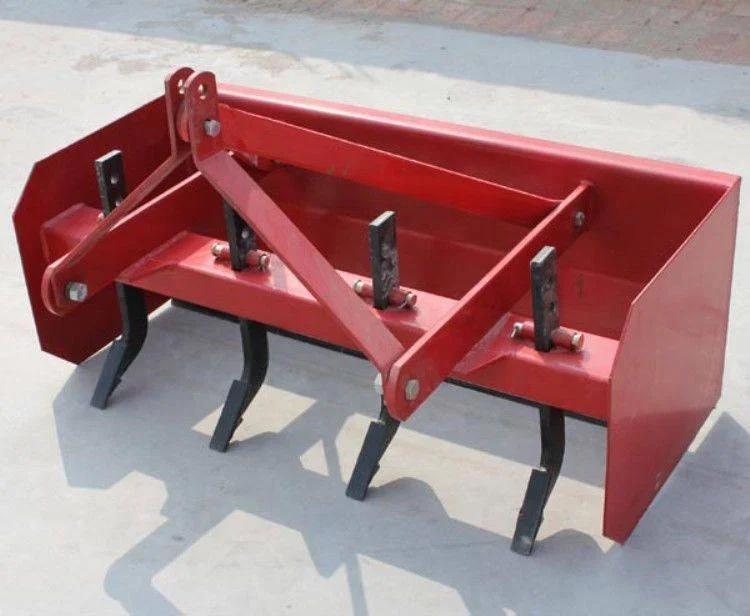

Product show
Model | SBX-4 | SBX-5 | SBX-6 | SBX-7 | SBX-8 |
Working width(MM) | 1220 | 1530 | 1830 | 2135 | 2440 |
Overall depth (MM) | 547 | 547 | 547 | 547 | 547 |
Matched power(HP) | 18-25 | 25-40 | 25-40 | 30-40 | 35-45 |
Weight (KG) | 160 | 205 | 205 | 230 | 260 |
other products
Our Company
Certifications
Packing & Delivery
contact us
FAQ
Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.
Q2: What is the MOQ?
A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.
Q3: What is the delivery time?
A3: 3-20 working days after payment.
Q4: What about the package?
A4: Iron frame or iron crate.
Q5: Can we mix different models together?
A5: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.
