Product Overview

Description


Product Description

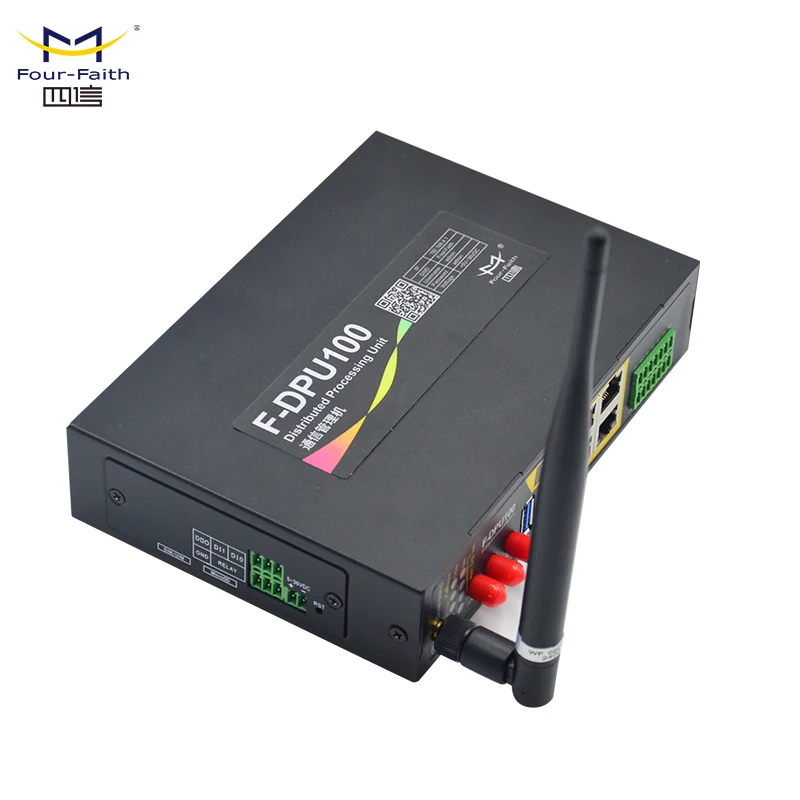

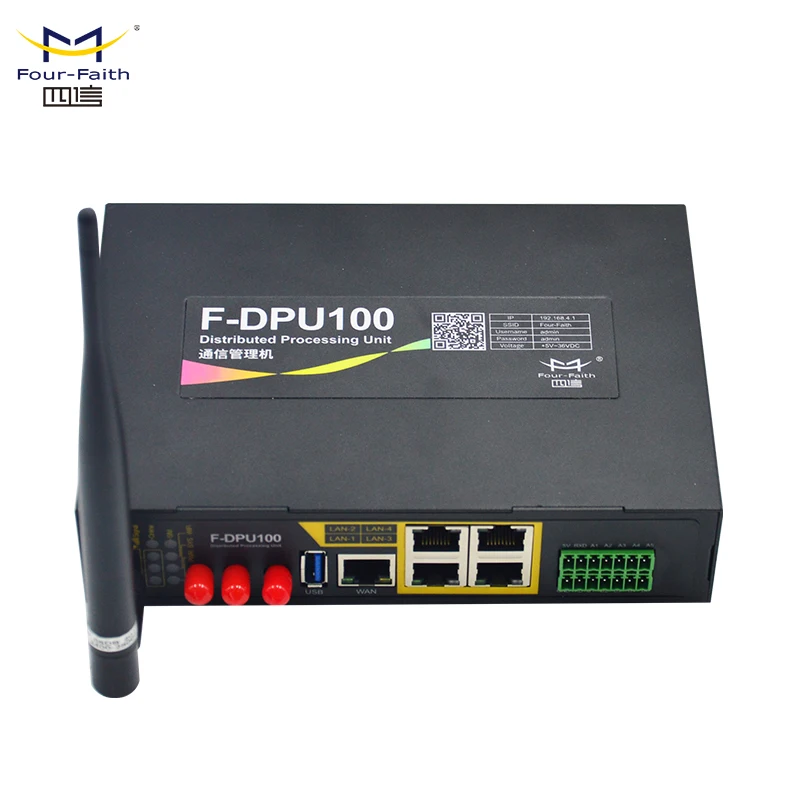

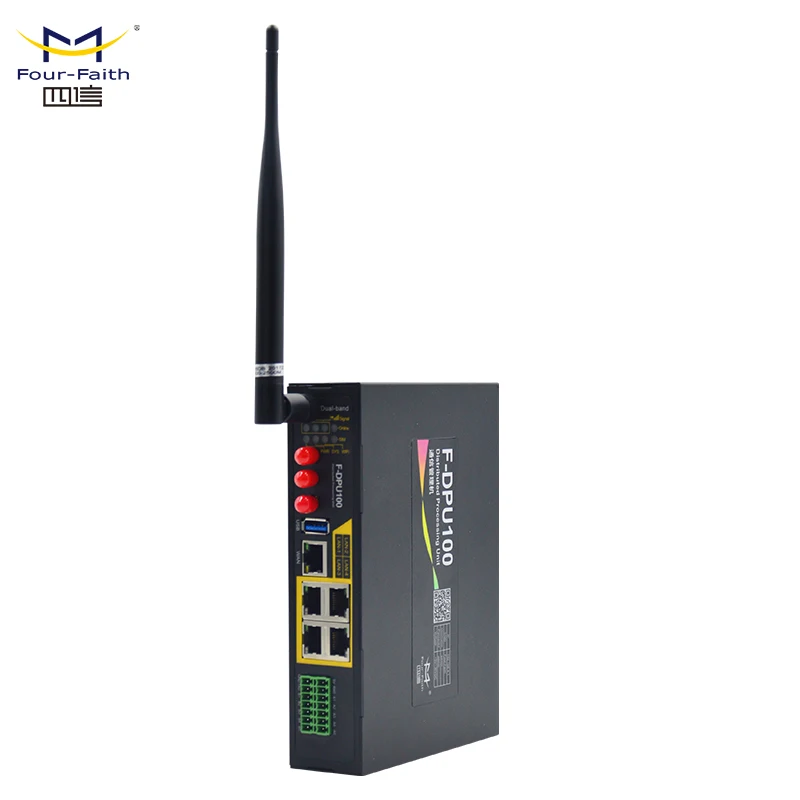

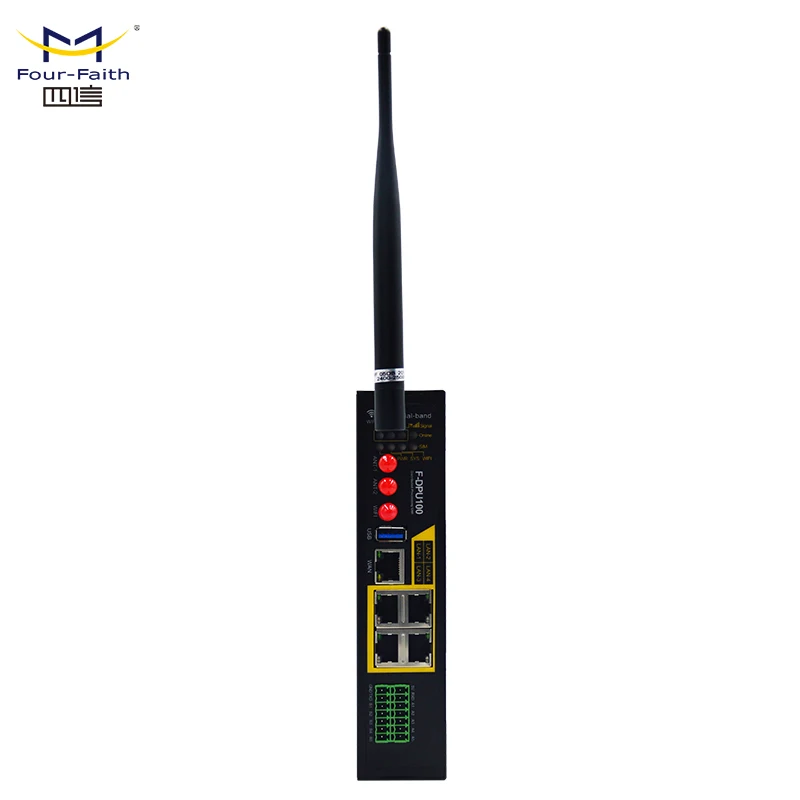

F-DPU100 M2M 3G 4G Interface Protocol Converter is an IoT Distributed Processing Unit designed for the wireless remote and large data transmission. It provides the powerful processing ability of data from Ethernet,Standard RS232,Standard RS485,WIFI or other different communication interfaces for different SCADA platforms ,Power protection devices,Intelligent equipment,Different management systems etc.Its main function is to process UL and DL data, complete different protocols' forwarding, and achieve transparent transmission of application software communication between different systems and protocols.

Benefits:

• Protocols Supported: IEC101,IEC104,ModBus, DNP3.0 etc.
• Advanced Failover: Maximizes uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, WIFI, dual-SIM).
• Multiple Tunneling Schemes: Secure your data using a variety of VPN tunneling schemes, including IPSec, L2TP, PPTP, OpenVPN and GRE.
• Ethernet, serial and I/O for connecting diverse field assets.
• Flexible WIFI: 802.11b/g/n(2.4GHz) and 802.11ac(5GHz) dual-band WIFI, configurable WIFI as WAN or access point, WIFI Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID.
• Gigabit Ethernet ports.
• Four-Faith Remote Manager provides mass configuration, device management, OTA update, and troubleshooting tools.

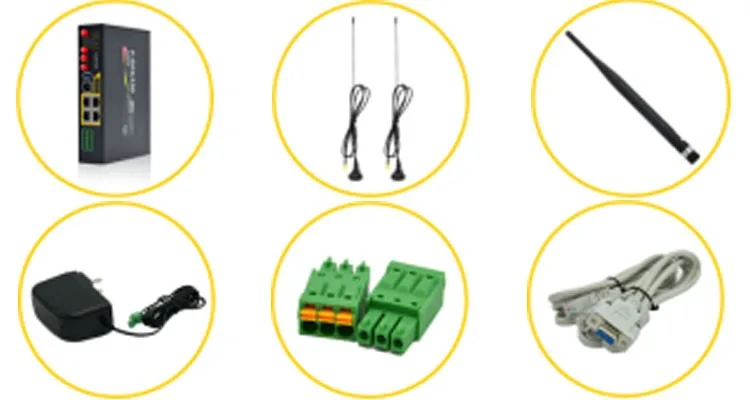

Packing List
\t




CELLULAR WAN
\t
• Supported Frequency Bands
\t






WIFI
\t
• IEEE802.11 ac, compatible IEEE 802.11 b/g/n.
\t
-- LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28
\t
• AP and client mode.
\t
-- WCDMA: 2100(B1), 1900(B2), 850(B5)
\t
• Adjustable output power (Max: 26dBm)
\t
-- EV-DO/CDMA: 800(BC0)
\t
• Access point for up to 30 clients
\t
-- GSM/GPRS/EDGE: 850/900/1800/1900
\t
• Simultaneous access point/client mode
\t
• Automatic SIM based network operator switching
\t
• WEP, WPA-PSK, WPA2-PSK etc. Security
\t


HOST INTERFACES
\t
• 10/100/1000 Base-T RJ45 Ethernet port
\t




NETWORK AND ROUTING
\t
• Network Address Translation (NAT)
\t
• (1)RS-232 ,(5)RS-485 Serial Console Port
\t
• Port Forwarding
\t
• 3 SMA antenna connectors (WIFI and Double-cellular)
\t
• Host Port Routing
\t
• (6) pin,(14)pin 3.5mm terminal block
\t
• VRRP
\t




INPUT/OUTPUT
\t
• (6) pin 3.5mm terminal block.
\t
• Reliable Static Route
\t
• (2) DI, (1) DO, (1) Relay.
\t
• Dynamic DNS
\t
• Input ON Voltage: 5 to 30 VDC.
\t




VPN
\t
• IPSec, GRE, and OPENVPN Client
\t
• Input OFF Voltage: 0 to 3 VDC.
\t
• Up to 10 concurrent tunnels
\t
• Output < 50mA @ 30VDC.
\t
• Split Tunnel
\t
• Relay:1A 250VAC/30VDC
\t
• Dead Peer Detection (DPD)
\t




LAN
\t
• DNS, DNS Proxy
\t
• Multiple Subnets
\t
• DHCP Server
\t
• VPN Failover
\t
• IP Passthrough (option)
\t



SECURITY
\t
• Remote Authentication
\t
• VLAN
\t
• DMZ
\t
• Host Interface Watchdog
\t
• Inbound and Outbound Port filtering
\t
• PPPoE
\t
• Inbound and Outbound Trusted IP
\t


SERIAL
\t
• TCP/UDP PAD Mode
\t
• MAC Address Filtering.
\t
• Modbus (ASCII, DTU, Variable)
\t



GPS (Option)
\t
• Antenna Interface: SMA Female, 50 ohms impedance
\t
• PPP
\t
• Tracking Sensitivity: better than -144 dBm
\t
• Reverse Telnet
\t
• Horizontal position accuracy: 2.5 m
\t




EVENTS ENGINE (Option)
\t
• Custom event triggers and reports.
\t
• Time-To-First-Fix: 29 s
\t
• Configurable interface, no programming.
\t
• Protocol: NMEA-0183 V2.3
\t
 Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature.
\t
OPERATION ENVIRONMENT
\t
• Operating Temperature: -35°C to +75°C / -31°F to +167°F
\t
• Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON.
\t
• Storage Temperature: -40°C to 85°C / -40°F to 185°F
\t
• Event Actions: Drive Relay Output.
\t
• Humidity: 90% RH @ 60°C
\t




MANAGEMENT SERVICE
\t
• Secure cloud-based device management application
\t



MANAGEMENT INTERFACES
\t
• Web-Based User Interface
\t
• Remote provisioning
\t
• Device Configuration Templates
\t
• Gateway configuration and template management
\t
• Software and radio module firmware updates
\t
• Configurable monitoring and alerting
\t
• AT Command Line Interface (Telnet/SSH/Serial)
\t
• Software and radio module firmware updates
\t
• SMS Commands (Option)
\t
• Auto configuration
\t
• SNMP
\t
DIMENSIONS
\t
• Housing & Weight: Metal, 700g
\t
\t
\t
\t
• Dimension: (L x W x H): 172 x 122 x38 mm
\t
\t
\t
\t
• Installation: 34.6 mm Din-Rail or wall mounting or desktop
\t
\t
Our Company

        Subsidiary of Four-Faith Comunication Technology Co., Ltd., Four-Faith Smart Power Technology Co.,Ltd. focus on Providing Smart Grid Solution for the world wide.

Combined with the latest industrial IOT technology, Four-Faith Smart Power Technology Co.,Ltd. offers a series of solutions including Overhead Line and Underground Short Circuit & Earth Fault Indicator, Feeder Terminal Unit (FTU) Automation Solution, Intelligent MV & LV switchgear Monitoring Solution, Power Distribution Substation Monitoring.

Taking advantage of its years of experience in the M2M industries, Four-Faith Smart Power Team self-design and self-produce a series of intelligent products for Smart Grid Solution, such as remote fault indicator, smart power measuring meter, electric grade cellular IP modem etc.

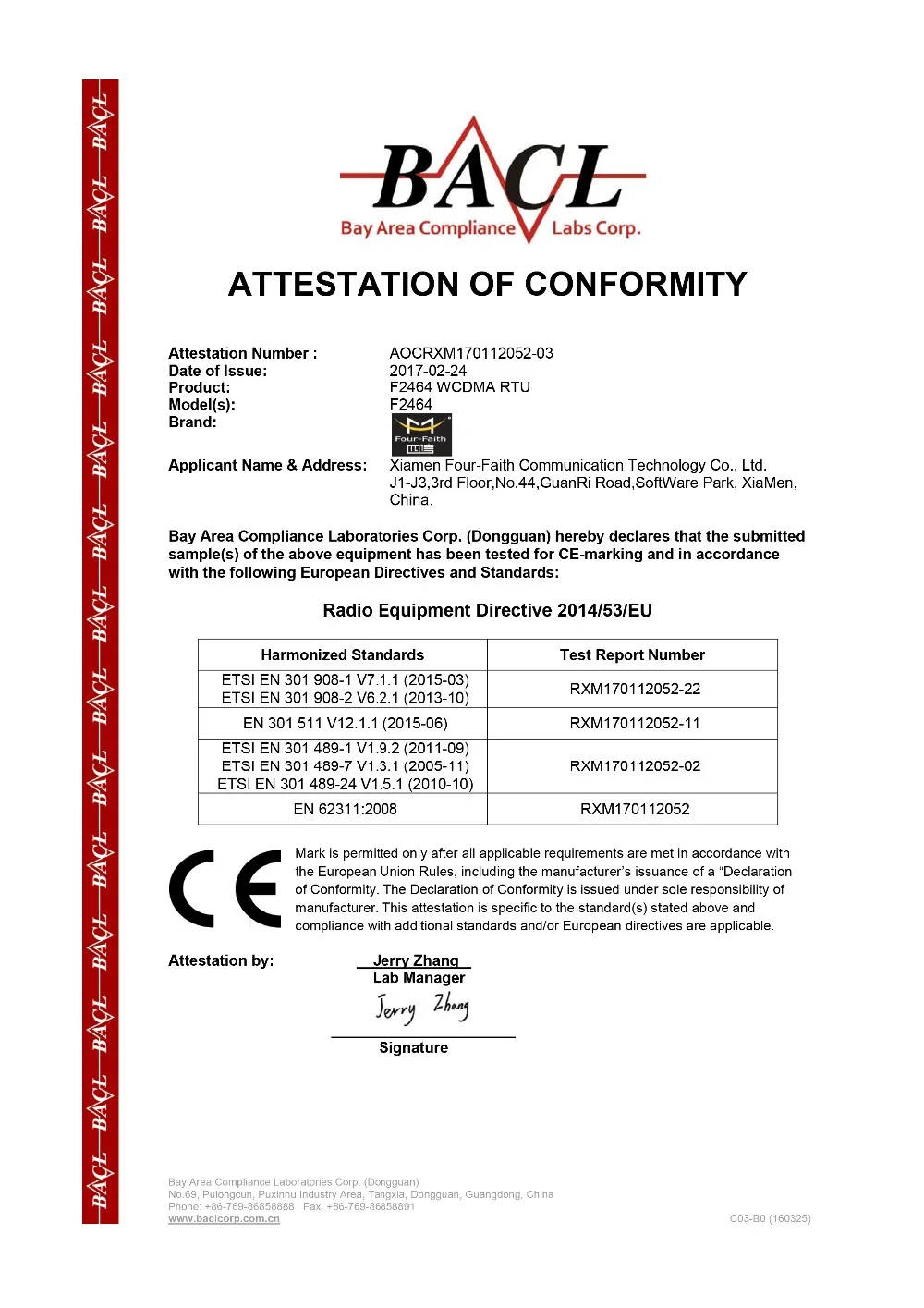

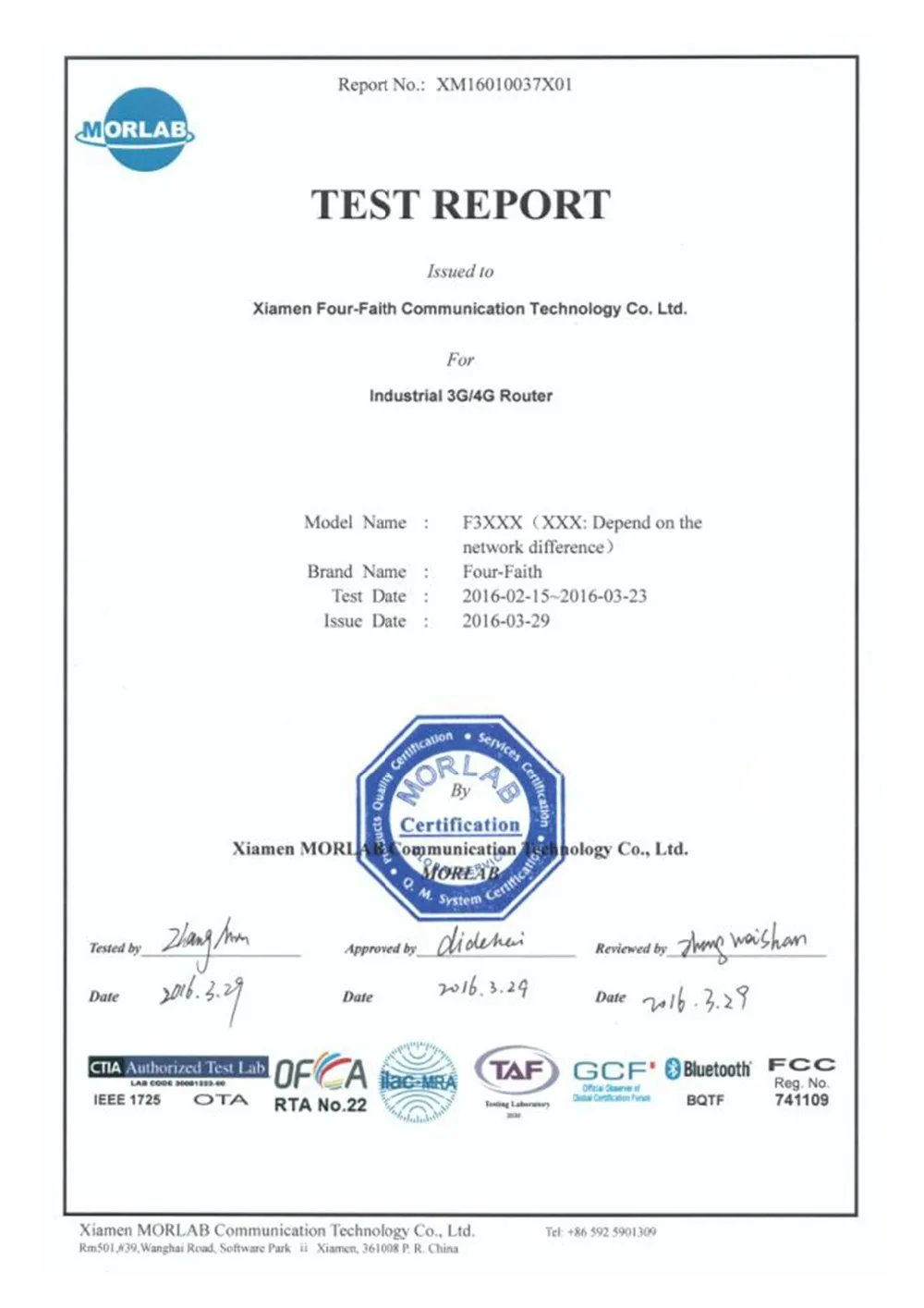

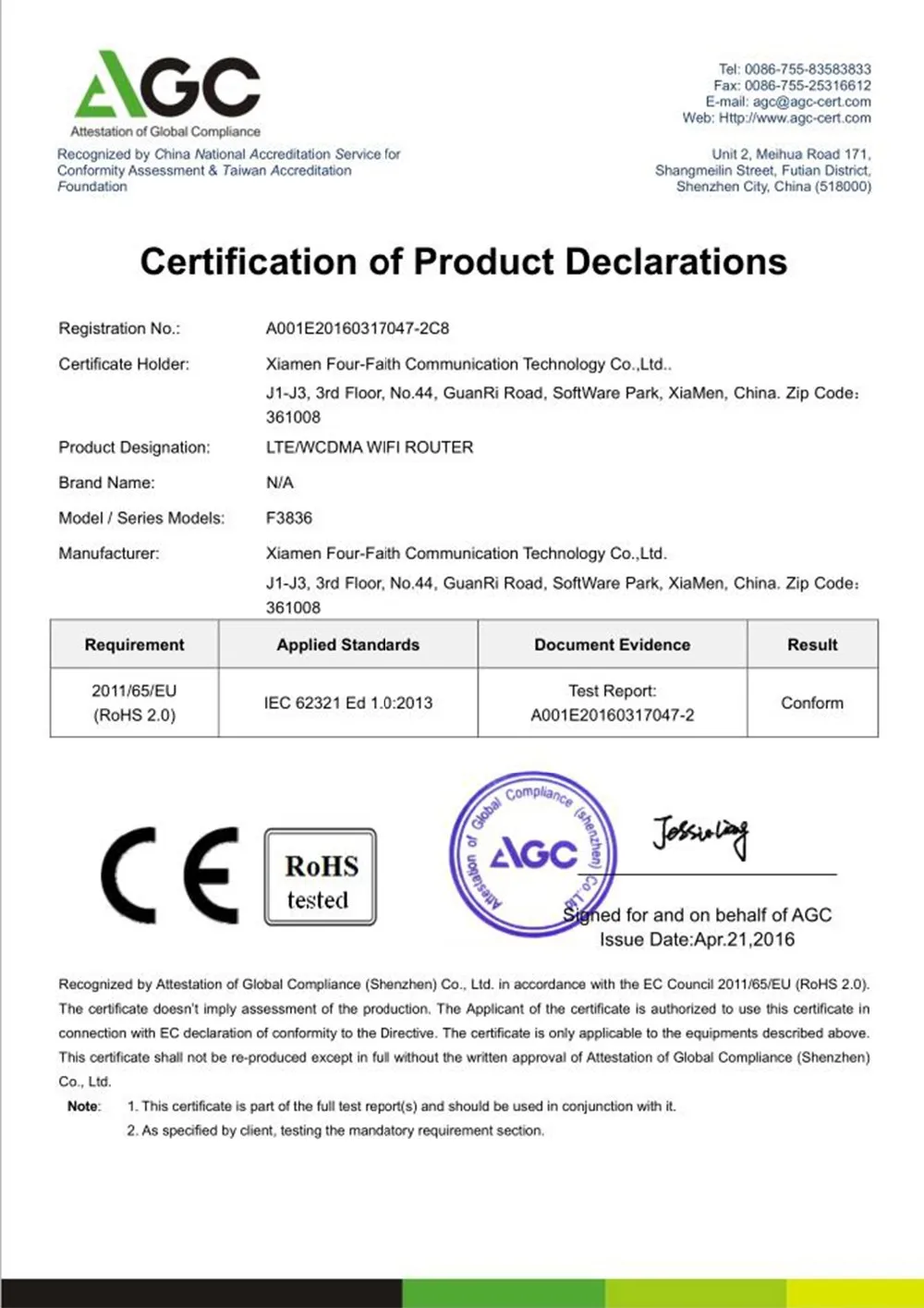

Certifications
