LR LINK PCI Express X4 10/100/1000Mbps dual RJ45 port Intel I350 chip Ethernet Adapter for Server 2 port NICs
- Category: >>>
- Supplier: Linkreal Co. Ltd.
Share on (62447136709):
Product Overview
Description

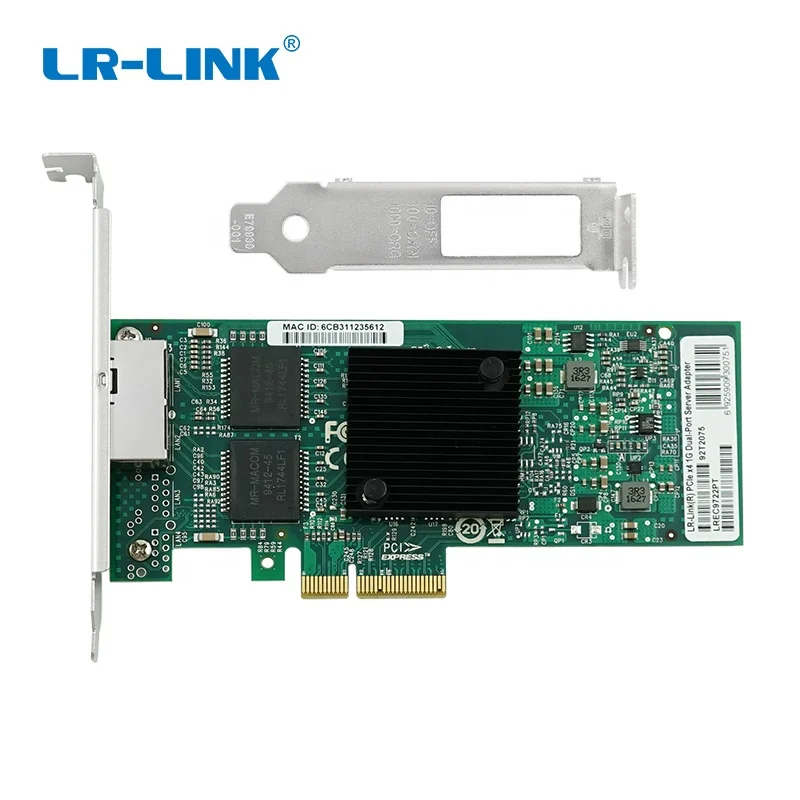

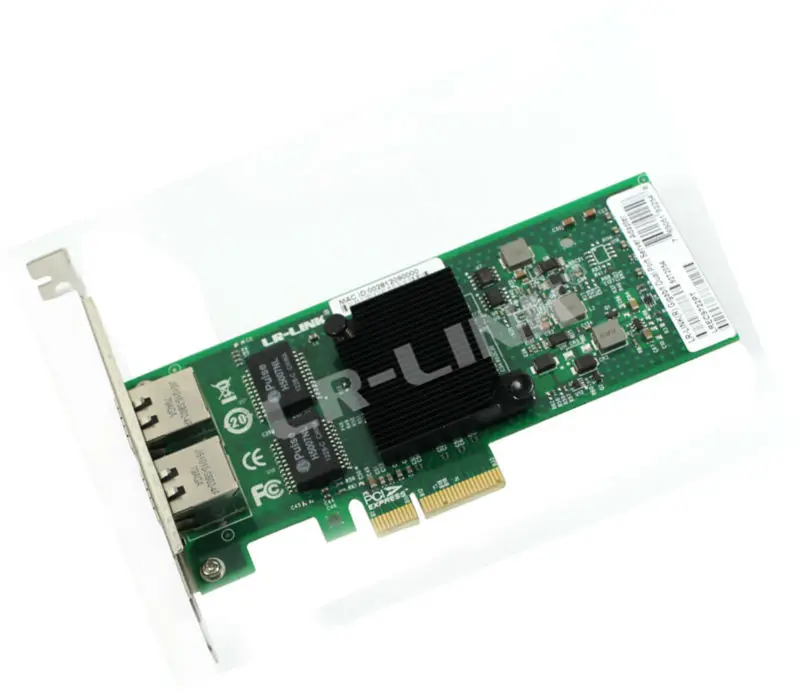

LREC9722PT Dual Port 1 Gigabit Ethernet Network Cards PCIEx4 Network Adapter PCI Express Network Card
The new LREC9722PT builds on LR-LINK’s history of excellence in Ethernet products. LR-LINK continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for b ot h v irt u a l i ze d a n d i S C S I Un ifi e d Networking
environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options
Innovative power management features including Energy
Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
Scalable iSCSI performance delivering cost-effective SAN connectivity
High-performing bridgeless design supporting PCI
Express* Gen 2.1 5GT/s
Reliable and proven Gigabit Ethernet technology from Intel Corporation
Innovative power management features including Energy
Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
Scalable iSCSI performance delivering cost-effective SAN connectivity
High-performing bridgeless design supporting PCI
Express* Gen 2.1 5GT/s
Reliable and proven Gigabit Ethernet technology from Intel Corporation
Controller | Intel I350 | ||||||
Bracket | Full height & half height | ||||||
Fiber Type | 10000Base-SR, 10000Base-LR, 10000Base-Cu | ||||||
Power Consumption | 7.4W | ||||||
System Support | Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2 WindowsXP / Vista /7 / 8 / 8.1 / 10 Linux Stable Kernel version 2.4.x /2.6.x/ 3.x/ 4.xor later Linux SLES 9 / 10 / 11or later VMwareESX/ESXi4.x /5.x / 6.xor later | ||||||
Bus Type | PCI Express (PCIe) v2.1(5.0GT/s) x4 lanes | ||||||
Data Rate | 1G | ||||||
Connector | RJ45 | ||||||
Technical Features | ||||||||
Standards Compliant | IEEE* 802.3 auto-negotiation 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames Automatic cross-over detection function (MDI/MDI-X) IEEE 1588 protocol and 802.1AS implementation | |||||||
Environment Features | ||||||||
Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉) | |||||||
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) | |||||||
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ | |||||||
Physical Features | ||||||||
Size (mm ±1.0mm) | 166.6*120*21 | |||||||
Weight (g) | 171 | |||||||
LED Indicators | ||||||||
LED Indicators | Yellow Link + Green Blink | |||||||
Order Information | ||||||||
P/N | Description | |||||||
LREC9722PT | PCIe x4 Dual-port 1G RJ45 Ethernet Network Adapter | |||||||
PS: Above details are only for reference, if there is any change,no prior notice. | ||||||||
