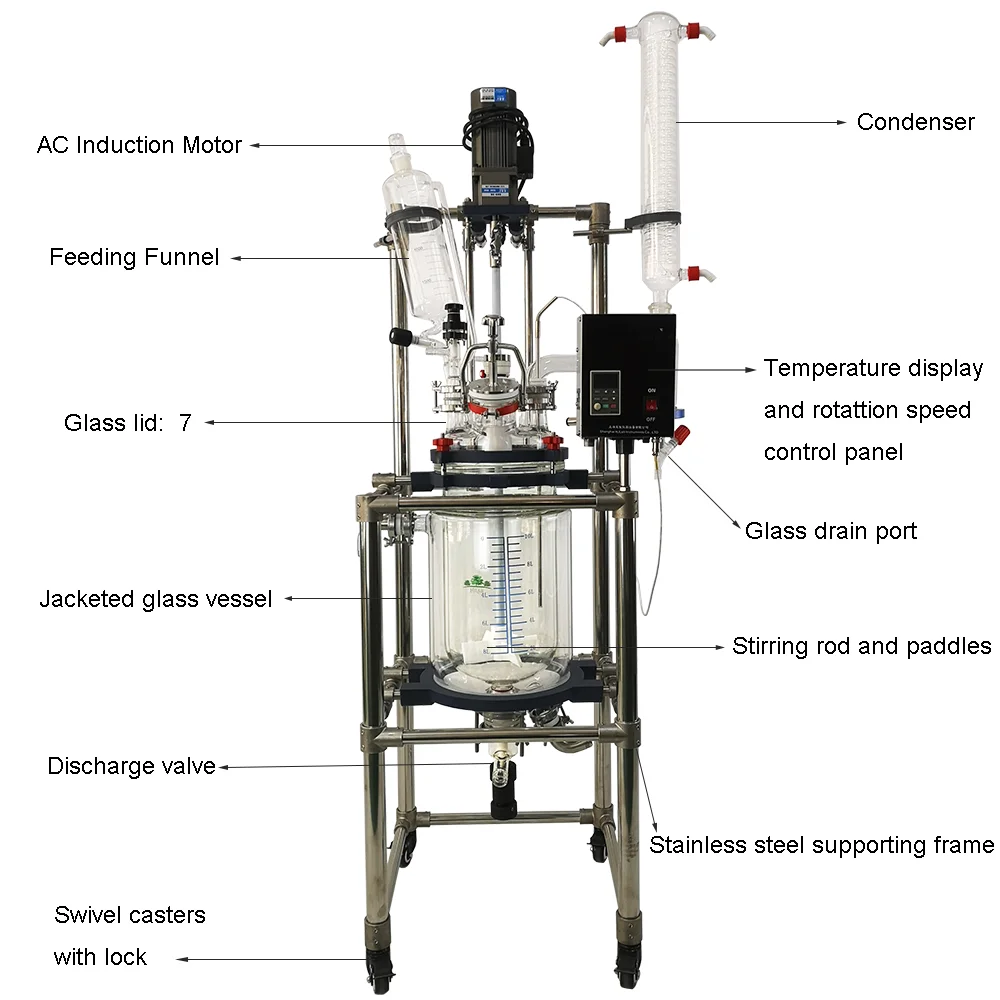

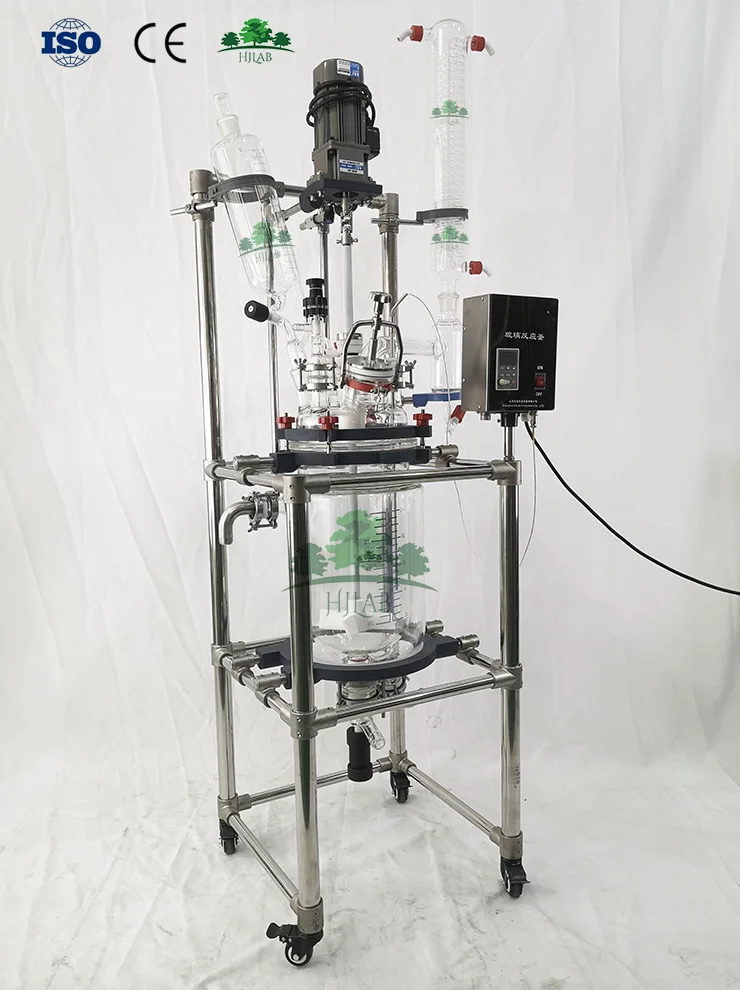

10L Jacketed Glass Reactor
with Heating & Cooling Circulator
and Vacuum Pump
HJLab series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features | ||||||||
Certification | CE | |||||||
Seals | Solvent-resistant PTFE on all sealing components ensures long time durability and operation | |||||||
Glasswares | All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant. | |||||||
Strring | Adjustable stirring rate provides great torque or high speed. Patented PTFE stirring rod bearing for reliable and quiet operation. Optional multi-layer stirring blades for optimal reaction results. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials. | |||||||
Temp range | Wide range of temperature operations, from -110°F to 400°F. | |||||||
Condenser | Large condenser cooling surface for exceptional condensation performance. | |||||||
Temp display | Easily visual operation with digital speed and temperature displays. | |||||||
Specification
Model | HJ-5L | HJ-10L | HJ-20L | HJ-30L | HJ-50L | HJ-100L | |||||
Reaction Volume | 5L | 10L | 20L | 30L | 50L | 100L | |||||
Jacket Volume | 1.5L | 3L | 6L | 9L | 15L | 30L | |||||

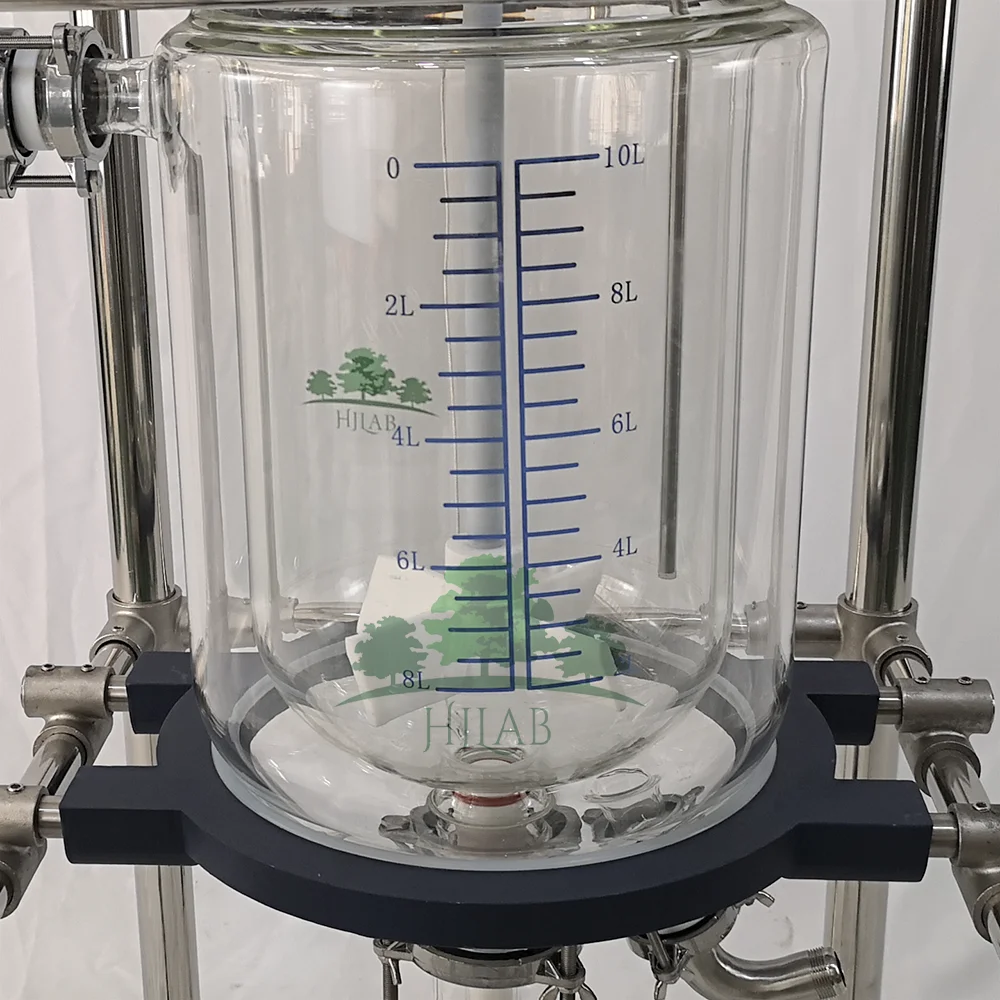

Reactor Material | High Quality Borosilicate Glass 3.3 | ||||||||||
Power Supply | 110, 220V 50Hz/60Hz | ||||||||||
Supporting Frame | All stainless-steel parts are SUS304 type. (Refused to use the 201-type stainless steel) Optional: can be coated by PTFE to improve the corrosion resistance | ||||||||||
Working Temperature | -80°C ~ +200°C | ||||||||||

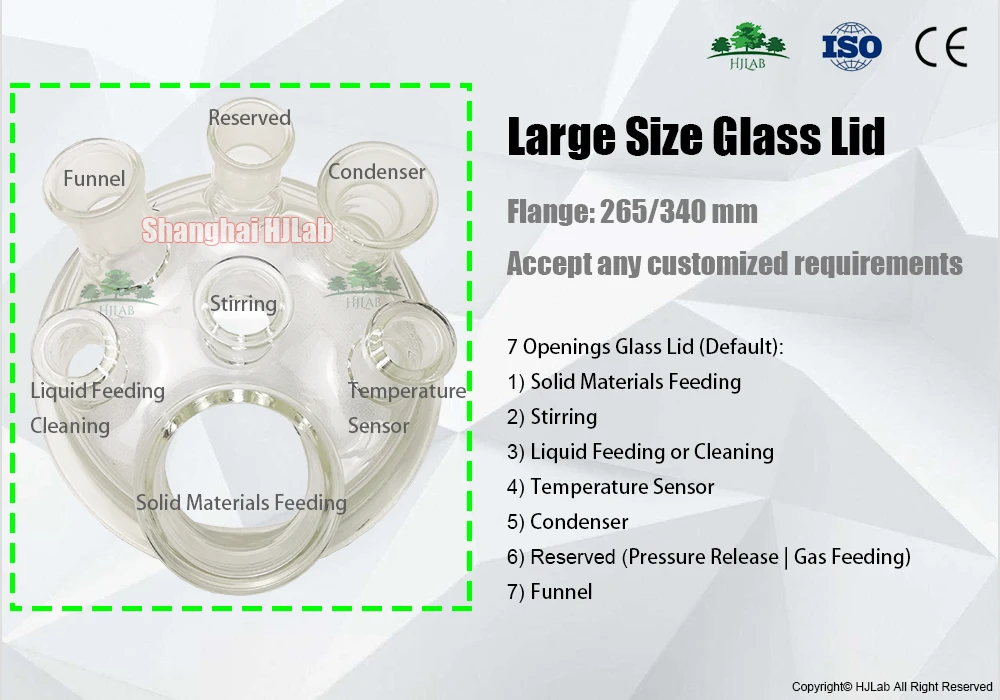

7 openings: 1) Solid Materials Feeding: 95# 2) Stirrer: 50# 3) Cleaning: DN25 4) Temperature Probe: DN25 5) Condenser: S50/20 6) Vacuum Port: 34/34 7) Feeding Funnel: 40/40 | |||||||||||
Condenser | Dual-Layer Cooling Layers | ||||||||||
Condenser Area | 0.234m² | 0.234 m² | 0.341 m² | 0.341m² | 0.429 m² | 0.51 m² | |||||
Feeding Funnel | 1000ml | 1000ml | 2000ml | 2000ml | 2000ml | 2000ml | |||||
Glass Valve with PTFE Open/Close Optional: Jacketed Feeding Funnel Optional: Powder Feeding Funnel Optional: Peristaltic Pump Feeding Optional: Capacity can be 2L, 5L, 10L and 20L | |||||||||||

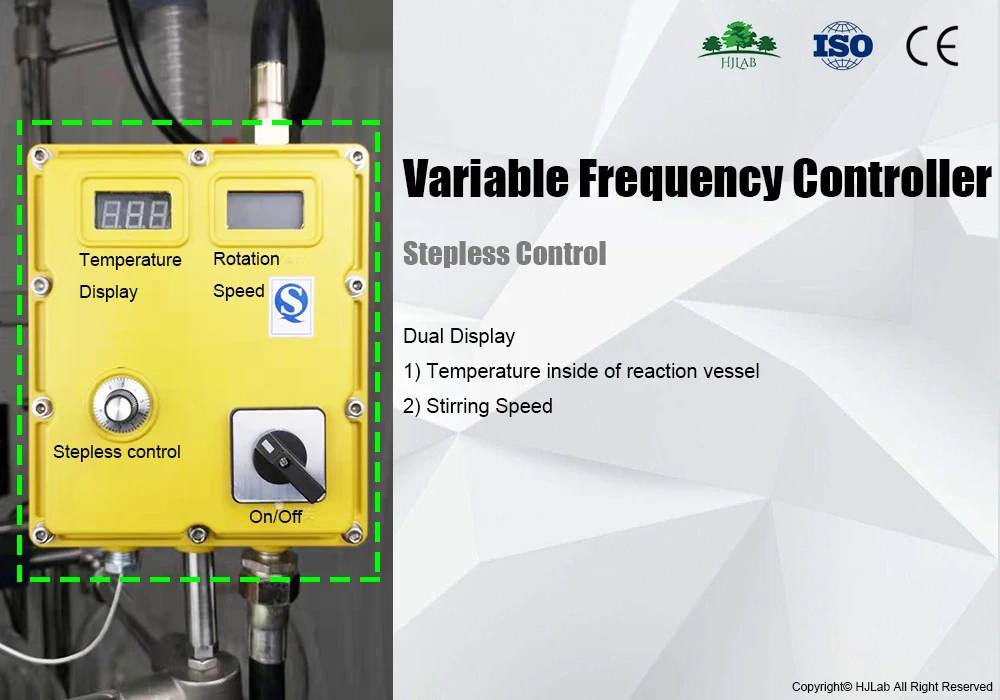

Rotation Controller | Digital controller with variable frequency drive | ||||||||||
Rotation speed | 50 to 600 rpm | ||||||||||
120W | 120W | 180W | 180W | 250W | 370W | ||||||

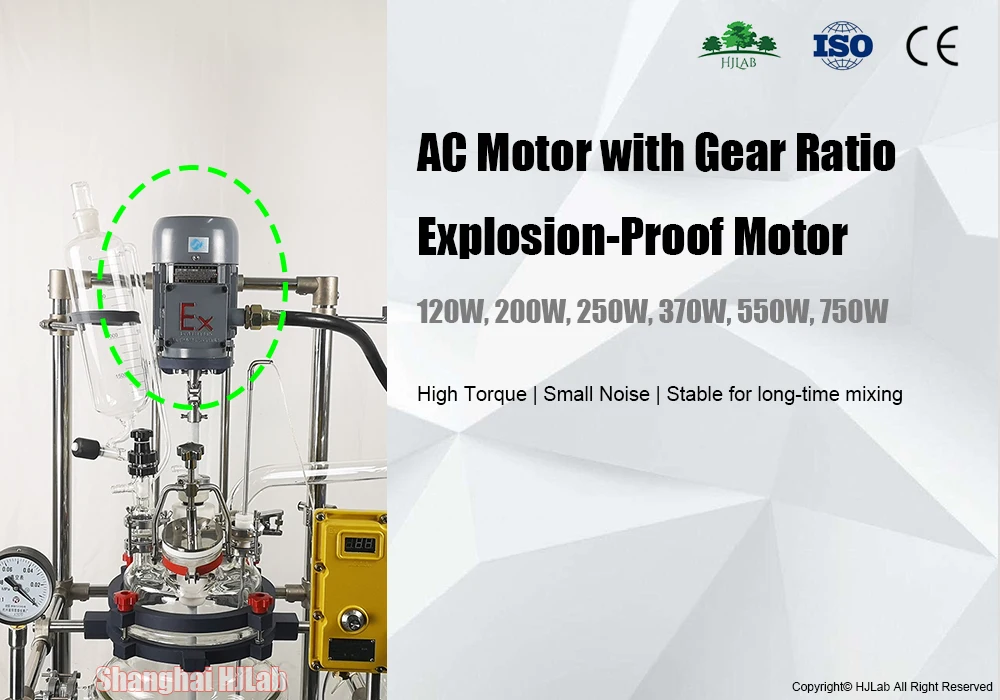

Motor Type | AC Induction Motor | AC Induction Motor | Explosion Proof Motor | Explosion Proof Motor | Explosion Proof Motor | Explosion Proof Motor | |||||
Optional: Explosion Proof Motor (Level: ExDIIBT4) (We can provide you the explosion proof Certificate) Optional: DC Brushless Motor Optional: AC Induction Motor Optional: 180W, 250W, 370W, 550W, 750W motor | |||||||||||

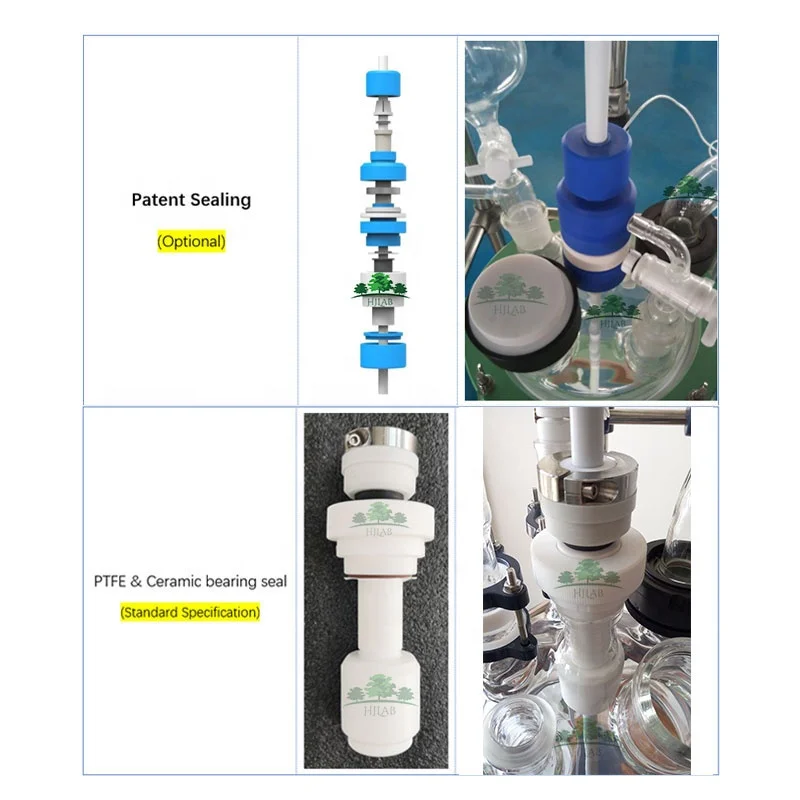

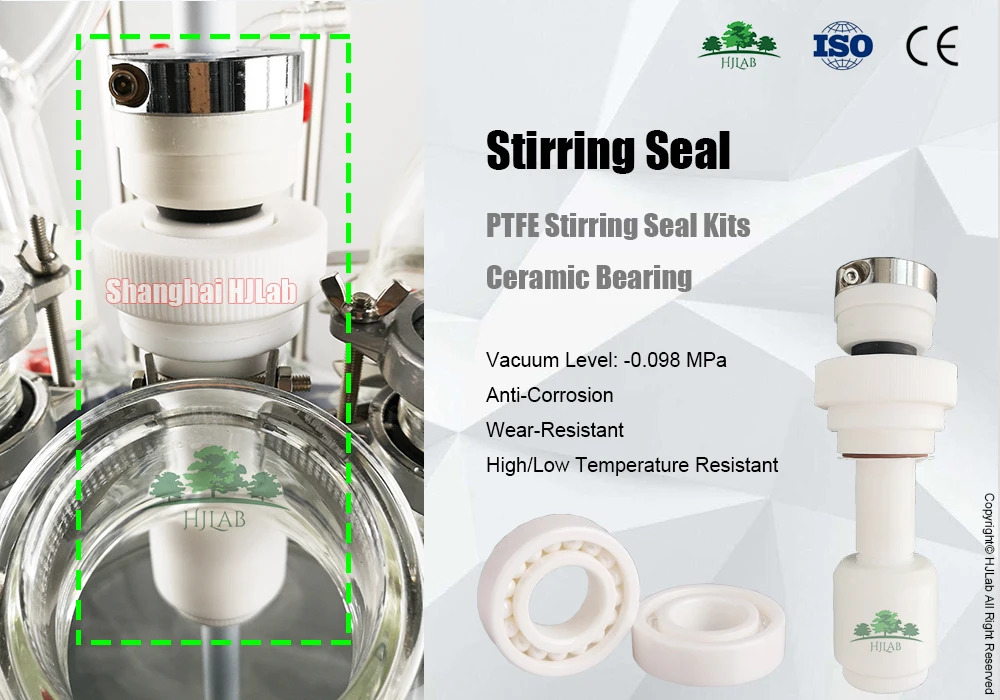

Stirring Sealing | PTFE Stirring Seal Kits (Ceramic Bearing, Anti-Corrosion, Wear-Resistant) | ||||||||||
Vacuum Inside of Glass Vessel | -0.1 ~ 0.0 MPa | ||||||||||
Vacuum Inside of Jacket Layer | ≤ + 0.03 MPa | ||||||||||
Temperature Sensor | PT100 (Realtime display the materials temperature) | ||||||||||
Internal & External Temperature Difference | ≤ 80°C (Resistant to sudden temperature changes) | ||||||||||

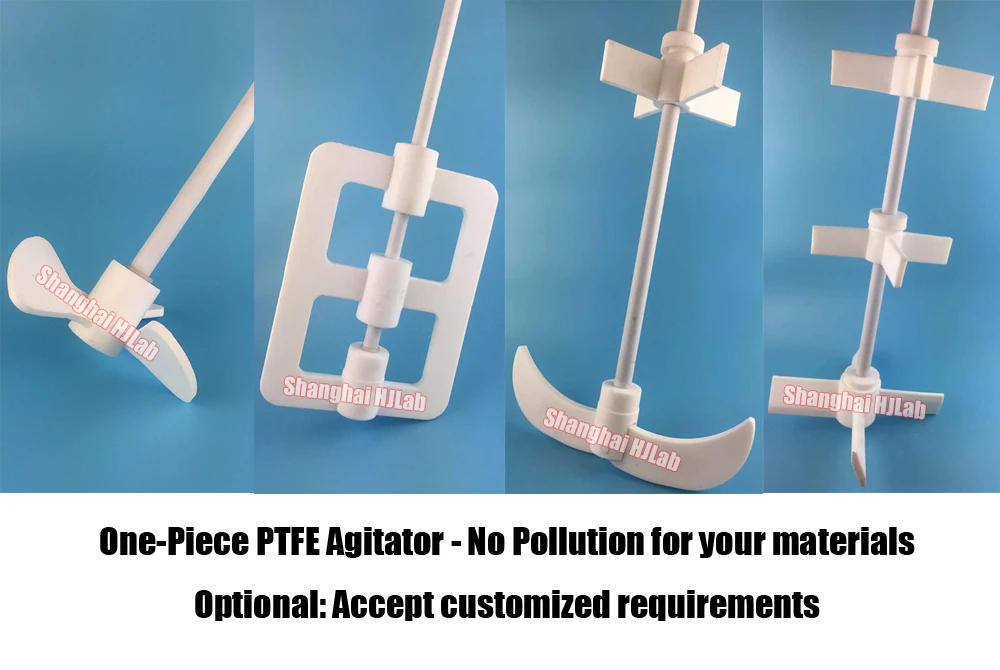

Type-304 stainless steel reinforced PTFE Optional: Turbine Agitator Paddle Agitator Anchor Agitator Propeller Agitator Helical Agitator | |||||||||||
Insulated Connection Hose | Oil Drain Manifold Kit (Simple and easy draining of the circulator fluid) (Limit strain on the glassware from the heavy insulated oil hoses) | ||||||||||

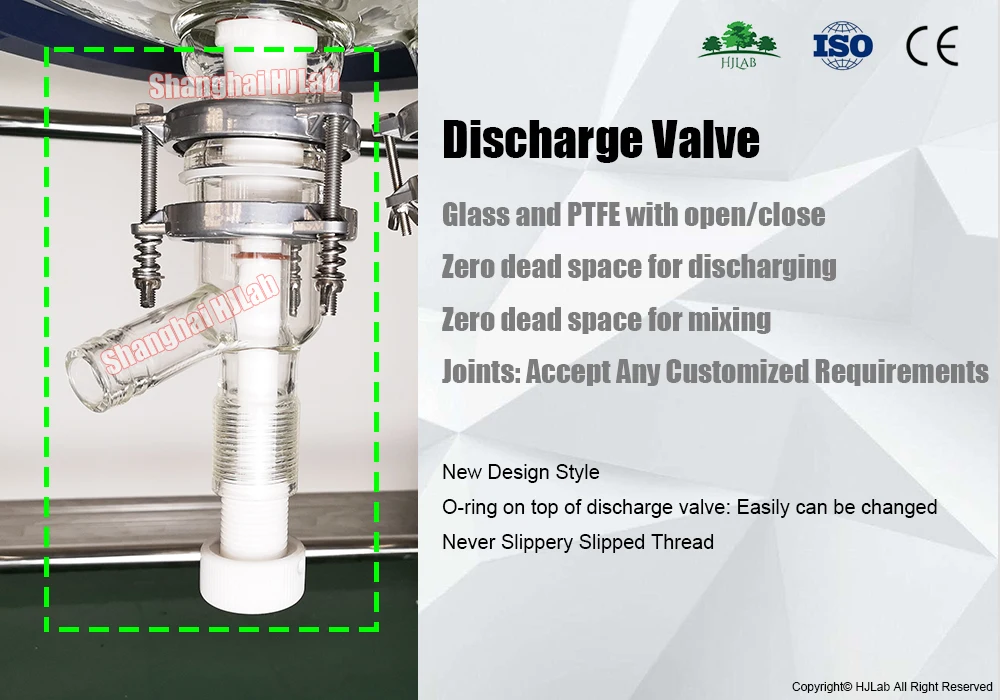

Discharging Valve | Flush seal design with large opening and flat flange clamp | ||||||||||
Swivel Casters | Four, built-in with locks | ||||||||||
Unit Dimensions (W*D*H cm) | 60*55*160 | 60*46*190 | 60*51*200 | 70*60*200 | 84*66*215 | 100*80*240 | |||||
Net Weight | 50 KG | 65 KG | 70 KG | 80KG | 85 KG | 120 KG | |||||

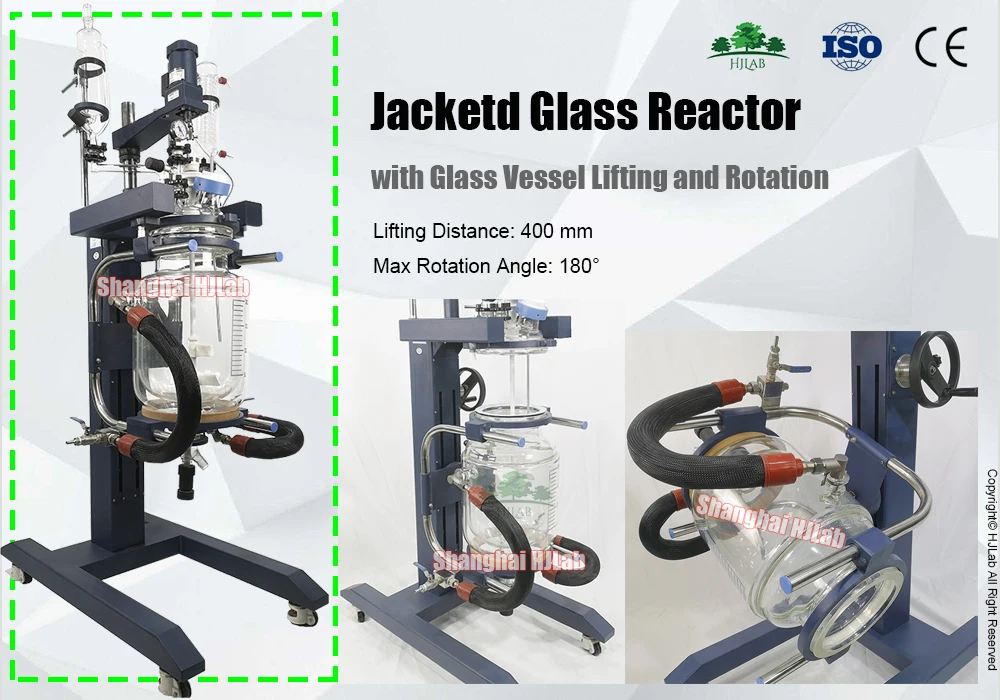

More Optional | 1) Glass Reactor with Lifting and Rotation (Max Rotation Angle: 180°) 2) Single | Double | Triple Layers Glass Reaction Vessel 3) Filtering Glass Reactor (Filtering membrane + Glass Sand Core + PTFE Baseplate) 4) PH Automatic Controlling & Automatic Feeding 5) Modbus-RS485 Communication (Remote Control and Data Storage/View) 6) Various Combined of Glass Reactor 7) And more… | ||||||||||

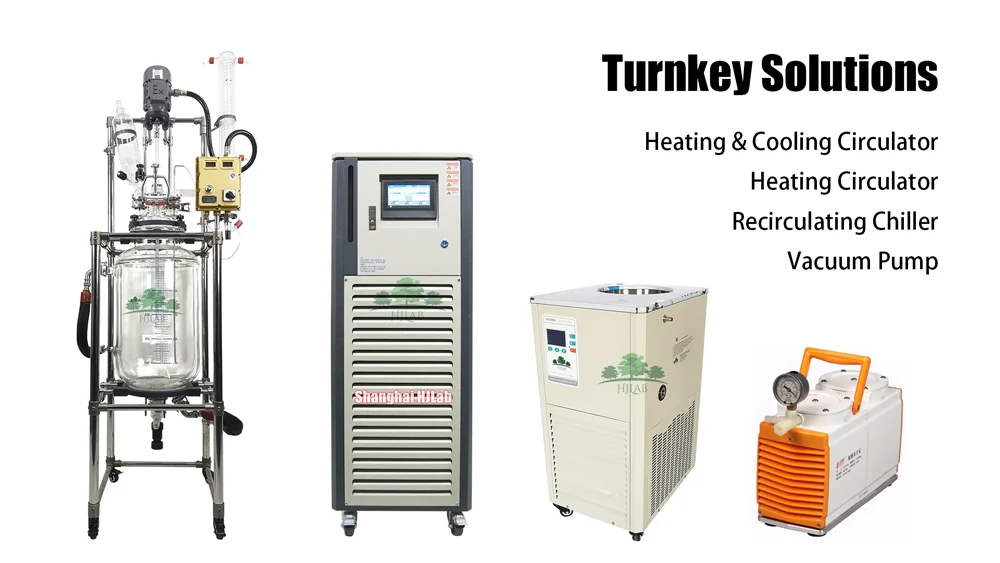

Turnkey Jacketed Glass Reactor with Chiller and Pump
Optional
Product Detail
Our Service
Pre-Sales Services
1) Online video meeting to visit our factory
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
Delivery Services
1) We can arrange the delivery to your specify location which saving your energy andexpensive time.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
Inspection Service (Bureau Veritas)
1) Third-party for in-depth post-production product inspection
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
Payment Service
1) Visa, MasterCard, e-Checking
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
After-Sales Service
1) 1 Year Warranty
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
Our Company

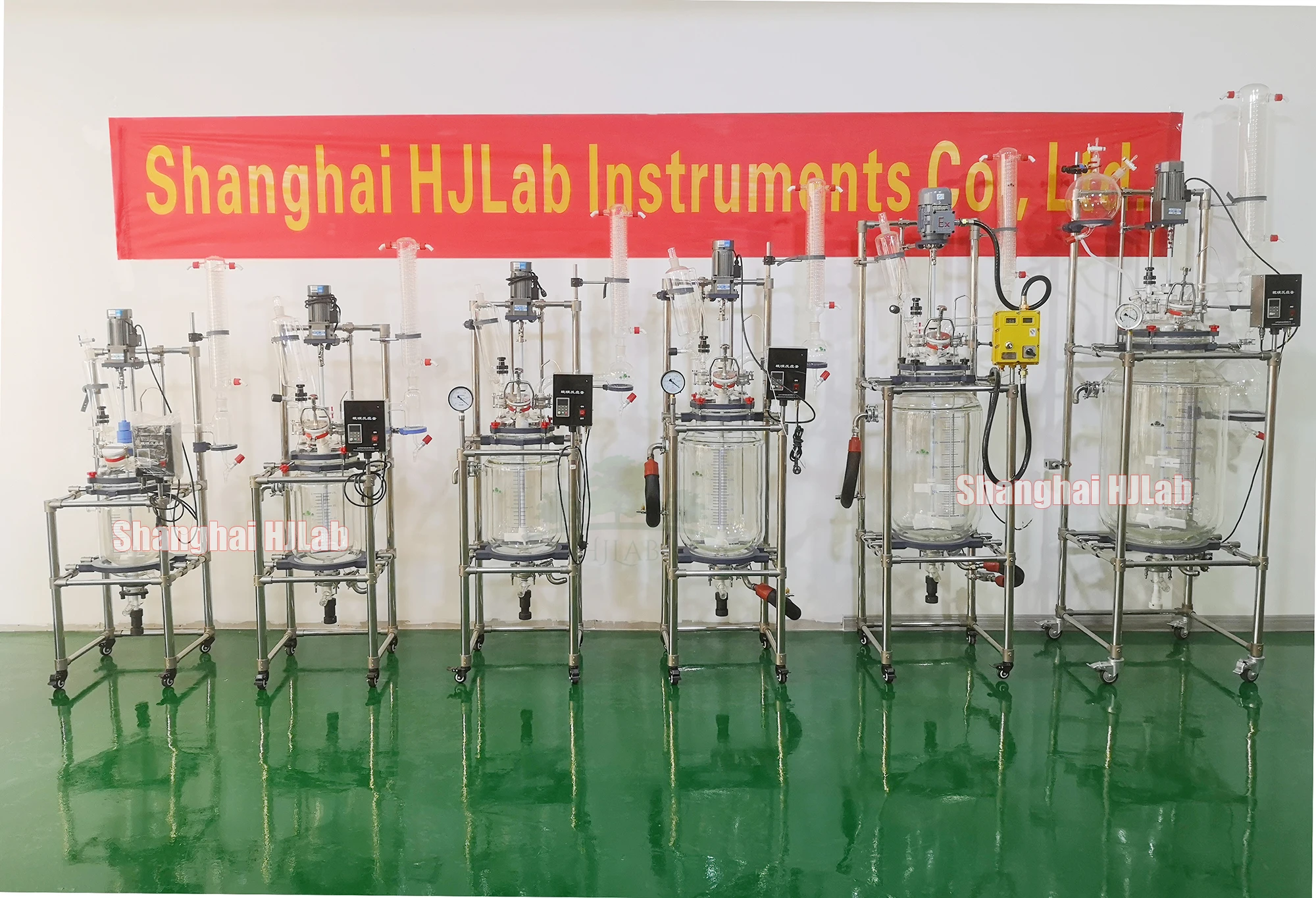

Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.
