polyurethane hose Steel wire reinforced polyurethane hose for mineral and biological oils TPUG
- Category: >>>
- Supplier: Henan Vipoo Rubber Products Co. Ltd.
Share on (62447316680):
Product Overview
Description
Place of Origin | CN；HENAN |
Model Number | Steel wire woven polyurethane hose |
Brand Name | VIPOORUBBER |
Product name | Steel wire woven polyurethane hose |
Inner layer | PU |
Reinforcement layer | High quality steel wire |
Outer layer | PU |
Size | 3-25mm |
Temperature range | High temperature resistant |
Working pressure | 10000psi |
Length | 20-100 |
Application | Mainly used in machine tools, automobiles, engineering machinery, motorcycles |
Features | Smooth appearance, small bending radius |
OEM | customized |
Continuous operating temperature: -40°F / +212°F; To 40 ° C / + 100 ° C
Maximum operating temperature: 212°F 100°C FOR OIL,149°F 65°C FOR AIR, WATER AND WATER BASED FLUIDS
Joint: SHF- buckle type
Inner rubber layer: oil resistant elastic resin
Reinforcement: 1 or 2 layers of polyester woven, 1 or 2 layers of wire woven
Outer rubber layer: elastic resin resistant to ozone and abrasion
Application standards: EN 855 R7, SAE 100 R7 EN 855 R8, SAE 100 R8
Maximum operating temperature: 212°F 100°C FOR OIL,149°F 65°C FOR AIR, WATER AND WATER BASED FLUIDS
Joint: SHF- buckle type
Inner rubber layer: oil resistant elastic resin
Reinforcement: 1 or 2 layers of polyester woven, 1 or 2 layers of wire woven
Outer rubber layer: elastic resin resistant to ozone and abrasion
Application standards: EN 855 R7, SAE 100 R7 EN 855 R8, SAE 100 R8
ID | OD | W.P | MinB.P | MinB.Rad | Weight | |||||||
DN | inch | mm | bar | psi | bar | psi | mm | kg/m | ||||
R7 3 | 3 | 1/8" | 8.5 | 172 | 2500 | 689 | 10000 | 13 | 0.04 | |||
R7 5 | 5 | 3/16" | 10.8 | 210 | 3040 | 840 | 12180 | 20 | 0.07 | |||
R7 6 | 6 | 1/4" | 13 | 207 | 3000 | 827 | 12000 | 33 | 0.09 | |||
R7 8 | 8 | 5/16" | 15.1 | 172 | 25000 | 689 | 100000 | 46 | 0.1 | |||
R7 10 | 10 | 3/8" | 17 | 155 | 2250 | 621 | 9000 | 51 | 0.14 | |||
R7 13 | 13 | 1/2" | 20.7 | 140 | 2030 | 560 | 8120 | 76 | 0.21 | |||
R7 16 | 16 | 5/8" | 22 | 110 | 2000 | 440 | 8000 | 10 | 0.21 | |||
R7 19 | 19 | 3/4" | 26 | 86 | 1250 | 345 | 5000 | 127 | 0.29 | |||
R7 25 | 25 | 1" | 32 | 69 | 1000 | 276 | 4000 | 203 | 0.54 | |||
R8 5 | 5 | 3/16" | 13.1 | 345 | 5000 | 1400 | 20000 | 38 | 0.12 | |||
R8 6 | 6 | 1/4" | 13.1 | 345 | 5000 | 1400 | 20000 | 51 | 0.18 | |||
R8 8 | 8 | 5/16" | 17 | 300 | 4350 | 1200 | 17400 | 60 | 0.2 | |||
R8 10 | 10 | 3/8" | 19.4 | 276 | 4000 | 110 | 16000 | 64 | 0.22 | |||
R8 13 | 13 | 1/2" | 22.7 | 241 | 3000 | 965 | 14000 | 102 | 0.31 | |||
R8 16 | 16 | 5/8" | 25 | 130 | 1900 | 520 | 7600 | 140 | 0.34 | |||
R8 19 | 19 | 3/4" | 29 | 110 | 1600 | 440 | 6400 | 170 | 0.37 | |||
R8 25 | 25 | 1" | 34 | 80 | 1200 | 400 | 4800 | 230 | 0.48 | |||

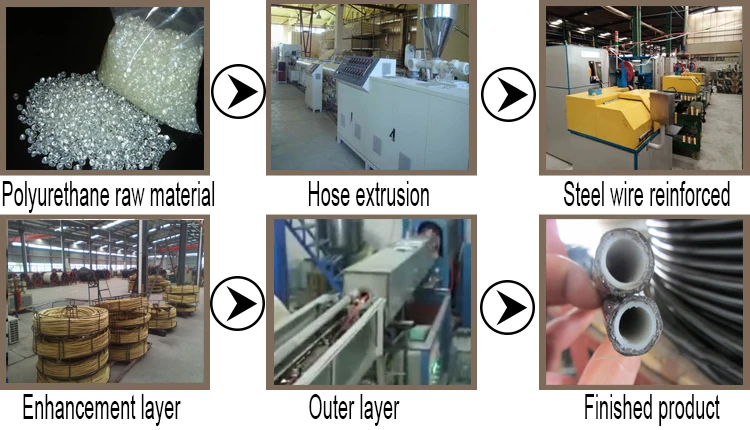

Multiple workstations work together to improve timeliness, achieve the best standards, and deliver the fastest.

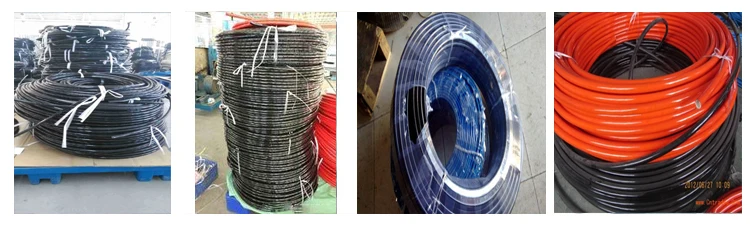

Packaging is according to the international transport standards for packaging, if necessary,can be customized
Customizable logo
Customizable logo
After the production of the goods is completed, the goods will be delivered in order of the order
The completion time of the goods depends on the size of the order quantity: 5-30 working days
The completion time of the goods depends on the size of the order quantity: 5-30 working days
Henan vipoorubber co., LTD., has 30 years of experience in production and sales
Main production and manufacturing rubber hose (tube flange dredging, sediment delivery hose (water), absorption), sand blasting hose, concrete pump pipe, oxygen acetylene hose, chemical resistant hose, PVC hose, fuel hose, hydraulic hose, steel wire braided hose,Industrial hose ,steel wire winding), high-pressure hose, peristaltic pump hose, garden hose expansion, hose connectors and other products, we are industry and trade integration company, has its own factory, a professional research and development technical team and efficient staff conscientiously.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
