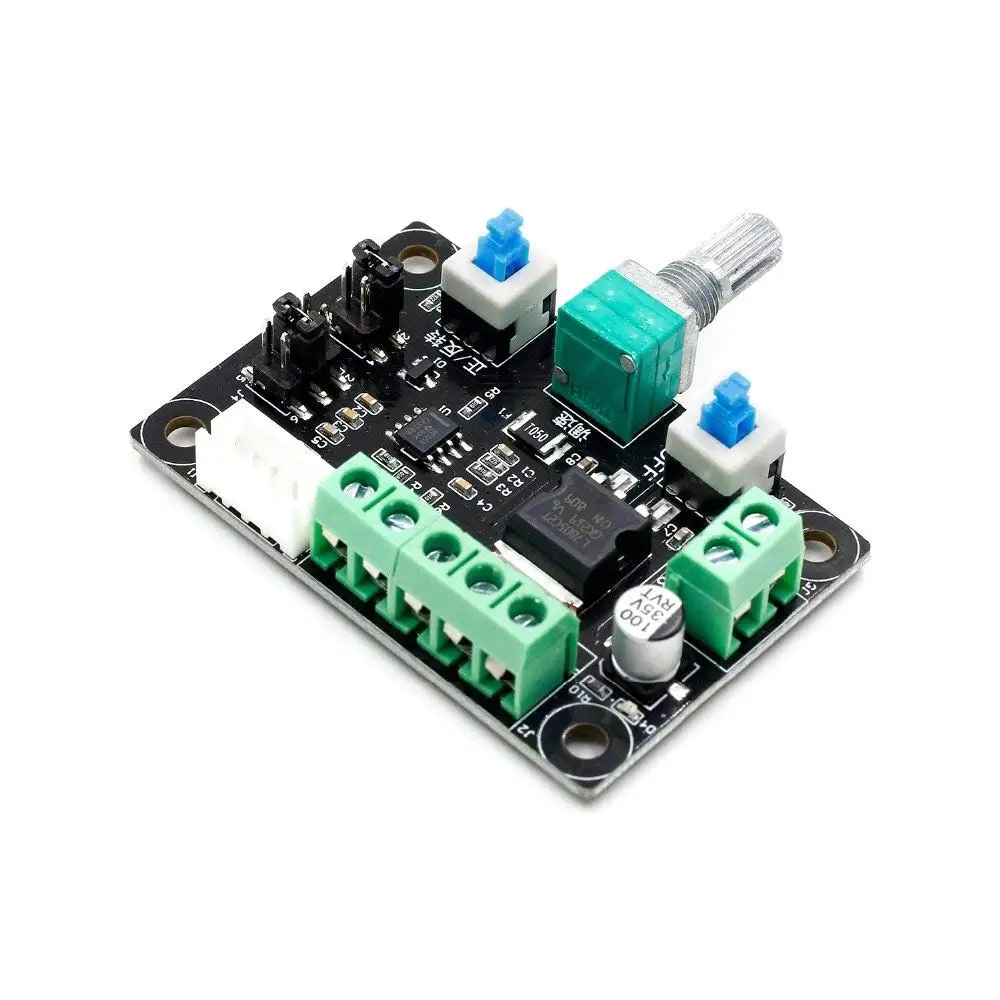

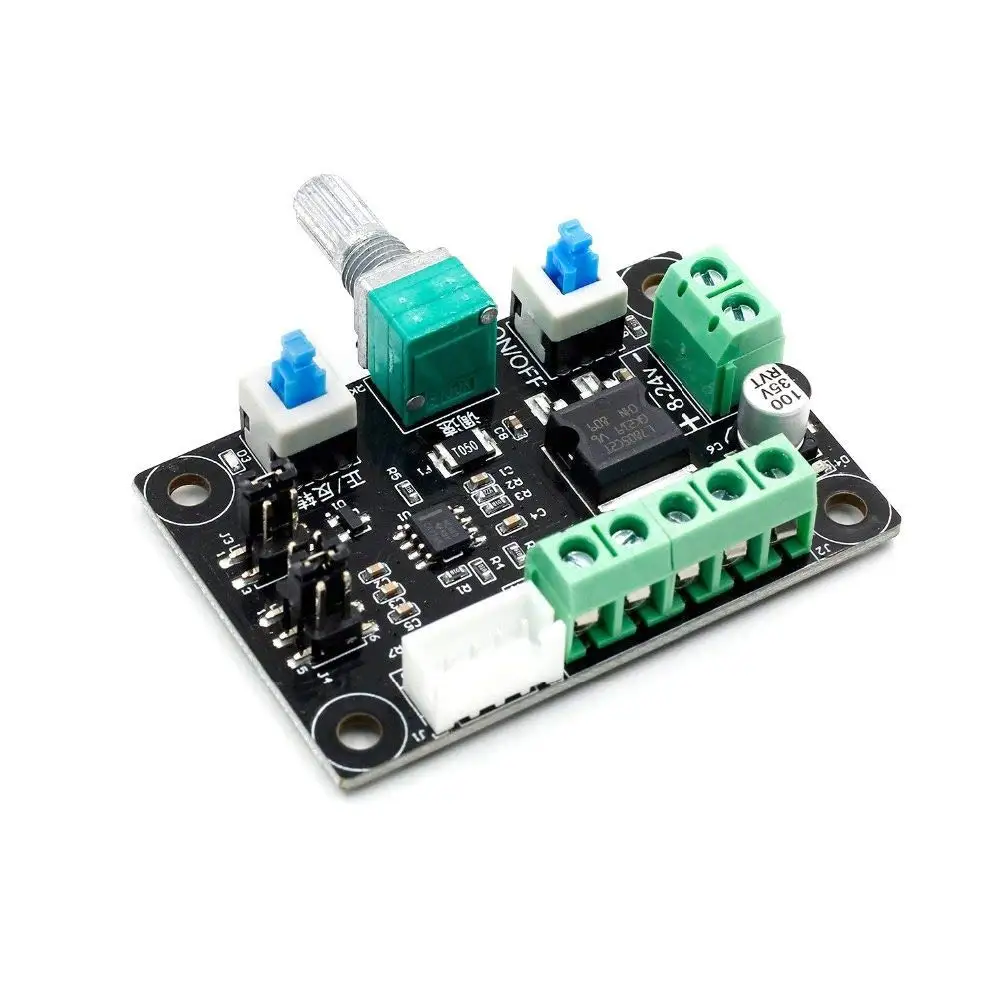

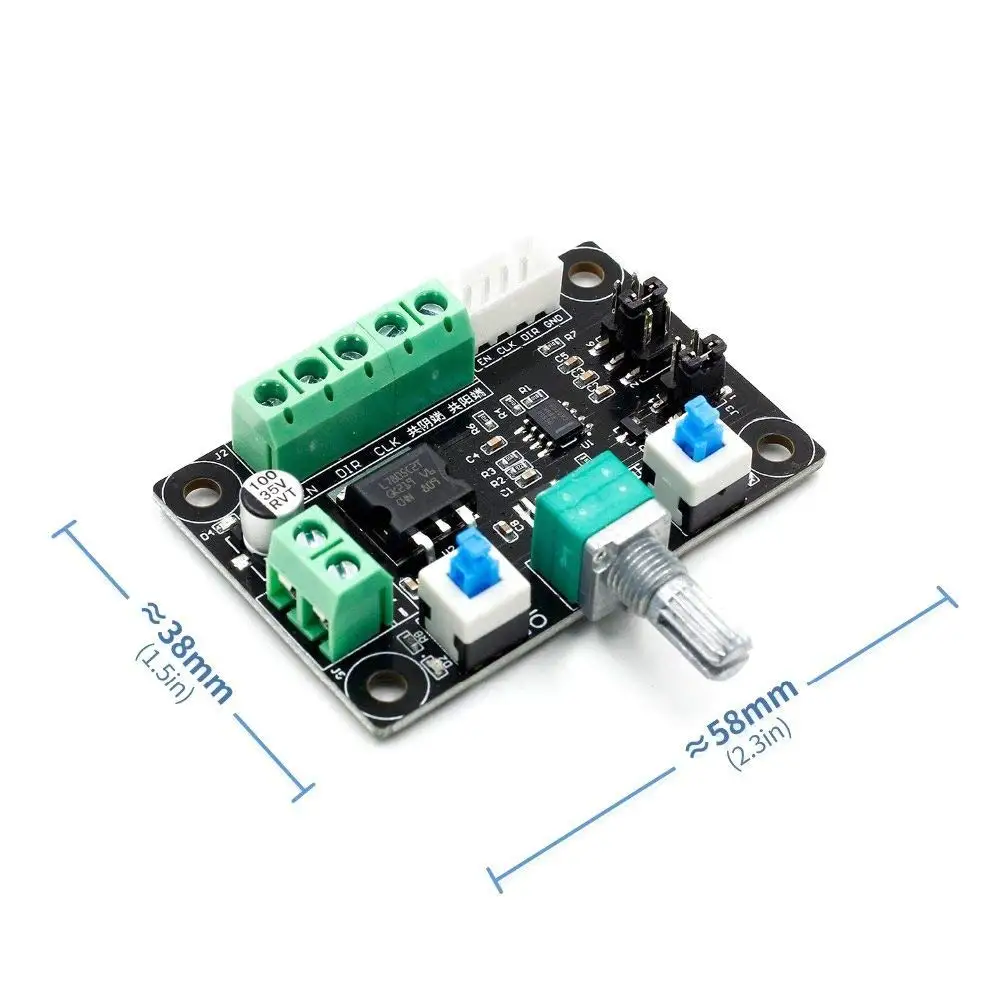

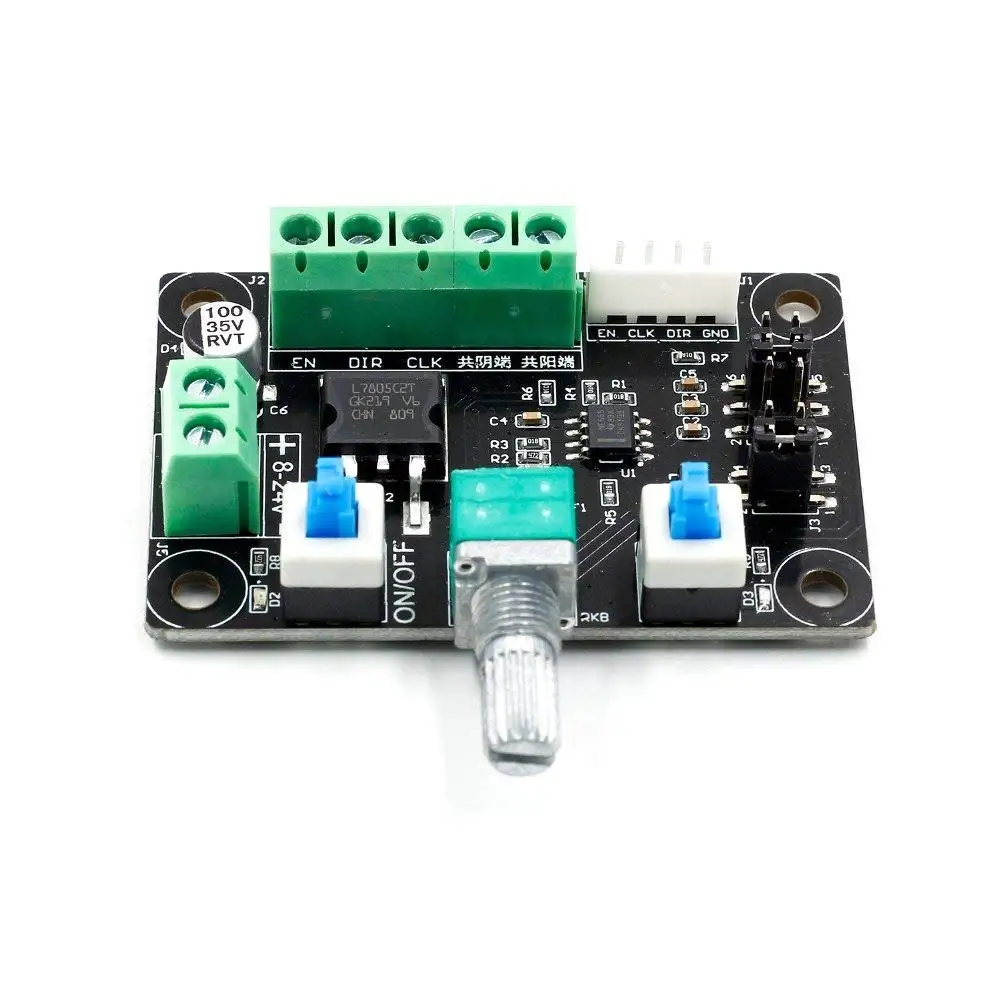

DC 12V 24V Pulse Signal Generator for Stepper Motor Driver Controller Speed Regulator

Descriptions:
1, This module is a pulse generation module, which provides the control signal to the controller step by step.

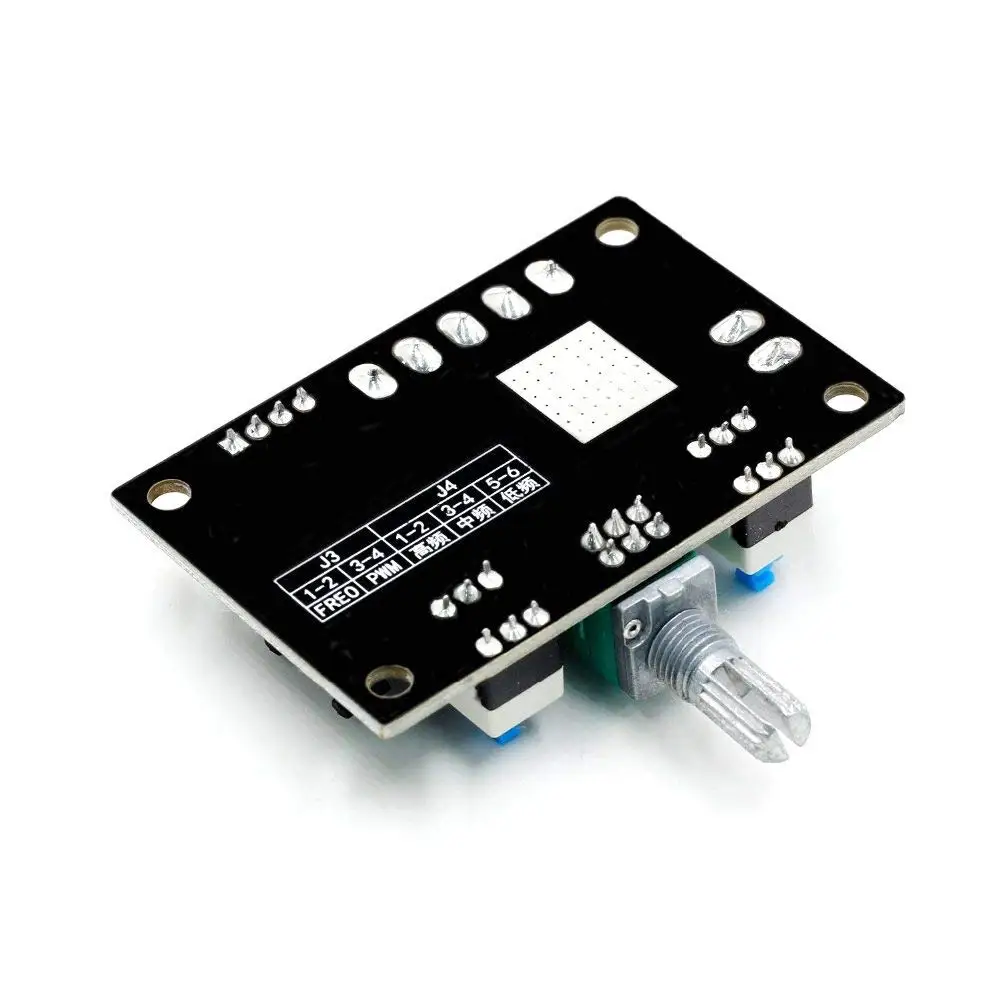

To control the stepper motor, it must be equipped with a drive. 2, This simple controller + stepper motor + DC power supply can be composed of a simple set of control platform. 3, The controller has a high 5.4 k-160 khz, half 540-16.6 khz, under 80-2.4 khz total of 3 kinds of low-frequency signal can be used to select

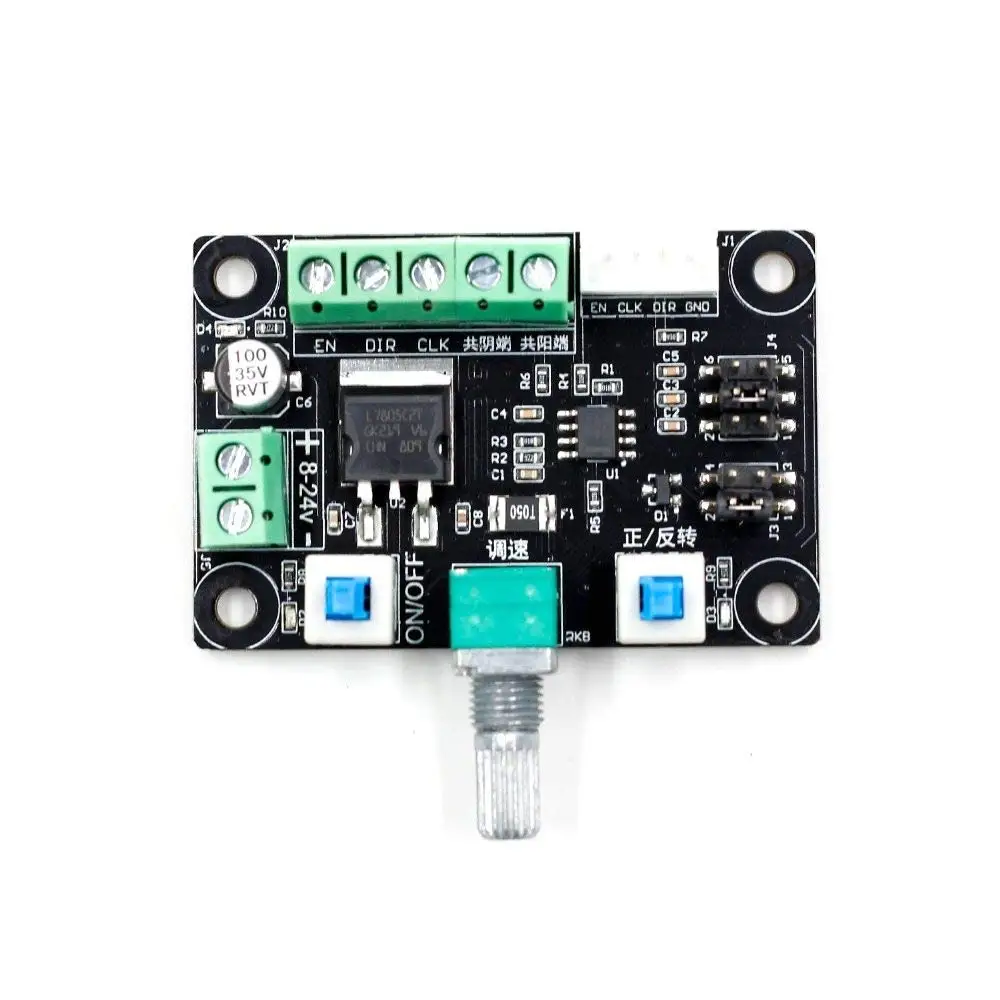

the bridge. 4, Can produce pulse signal, can also produce PWM signal, can choose the bridge. 5, Measurement frequency: PUL and common cathode end Different step handlers can mark different names En = ENA = free rating PUL = PULS = CLK pulse DIR = CW = CWW address Connection method of common anode (B) It's + PUL + DIR + Connect together to com + It is connecting PUL-Connect CLK DIR-Connect DIR Common cathode connection method (B) It-PUL-DIR-connect together to com- It's + connect is PUL + connects CLK DIR + Connect DIR|
