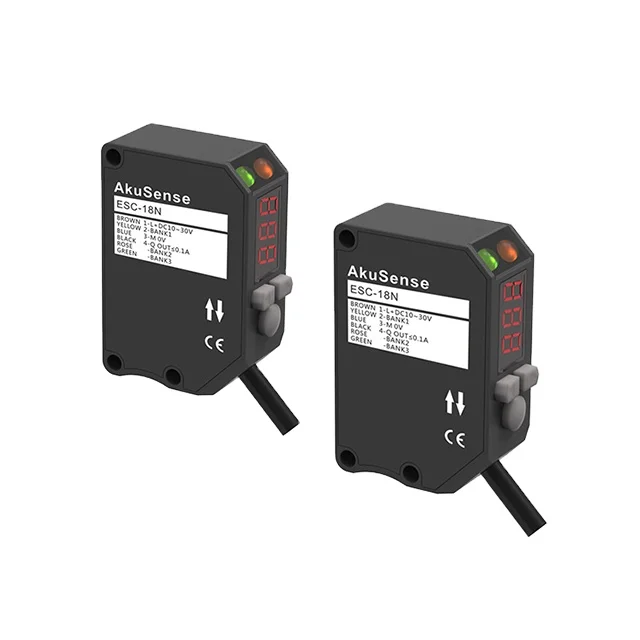

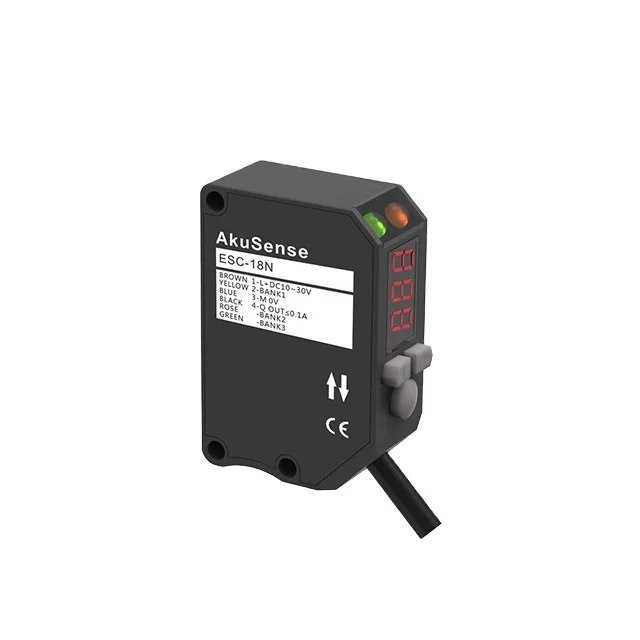

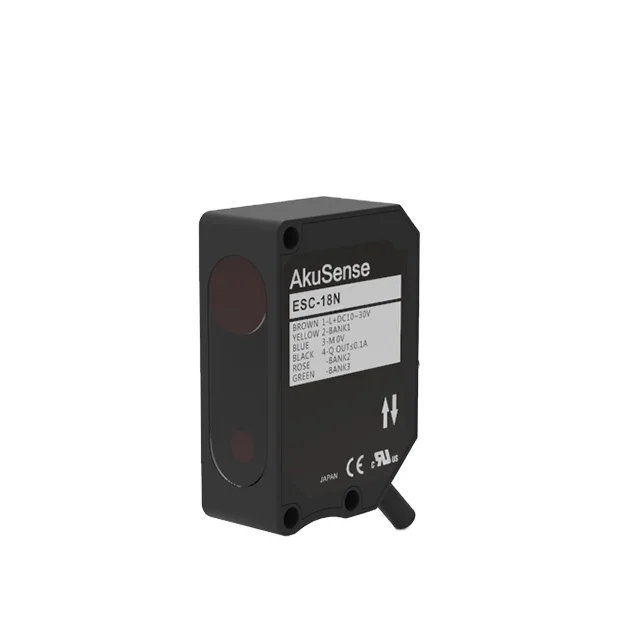

AkuSense 10mm Npn Pnp Infrared Beam Photoelectric Detection Detective Diffuse Reflection Electrical Photo Color Mark Sensor
- Category: >>>
- Supplier: Shenzhen Akusense Technology Co. Ltd.
Share on (62448000075):
Product Overview
Description

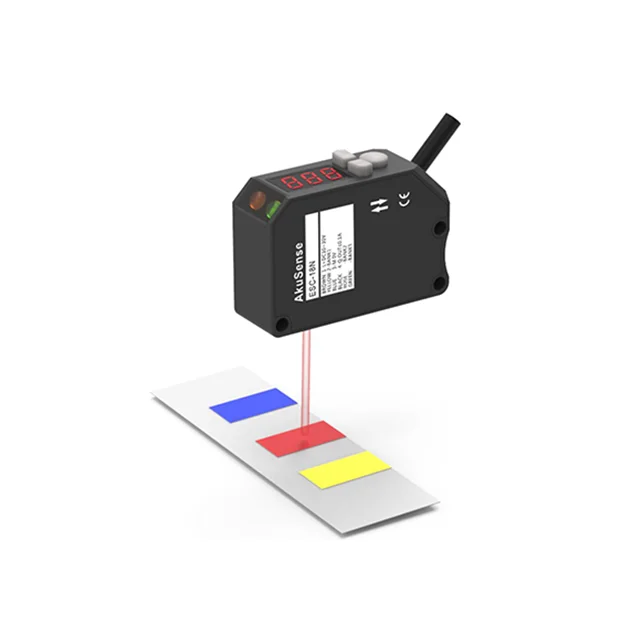

Photoelectric sensor color mark / detection type ESC series
Built-in RGB three color light sources
Two detection modes,marks mode/color mode
Accurate color detection, automatically adjusts into the most suitable light sources
Product Description
| Specification |
| Model No. | ESC-18N | ESC-18P | |
| Sensing type | Diffuse reflection | ||
Sensing distance | 18±2mm | ||
Beam size | φ6mm/18mm | ||
Output type | NPN/PNP Open-collector, ≤100mA(30V DC) | ||
Switch type | Selectable L.on/D.on | ||
Indicator | Output indicator: Orange; Work indicator; Green | ||
Digital display | 7 segments, 3 digit display(Red and Green LED) | ||
Response time
| Marks mode: H1/0.25 ms, H2/0.5 ms, L/1.2 ms | ||
| Colors mode: H1/0.8 ms, H2/1.6 ms, L/4 ms | |||
Time delay function | OFF delay/ ON delay/ Single pulse delay (0~990ms:10ms; 1~10s unit:1s) | ||
Light source | RGB 3 color light source | ||
Operating voltage | 10~30V DC±10% | ||
| Current consumption | 35mA(12V), 25mA(24V) | ||
Ambient brightness | Sunlight≤10000Lux, Incandescent lamp≤3000Lux | ||
Ambient temperature | -25℃~+55℃, No freezing | ||
Ambient humidity | 35%~85%RH, No coagulating | ||
Insulation resistance | ≥20Ω(500V DC) | ||
Impact resistance | 50G(500m/s²),XYZ three directions | ||
Degree of protection | IP67 | ||
Conection | 2M 4core cable | ||
Material | Housing: ABS, Lens: PMMA | ||

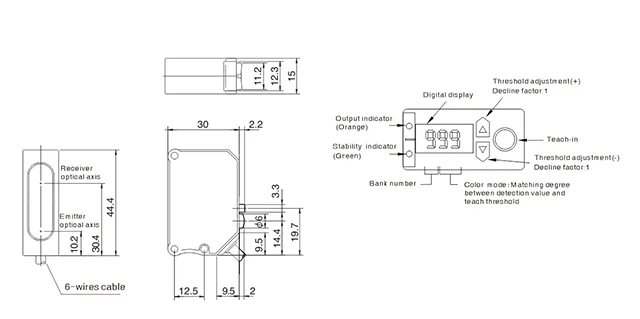

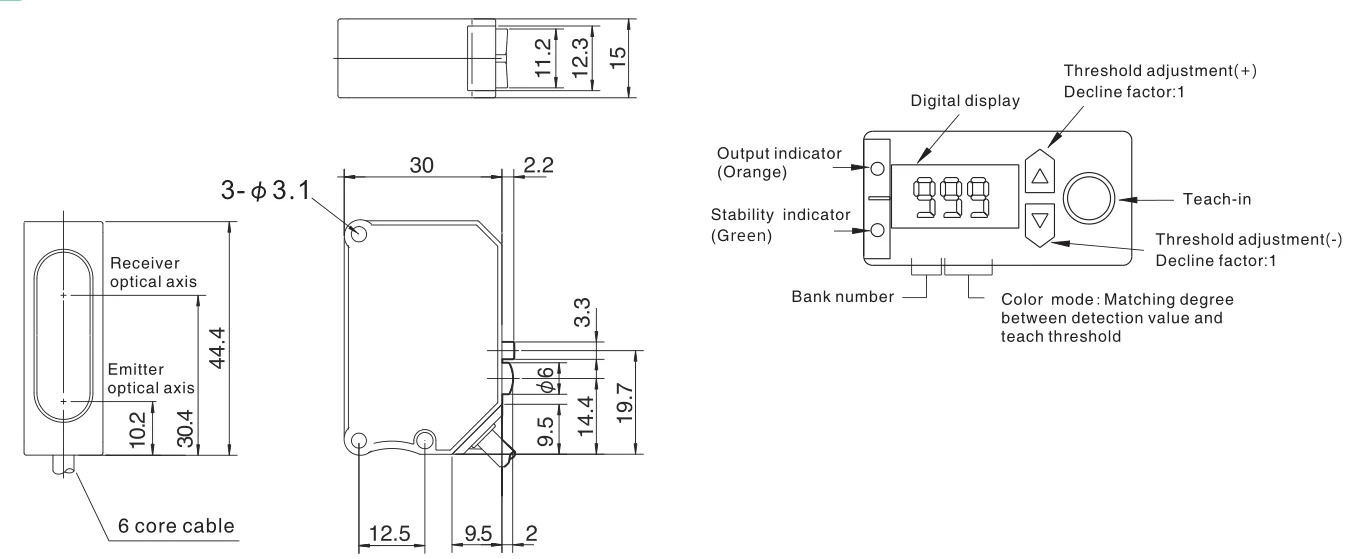

| Outline Diagram |

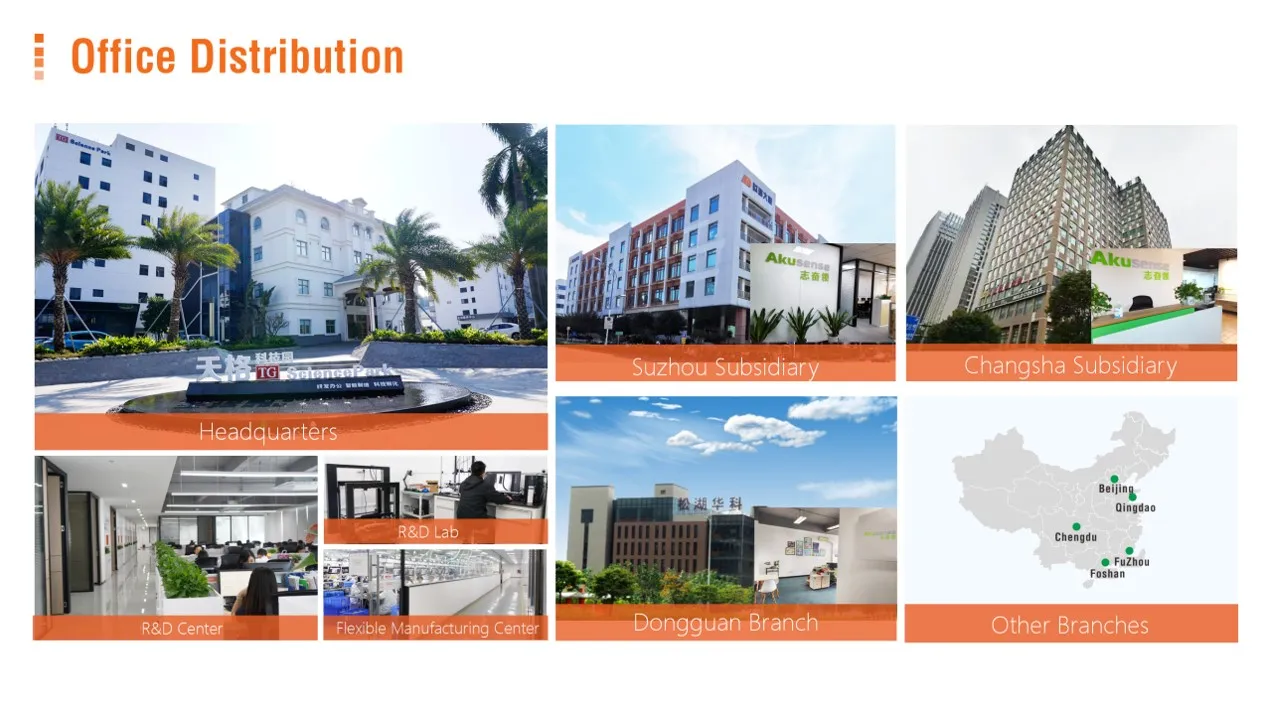

Company Information
