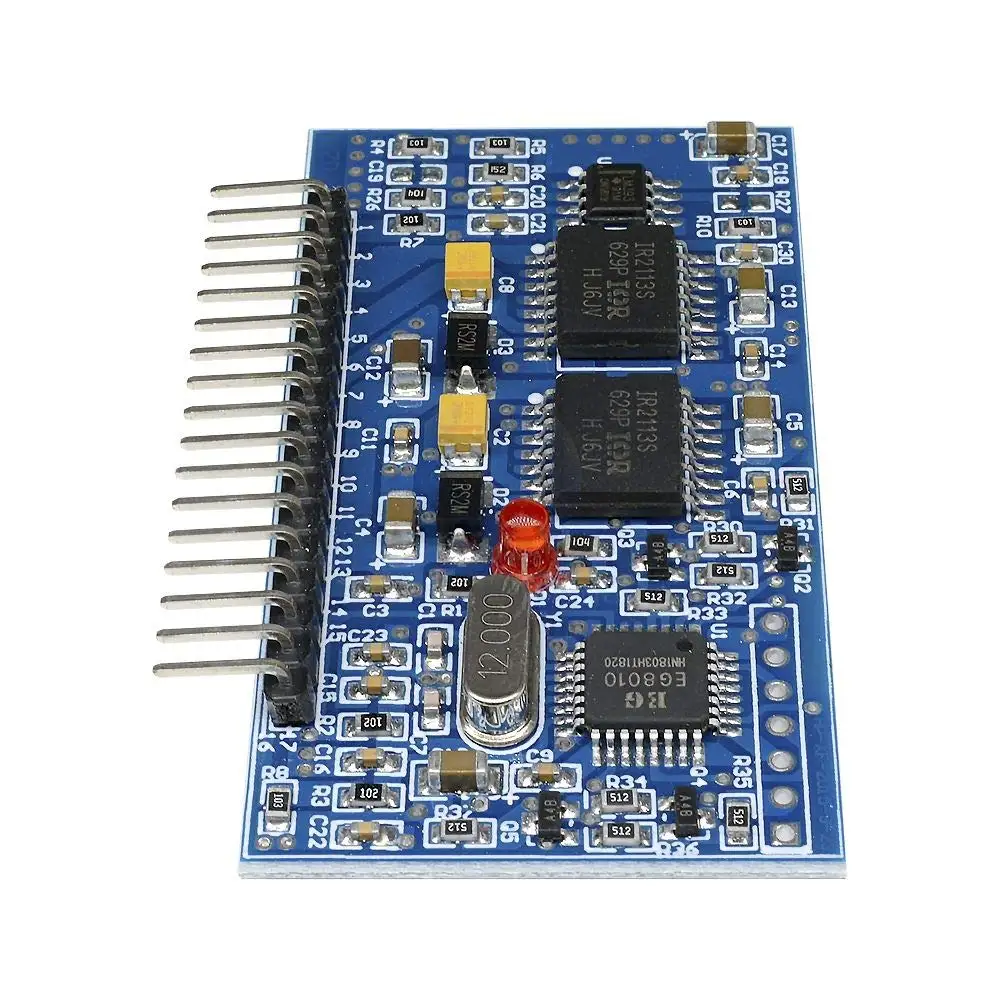

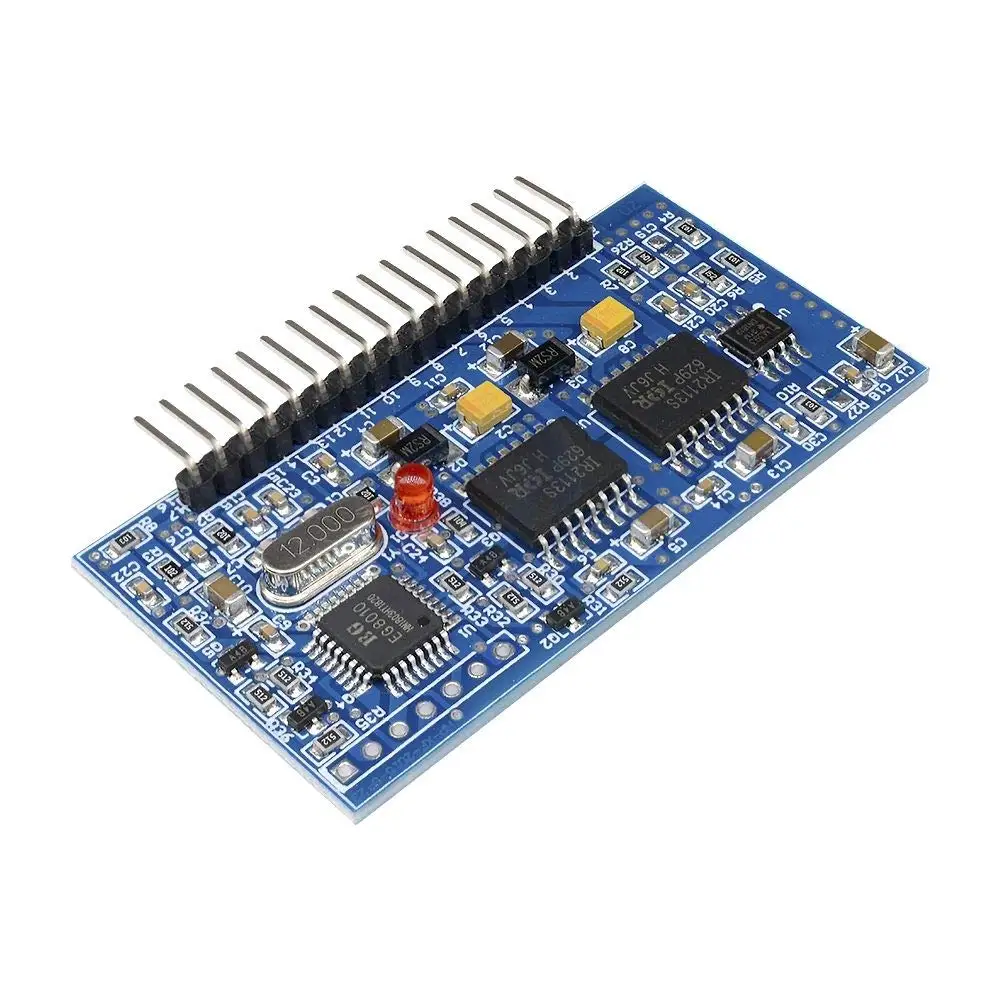

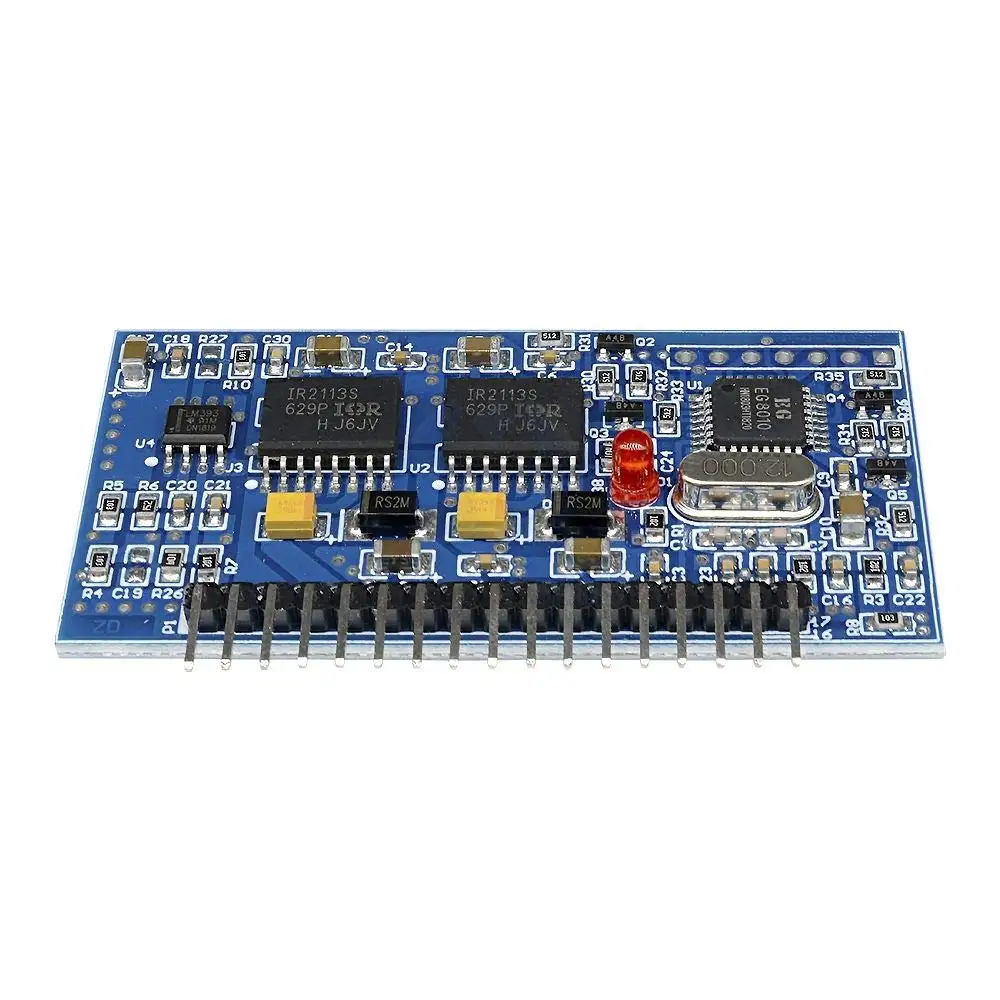

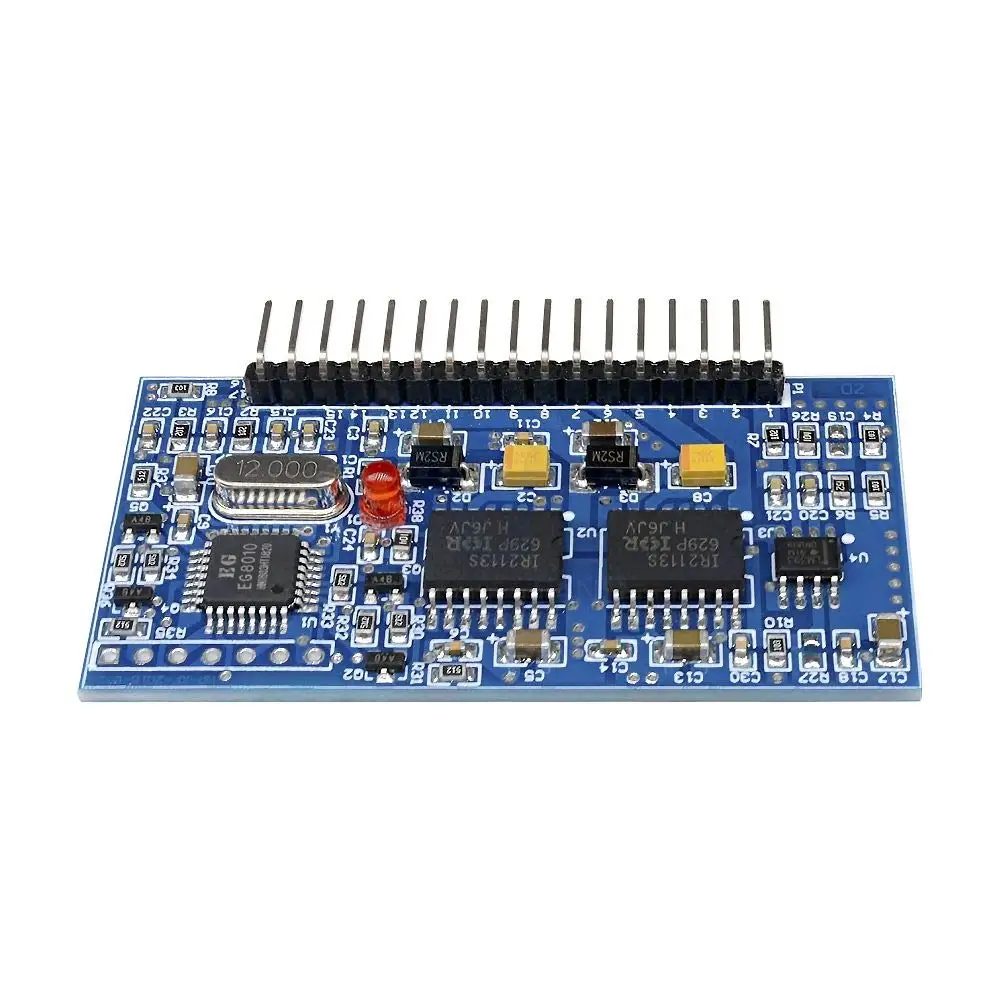

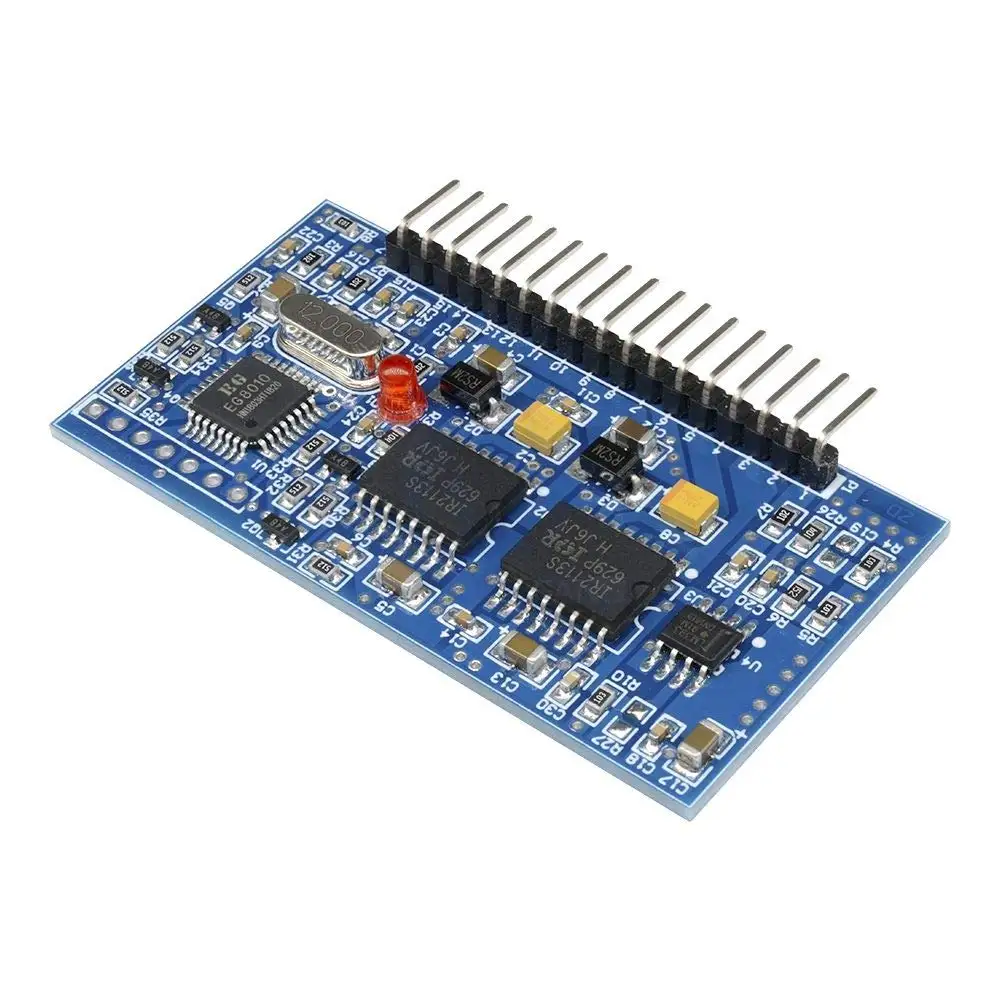

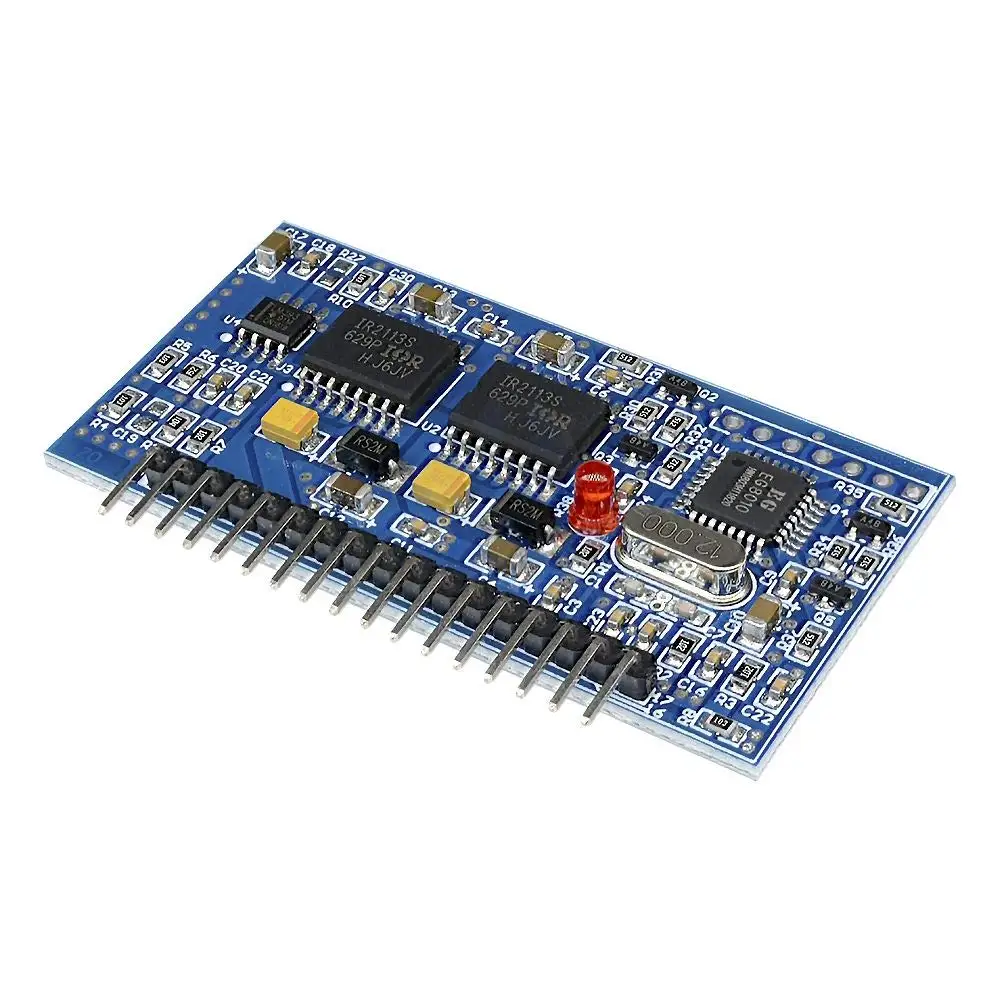

DC DC DC AC Pure Sine Wave Inverter Generator SPWM Boost Control Board EGS002 EG8010 IR2113 RS232 Serial 1602 LCD Drive Module

Features:

5V single power supply

4 pin set of pure sine wave output frequency:


50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz


pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable

Unipolar and bipolar modulation

Comes with deadband control, pin 4 dead time:




300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time

External 12MHz crystal oscillator

PWM carrier frequency 23.4KHz

Voltage, current, real time temperature feedback

Overvoltage, undervoltage, overcurrent and overheating protection

Soft-start mode pin setting the response time of 1S

Serial communication to set the output voltage, frequency and other parameters

External Serial LCD Module 1602 displays the inverter




voltage, frequency, temperature and current information




Applications:
Single phase pure sine wave inverter
PV Inverter
Wind power inverter
Uninterruptible Power Supply UPS System
Digital generator system
IF power
Single-phase motor speed controller
Single-phase inverter
Sine wave dimmer
Sine wave regulator
Sine wave generator



Package Included:

1 x DC-AC Pure Sine Wave Inverter Driver Board EGS002 EG8010 + IR2113 Driver Module
