Electricity-Heating Roller Sublimation Heat Transfer Machine
Machine Features
1. Advanced temperature control system, small temperature fluctuations, sensitive and accurate temperature control.
2. Advanced electurc-heat reverse function, uniform temperature around and around.
3. The use of high temperature resistant blankets by the Shanghai DuPont Joint Venture Company has flat blankets and low shrinkge.
4. With blanket and heat roller separation function, no cooling.
5. Teflon coating on the surface of hot roll, high temperature resistance, anti-static, long life.
Model | PT-C701 | PT-C702 | PT-C703 |
Drum Diameter(mm) | 220 | 270 | 270 |
Heating Method | Electricity-Heating | Electricity-Heating | Electricity-Heating |
Printing width(mm) | 1.6M | 1.6M | 1.8M |
Power | 12KW | 18 KW | 23KW |
Speed | 120m/h | 150m/h | 160m/h |
Temperature | 20-230℃ | 20-230℃ | 20-230℃ |
Voltage | 220V | 380V | 380V |

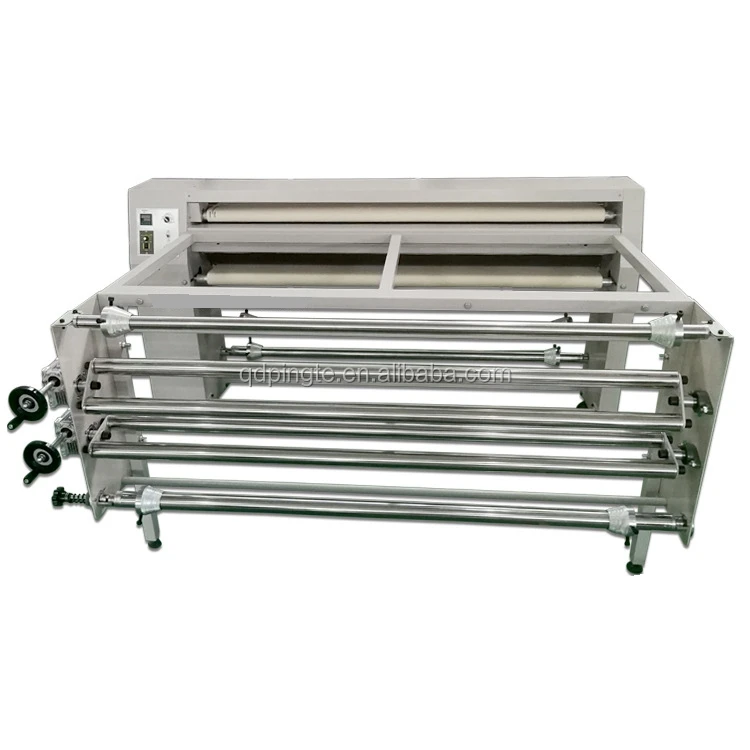

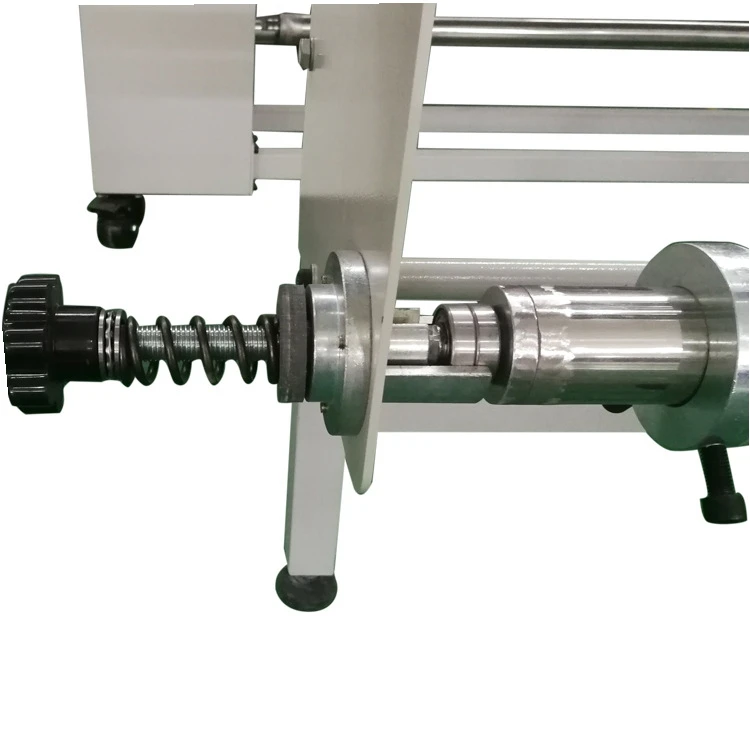

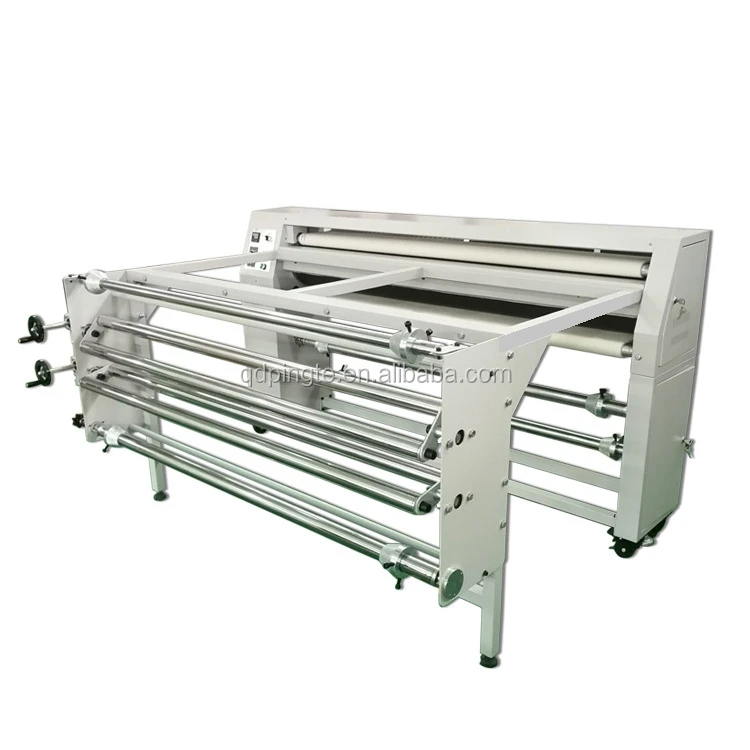

Machine Pictures:

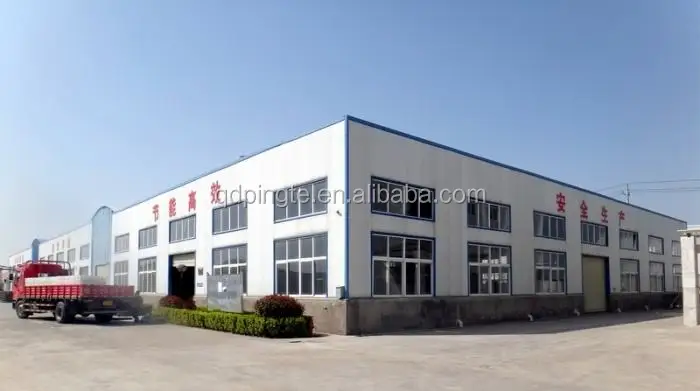

Qingdao Pingte Equipment Machinery Co., Ltd. is a comprehensive enterprise integrating R&D, manufacturing and sales. The company specializes in the production of screen printing equipment, screen printing table, drying machine and other printing equipment. We continue to develop and research new technologies, and strive to combine the perfection and practicality of the products.
The company's main products are:
Printing equipment - automatic screen printing machine, high-precision large screen printing machine, oblique arm semi-automatic screen printing machine, manual screen printing machine,
Heat press machine- roller heat transfer machine, automatic heat press machine and ;arge formate heat press machine.
Digital Printing Machine-- Roll to roll digital machine and flatbed digital machine.
Warranty:
1.For all our machines, we provide one-year warranty.
2.Life-long on-line technical support and provide free parts when problems occur within one year (not including shipping cost).
3. Technical engineer avalible when machine has any problem.
