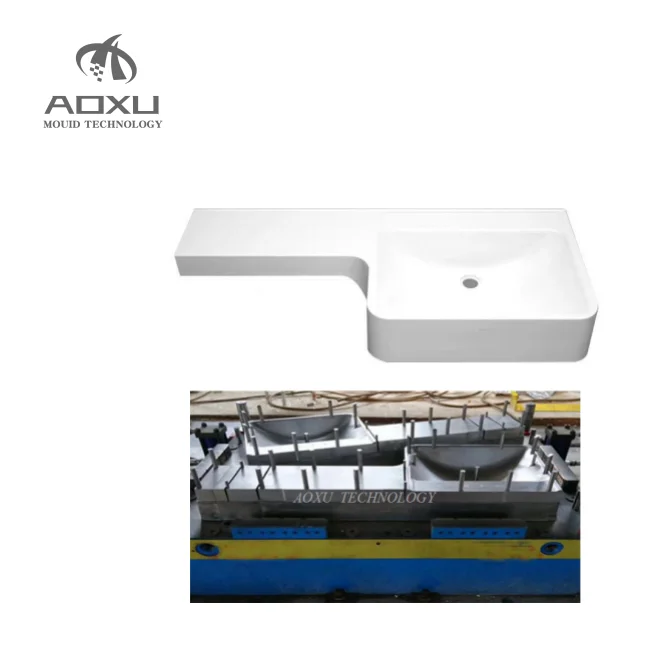

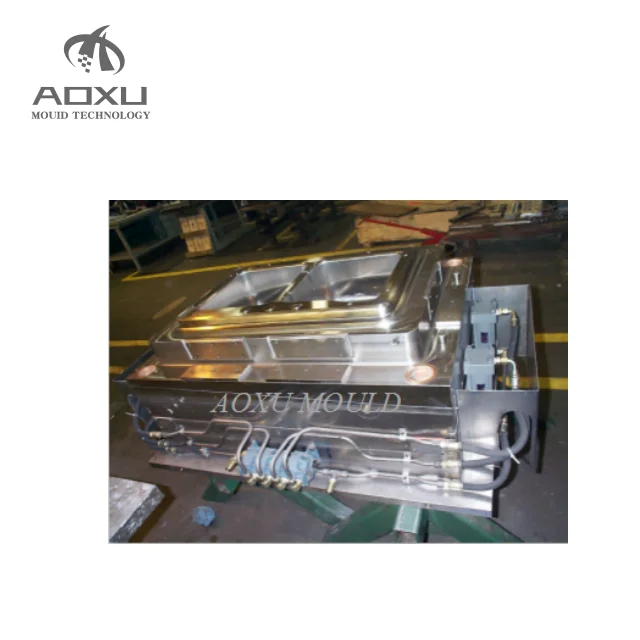

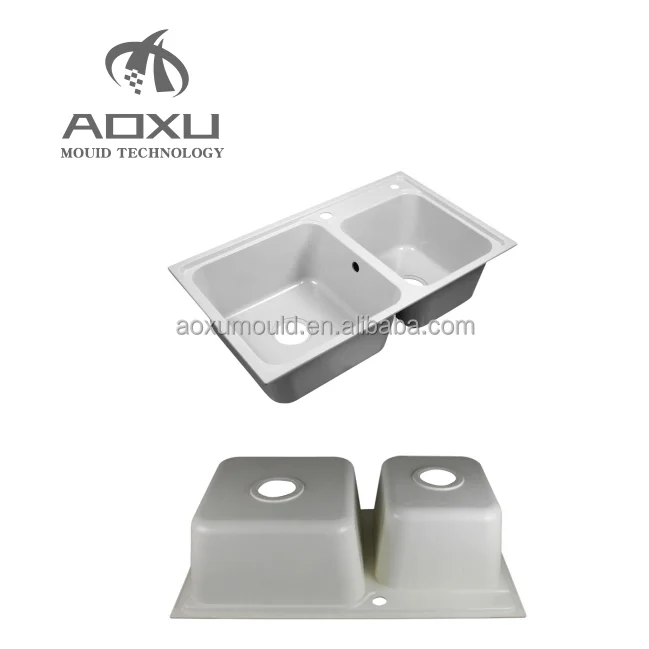

SMC washing Basin Mould

Product Overview

Description

SMC Mould Design

SMC stripper ejector plate thickness

The Ejector plate thickness should more than 30mm.

SMC heating hole distribution

The distance of heating hole and cavity should be 40-80mm.

Mould side core-pulling mechanism

SMC mould had batter not use the side core-pulling,if have to, try best to make the core-pulling shorten.

SMC mould Ejector method

Ejector rod is inside the SMC mould operate by hydraulic system and Mechanical system.

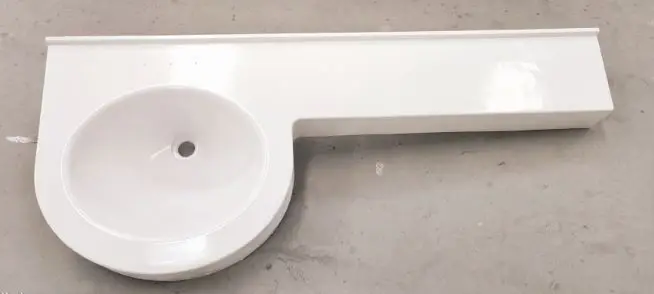

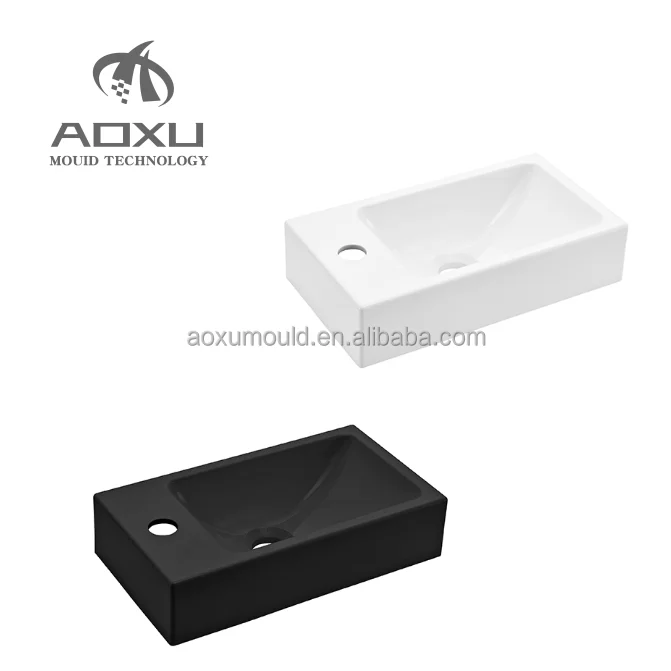

Other Types of SMC Basin



All the bathroom inter-platform basin or other SMC plates and toliet we could do.



We Can Do

1. Quarter Producing ability:Within the size 1500mm, we output is 150 pcs each quarter,Bigger mould need according to the complex of mould structure.

2. Mould Size: Biggest around 4-5m

3. Mould Weight:50T

4. Precision of Processing: Small Products are controlled within 0.05mm,Products size greater than 1000mm,the precision could controlled within 0.3mm.

5. Special Processing:Mirror discharge machining,Large EDM processing,CNC machining of large gantry.



What is Molding Compression?

Compression molding is the process of molding in which a preheated polymer is placed into an open, heated mold cavity. The mold is then closed with a top plug and compressed in order to have the material contact all areas of the mold.

This process is able to produce parts with a wide array of lengths, thicknesses, and complexities. The objects it produces are also high in strength, making it an attractive process for a number of different industries.

Thermoset composites are the most common type of material used in compression molding.







Why We Choose SMC Basin Plate?

1. Beautiful color like mirror

2. Integrated seamless joint

3. Long life as long as 50 years

4. No Toxic no flavour

5. Good heat preservation effect

6. Low price

7. it could instead of wood, china, glass,metal and artificial stone

8. New Material has a good market



What Mould AoXu Company Do?

We mainly make SMC Compression Mould and Injection Mould of Vehicle.

Other daily use mould , Pallet mould, paint bucket mould are also making.

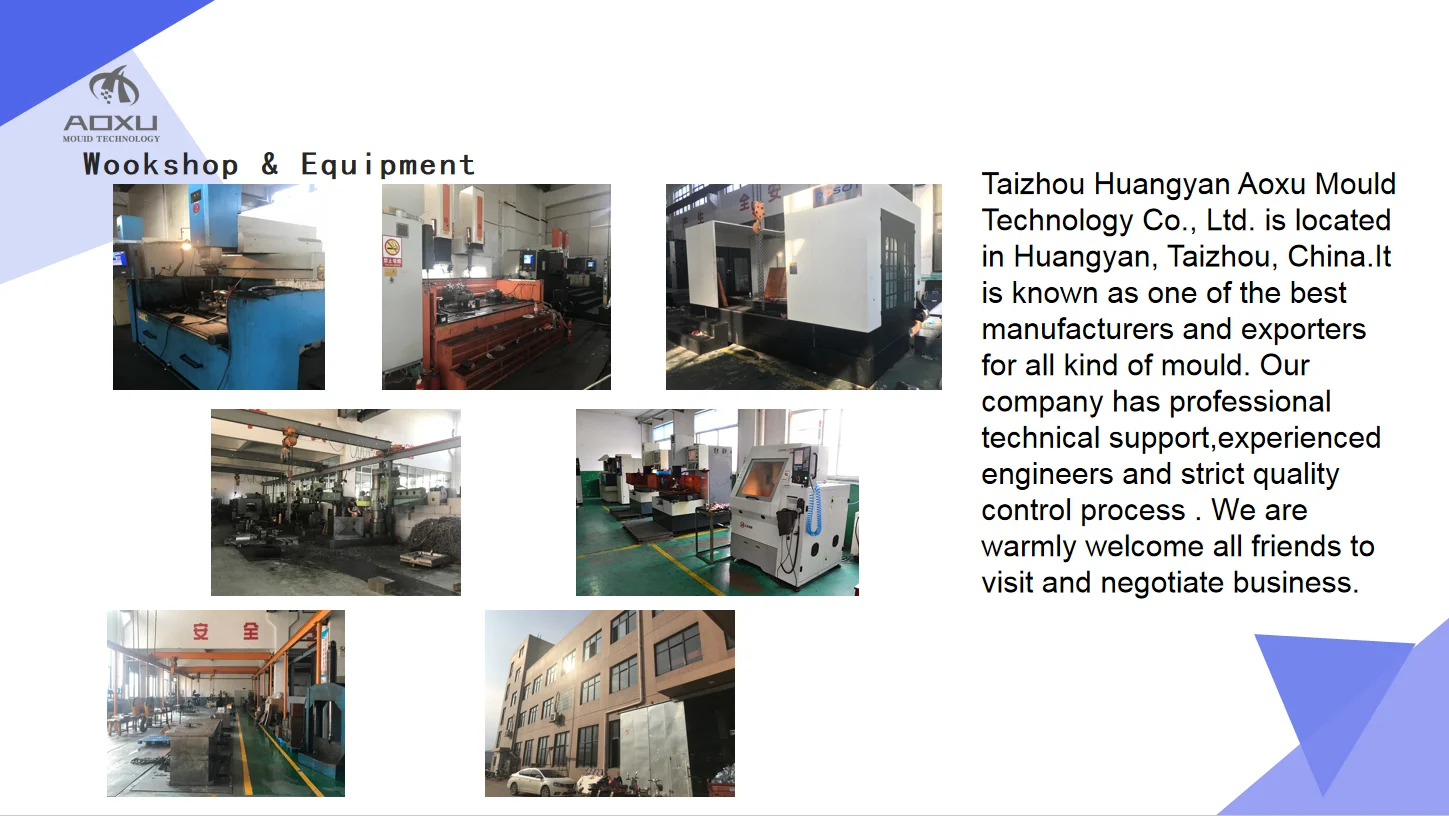

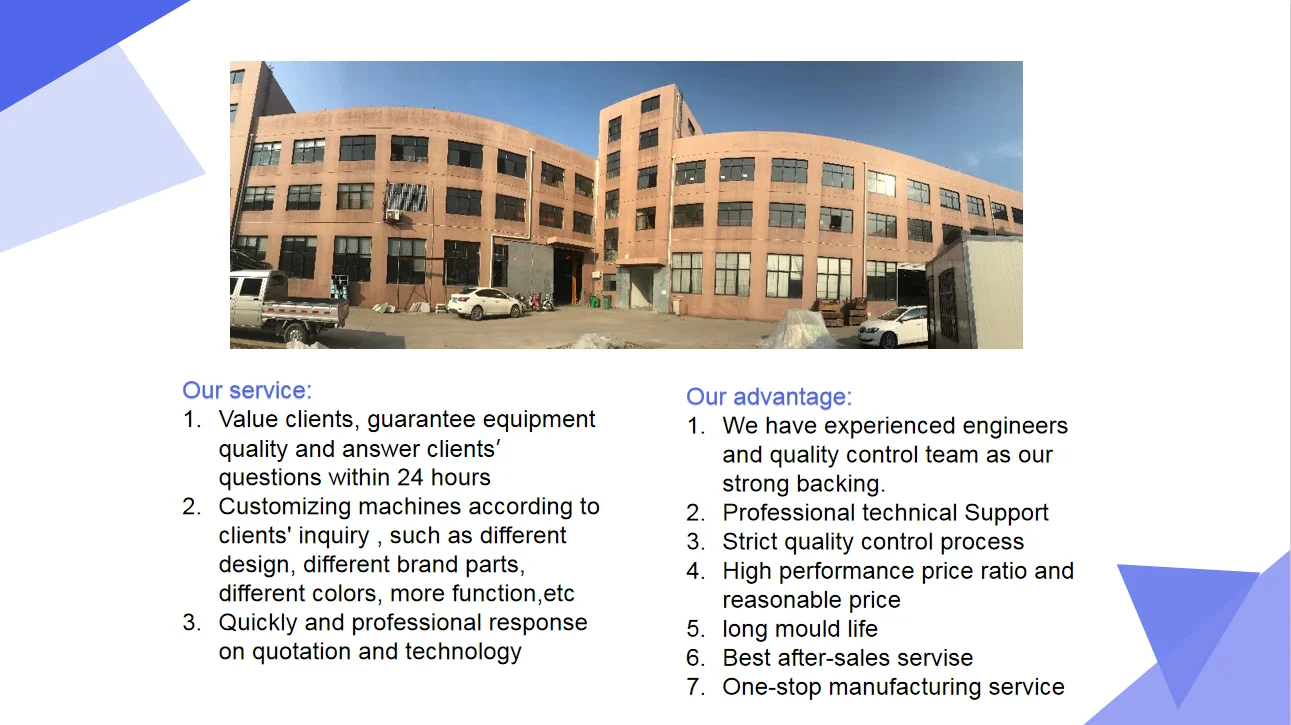

There are 6 CNC Processing Machine and 22 workers in our company.

At upstairs,we have design department, trading department,administrative department. And many people are in our factory for more than 10 years.

At the same time,we also have after- service, if your mould has any problems,contact us. Our mould has 1 year quality assured period.
