Product Overview

Description

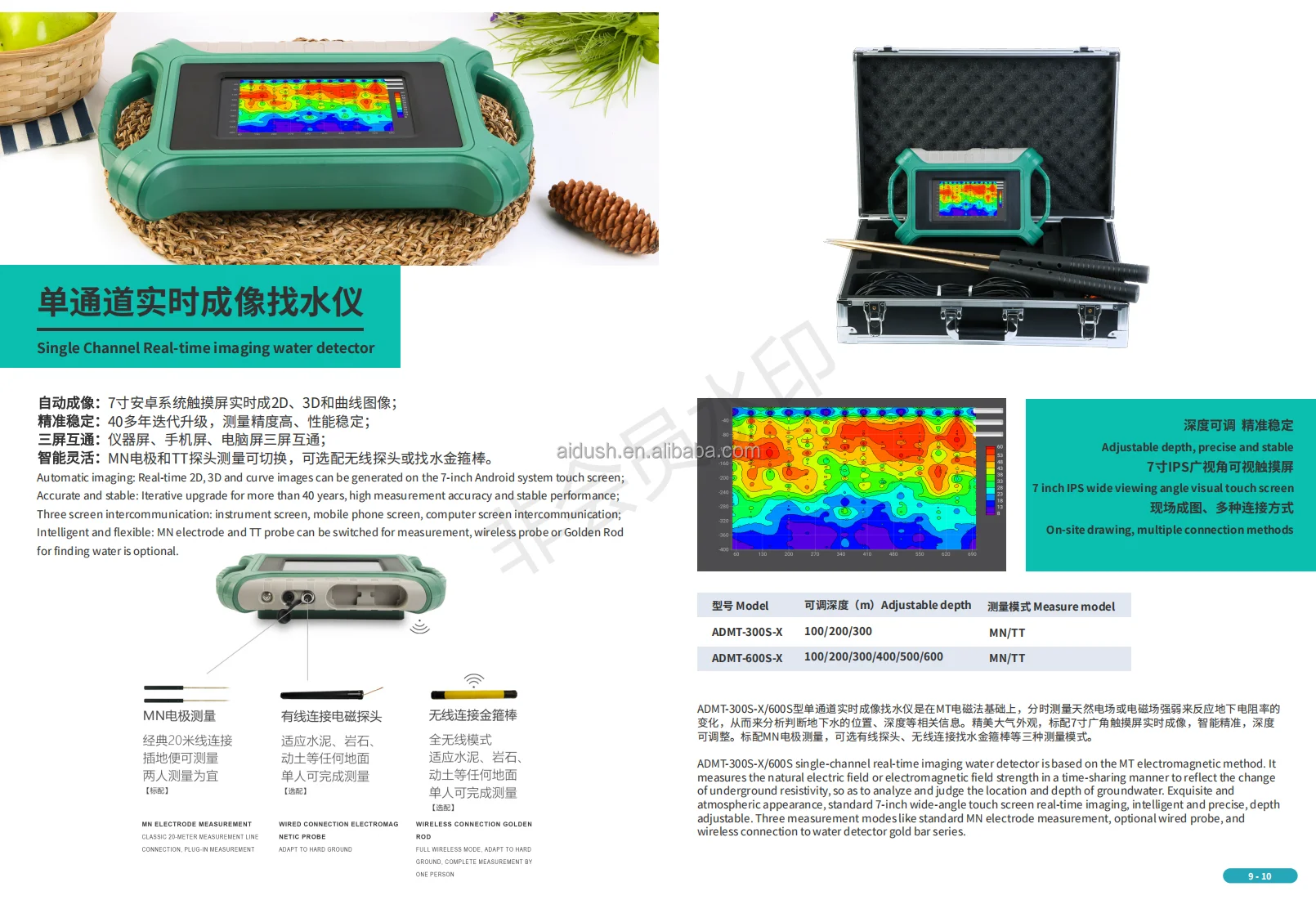

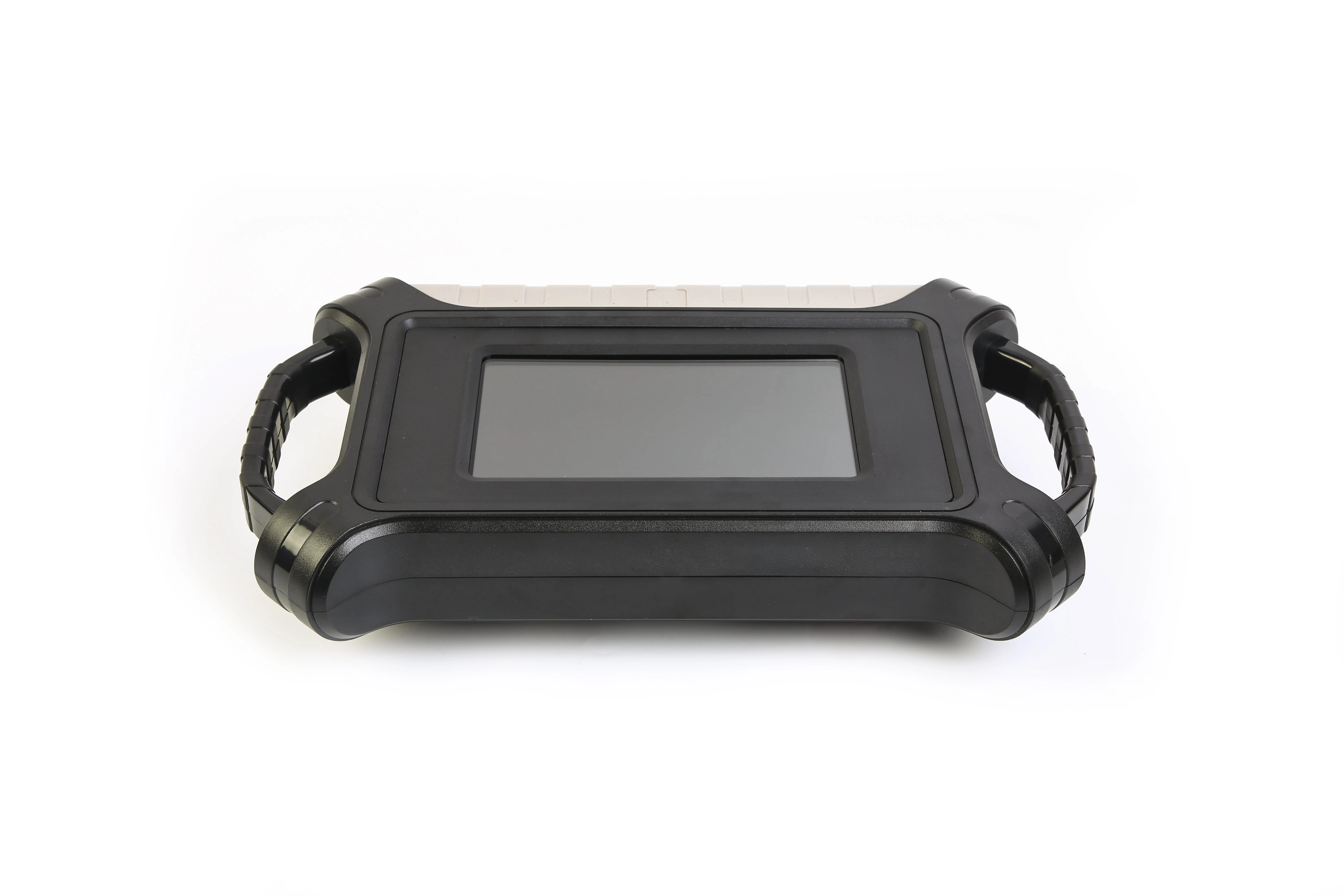

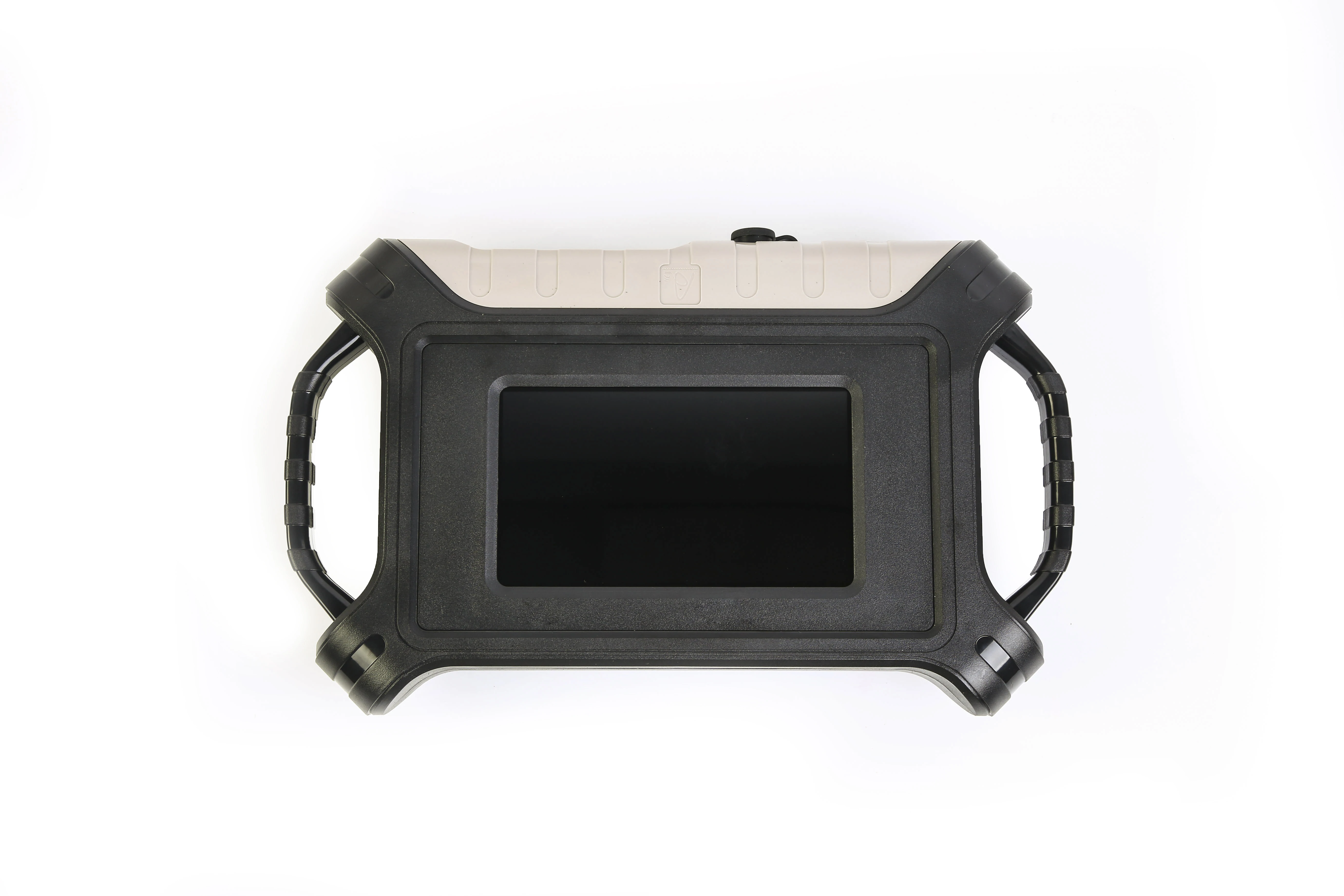

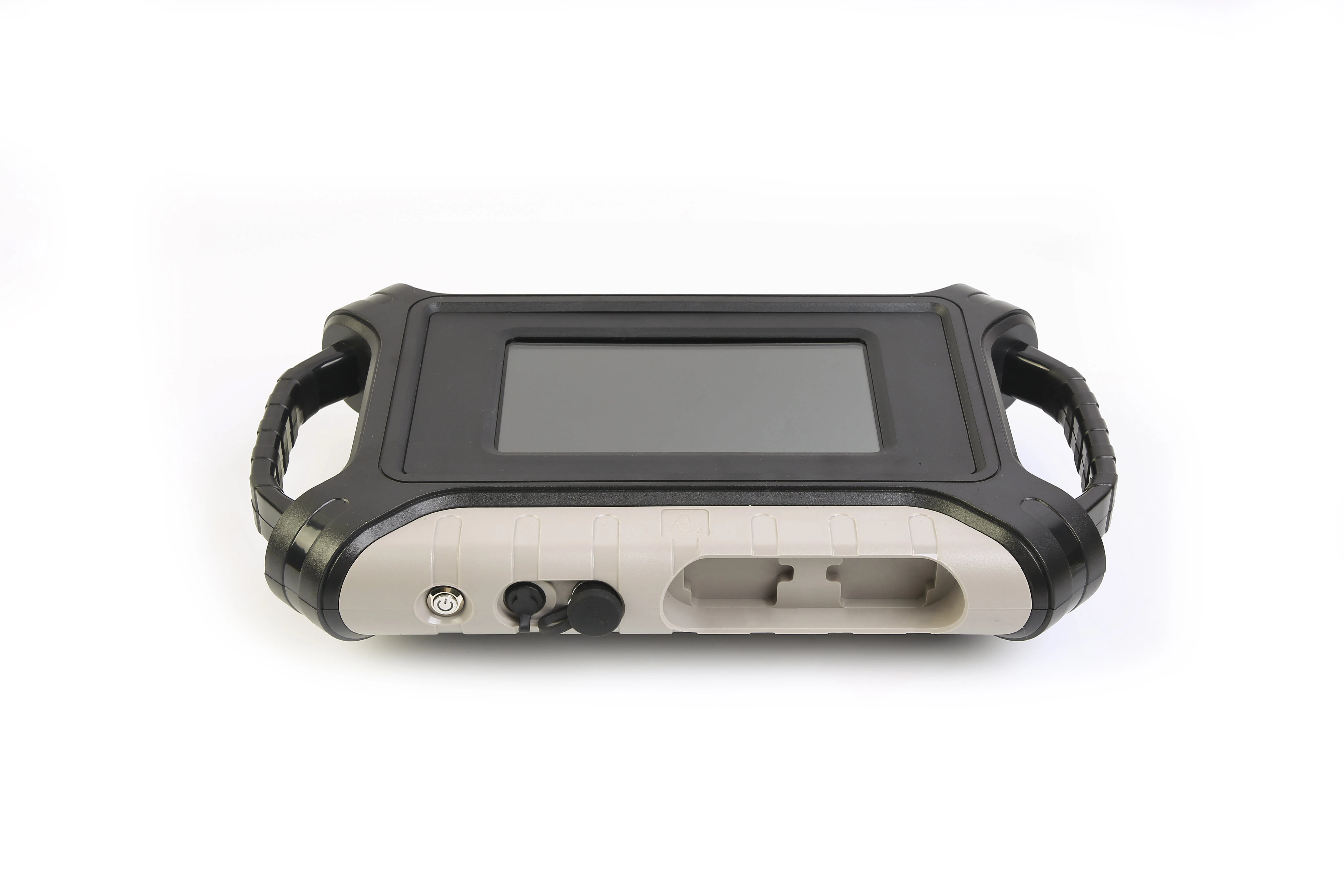

  Multilingual Geological Exploration Gold Mine Detector









ADMT-200AX mobile phone Water detector is the world’s first Internet of Things instrument, which is developed together with Guilin Technology Hydrogeological Investigation Institute.

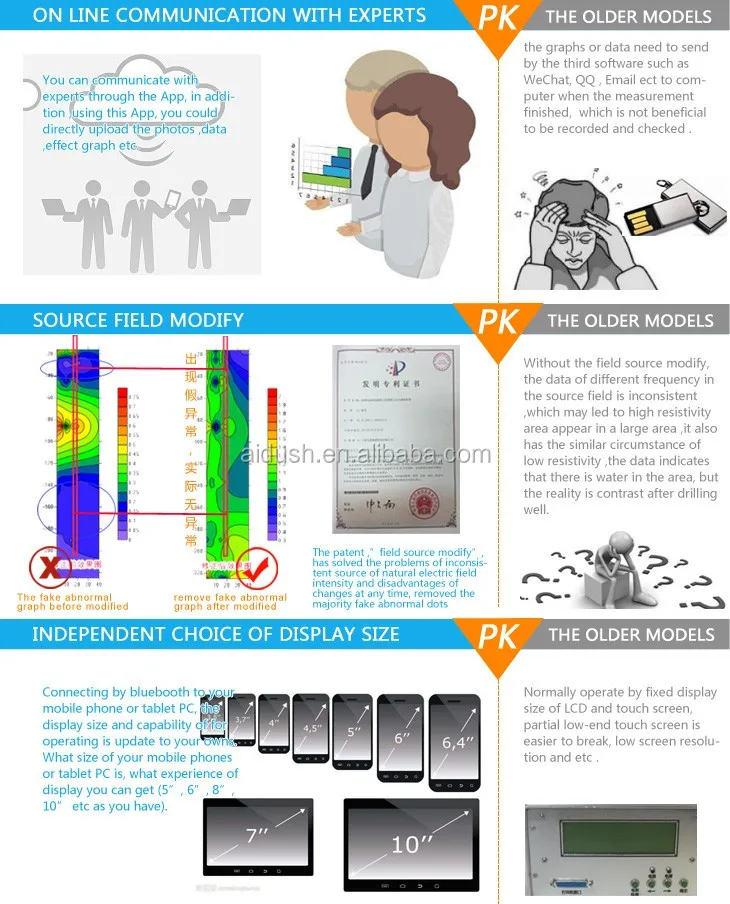

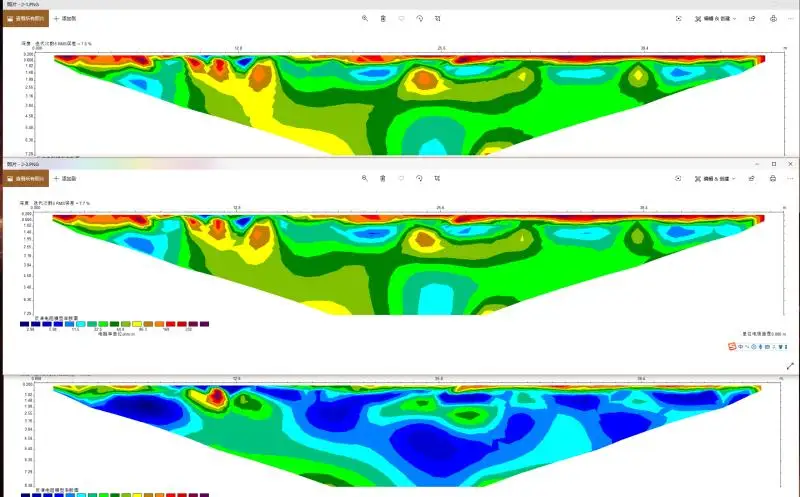

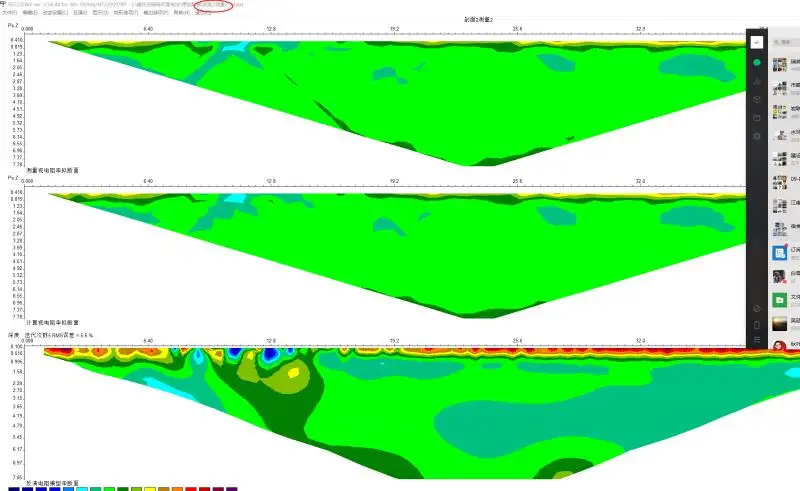

Based on over 40 years R&D design and exploration, the mobile phone water detector realize the technology that you can use the mobile phone or tablet PC to do complex data calculation, then the graphs will automatic form, store in the cloud, and you can communicate with experts advisors on line about your graphs.



Besides, if use our probes to measure, then you can wirelessly detect. It uses the mobile phone’s Bluetooth to connect.

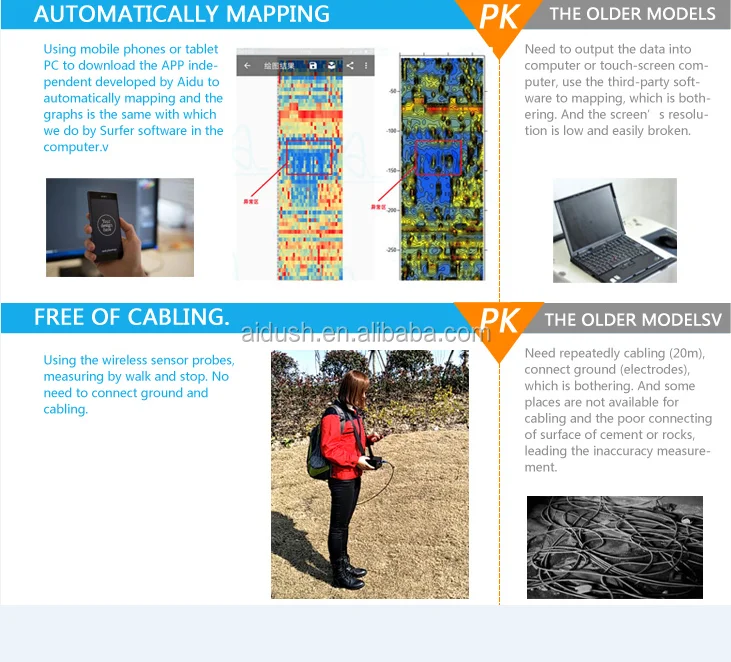

And in the “M N input”, you can use traditional MN cable lines or wireless sensor to measure. If with wireless sensor, you don’t have to cabling and can just measure by walk and stop, free of USB disk, detection button. Automatcally mapping by mobile phone, communicating with experts advisors online, uploading the data into cloud and store permanently.



Multilingual Geological Exploration Gold Mine Detector :



parameter        model	ADMT-200AX	ADMT-500AX	ADMT-200AX-16D	ADMT-500AX-16D
Maximum depth (m)	≤200	≤500	≤200	≤500
Channel input	Single-channel		16 channels , the maximum electrode spacing is 5 m
Channel selection	1		1—14
Optional depth	5/10/20/40/60/100/200m(60/100/200/300/400/500m)
Depth layering	10-100
Connection method	Serial port, Wifi, Bluetooth 4.0, USB
Display screen	7 inch IPS wide-angle viewing screen		10 inch IPS wide-angle viewing screen
operating system	Android6.0.1 running memory 1G memory 8G (expandable 128G)
CPU	ARM Cortex-A7 8-core CPU 2.0Hz
GPU	Open GL ES 2.0

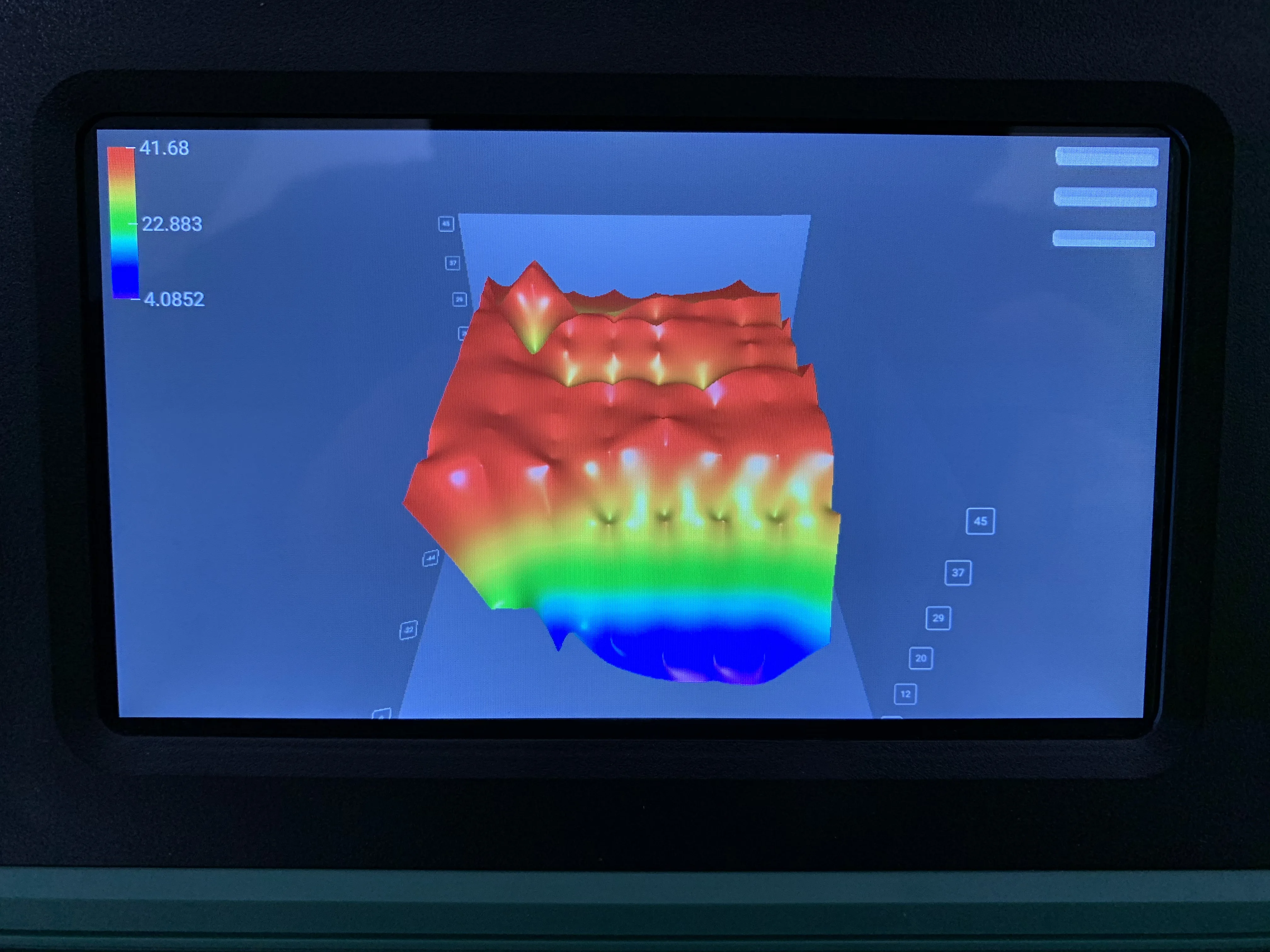

The main function	Optional depth, optional number of channels, real-time 2D/3D drawing, removable battery
Frequency range (HZ)	1-8K
Measurement mode	MN/TT
Resolution	0.01mV±2%
Sampling time (seconds)	40—3600
Battery power consumption	700mA/H		900mA/H
Host weight	2.6kg		2.8kg

 Purchase option: wireless sensor:

parameter/model	ADMT-C1 high frequency	ADMT-1 low frequency	ADMT-C2	ADMT-C3	ADMT-C4	ADMT-C5	ADMT-C6
detect depth	0-300M	0-500M	0-600M	0-800M	0-1200M	0-2000M	0-3000M
frequency range	30K-40HZ	2K-5HZ	30K-5HZ	30K-1HZ	30K-0.1HZ	30K-0.01HZ	30K-0.001HZ
resolution	2MV	1MV	0.5MV	0.2MV	0.1MV
operating temperature	-10°C-+40°C		-20°C-+60°C		-40°C-+70°C
mainframe size	20.8*9.8*9.8CM		41.6*9.8*9.8CM	62.6*9.8*9.9CM	80.2*9.8*9.8CM	110*9.8*9.9CM	130.8*9.8*9.9CM
mainframe weight	2.6KG	2.8KG	5.4KG	8.2KG	10KG	12.8KG	15.6KG
