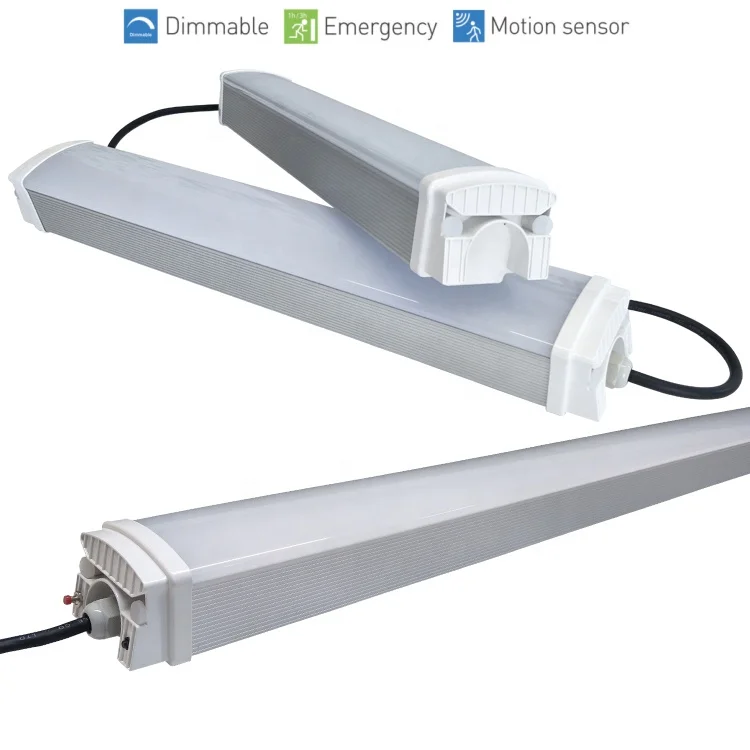

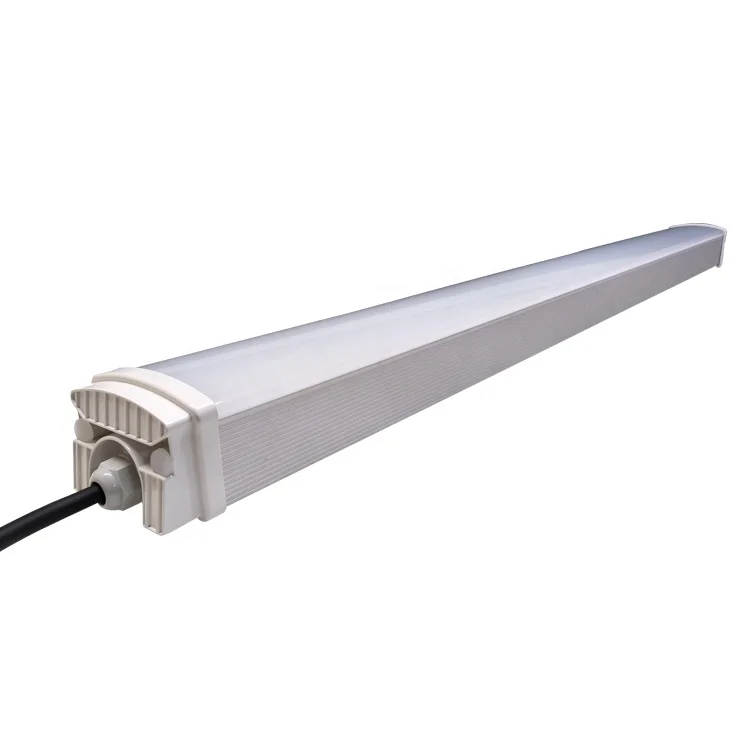

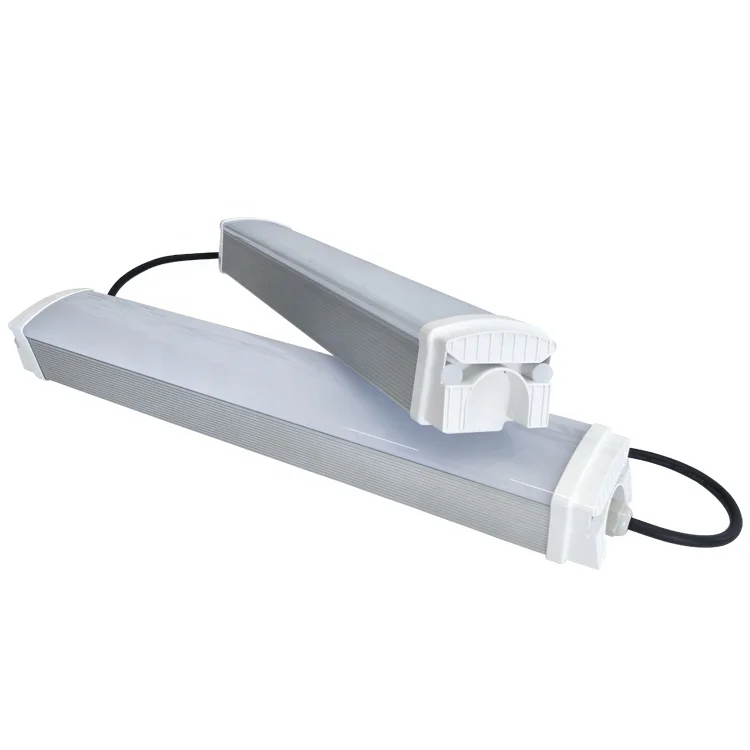

The lamp is designed with dust-proof, damp-proof, water-proof, Corrosion-proof, anti-explosion IK10 etc

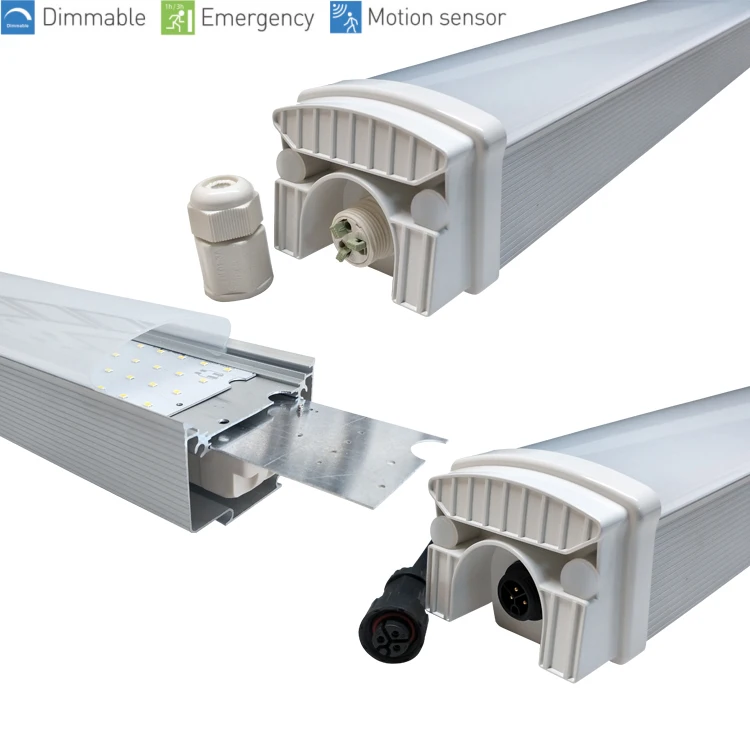

1. Dimmable / Emergency / Motion sensor features can be added to this products. 2. AC100-277V wide voltage input or AC200-240V, internal isolated led driver used and output voltage DC30-42V, safe, stable and reliable 3. 6063 aluminum alloy housing used with high thermostability, high strength anti-impact and good toughness 4. Aluminum PCB clings to the heat sink closely, high thermal conductivity, good heat dissipation 5. The cover and outer housing are sealed withelasticity rubber band and water-proof silicone rubber which makes the protection rate to be IP66 6. Packaged by double cartons layers to make it safer for transportation 7. 5 years warranty for overall products
Item no.
Power (W)
Size(mm)
LED Q'ty
Power factor(PF)
Color temp (k)
Color-redenring index (CRI)
FBT-TP65-10W1F-H
10W
300*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-20W2F-H
20W
600*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-30W2F-H
30W
600*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-30W3F-H
30W
900*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-40W3F-H
40W
900*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-40W4F-H
40W
1200*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-50W4F-H
50W
1200*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-60W4F-H
60W
1200*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-50W5F-H
50W
1500*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-60W5F-H
60W
1500*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-80W5F-H
80W
1500*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-60W6F-H
60W
1800*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-80W6F-H
80W
1800*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
FBT-TP65-100W8F-H
100W
2400*91*75
SMD 2835
>0.95
3000-6500K
>82Ra
