Widely Used Cabinet Tray Drying Oven for Food/ Fish/ Meat/ Flower/Vegetable secador/wood dryer machine
- Category: >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. ltd.
Share on (62448487249):
Product Overview
Description
Product Description
Purpose of drying meat
The purpose of drying is to remove water or solvent from some raw material and semi-finished products so as to facilitate the packing,transportation,storage,processing and use of material.
Product Name: | Meat drying equirpment | |||
Material: | Steel / Stainless Steel | |||
Power (KW): | 6.3 | |||
Features: | Drying, Dehumidify, Fourth waste heat recovery technology, touch screen control, Programmable |
The working principle of meat drying equipment
The meat dryer can be equipped with a booster fan and a booster pipe in the drying room. Generally, the booster pipe can be installed on one side of the drying room, and one end of the booster pipe is connected to the booster fan. The booster fan can suck air through the booster pipe. The working principle is to suck in the hot air for drying meat products, which increases the pressure in the air supply chamber and the air volume of the air outlet, forming the air volume cycle of the drying room, which makes the drying time of meat products more Shorter, more energy-efficient, further improve the working efficiency of the meat product dryer, grasp these two points, the meat products will dry faster.temperature (18°C~75°C), humidity (10%~99%), and drying time (0.1 hour~2500 hours) of the heat pump dryer.
The drying process
Squid is generally required to be carried out at a relatively low temperature, and the temperature is set to about 35-45°C to avoid excessive drying temperature and damage to the quality of drying. At the same time, avoid rapid drying, which will cause the squid surface to crust, which will not facilitate the migration of moisture inside to the surface, resulting in false drying. Therefore, the drying speed must not be too fast. Set the temperature at a low temperature node of about 40℃. Use a negative pressure fan in a closed insulation room to increase the circulating air volume and wind speed inside the room, and dry at a uniform and slow speed. Usually 4-5 catties of wet squid get 1 catty of dried squid. The dried squid is clean in appearance, reddish in color, and tender and delicate in texture.
The applictaion of drying machine
The meat drying machine not only apply in sausage, ham, it also suitable in vegetable, agriculture products, fruit, noodles, tea, sludge and wood in many field.
Medicinal material dryers: Star anise dryer, Morinda officinalis dryer, Dendrobium dryer, Honeysuckle dryer,etc.
Wood dryers: Mahogany furniture dryers, Furniture paint dryers, Rose wood, Bamboo stick dryers,etc.
Agriculture products dryer: Mushroom dryer, Longon dryer, Pitaya dryer, Tobacco dryer, Pepper dryer,etc.

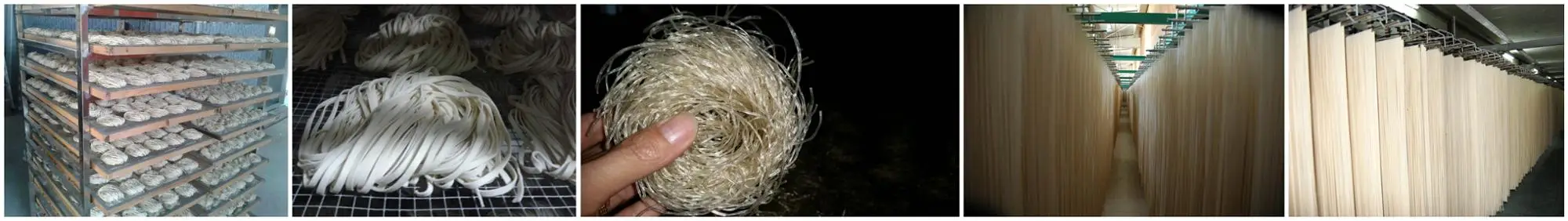

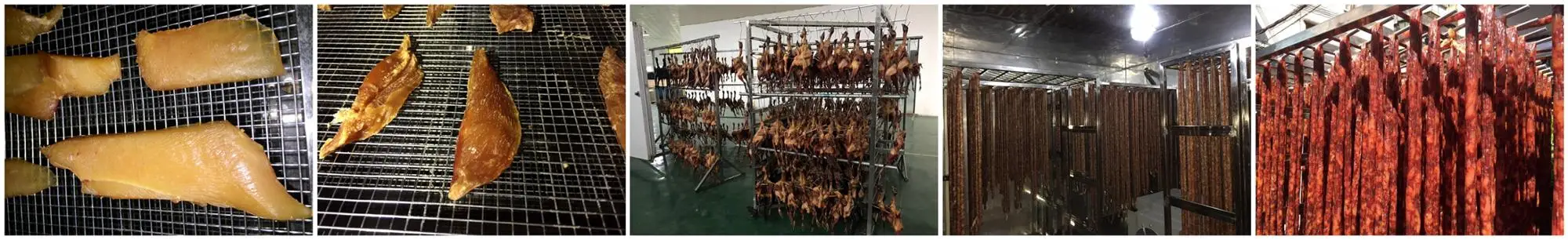

Food dryer: Sausage dryer, Bacon dryer, Preserved fish dryer, Noodles dryer, Rice flour dryer,etc.
Tea dryer: Pu 'er Tea, Lemon tea, Yerba mate ,Ceylon Tea, Iron Buddha, Jasmine tea,etc.

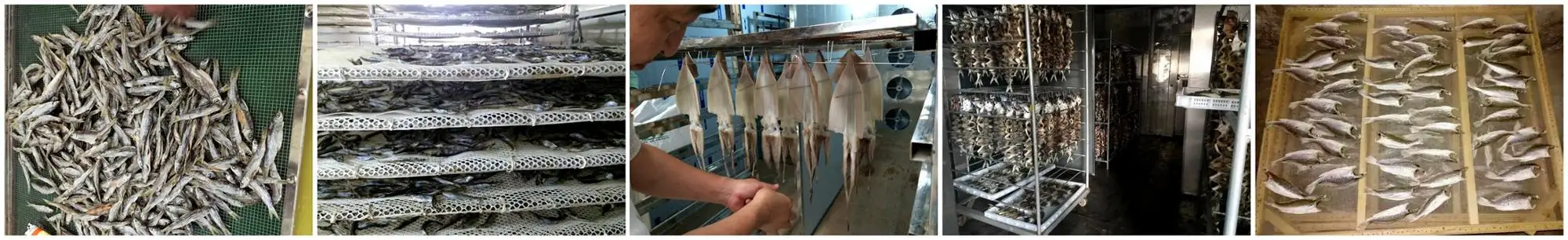

Seafood dryer: Squid dryer, Abalone dryer, Shrimp dryer, Marine dryer,etc.
Agriculture products dryer: Mushroom dryer, Longon dryer, Pitaya dryer, Tobacco dryer, Pepper dryer,etc.
Food dryer: Sausage dryer, Bacon dryer, Preserved fish dryer, Noodles dryer, Rice flour dryer,etc.
Tea dryer: Pu 'er Tea, Lemon tea, Yerba mate ,Ceylon Tea, Iron Buddha, Jasmine tea,etc.
Seafood dryer: Squid dryer, Abalone dryer, Shrimp dryer, Marine dryer,etc.
Equipment core components
The compressor:adopts the well-known brand Emerson Copeland compressor to provide more heat.
electrical accessories:adopt the well-known brand Schneider Electric accessories to make the quality replacement more stable.
The control system:adopts the best drying controller of Xingluo Electronics in the industry with complete functions. stable quality.
Heat recovery device: extra-large heat exchange core, anti-corrosion setting, energy-saving and power-saving.
The control system:adopts the best drying controller of Xingluo Electronics in the industry with complete functions. stable quality.
Heat recovery device: extra-large heat exchange core, anti-corrosion setting, energy-saving and power-saving.
Product features
1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.
2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge.
3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.
4.Use is not affected by the weather.Whether it's cloudy or rainy, windy or snowy.
5.The equipment is durable, one-time investment, long-term benefits
5.The equipment is durable, one-time investment, long-term benefits
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | Drying room size can be customized under your requirements. |
One unit YK-72RD | 100KG/batch | 4000*2400*2400mm | 4 | |
Two units YK-72RD | 200KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-120RD | 150KG/batch | 4000*2400*2400mm | 4 | |
Two unit YK-120RD | 300KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-145RD | 400KG/batch | 5000x3000x2400mm | 8 | |
Two units YK-145RD | 800KG/batch | 8000x3000x2400mm | 12 | |
One unit YK-240RD | 600KG/batch | 6000x3000x2400mm | 8 | |
Two unit YK-240RD | 1200KG/batch | 10000x3000x2400mm | 16 | |
One unit YK-290RD | 1000KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-290RD | 2500KG/batch | 12000x3000x2400mm | 20 | |
One unit YK-360RD | 1500KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-360RD | 3500KG/batch | 12000x3000x2400mm | 20 |
Details Images
Fan rack and fans
Trolley
Heat Pump Dryer
Polyurethane board
Temperature and humidity probe
Dehumidification fan
Trolley | ||
Material | 304 stainless steel | |
Size | 1210*870*2000mm | |
1010*870*2000mm | ||
870*610*2000mm | ||
1400*870*2000mm | ||
Tray | ||
Sort | size | |
Punching tray | 800*600*50mm | |
Solid tube edge tray | 800*600*50mm | |
Plastic tray | 800*600*50mm | |
Mesh tray | 800*600*50mm | |
Related Products
Model:YK-290RD
Click on me!
Model:YK-72RD-CH
Click on me!
Model:YK-240RD
Click on me!
Model:YK-145RD
Click on me!
Model:Yk-480RD
Click on me!
Model:YK-24E
Click on me!
Successful cases
Product packaging
The goods are ready for Tanzania
The goods are ready for India
The goods are ready for Thailand
Packaging | ||
Size | 5.89m (L) * 2.33m (W) * 2.38m (D) | |
Weight | 3T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). | |
If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
Packaging | ||
Size | 12.045m (L) * 2.340m (W) * 2.379m (D) | |
Weight | 5 T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). | |
If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
Certifications
After Sales Service
Before arrival of machines:
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
