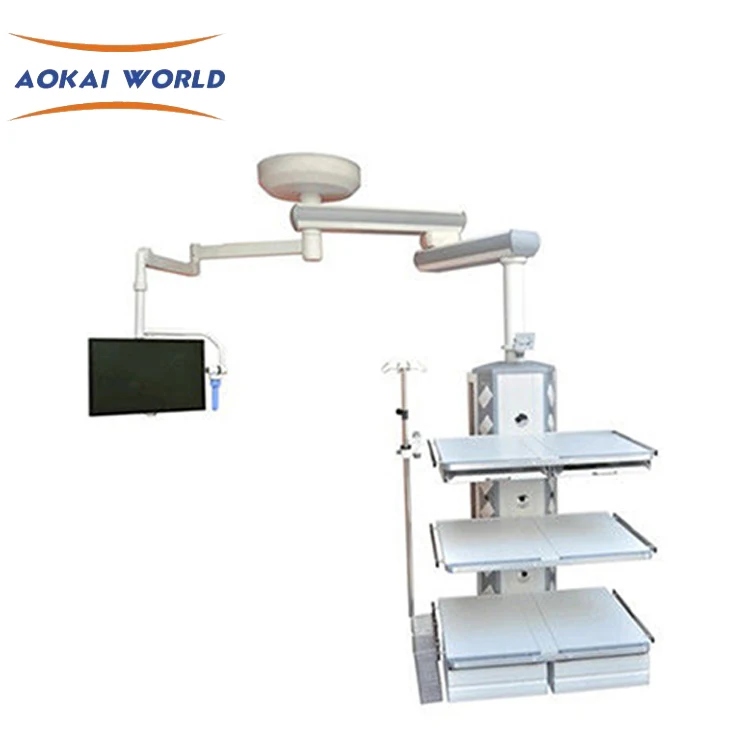

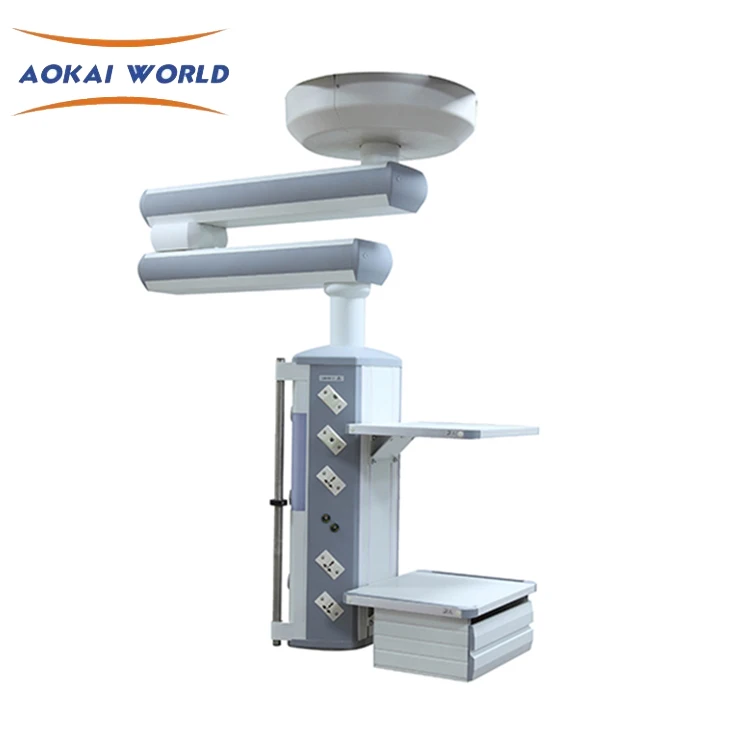

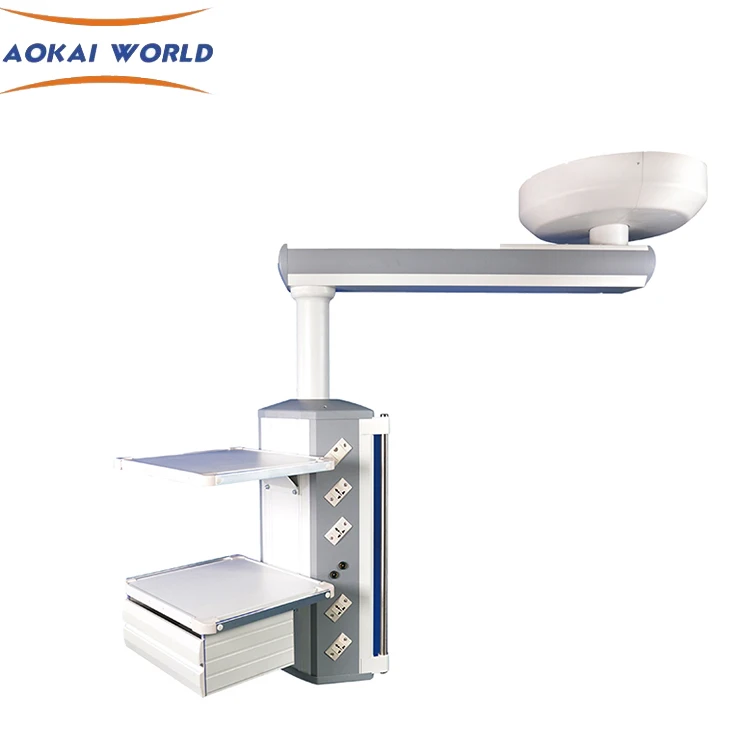

Double Arm Ceiling Medical Surgical Medical ICU Pendant for Surgery

Share on (62448643255):


Price:RUB 126,356.07 - RUB 185,817.75

Quantity:


Product Overview

Description

 Double Arm Ceiling Medical Surgical Medical ICU Pendant for Surgery

_01

2

1

Introduction:

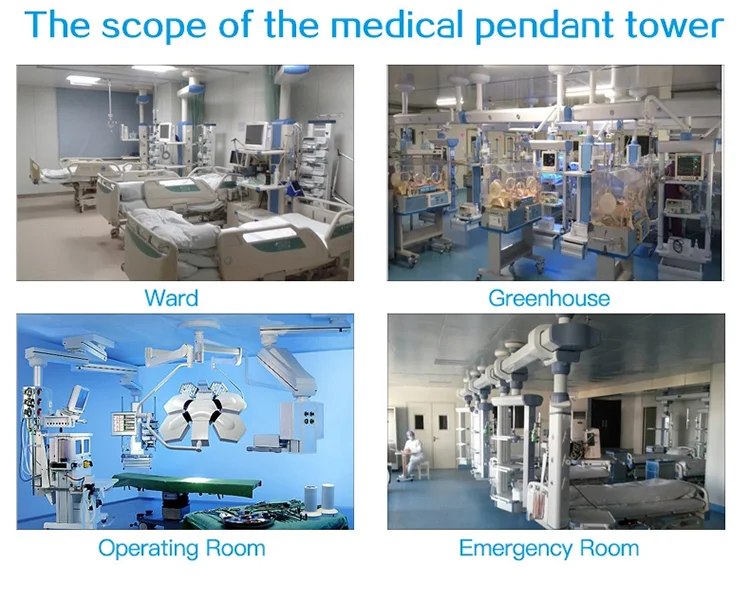

1. Medical Pendant Applicative Area: Surgical Room/ Emergency Room/ICU/Recovery Room

 2. Ceiling Mounted installed.Within 340°revolved,Adjustterminal box location,convience for medical staff operation.

3.The suspension arm is imported by high-strength aluminum alloy extrusion, surface  designed by the first level oxidized rust prevention.

4.Friction brake + Pneumatic brake,adopted by German Standard Gas terminal(Insert and Pull more than 20,000 times.)


Specification:
TypeAK-SS90/160 pendant system for hospital
Surgery Pendant ArmDouble
Surgery Pendant Arm Length950mm+800mm
Surgery Pendant Column Length1000mm
Maxium load capacity160kg
Multi-purpose power socket 6
Surgery Pendant Electrical Power ~220V, 50Hz
Surgery Pendant Braking SystemFriction brake



Optional:

Double Arm
Medical Equipment Shelves Quantity1~5 pcs optional, place adjustable
Medical Gas Outlets Standards:British, German, French, Metric, Ohmeda, DISS, Chemetron, Purit-Bennett standards optional
Surgery Pendant Electrical Socketscan be customization by clients' request
Surgery Pendant Warranty1 year
Surgery Pendant Delivery time7 days

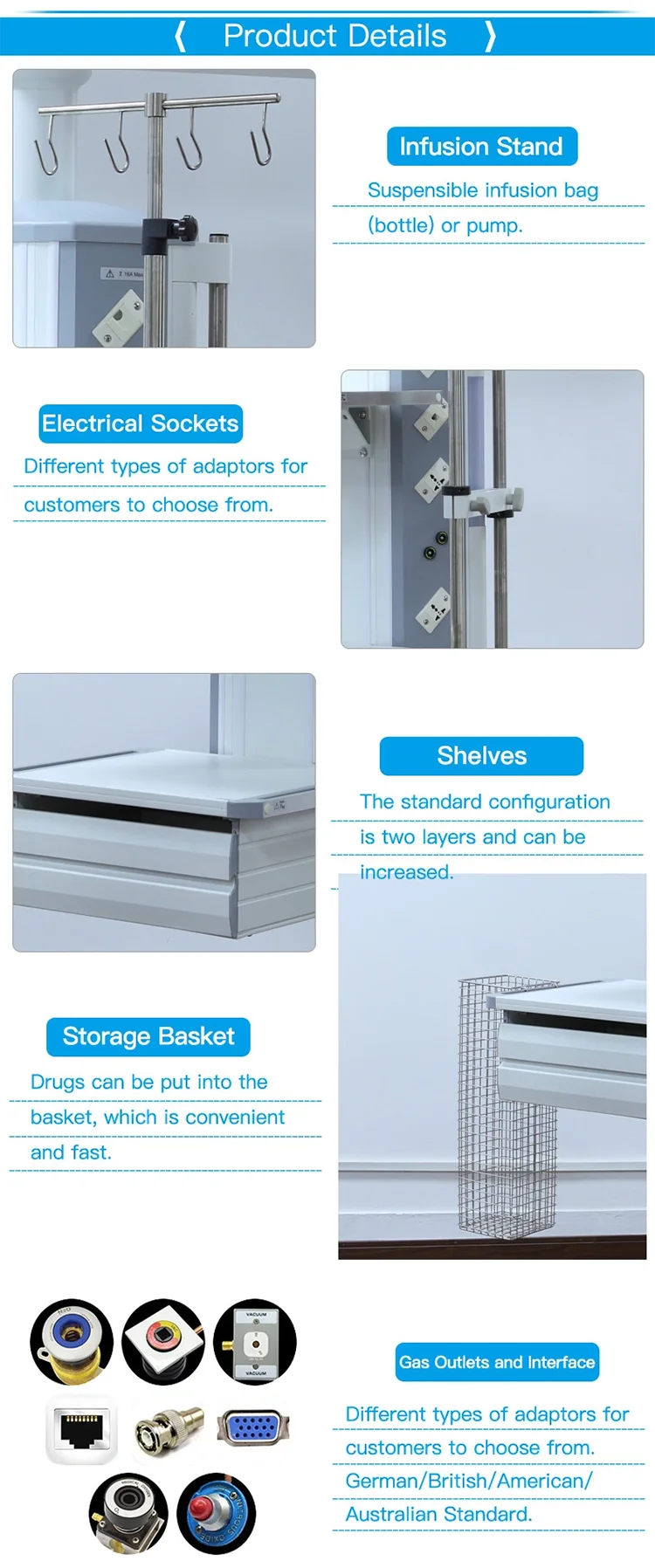

Product Picture

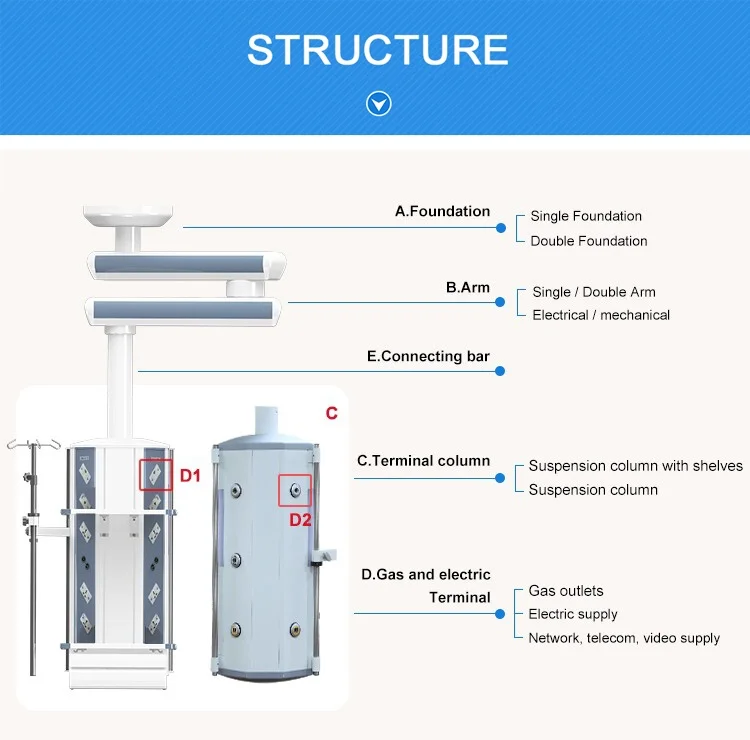

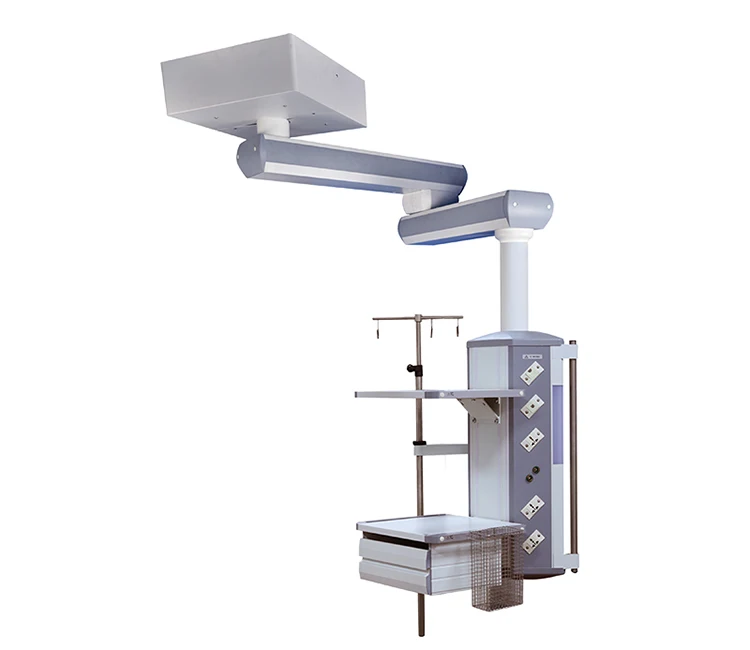

 AK-SS90 160 2 SS90 1601SS90 1602

SS90 1605SS90 1606

_05_06_07_08_09
