Dry Powder Pellet Pressing Die Set
- Category: >>>
- Supplier: ATHENA TECHNOLOGY
Share on (62448811279):
Product Overview
Description

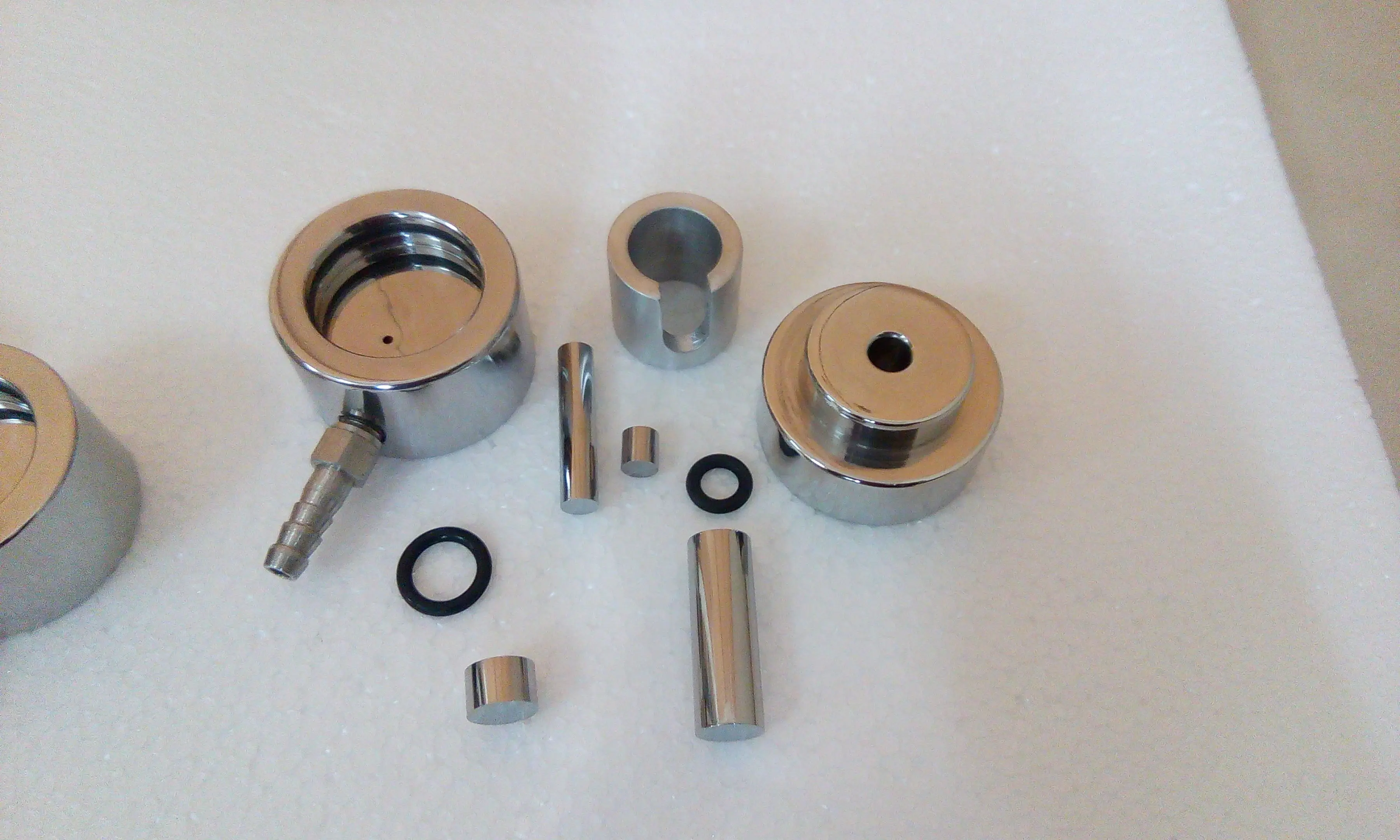

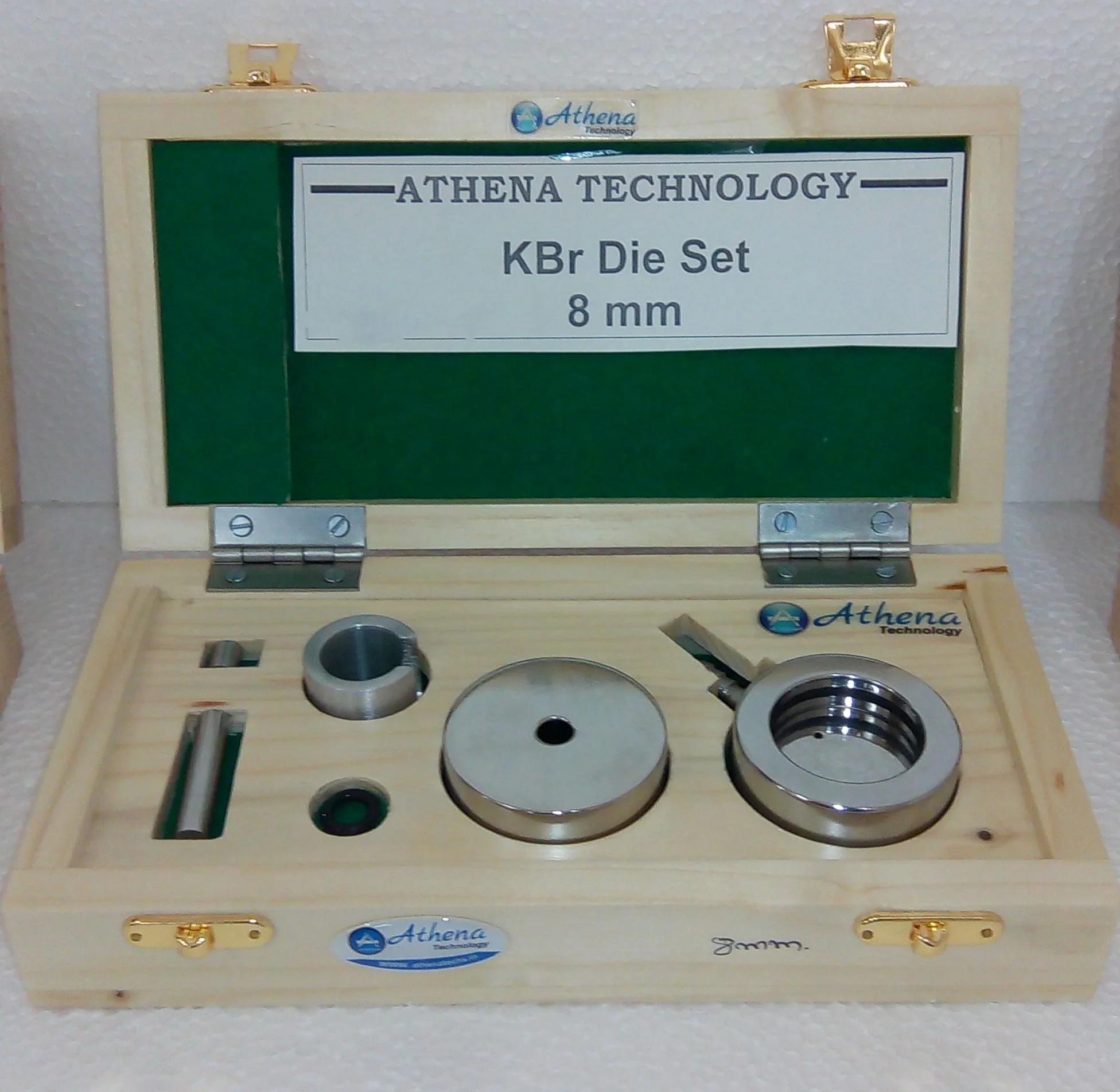

DIE Set for IR-FTIR and XRF, Evacuable KBr Die Set is used to form pellets/circular discs for IR-FTIR Solid Sampling /Analytical Purpose. Most commonly used die is of 13 mm dia. pellet size. 13 mm KBr Die consists of a two-piece outer die, tungsten carbide mirror finished punches (envils), pusher rod and pellet removal ring. Die is fitted with a nozzle for evacuation ( if required ). The die is manufactured from hardened stainless steel and can be easily dismantled for cleaning purposes . The entire set is enclosed in a velvetted teak-wood box , for safety and durability. The Die can be subjected to a Max. Load of 15 Tons.
Notes:
- Each part is separately available for replacement
- Tungsten Carbide is brittle in nature & is not guaranteed against breakage.
- Spare punches, pushers are sold in pairs only.
Dies are available in the sizes:
- 5 mm, 8 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 37 mm, 40 mm, 60mm.
- (Pls. refer to Hardened Alloy Steel Dies section)
13 mm KBr Pellet Holder:
Pellet Holders to suit the above sizes are manufactured by us, the standard being 13 mm Aluminium Anodized Pellet Holder.
Briquetting Pellet Dies:
- 3mm KBr die set
- 5mm KBr die set
- 5mm SS anvils
- 10mm KBr die set
- Set 2 replacement SS anvils, 10mm
- Set 2 tungsten carbide anvils, 10mm
- 13mm KBr die set with 2 SS anvils & assorted paper inserts for micro sample
- Set 2 replacement SS anvils, 13mm
- Set 2 tungsten carbide anvils, 13mm
- 16mm KBr die Set with 2 SS anvils, 16mm
- Set 2 replacement SS anvils,16mm
- Set 2 tungsten carbide anvils, 16mm
- 19mm die set with 2 SS anvils; Low profile fits 12 ton EZ Press
- Set 2 replacement SS anvils, 19mm
- 20mm die set with 2 SS anvils
- Set 2 replacement SS anvils, 20mm
- Set 2 tungsten carbide anvils, 20mm
- 25mm die set with 2 SS anvils
- Set 2 replacement SS anvils, 25mm
- Set 2 tungsten carbide anvils, 25mm
- 32mm die set with 2 SS anvils
- Set 2 replacement SS anvils, 32mm
- Set 2 tungsten carbide anvils, 32mm
- 35mm die set with 2 SS anvils
- Set 2 replacement SS anvils, 35mm
- Set 2 tungsten carbide anvils, 35mm
- 40mm die set with 2 SS anvils
- Set 2 replacement SS anvils, 40mm
- Set 2 tungsten carbide anvils, 40mm
- 45mm die set with 2 SS anvils
Product Description
Evacuable Kbr & Briquetting Pellet Dies With enriched industrial experience and knowledge, we are providing our clients with a wide assortment of Evacuable Kbr & Briquetting Pellet Dies. These dies are commonly used for producing briquettes for XRF spectroscopy. Designed with utmost precision, the offered dies are manufactured using quality-proven raw material with the assistance of pioneered technology in synchronization with set industry standards. These dies undergo various tests in order to ensure their flawless nature.
Features:
- Aerospace Grade Hardened Stainless Steel
- Optically Polished Anvils
- Evaluable
Other Details:
- Hardened aerospace grade stainless steel is used to produce all of Athena die sets. The 3mm to 60mm dies are used primarily for KBr pellets for transmission analysis by IR spectroscopy, while the larger dies are most commonly used for producing briquettes for XRF spectroscopy. The 13mm Macro-Micro die is chosen by most spectroscopists for KBr pellets, and it is available with paper inserts with a variety of small apertures (1.5, 3, 5, & 11mm) that enable the user to make micro-pellets with a 13mm die set and also provide a useful frame for mounting and storing the pellets.
- All Athena dies have an upper and lower stainless steel section for ease of disassembly and they are sealed with viton seals. For ease of use, the weight was reduced in all die sets in the 13mm to 40mm range by adding an outer shield of aluminum. This feature makes them much easier to handle than 2 piece dies made completely from stainless steel due to their lighter weight, but without sacrificing strength or durability. The dies can be evacuated with a vacuum pump to reduce the moisture in the sample. 13mm and 20mm dies are typically used with 12 to 20 ton presses, while the larger size dies are used with 20 to 40 ton presses and are most commonly used for briquetting samples for XRF analysis.
- To enable preparation of the finest quality pellets and briquettes, anvils are optically polished to a mirror finish and are free from scratches or digs. All die sets in the 13mm to 40mm size range are available with optional extremely hard tungsten carbide polished anvils for use with abrasive samples.
- Water jacketed dies can be used for heating and cooling solid samples, and they are available in 5mm to 60mm diameter sizes.
