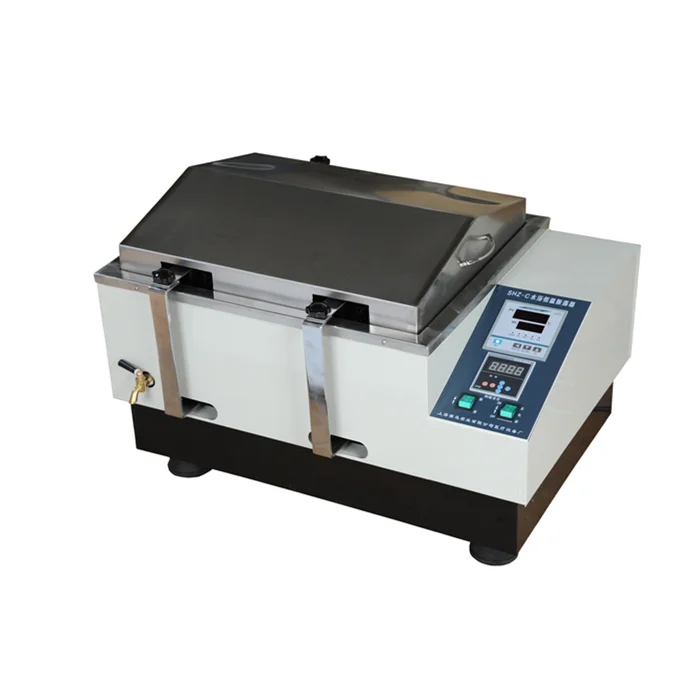

BOXUN water bath oscillator air bath thermostatic reciprocating shaker

Water Bath Shaker/Air bath Shaker

APPLICABLE SCOPE:
The shaker is widely used in experiments of pharmacy, such as germ culture, ferment, hybridization, and research of biochemical reaction, enzyme and cellular tissue. It has a wide and important range of applications in research of medicine, biology, numerator, pharmacy and environmental protection.

PRODUCT CHARACTERISTICS:
Microprocessor temperature and frequency controller (C Series) with the functions of timer and speed governing;
The working chamber is made of stainless steel which is easy to clean;
Be equipped with advanced universal clamp.

main feature
1. Temperature controlled accurate digital display.
2. It is provided with oxygen supply holes, and the constant-temperature working chamber has sufficient oxygen supply.
3. With mechanical timing.
4. Universal spring bottle holder is particularly suitable for the preparation of biological samples for a variety of comparative tests.
5. Stepless speed regulation, stable operation, simple and safe operation.
6. The inner cavity is made of stainless steel with good corrosion resistance.

BOXUN water bath oscillator air bath thermostatic reciprocating shaker
Steps
1. Load the test bottle and keep the balance. If it is a dual function model, set the oscillation mode. (See the last picture for detailed settings)
2. Turn on the power and set the timing time according to the scale on the surface of the machine. If you need to work for a long time, set the timer to the "normally open" position.
3. Turn on the power switch and set the constant temperature:
(1) Set the small control switch to the "Settings" section. At this time, the temperature displayed on the display is the set temperature. Adjust the knob to set the temperature you need for your work. (You set
The working temperature should be higher than the ambient temperature, at this time the machine starts to heat up and the yellow indicator light is on, otherwise the machine will not work)
(2) Set the small switch of the control part to the "Measuring" side. At this time, the temperature displayed on the display screen is the actual temperature of the air in the test box. As the air temperature in the box changes, the displayed number will change accordingly.
(3) When the heating reaches your desired temperature, the heating will automatically stop and the green indicator light will be on; when the heat in the test chamber is lower than the temperature you set, a new round of heating will start again.
4. Turn on the oscillation device:
(1) Turn on the oscillation switch on the control panel, and the indicator light is on.
(2) Adjust the oscillation speed knob to the desired oscillation frequency.
5, cut off the power after work, set the speed control knob and temperature control knob to the lowest point.
6. Clean the machine and keep it clean.

Precautions
1. The appliance should be placed on a solid work surface, and the environment should be clean and tidy, and well ventilated.
2. The power socket provided by the user should have good grounding measures.
3. It is strictly forbidden to move the machine during normal work.
4. Never hit objects with the machine.
5. It is strictly forbidden for children to approach the machine to prevent accidents.
6. Make sure the power supply is cut off before replacing the fuse.
7. Please clean the machine after use, no water drops or dirt residues
