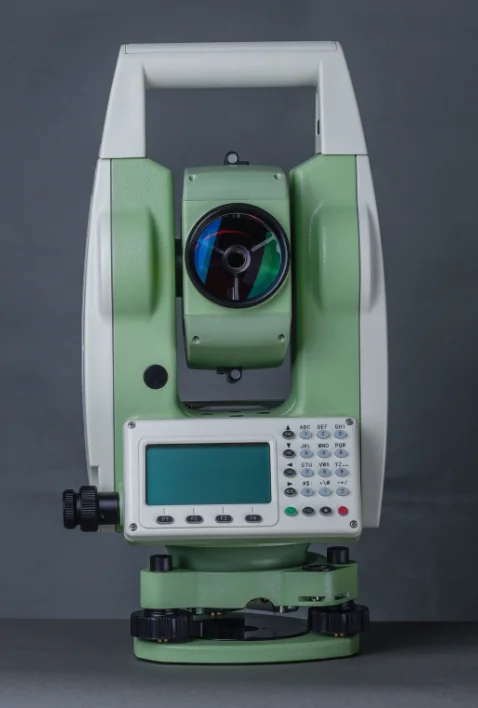

China Brand Sunway ATS120R Total Station for Measuring

Angle Measurement

Measurement Method

Absolute Encoding

Minimum Readout

1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional

Accuracy

2”

Distance Measurement (with Reflector)

Single Prism

5000m (9,842ft.) under good condition

Three Prisms

6000m (19,685ft.) under good condition

Reflective Sheet

800m (2,624 ft.)

Accuracy

2 mm +2ppm

Measuring Time (Fine/Quick/Tracking)

1.5s/1s/ 0.5s

Distance Measurement (Reflectorless)

Reflectorless Range

350m, 600m

Single Prism

7500m (24606ft.)

Accuracy

3mm+2ppm

Measuring Time

1.5s

Telescope

Magnification

30X

Field of View

1°30′ (2.7m at 100m)

Minimum Focusing Distance

1.2m

Reticle

Illuminated

Compensator

System

Dual-axis (optional)

Working Range

±3′

Setting Accuracy

1″

Bluetooth

Interface

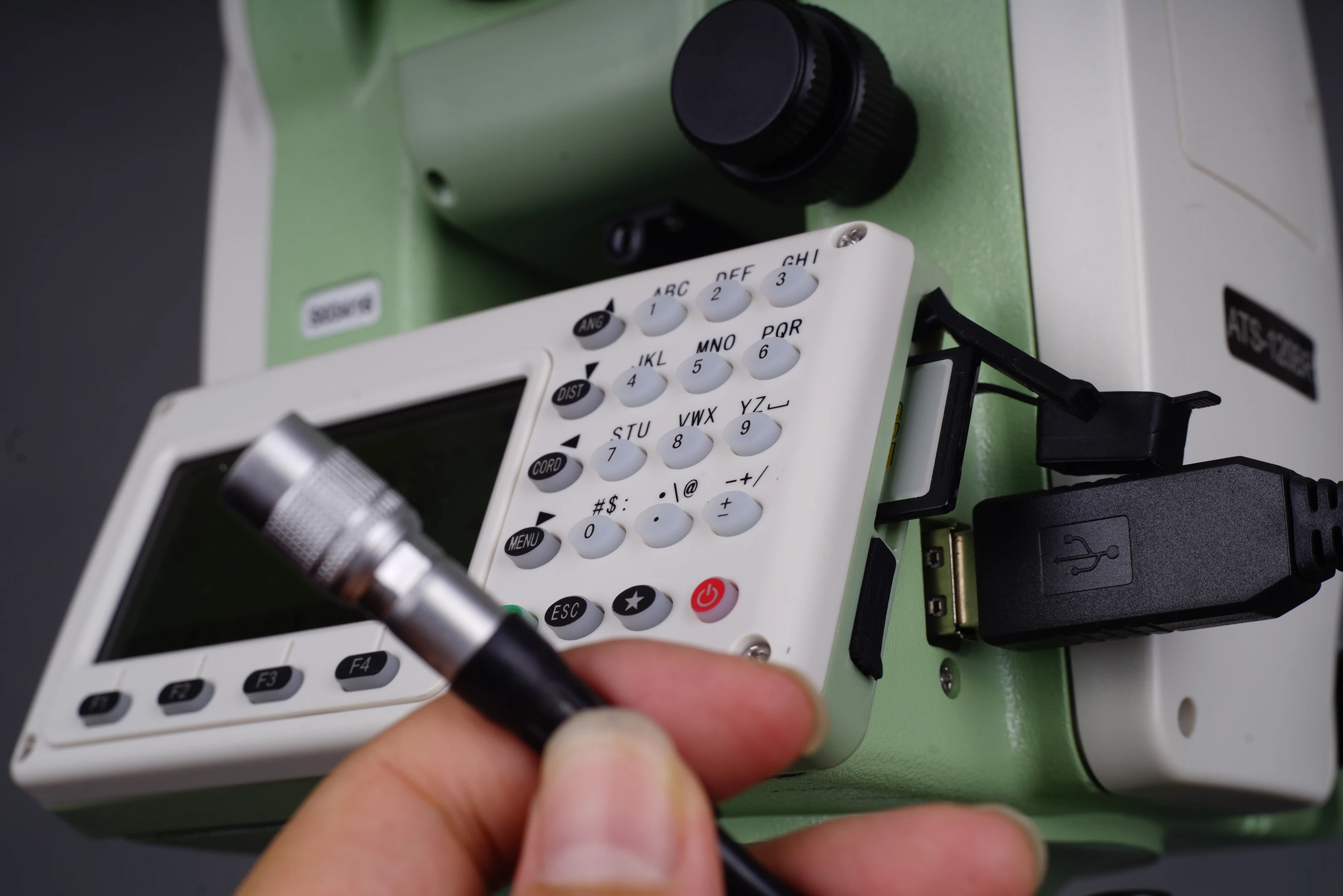

Standard RS232, SD card4, USB pen drive, mini-USB

Internal Data Memory

Approx. 20,000 Points

Data Format

ASCII

Operation

Operation system

Real-time Operating System

Display

High resolution backlight black and white display with contrast adjustment/ Graphics: 280 x 160 pixels / Character: 6 lines x 25 characters

Keyboard

2 sides Alphanumeric backlit crystal keyboard

Laser Plummet

Type

Laser point, 4 brightness levels adjustment / Optical plummet (optional)

Centering Accuracy

1 mm at 1.5m instrument height

Power Supply

Battery Type

Rechargeable Li-ion battery

Voltage/Capacity

ZBA-400: 7.4V (DC) / 3000mAh

Operating Time With ZBA-400

Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical)

Measuring Times

Approx. 12000 times

Environmental

Operating Temperature

 -20℃ ~+50℃( -4℉ to +122℉)

Storage Temperature

 -40℃ ~+70℃(-40℉ to +158℉)

Dust&Water Proof (IEC60529 Standard)/Humidity

 IP54, 95%, non-condensing
