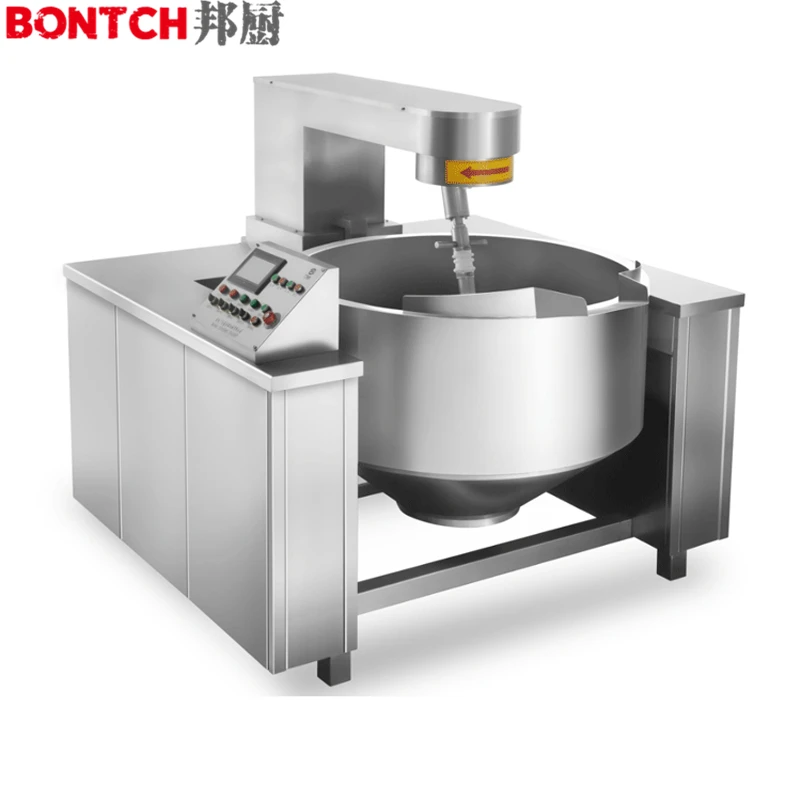

Planetary Stirring Cooking/Frying Pot Introduction
Usage:
It is widely used in all kinds of sauces, food fillings, restaurants and kitchens. It is applicable to the processing of lotus seed paste, fruit paste, bean stuffing and soy sauce. It is widely used in food processing, medicine, catering, daily chemical industry, etc.
Product Technical Parameter
Model
volume
body diameter
heating method
heating power
mixing/Hydraulic power
mixing speed
rollover method
BC-XDC-100
100L
800mm
electromagnetic/
fuel gas/
steam/
electric
18KW
0.75/1.5KW
40RPM
Hydraulic
BC-XDC-200
200L
900mm
27KW
1.5/1.5KW
Hydraulic
BC-XDC-300
300L
1000mm
30KW
1.5/1.5KW
Hydraulic
BC-XDC-400
400L
1100mm
36KW
1.5/1.5KW
Hydraulic
BC-XDC-500
500L
1200mm
40KW
2.2/1.5KW
Hydraulic
Main Features
1,Planetary Stirring Cooking/Frying Pot adopts special materials stamping molding, overall roundness error is very little,the stirring shovel is made of Teflon, the stirring heads are highly adhered to the pot, this can effectively control paste pot. 2,There are four heating methods, as steam, gas, electrical heating conducting oil and electromagnetic. 3,Planetary mixing mode is adopted for mixing, which can realize the function of even mixing and clean wall scraping. 4,The agitator is fixed, pot can be tilting
Detailed Images

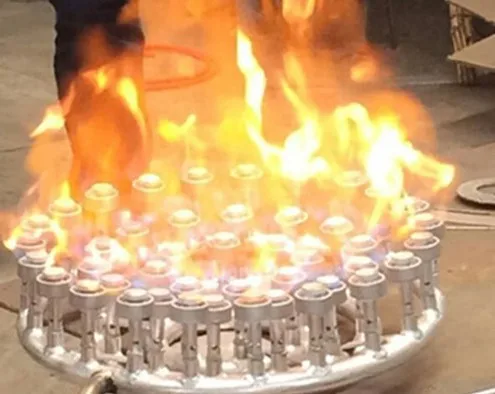

Unique design of gas pan
Unique design of furnace plate, uniform fire power can be controlled.

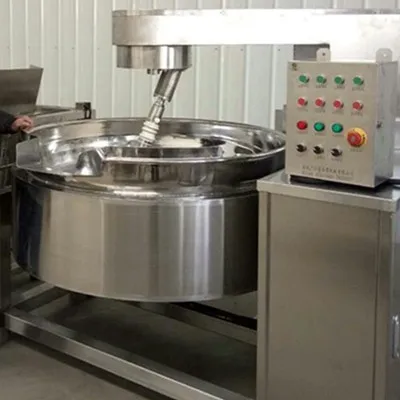

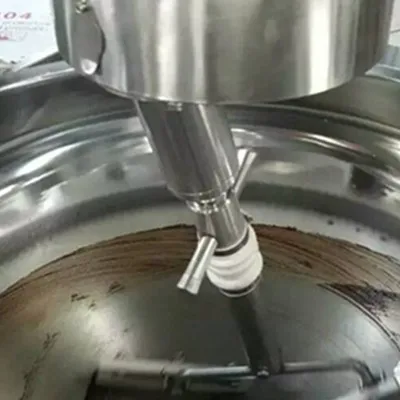

Agitator
The special inclined rotation is adopted for the mixing mode, so that the planet is the full contact between the agitator and the pot body, realizing the non integral rotation ratio of rotation and autobiography, so that there is no dead angle of mixing in the pot, and the materials are stirred and mixed more evenly.
The scraper with teflon is used for the agitator, which has a high fit with the pot body, and the bottom is scraped more thoroughly, so that the pot pasting phenomenon is not easy to occur

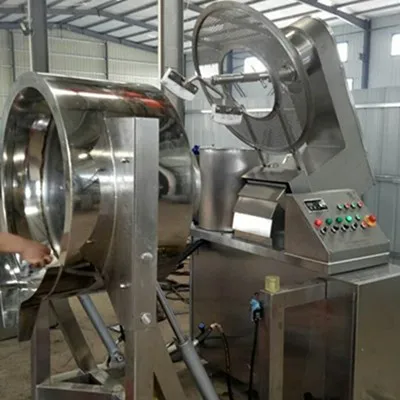

Turnover device
The hydraulic lifting mode can realize the hydraulic tilting pouring after the mixing is separated from the boiler body, which can tilt at 90 ° angle, without dead angle, easy to clean and reduce the labor intensity
High practicability
Simple operation, high efficiency, energy saving, environmental protection, easy maintenance.

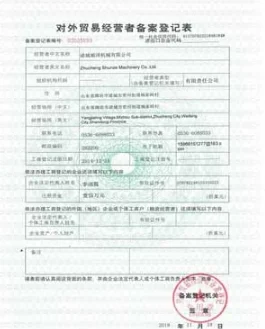

Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

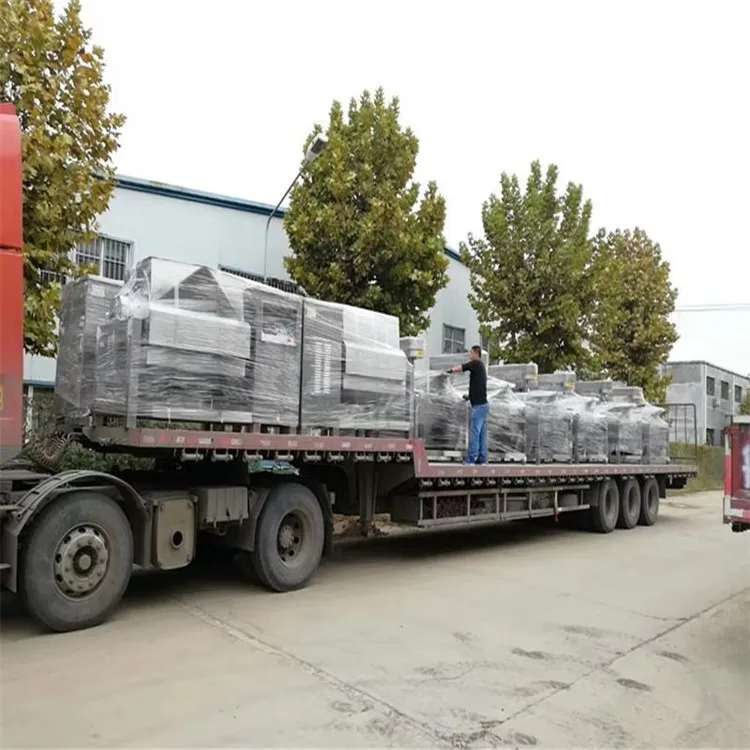

Packing & Delivery
Packaging
Packaging Details
Wrap the outside of the machine with plastic wrap.
