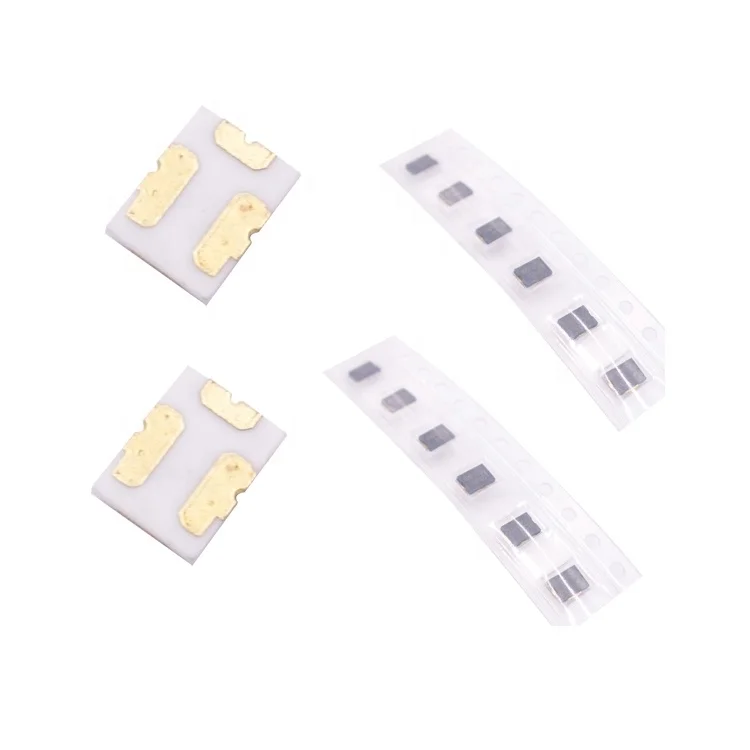

CLM1612 15A C Series Current Limiting Module Square Type Three Terminal Self Control Subminiature Fuse 36V For Notebook

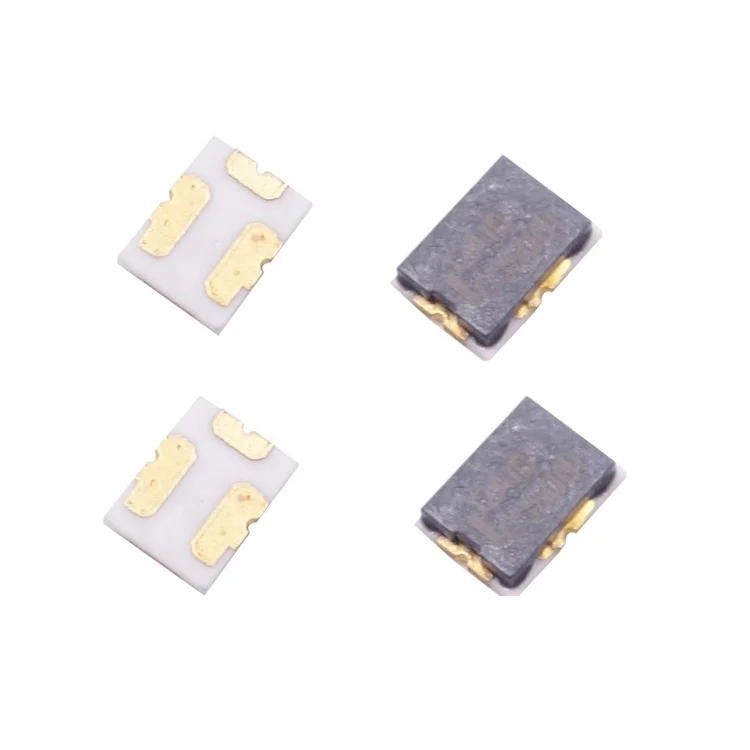

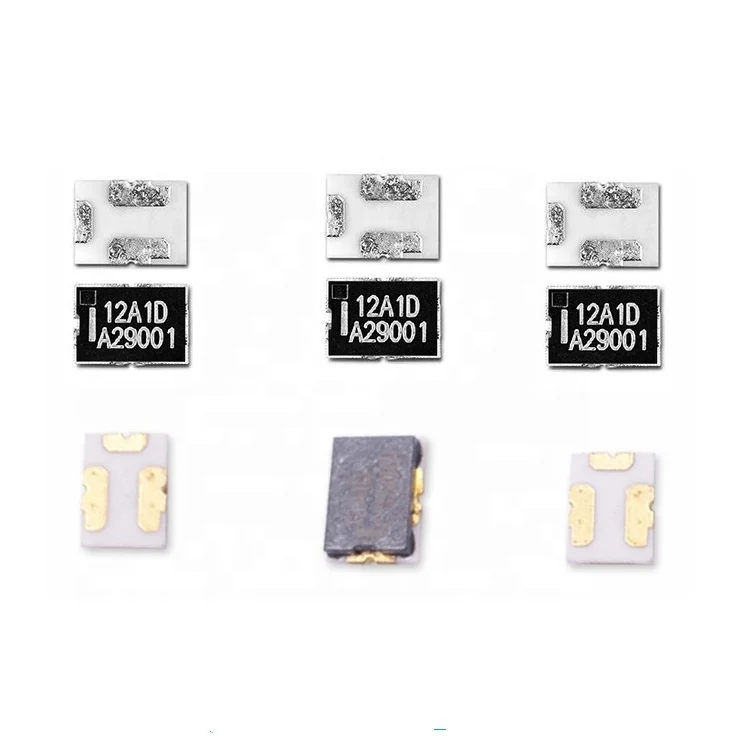

Current Limiting Module (CLM) is a chip type surface mountable device that can protect against both overcurrent and overcharging.
It comprises a fuse element to ensure stable operation under normal electrical current and to cut off the current when overcurrent
occurs. It also comprises a resistive heating element that could be used in combination with a voltage detecting means, such as IC
and FET. When overvoltage is detected, the heating element is electrically excited to generate heat to blow the fuse element to
achieve overvoltage protection.
It comprises a fuse element to ensure stable operation under normal electrical current and to cut off the current when overcurrent
occurs. It also comprises a resistive heating element that could be used in combination with a voltage detecting means, such as IC
and FET. When overvoltage is detected, the heating element is electrically excited to generate heat to blow the fuse element to
achieve overvoltage protection.
* Halogen-free
* Overcharging protection
* Overcurrent protection
* Surface mountable
* Fast response time
* Notebook
* Cell phone
* Camera
* Ultrabook
* Tablet PC
* Automotive applications
* Printer
* Security systems
Agency Approval and Environmental Compliance
UL File Number:E331807
TUV File Number:TA 50428400
HF : IEC 61249-2-21:2003

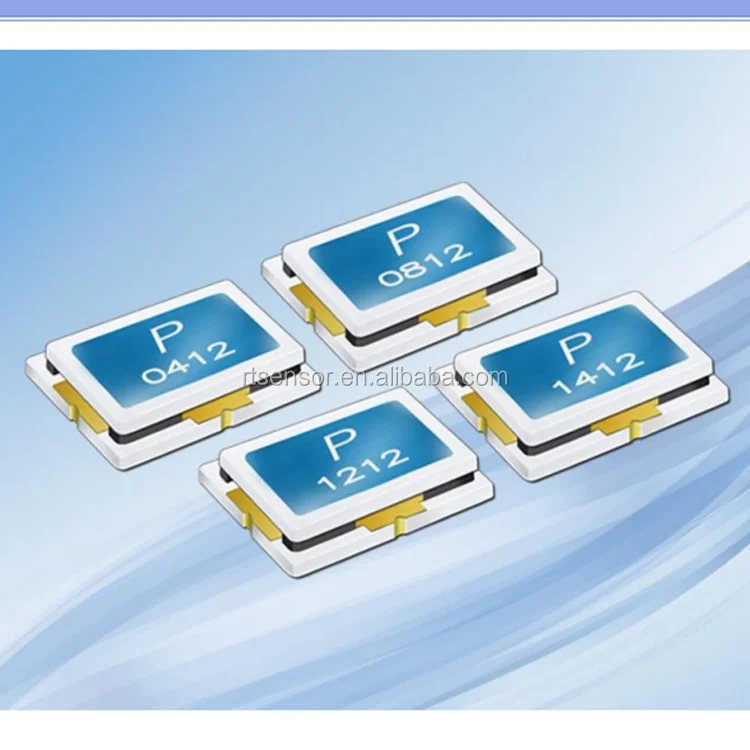

Electrical Specifications | ||||||||
Part Number | Irated (A) | Cells in series | Vmax (VDC) | Ibreak (A) | ||||
CLM1612P0415C | 15A | 1 | 36V | 50A | ||||
CLM1612P0815C | 15A | 2 | 36V | 50A | ||||
CLM1612P1215C | 15A | 3 | 36V | 50A | ||||
CLM1612P1415C | 15A | 4 | 36V | 50A | ||||
CLM1612P2015C | 15A | 5 | 36V | 50A | ||||
Electrical Characteristics
Current Capacity 100% x Irated No Melting
Cut Time 200% x Irated < 1 min
Interrupting Current 5 x Irated, power on 5 ms, power off 995 ms, 10000 cycles No Melting
Over Voltage Operation In operation voltage range, the fusing time is <1min.
Thermal Derating Characteristics | ||||||
Ambient Temperature (ºC) | 20 | 40 | 60 | |||
Recommend Rated Current (A) | 18 | 16 | 13.5 | |||

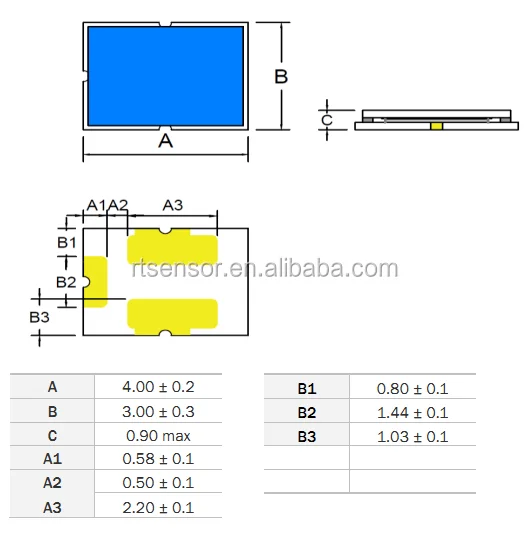

Physical Dimensions (mm.)
