High & Low Voltage Wind Machine coil winding transformer winding
- Category: >>>
- Supplier: Shanghai Tongli Electrical Engineering Equipment Factory
Share on (62449409113):
Product Overview
Description
Product Display
Product Display
Product Parameter
Product Parameter

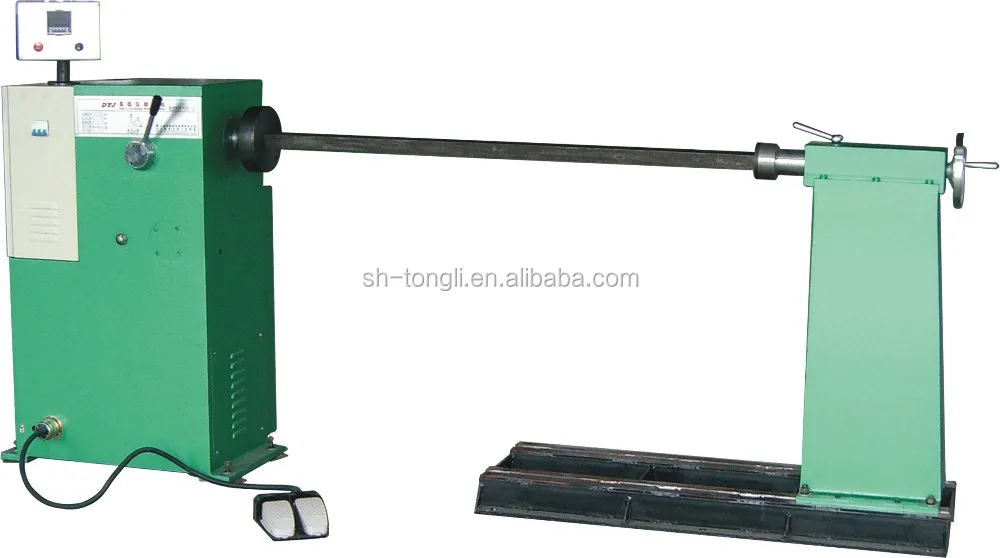

High & Low-voltage Winding Machine is capable of winding medium and small transformers of various specifications. Using mechanic shift gear with three different transmission ratio, electronic invertible counter and imported frequency converter in speed change, the machine is smooth to start up and good in self locking. Low in noise and convenient to operate, the machine performs qualified winding work.
Main Technical Parameters | |||
Item | Parameters | ||
DYJ-800 | DYJ-1500 | DYJ-2500 | |
Winding speed (r/min) | 34/125/240 | 17/63/120 | |
Maximum torque (N.m) | 800 | 1500 | 2500 |
Maximum load (kg) | 1200 | ||
Accessories Long axis | 40×40×1500 | ||
Accessories Short axis | 40×40×1000 | ||
Winding width (max.) (mm) | 1450 | ||
The motor speed | 1450 | ||
Stern frame adjusting range | 800-1500 | ||
Center height (mm) | 1000 | ||
Total weight (kg) | 900 | 1000 | |
Power of motor (kw) | 3 | 5.5 | |
Counter by electronic reversible counter (with blackouts memory function) | |||
USES frequency conversion control stepless speed regulation | |||
Certification LOGO
Certification LOGO
Factory Display
Factory Display

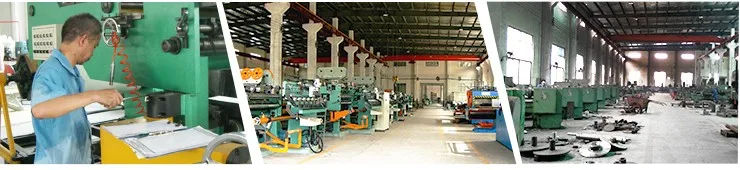

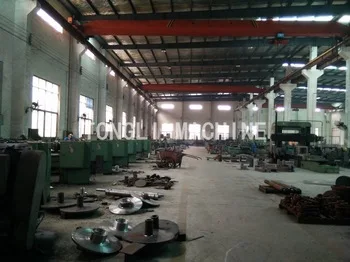

We have over 100 employee, including 30 technician, and equipped with about 100 specialized processing facilities.
Technical Support
Product Parameter
The warranty period for the machine is one year, and the user enjoys free warranty services within the warranty period. If the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. We offer lifelong service and spare parts.
Customer Photo
Customer Photo
Packaging Shipping
Packaging Shipping
Our products are mainly shipped with containers by sea, departure port at Shanghai.
FAQ
FAQ
| Q: | Which kind of payment terms are available for purchasing your products? |
| A: | You can T/T,FOB,CIF. |
| Q: | Which preparation work shall we make if we buy your products? |
| A: | Groundwork would be necessary for some products. We will provide relevant groundwork drawings and layouts after receiving your order. |
| Q: | Do you send your commissioning staff in time when the product arrives? |
| A: | Yes, our commissioning staff will arrive at your site in 5 days when the product arrives. |
| Q: | Do you collect any charge for the first commissioning and training of your product? |
| A: | Both first commissioning and training are free of charge, but the buyer shall be responsible for their accommodation, meal and communication. |
